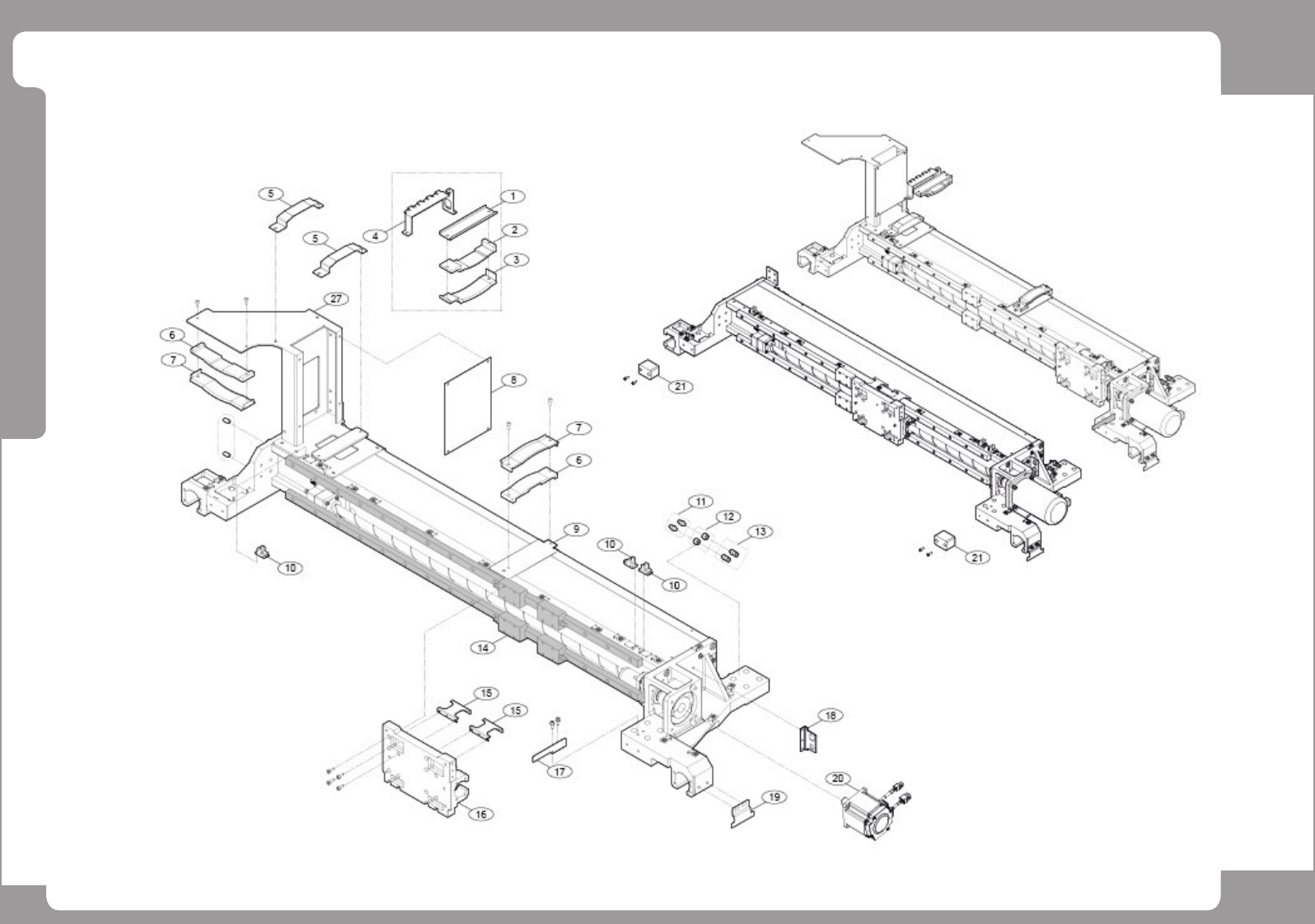

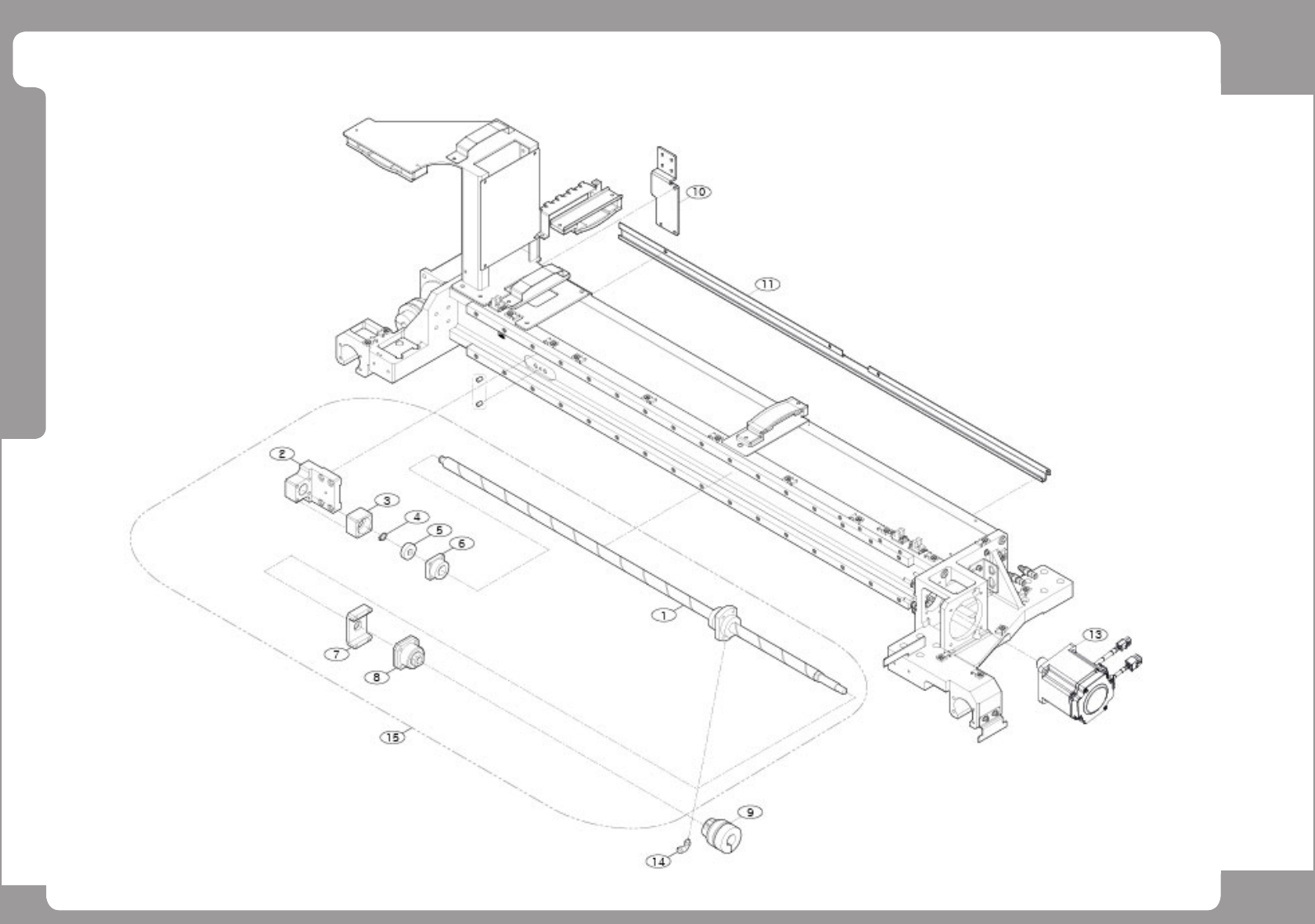

NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-001648A BRACKET-CABLE FIXER 1
2 PM02-000794A CUSHION-CABLE X 2
3 FC09-001481B BRACKET-CUSHION X 2 FC09-001481A
4 FC09-001577B BRACKET-FLAT_CABLE_CLAMP 1
5 FC09-001662B BRACKET-BKT CABLE X 2 FC09-001662A
6 PM02-000795A CUSHION-CABLE Y 2
7 FC09-001485A BRACKET-CUSHION Y 2
8 FC15-000971A COVER-COVER CHAIN Y 1
9 FC09-001771B BRACKET-BKT CABLE CHAIN X 1 FC09-001771A
10 EP19-900114 LIMIT SENSOR 3
11 FC28-900369 GREASE NIPPLE 4
12 FC18-001477A GREASE_NIPPLE_NUT 4 J70541105A
13 HP06-900080 STRAIGHT_FITTING 4
14 MC13-900032 LM_GUIDE-X 2
15 J70541038A SENSOR_DOG_X 2
16 FC05-000148E BASE-HEAD 1 FC05-000148B/ FC05-000148D
17 FC29-001213A DOG-DOG CRASH 1
18 FC09-007486A BRACKET-SERVO CONNECTOR BKT A6 1 J70530690B / FC09-004585A
19 J70541008A SENSOR_DOG-Y 1
20 EP08-001066 MOTOR,SERVO 1 EP08-900157
21 FC29-001212B STOPPER-CRASH CUSHION 2 FC29-001212A
27 FC09-001671A BRACKET-BKT CABLE CHAIN Y 1
