SM471_PLUS_TRM(Ver2.5_CS20.12) - 第92页
Page +$1:+$ 88 SM471 PLUS X-Y Frame Ass’y (3/4)
Page
+$1:+$
87
SM471
PLUS
X-Y Frame Ass’y (2/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC13-000125 SCREW,BALL 2
2 FC29-001079A SUPPORT-B SCREW X 1
3 J71541010A BRG_HOUSING-X 1
4 FC18-901667 C-RING [10mm (SHAFT)] 1
5 MC03-900008 BALL BEARING 1
6 FC29-004430A CUSHION_X_REAR 1 J72541005B
7 FC29-004428A CUSHION_X_FRONT 1 J72541003A
8 MC04-900012 SUPPORT_UNIT 1
9 FC14-900236 COUPLING 1
10 FC09-001308A BRACKET-CABLE_CHAIN-Y_SUPPORT 1
11 FC15-000972B COVER CABLE X 1
13 EP08-001066 MOTOR,SERVO 1 EP08-900157
14 HP06-900078 ELBOW_UNION 1
15 AM03-004968A ASSY,X-Y FRAME-X BALL SCREW 1
Page
+$1:+$
88
SM471
PLUS
X-Y Frame Ass’y (3/4)
Page
+$1:+$
89
SM471
PLUS

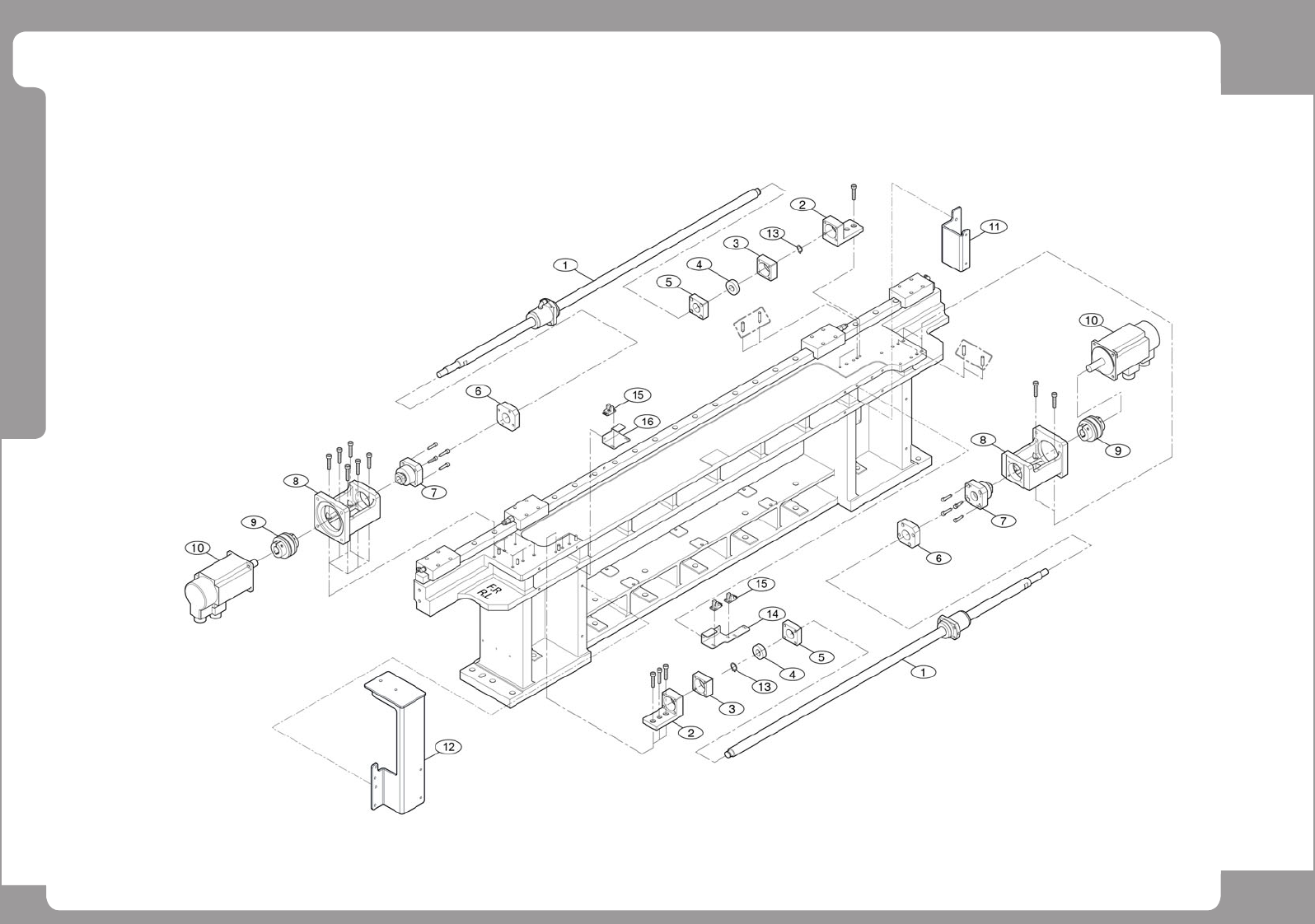

X-Y Frame Ass’y (3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC13-900160 Y-BALL_SCREW 2
2 J70541006C BS_REAR_SUPPORT 2
3 J70541030A BRG_HOUSING_Y 2
4 MC03-900027 BALL BEARING 2
5 FC29-001076B STOPPER-STOPPER Y BS REAR 2 FC29-001076A
6 FC29-004431A STOPPER_Y_BALL_SCREW_FRONT 2 J72541006A
7 MC04-900028 SUPPORT UNIT 2
8 J70541005C Y_MOTOR_BLOCK 2 FC07-000386A
9 FC14-900237 COUPLING 4
10 EP08-900158 SERVO_MOTOR 4 EP08-900158 / EP08-000139
11 J70541366A SIDE_COVER_BKT-2 1
12 FC09-001720A BRACKET-SIDE COVER 1 1
13 FC18-901665 C-RING (SHAFT) 1
14 J70541009A SENSOR_BKT_HOME-Y 1
15 EP19-900114 LIMIT SENSOR 3
16 FC09-001507A BRACKET-BKT SNS Y 1
