Page +$1:+$ 93 SM471 PLUS
Page
+$1:+$
92
SM471
PLUS
X-Y Frame Ass’y (4/4)
NO. PART NO. PART NAME Q'TY Old No. Reference
31 FC09-007265A BRACKET-AXIS B PROTECT UPPER BKT 2
32 TO03-001042A GRIPPER-40P_CONNECTOR_CLIP 8
33 AM03-015154E ASSY,BOARD-CAN CONVEYOR IF_V3.0(WITH ILL 1
Page
+$1:+$
93
SM471
PLUS
Page
+$1:+$
94
SM471
PLUS

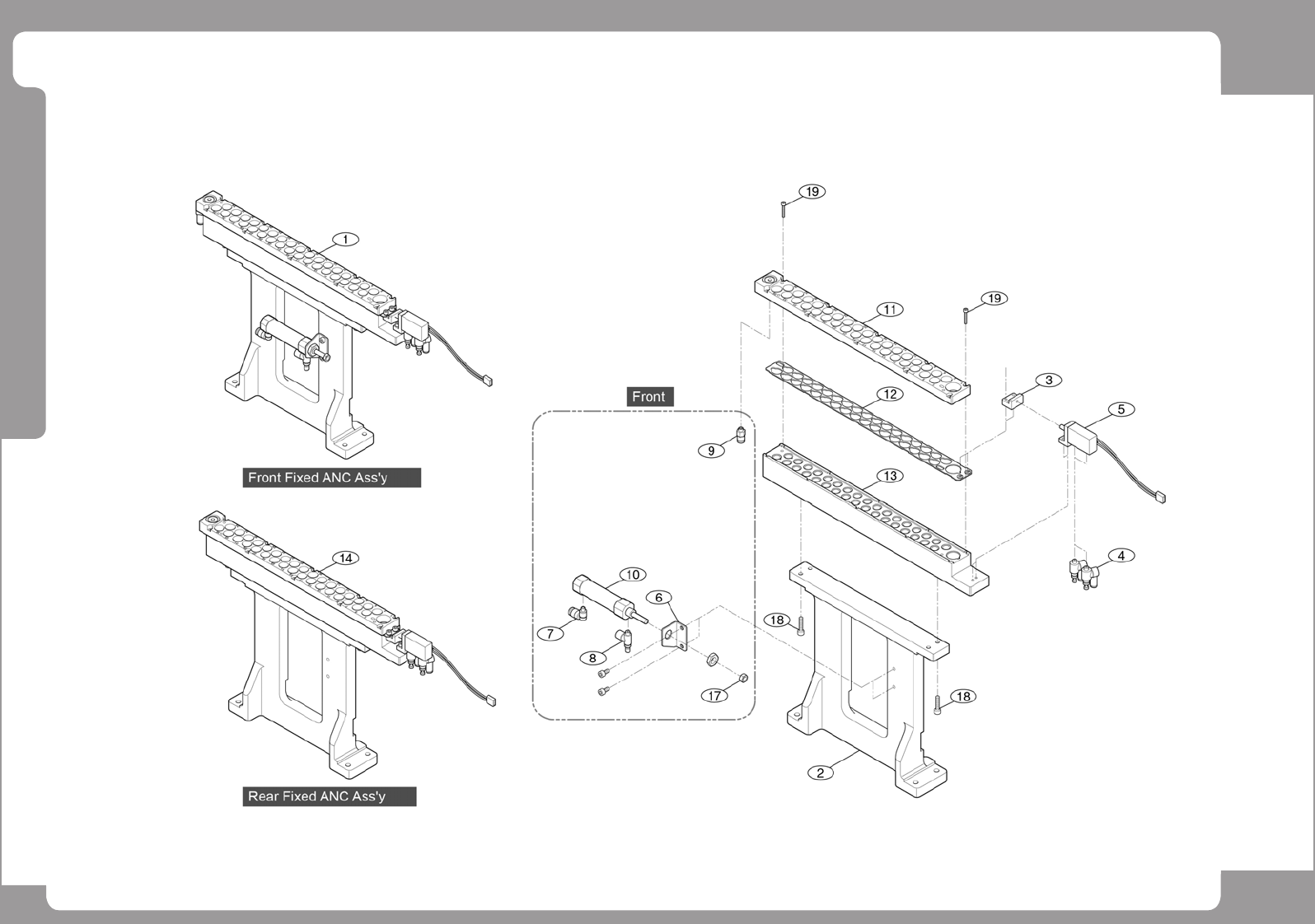

Fixed ANC Ass’y
