12 DEK NeoHori zon 03iX Machine foot print
11
DEK NeoHorizon 03iX
Machine productivity options
Transport
Specification
Substrate Support
Vacuum tooling capability
Vacuum tooling sensor
Vacuum cupes
Grid-Lok® tooling
Substrate Transport
Single piece conveyor with flat belts (heavy boards)
Remote board stop (for use with heavy board option)
Dual Speed Motor* (to be released)
Substrate Fixture
All Purpose Clamping (APC) system*
Snuggers (edge clamping)
Foil-less clamps
* Can only be used with Modular rail system
Vision & Verfication
Specification
HawkEye® 750 Paste on Pad Verification
Enabled
HawkEye® 1700 Paste on Pad
Verification
Enabled (camera included)
HawkEye
HawkEye® Bridging (requires HawkEye® 1700
camera)
2Di Inspection
Basic stencil and board
Advanced stencil and board
Data Capture
Specification
Product Data Capture
Verification & Traceability
ProDEK closed loop
12
DEK NeoHorizon 03iX

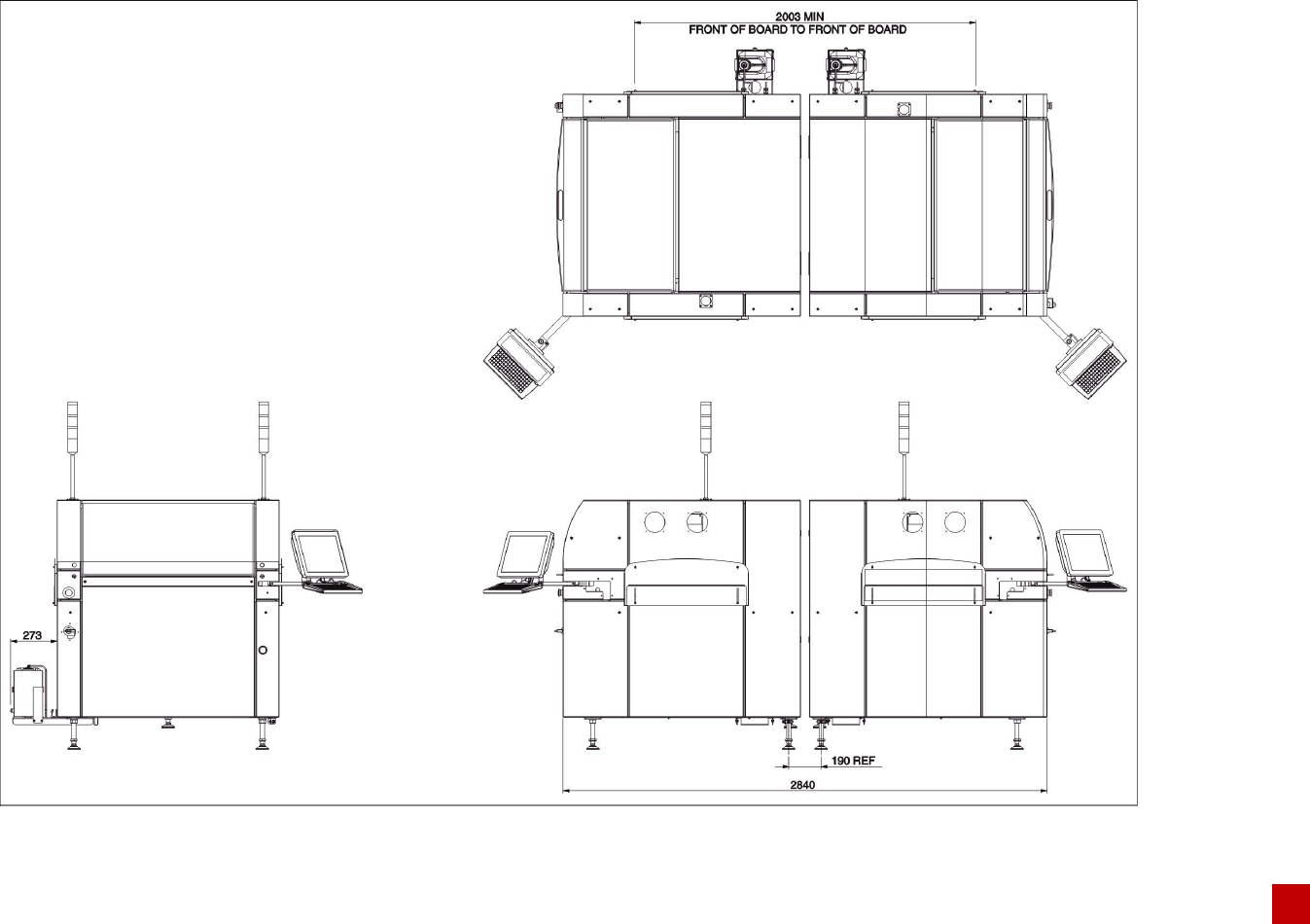

Machine footprint
13
DEK NeoHorizon 03iX
Machine footprint Back to Back
