KJN_d-YTF(YS)_PL - 第11页
1 6 Hook Hook KJN-0901 14 70 58 66 22 11 12 57 61 19 58 70 17 27 51 56 10 56 18 5 59 4 66 58 54 6 2 20 72 47 64 13 60 1 50 52 65 59 5 7 8 68 28 53 42 21 69 34 55 49 48 37 36 67 39 38 58 66 41 29 64 41 30 20 60 25 40 26 6…
2
5

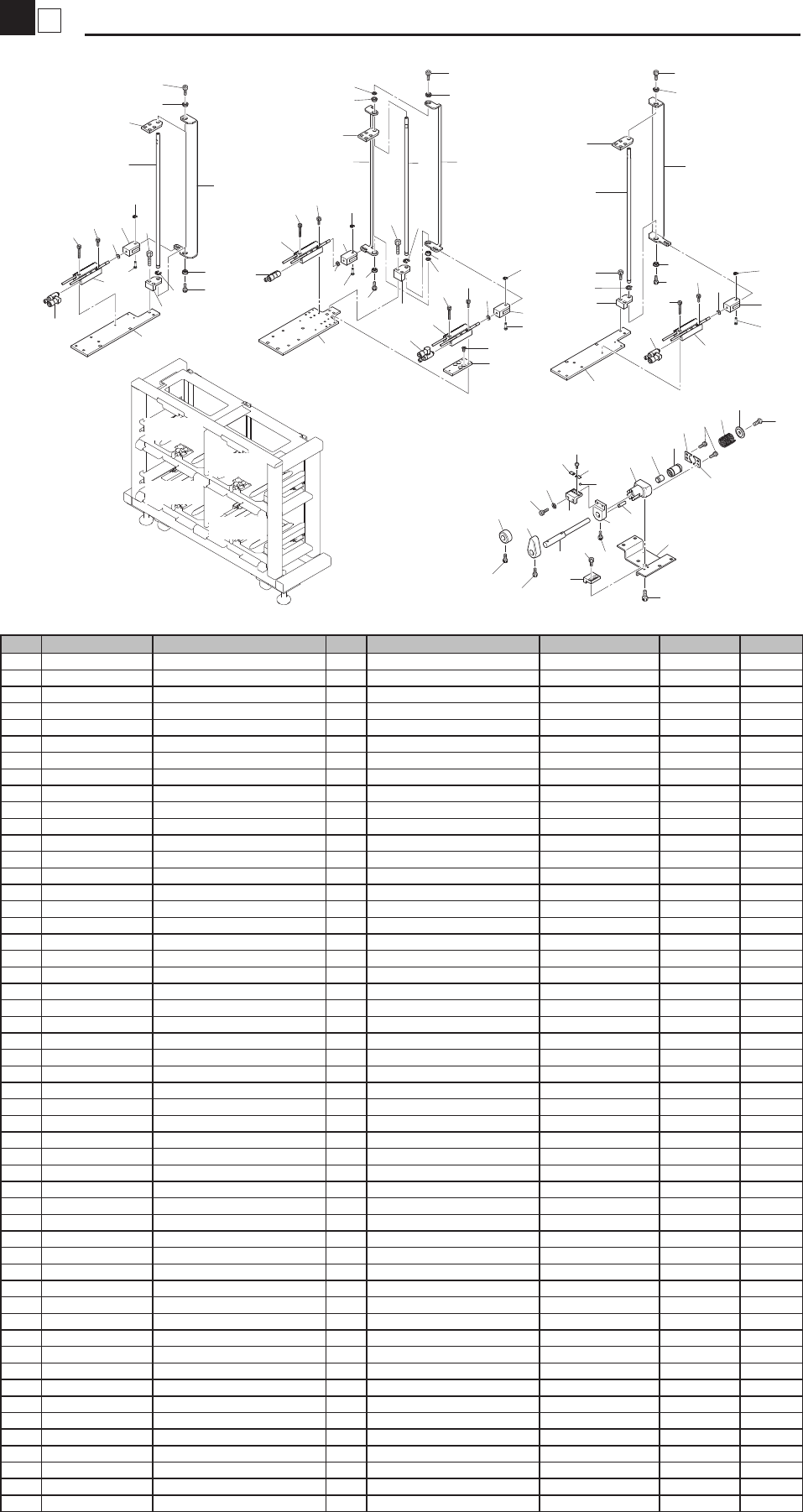

Shutter+Rack Lock
Magazine
KJN-0901
Rack Lock
Shuter CShuter R Shuter L
8
7
9
12
46
13
42
13
21
19
9
13
42
13
9
19
20
15
15
11
11
15
11
10
15
11
10
16
16
4
50
40
41
48
14
13
12
13
42
40
41
2
1
10
10
13
46
5
13
42
18
14
18
3
22
22
22
17
17
49
31
36
44
37
32
33
25
30
27
45
47
24
39
28
23
23
38
51
45
29
44
26
45
34
35
37
16
16
40
1
41
40
41
22
43
43
14
1Stage
L
L
R
R
2Stage
3Stage
4Stage
6
45
2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJN-M652J-11 CYLINDER LAT ASSY2 4 1,2Stage R 3,4Stage L
2 KJN-M652J-01 CYLINDER LAT ASSY1 4 1,2Stage L 3,4Stage R
3 KGX-M178B-00 BASE,SHUTTER CENTER 2 All Stage
4 KGX-M178C-00 SPACER,CYLINDER 2 3,4Stage
5 KGX-M178E-00 BLOCK,SHAFT 2
6 KGX-M178G-00 SHAFT,SHUTTER CENTER 2
7
KJN-M178J-01
SHUTTER,C-R 2
3,4Stage
8 KJN-M178K-01 SHUTTER,C-L 2 1,2Stage
9 KGX-M178L-00 HOLDER,SHAFT 6
10 KGX-M178M-00 Y LINK 8
11 KGX-M178N-00 SHAFT,LINK 16
11-1 KGX-M178N-01 SHAFT,LINK 16 with ange 2012/8/21 MJ70177 OK
12 90990-29J045 SHIM 2
13 90933-03J683 BEARING 16
14 90440-01J040 CIRCLIP 6
15 90440-01J020 CIRCLIP 16
15-1 90440-01J020 CIRCLIP 8 2012/8/21 MJ70177 OK
16 95302-03700 NUT HEXAGON 8
17 KJF-M178D-00 BASE,SHUTTER SIDE 4 All Stage
18 KGX-M178F-00 BLOCK 2,SHAFT 4
19 KJF-M178H-00 SHAFT 2,SHUTTER 4
20 KJF-M178P-00 SHUTTER,R 2 1,2Stage
21 KJF-M178R-00 SHUTTER,L 2 3,4Stage
22 KJF-M179F-10 SPEED CONTROLLER 16
23 KGX-M1787-01 LEAF SPRIG 8
24 KGX-M1791-00 BASE,LOCK 4
25 KGX-M1792-00 HOLDER 1,SHAFT 4
26 KGX-M1793-00 SHAFT,LOCK 4
27 KGX-M1794-00 HOLDER 3,SHAFT 4
28 KGX-M1795-01 NAIL,LOCK 4
29 KGX-M1796-00 BRACKET,SENSOR 4
30 KGX-M1797-00 SHAFT,STOPPER 4
31 KGX-M1798-00 WASHER 4
32 KGX-M1799-00 LINER BALL BUSH 4
33 KGX-M179B-00 BUSH 4
34 KGX-M179C-00 LEVER 4
35 KGX-M179C-A0 LEVER 4 IT O/P
36 KGX-M179D-00 SPG. 4
37 KGT-M9224-00 STOPPER,BUSHING 8
38 90947-30JA00 BALL STEEL 1 8
39 KM5-M7169-00 SCREW : M2X2 8
40 90112-02J006 BOLT,HEX.SOCKET HEAD 16
41 90112-02J012 BOLT,HEX.S.H: M2X12 8
42 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
43 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
44 91317-03005 BOLT HEX.SOCKET HEAD 20 M3X5
45 91317-03008 BOLT HEX.SOCKET HEAD 4 M3X8
46 91317-03010 BOLT HEX.SOCKET HEAD 2 M3X10
47 91317-04005 BOLT HEX.SOCKET HEAD 8 M4X5
48 91317-04016 BOLT HEX.SOCKET HEAD 4 M4X10
49 92017-04010 BOLT HEX.SOCKET HEAD 4 M4X16
50 98707-03006 SCREW,FLAT HEAD 8
1
6

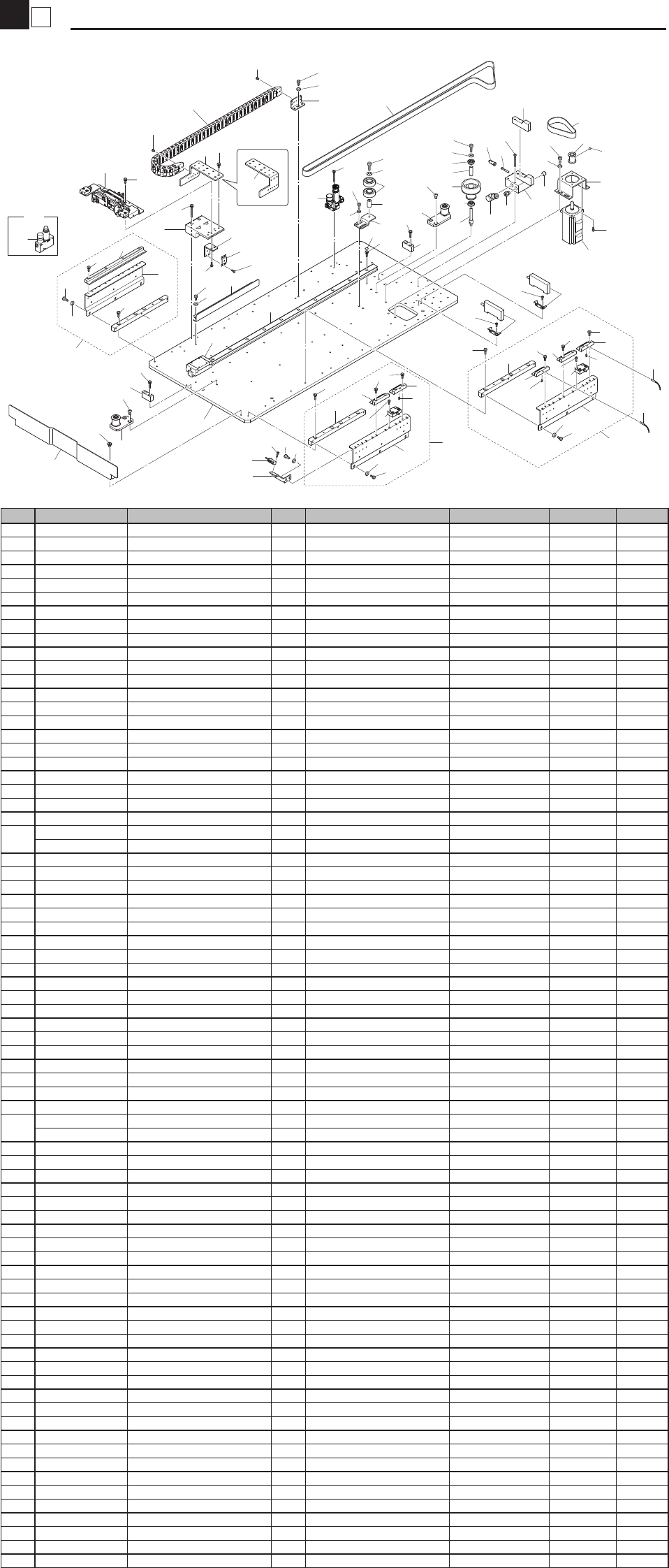

Hook
Hook
KJN-0901
14
70
58
66
22
11
12
57
61
19
58
70
17
27
51
56
10
56
18
5
59
4
66
58
54
6
2
20
72
47
64
13
60
1
50
52
65
59
5
7
8
68
28
53
42
21
69
34
55
49
48
37
36
67
39
38
58
66
41
29
64
41
30
20
60
25
40
26
63
15
55
62
67
35
13
59
24
46
31
62
32
71
59
5
7
66
58
4
3
3
54
54
54
53
48
9
8
68
33
9
4
66
58
23
16
66
44
43
45
33
71
54
8
68
28
OLD
35
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M1801-00 HOOK BASE 1
2 KJF-M18C0-00 GUIDE PALLET 1 ASSY. 4
3 KJF-M18D0-00 GUIDE PALLET 2 ASSY. 2
4 KJF-M1802-00 PLATE A 2
5 KGW-M1803-01 PLATE B 2
6 KGW-M1804-02 GUIDE PALLET A 2
7 KGW-M1804-12 GUIDE PALLET B 2
8 KGW-M1804-22 GUIDE PALLET C 2
9 KGX-M18A3-00 PLUNGER ASSY. 2
10 KJF-M1806-00 HOOK BASE 1
11 KJF-M1807-L0 BRACKET,L 1 L TYPE
12 KJF-M1807-R0 BRACKET,R 1 R TYPE
13 KGW-M1808-00 DAMPER 2
14 KGW-M1809-00 CABLE GUIDE 1
15 KGW-M1810-00 BELT,HOOK:S3M 1415 1
16 KGW-M1813-00 BRACKET,SENSOR 1
17 KGW-M1814-00 BRKT.BELT 1
18 KGW-M1815-00 BRKT. GUIDE 1
19 KJN-M18A0-00 PALLET HOOK ASSY. 1
20 KGW-M18B0-00 PULLEY ASSY. 2
21 KGX-M1812-00 BRACKET,MOTOR HOOK 1
22 KGX-M181A-00 BRACKET,GUIDE 1
23
KJN-M652T-00 SENSOR,PLT 1 CHK ASSY 1 R TYPE
KJN-M652T-10 SENSOR,PLT 2 CHK ASSY 1 L TYPE
24 KGX-M181G-00 HOLDER,PULLEY 1
25 90990-41J028 COLLAR 1
26 90990-28J051 WASHER,PLAIN 1
27 KGX-M1824-00 HOLDER 2,BELT 1
28 KJN-M652U-10 SENSOR PLT MID ASSY 1 EDGE
29 90990-41J004 COLLAR 1
30 KGX-M181F-00 SHAFT 2,PULLEY 1
31 KB0-M2255-01 PULLEY,5 1
32 KC0-M1751-00 PULLEY,1 :P16S3M0150 1
33 KJN-M652U-00 SENSOR PLT SET ASSY 1 SET
34 KV4-M1826-00 BELT MOTOR 1
35 KM5-M8504-00 REGULATOR : RVUM4-4 1
35-1 $RVUMP4-4 REGULATOR 1 (2020/12/15) MTY0006 OK
36 K40-M8598-00 PLUG 1 2
37 KH2-M7101-00 VALVE 1 1
38 $KM-10 MUFFLER 1
39 $SL6-01 JOINT 1
40 90933-01J200 BEARING 2
41 90933-03J696 BEARING 2
42
90K63-001330 AC SERVO MOTOR 1 R TYPE
90K63-001331 AC SERVO MOTOR 1 L TYPE
43 90K71-6U0650 LM GUIDE 1
44 90K80-S15RW0 LM BLOCK,SSR15W-R 1
45 KHW-M8582-40 VALVE 1 SPARE
46 90K81-200004 CAP C4 11
47 KJN-M18S1-00 HOOK COVER 1
48 $UP4 JOINT 1
49 $USD4-2M JOINT 4
50 90115-02J008 BOLT HEX.SOCKET HEAD 2
51 91312-03005 BOLT HEX.SOCKET HEAD 4 M3X5
52 91312-03006 BOLT HEX.SOCKET HEAD 2 M3X6
53 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
54 91312-03010 BOLT HEX.SOCKET HEAD 10 M3X10
55 91312-03030 BOLT,HEX.SOCKET HEAD 4 M3X30
56 91312-04006 BOLT HEX.SOCKET HEAD 5 M4X6
57 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
58 91312-04010 BOLT HEX.SOCKET HEAD 5 M4X10
59 91312-04012 BOLT,HEX.SOCKET HEAD 35 M4X12
60 91312-04016 BOLT,HEX.SOCKET HEAD 4 M4X16
61 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
62 91312-05010 BOLT HEX.SOCKET HEAD 6 M5X10
63 91312-05025 BOLT HEX.SOCKET HEAD 1 M5X25
64 92012-05010 BOLT,BUTTON HEAD 4
65 92902-03200 WASHER PLAIN 2
66 92902-04200 WASHER PLAIN 5
67 92902-05600 WASHER PLAIN 6
68 92A08-03305 SCREW,SET 2
69 92A08-04304 SET SCREW M4X4 2
69-1 92A08-04303 SET SCREW M4X3 2 (2017/12/12) MPY0001 OK
70 98902-03005 SCREW BINDING HEAD 4
71 98902-03008 SCREW BINDING HEAD 4
72 90990-12J001 SCREW BIN.HEAD W/W 2
2
6

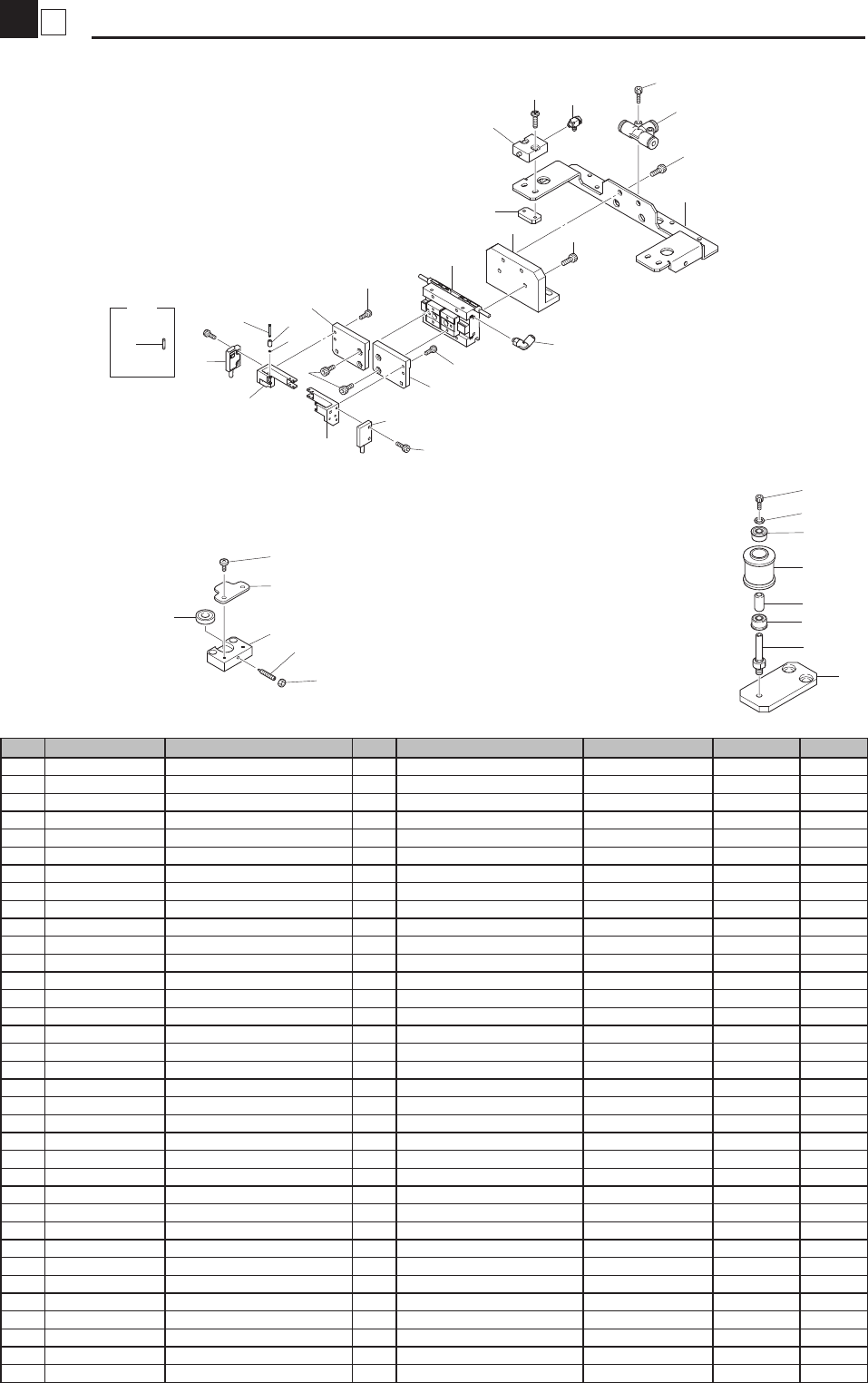

Pallet Hook Pully
Hook
KJN-1110
27
11
12
9
26
8
4
25
25
34
35
22
22
21
20
23
24
6
5
25
7
3
2
29
10
31
15
30
14
28
1
13
33
17
16
18
32
19
Pallet Hook
Plunger Pulley
6
OLD
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M18A1-00 BRKT. CYLINDER 1
2 KGW-M18A2-00 NUT PLATE 2
3 KGW-M18A3-01 PLATE 1,CYLINDER 1
4 KJF-M18A4-L0 BLOCK,HAND L 1
5 KJF-M18A4-R0 BLOCK,HAND R 1
6 KJN-M652M-00 SENSOR,HOOK CHK ASSY 1
7 KJN-M652R-01 CYLINDER HOOK ASSY 1
8 KGX-M1834-L0 NAIL 1 1
9 KGX-M1834-R0 NAIL 2 1
10 KGD-M9244-00 CYLINDER 2
11 KV7-M81D3-00 PIN 6
11-1 KV7-M81D3-01 PIN 6 (2011/10/4) MH80088 OK
12 KV7-M81D4-00 ROLLER 6
13 KGW-M781J-00 JOINT(D1.8) 2
14 $UT4 JOINT 1
15 $UEF4BU-M3 JOINT 2
16 KGX-M1841-00 BASE PLUNGER 1
17 KGX-M1842-00 COVER PLUNGER 1
18 KGX-M1843-00 PLUNGER 1
19 90933-02J604 BEARING 1
20 KGW-M18B1-01 PULLEY BASE 1
21 KGX-M1826-00 SHAFT 1,PULLEY 1
22 90933-03J685 BEARING 2
23 KGX-M1828-00 COLLAR 1 1
24 KC4-M1751-00 PULLEY,1 1
25 90115-02J006 BOLT HEX.SOCKET HEAD 8 M2X6
26 90115-2AJ005 BOLT,HEX.SOCKET HEAD 4 M2X5
27 90440-10J008 CIRCLIP 12
27-1 90440-10J008 CIRCLIP 6 (2011/10/4) MH80088 OK
28 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
29 91317-03008 BOLT HEX.SOCKET HEAD 2 M3X8
30 91317-03012 BOLT HEX.SOCKET HEAD 2 M3X12
31 98904-03012 SCREW BINDING HEAD 4
32 95304-03700 NUT HEXAGON 1
33 98904-03008 SCREW BINDING HEAD 2
