KJN_d-YTF(YS)_PL - 第13页
1 7 DX+Freame T raverser KJN-0901 35 15 14 14 35 35 35 38 41 43 16 36 12 30 35 35 34 30 18 31 33 30 20 20 21 34 27 42 34 42 22 39 1 1 35 42 42 34 3 4 24 23 19 26 42 42 37 37 32 32 6 6 28 2 8 40 32 6 10 29 6 32 30 33 18 2…
2
6
Pallet Hook Pully
Hook
KJN-1110
27
11
12
9
26
8
4
25
25
34
35
22
22
21
20
23
24
6
5
25
7
3
2
29
10
31
15
30
14
28
1
13
33
17
16
18
32
19
Pallet Hook
Plunger Pulley
6
OLD
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M18A1-00 BRKT. CYLINDER 1
2 KGW-M18A2-00 NUT PLATE 2
3 KGW-M18A3-01 PLATE 1,CYLINDER 1
4 KJF-M18A4-L0 BLOCK,HAND L 1
5 KJF-M18A4-R0 BLOCK,HAND R 1
6 KJN-M652M-00 SENSOR,HOOK CHK ASSY 1
7 KJN-M652R-01 CYLINDER HOOK ASSY 1
8 KGX-M1834-L0 NAIL 1 1
9 KGX-M1834-R0 NAIL 2 1
10 KGD-M9244-00 CYLINDER 2
11 KV7-M81D3-00 PIN 6
11-1 KV7-M81D3-01 PIN 6 (2011/10/4) MH80088 OK
12 KV7-M81D4-00 ROLLER 6
13 KGW-M781J-00 JOINT(D1.8) 2
14 $UT4 JOINT 1
15 $UEF4BU-M3 JOINT 2
16 KGX-M1841-00 BASE PLUNGER 1
17 KGX-M1842-00 COVER PLUNGER 1
18 KGX-M1843-00 PLUNGER 1
19 90933-02J604 BEARING 1
20 KGW-M18B1-01 PULLEY BASE 1
21 KGX-M1826-00 SHAFT 1,PULLEY 1
22 90933-03J685 BEARING 2
23 KGX-M1828-00 COLLAR 1 1
24 KC4-M1751-00 PULLEY,1 1
25 90115-02J006 BOLT HEX.SOCKET HEAD 8 M2X6
26 90115-2AJ005 BOLT,HEX.SOCKET HEAD 4 M2X5
27 90440-10J008 CIRCLIP 12
27-1 90440-10J008 CIRCLIP 6 (2011/10/4) MH80088 OK
28 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
29 91317-03008 BOLT HEX.SOCKET HEAD 2 M3X8
30 91317-03012 BOLT HEX.SOCKET HEAD 2 M3X12
31 98904-03012 SCREW BINDING HEAD 4
32 95304-03700 NUT HEXAGON 1
33 98904-03008 SCREW BINDING HEAD 2
1
7

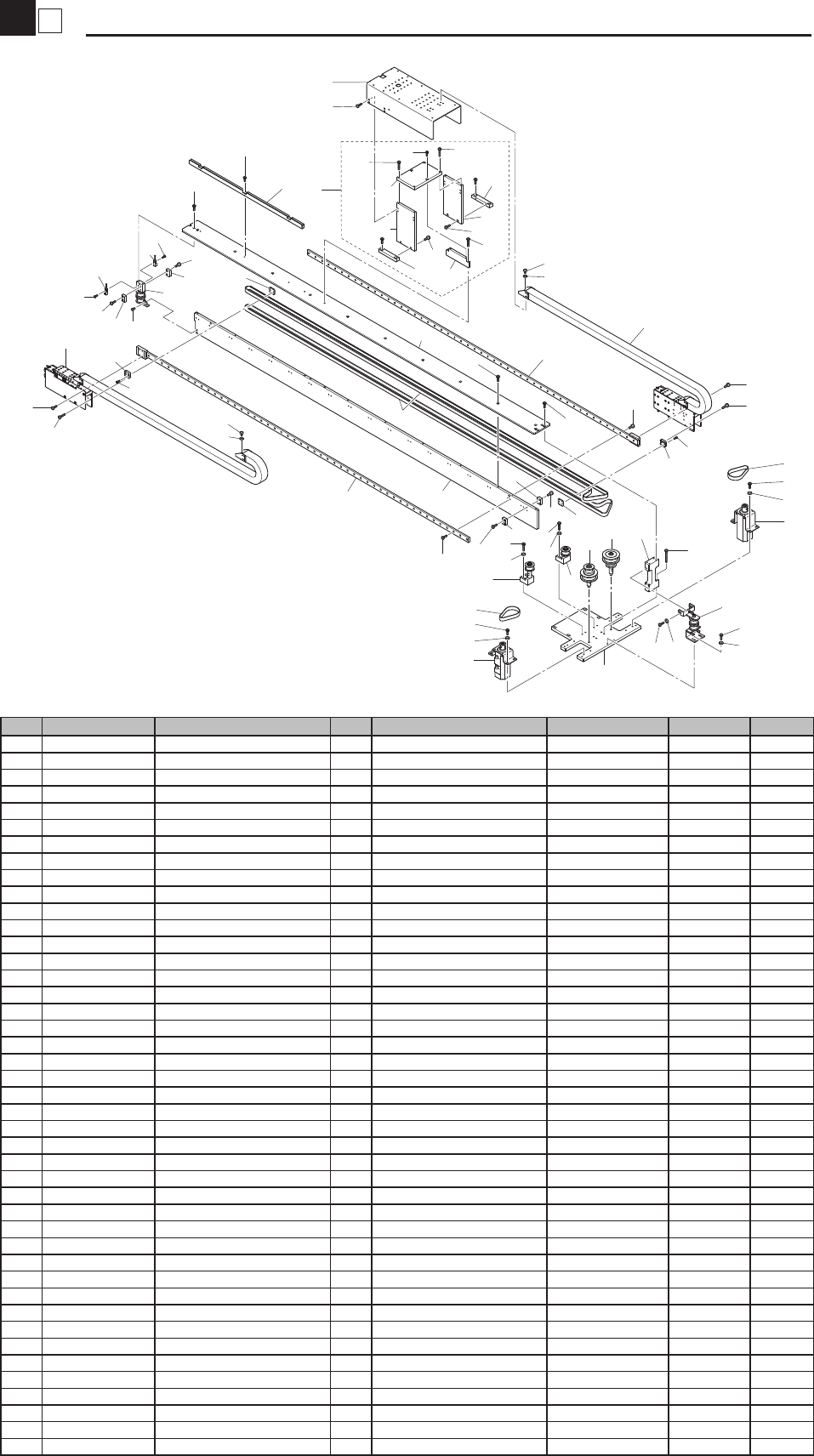

DX+Freame
Traverser
KJN-0901
35
15
14
14
35
35
35
38
41
43
16
36
12
30
35
35
34
30
18
31
33
30
20
20
21
34
27
42
34
42
22
39
11
35
42
4234
3
4
24
23
19
26
42
42
37
37
32
32
6
6
28
2
8
40
32
6
10
29
6
32
30
33
18
25
19
31
41
30
1
9
43
40
8
7
13
15
36
5
9
17
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M7811-01 BASE DX 1 1
2 KJF-M7812-01 BASE DX 2 1
3 KJF-M7813-01 PLATE BASE 1
4 KJF-M7819-01 BASE DX 7 1
5 KJF-M781A-01 BRACKET DUCT 1
6 KJF-M781B-00 STOPPER DX 4
7 KJF-M781E-01 HNS PLATE 1
8 KJN-M652G-000 SENSOR,DX SAFE ASSY 2
9 KGW-M7804-00 GUIDE DX 2
10 KJF-M7820-A1 PULLEY ASSY F 1
11 KJF-M7820-B1 PULLEY ASSY R 1
12 KJF-M7830-00 BASE BRIDGE 1
13 KJF-M7815-000 BASE DX 3 1
14 KJF-M7816-000 BASE DX 4 2
15 KJF-M7817-000 BASE DX 5 2
16 KJF-M7818-000 BASE DX 6 1
17 KJF-M7814-00 BELT DX 2
18 KJF-M7877-00 HOLDER BASE 2
19 KJF-M7878-00 BELT CLAMP 2
20 KJF-M7820-00 BELT,MOTOR 2
21 KJF-M7840-00 MOTOR R ASSY 1
22 KJF-M7840-10 MOTOR L ASSY 1
23 KJF-M7820-C1 PULLEY ASSY 1 1
24 KJF-M7820-D1 PULLEY ASSY 2 1
25 KJF-M7870-11 HEAD ASSY L 1
26 KJF-M7820-E1 TENSIONER ASSY 1 1
27 KJF-M7820-F1 TENSIONER ASSY 2 1
28 KJF-M7870-01 HEAD ASSY R 1
29 90125-04J008 BOLT BUTTON HEAD 2
30 91312-03005 BOLT HEX.SOCKET HEAD 39 M3X5
31 98502-03006 BOLT HEX.SOCKET HEAD 4 M3X6
32 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
33 91312-03012 BOLT,HEX.SOCKET HEAD 8 M3X12
34 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
35 91312-04010 BOLT HEX.SOCKET HEAD 18 M4X10
36 91312-04018 BOLT HEX.SOCKET HEAD 4 M4X18
37 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
38 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
39 91312-05030 BOLT HEX.SOCKET HEAD 4 M5X30
40 98502-03008 SCREW PAN HEAD (+) 2
41 98902-04005 SCREW BINDING HEAD 8
42 92902-04200 WASHER PLAIN 8
43 92902-05600 WASHER PLAIN 12
2
7
Head
Traverser
KJN-1012
20
18
Head L Head R
7
20
18
7
14
19
19
19
19
16
16
15
6
5
3
2
17
17
4
4
9
8
21
8
8
8
9
9
9
11
10
12
13
15
14
21
21
21
22
1
23
1
22
1
23
1
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M7850-00 CYLINDER 4
2 KJF-M7871-01 HOLDER PLATE R 1
3 KJF-M7871-11 HOLDER PLATE L 1
4 KJF-M7874-01 COVER HEAD 2
5 KJF-M7876-01 BRACKET DUCT R 1
6 KJF-M7876-11 BRACKET DUCT L 1
7 KJF-M7879-A0 DUCT CABLE ASSY 2
8 90990-42J032 JOINT 8 D1.8
9 $SLH4-M5 JOINT 4
10 KJN-M652H-00 SENSOR,HEAD1 ASSY 1
11 KJN-M652H-10 SENSOR,HEAD2 ASSY 1
12 KJN-M652H-20 SENSOR,HEAD3 ASSY 1
13 KJN-M652H-30 SENSOR,HEAD4 ASSY 1
14 KGW-M7850-00 LIGHT MARKER ASSY 2
15 K16-90105-00 BOLT,5 6
16 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
17 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
18 92902-05600 WASHER PLAIN 8
19 98702-03006 SCREW FLAT HEAD 16
20 98902-04005 SCREW BINDING HEAD 8
21 KGW-M7881-00 PAD 6 4
22 KJF-M7850-L0 CYLINDER ASSY L 2 (2012/7/10) MJ50093 OK
23 KJF-M7850-R0 CYLINDER ASSY R 2 (2012/7/10) MJ50093 OK
