KJN_d-YTF(YS)_PL - 第15页
3 7 Pulley Assy T raverser KJN-0901 5 27 24 24 24 27 7 12 10 7 1 1 24 27 7 12 10 7 1 1 24 27 27 9 28 6 2 2 7 7 4 27 26 28 8 6 25 3 7 27 7 4 6 2 7 7 2 6 1 24 24 27 7 6 15 7 13 14 24 18 18 17 19 23 23 22 22 20 21 27 7 6 15…
2
7
Head
Traverser
KJN-1012
20
18
Head L Head R
7
20
18
7
14
19
19
19
19
16
16
15
6
5
3
2
17
17
4
4
9
8
21
8
8
8
9
9
9
11
10
12
13
15
14
21
21
21
22
1
23
1
22
1
23
1

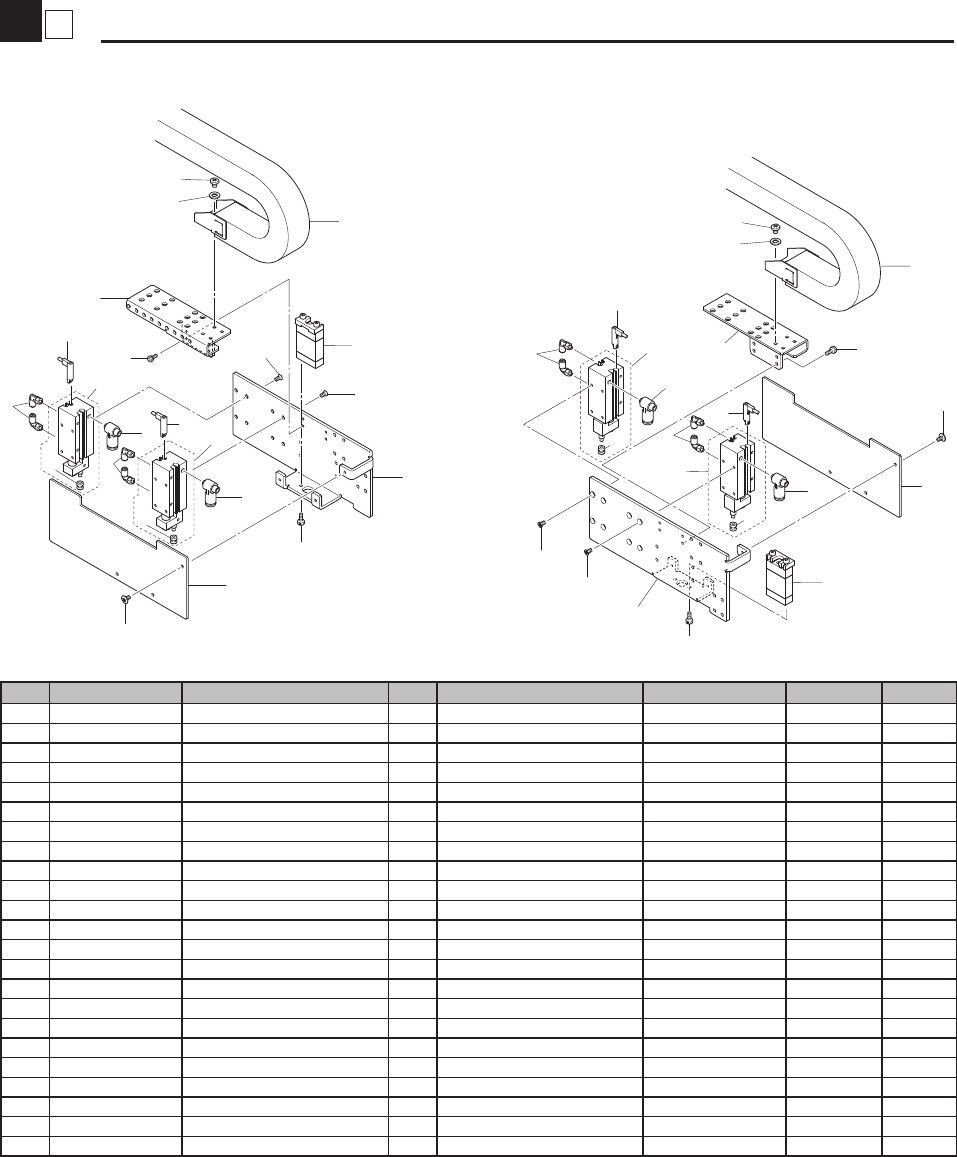

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M7850-00 CYLINDER 4
2 KJF-M7871-01 HOLDER PLATE R 1
3 KJF-M7871-11 HOLDER PLATE L 1
4 KJF-M7874-01 COVER HEAD 2
5 KJF-M7876-01 BRACKET DUCT R 1
6 KJF-M7876-11 BRACKET DUCT L 1
7 KJF-M7879-A0 DUCT CABLE ASSY 2
8 90990-42J032 JOINT 8 D1.8
9 $SLH4-M5 JOINT 4
10 KJN-M652H-00 SENSOR,HEAD1 ASSY 1
11 KJN-M652H-10 SENSOR,HEAD2 ASSY 1
12 KJN-M652H-20 SENSOR,HEAD3 ASSY 1
13 KJN-M652H-30 SENSOR,HEAD4 ASSY 1
14 KGW-M7850-00 LIGHT MARKER ASSY 2
15 K16-90105-00 BOLT,5 6
16 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
17 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
18 92902-05600 WASHER PLAIN 8
19 98702-03006 SCREW FLAT HEAD 16
20 98902-04005 SCREW BINDING HEAD 8
21 KGW-M7881-00 PAD 6 4
22 KJF-M7850-L0 CYLINDER ASSY L 2 (2012/7/10) MJ50093 OK
23 KJF-M7850-R0 CYLINDER ASSY R 2 (2012/7/10) MJ50093 OK
3
7
Pulley Assy
Traverser
KJN-0901
5
27
24
24
24
27
7
12
10
7
11
24
27
7
12
10
7
11
24
27
27
9
28
6
2
2
7
7
4
27
26
28
8
6
25
3
7
27
7
4
6
2
7
7
2
6
1
24
24
27
7
6
15
7
13
14
24
18
18
17
19
23 23
22
22
20
21
27
7
6
15
7
16
14
3
3
3
27

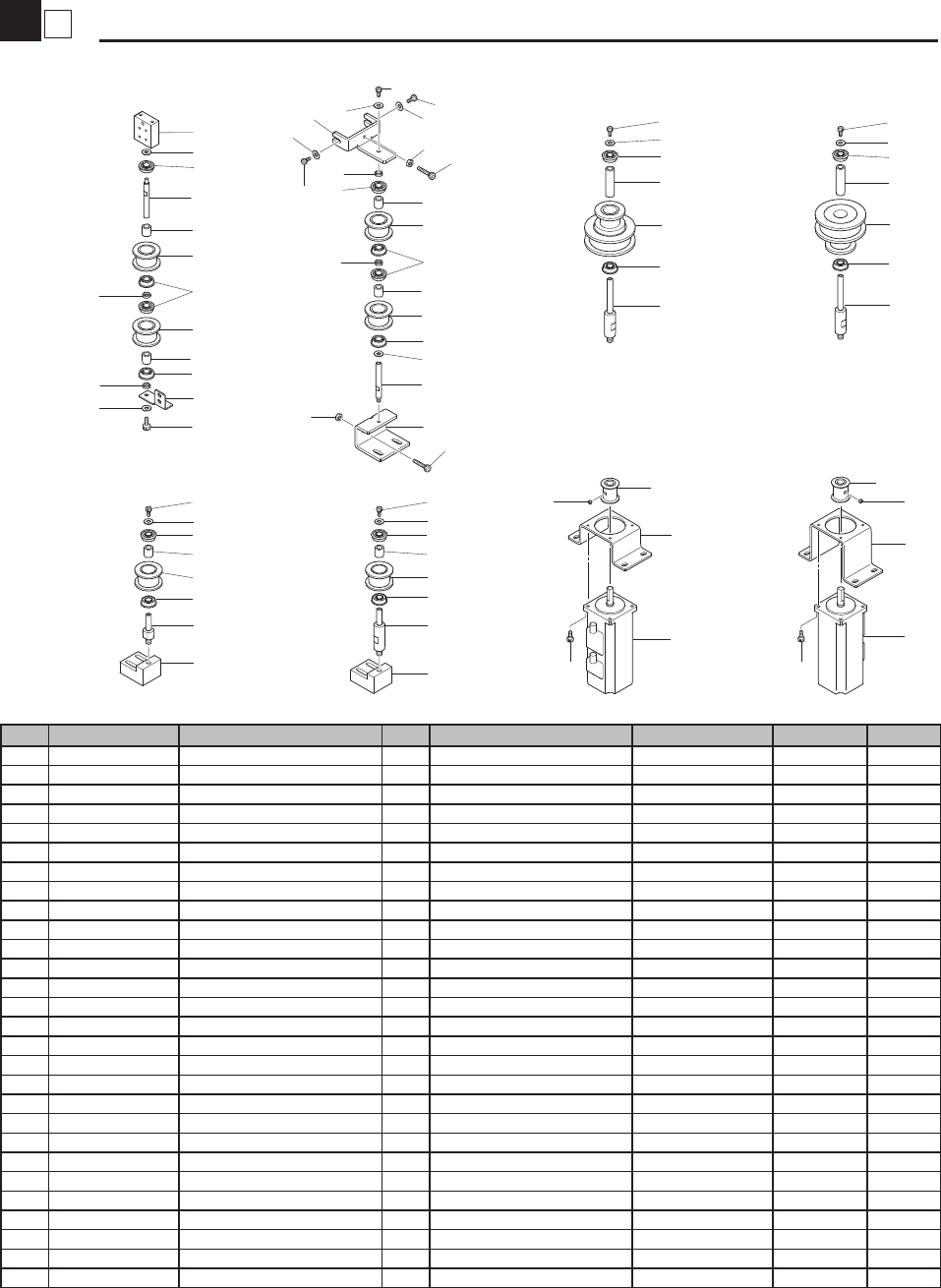

Pulley ASSY F Pulley ASSY R Pulley ASSY 1 Pulley ASSY 2
TENSIONER ASSY 1 TENSIONER ASSY 2 MOTOR R ASSY MOTOR L ASSY
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M781F-00 PULLEY FIX 1
2 KJF-M7821-01 PULLEY 1 4
3 KJF-M7823-01 COLLAR 4
4 KJF-M7824-01 TOP SHAFT 2
5 KJF-M7825-02 BLOCK PULLEY 1 1
6 KJF-M7826-01 COLLAR 1 6
7 90933-03J696 BEARING 14
8 KJF-M7825-11 SHAFT STAY 1
9 KJF-M7828-00 TEISION FIX 1
10 KJF-M7822-01 PULLEY 2 2
11 KJF-M7824-11 SHAFT PULLEY 1 2
12 KJF-M7826-11 COLLAR 2 2
13 KJF-M7824-41 SHAFT PULLEY 4 1
14 KJF-M7825-20 BLOCK PULLEY 3 2
15 KJF-M7827-01 TENSION PULLEY 1
16 KJF-M7824-21 SHAFT PULLEY 2 1
17 KJF-M781C-00 BRACKET MOTOR 1 1
18 KC0-M1751-00 PULLEY,1 :P16S3M0150 2
19 90K63-201529 AC SERVO MOTOR 1
20 KJF-M781D-00 BRACKET MOTOR 2 1
21 90K63-201528 AC SERVO MOTOR 1
22 90152-04J03 SCREW,SET M4X3 4
23 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
24 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
25 91312-04016 BOLT,HEX.SOCKET HEAD 1 M4X16
26 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
27 92902-04200 WASHER PLAIN 8
28 95302-04600 NUT HEXAGON 3
1
8
Station
Station
KJN-0901
31
22
23
18
15
16
17
16
15
39
46
7
20
38
46
30
50
50
30
21
8
36
12
43
49
51
32
33
50
51
26
29
28
39
35
34
39
44
38
9
26
45
10
33
41
5
52
42
48
27
47
25
39
6
4
24
37
13
14
1
3
40
38
2
19
32

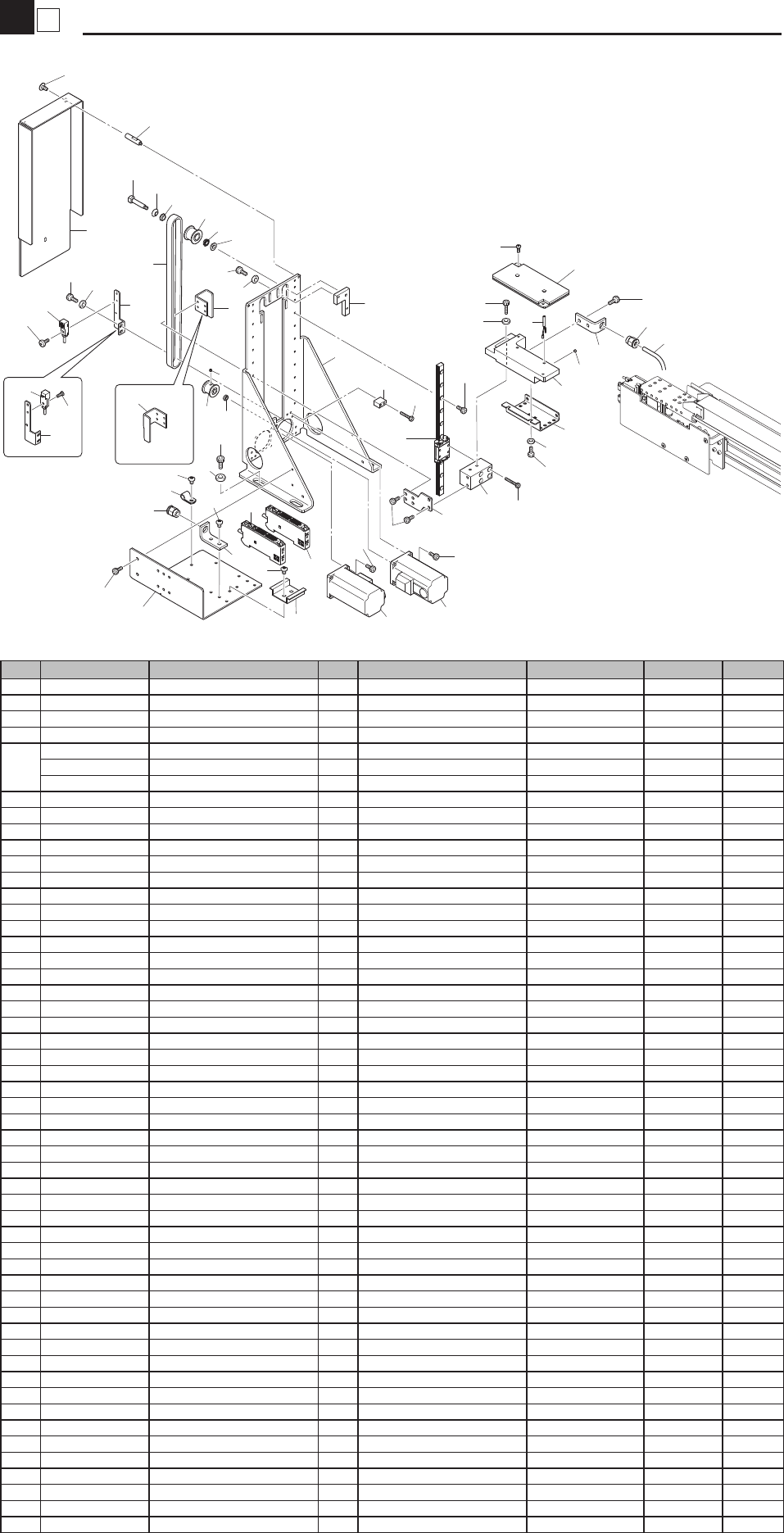

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M7101-00 BRACKET LS 1
2 KGW-M7102-00 STAGE,GUIDE 2
3 KJF-M7103-00 STOPPER 1 2
4 KGW-M7104-01 BLOCK,GUIDE 2
5
KJF-M7105-00 PLATE,WORK 2 Adhesive strength 1800g
KJF-M7105-10 PLATE,WORK 800 2 Adhesive strength 800g (2008/6/3) ME40232
KJF-M7105-20 PLATE,WORK 100 2 Adhesive strength 100g (2008/6/3) ME40232
6 KJF-M7106-00 BRACKET,STAGE 2
7 KGW-M7107-01 DOG1,SENSOR 1
8 KGW-M7108-01 DOG2,SENSOR 1
9 KJF-M7109-00 BLOCK,FIBER 2
10 KJF-M7110-00 FIBER UNIT 4
12 90990-28J050 WASHER,PLAIN 2
13 KGW-M7113-00 DRIVEN PULLEY1 2
14 KGW-M7114-00 PLATE,PULLEY 2
15 KGW-M7115-00 COLLAR1 4
16 90933-03J085 BEARING 4
17 KGW-M7117-00 DRIVEN PULLEY2 2
18 KGW-M7118-00 HINGE PIN 2
19 KGW-M7119-00 TIMING BELT 2
20 KGW-M7120-L1 SENSOR BRACKET1 1
21 KGW-M7120-R1 SENSOR BRACKET2 1
22 KGW-M7123-01 POST 3
23 KGW-M7124-01 COVER 1
24 KJF-M7131-00 BRACKET,AMP FIBER 1
25 KJF-M7132-00 COVER,FIBER 2
26 KJF-M7133-00 BRACKET,JOINT 4
27 KJF-M7134-00 TUBE 2
28 KJN-M652F-20 SENSOR,ST1.2 ASSY 1
29 KJN-M652F-30 SENSOR,ST3.4 ASSY 1
30 KJN-M652A-00 SENSOR,DS LOWER ASSY 2
31 K16-90103-00 BOLT: TP-M4X8 3
32 $BAA1000 DIN RAIL 30
33 $TS6-01M JOINT 4
34 90K55-3U0738 AC SERVO MOTOR 1
35 90K55-3U0739 AC SERVO MOTOR 1
36 90990-02J007 SET,SCREW 4
37 91312-03005 BOLT HEX.SOCKET HEAD 4 M3X5
38 91312-03006 BOLT HEX.SOCKET HEAD 28 M3X6
39 91312-03008 BOLT HEX.SOCKET HEAD 24 M3X8
40 91312-03014 BOLT,HEX.SOCKET HEAD 4 M3X14
41 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
42 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
43 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16
44 91380-03018 BOLT HEX.SOCKET HEAD 8 M3X18
45 92A90-03103 SCREW,SET 4
46 92902-03600 WASHER PLAIN 8
47 92990-03200 WASHER PLAIN 4
48 92990-04200 WASHER PLAIN 4
49 92990-06600 WASHER PLAIN 4
50 98502-03008 SCREW PAN HEAD (+) 2
51 98502-04006 SCREW PAN HEAD 6
52 98580-03008 SCREW,PAN HEAD (+) 4
