Page 116 Vision XP+ VAC
3 Setup Instructions
3.17 Teaching of Ultrasonic Sensor Inlet and Outlet
Operating Instructions
Version 1.5
Note!
The sensor at the outlet ist taught with the same procedure. The sensor ist
connected on the X1 terminal board.
Vision XP+ VAC Page 117
3 Setup Instructions
3.18 Exhaust Air Monitoring
Operating Instructions
Version 1.5
3.18 Exhaust Air Monitoring
Prerequisites:
• The plant exhaust system must be switched on and operating at full
power.
• The plant exhaust system must be properly maintained and clean.
• The system must be switched on.
The press switch is located at the inlet on the back side of the machine.
Inspection

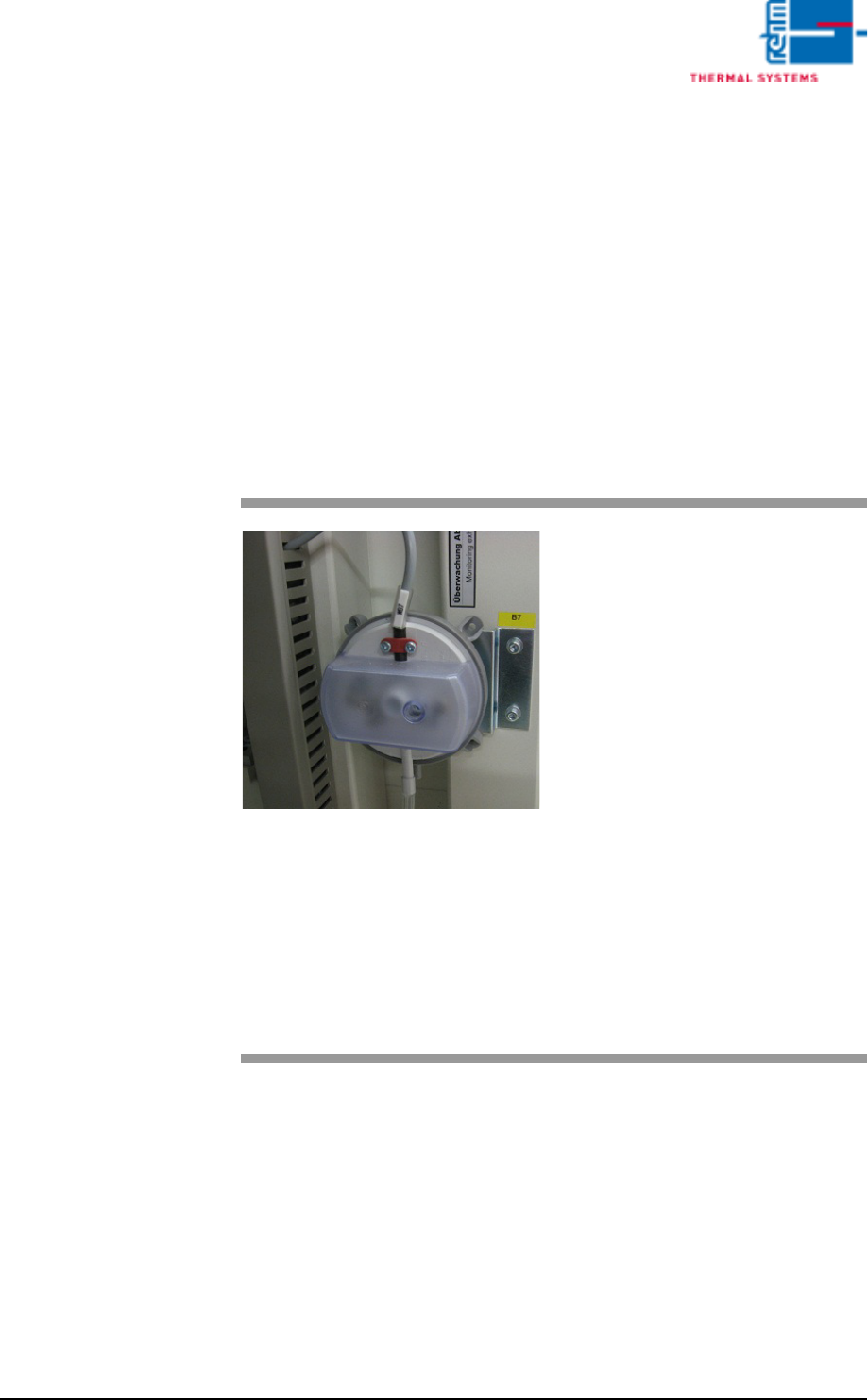

Fig. 3-28 Exhaust Air Differential Pressure
Gauge
Procedure:
1. Unscrew the cover from the
pressure switch.
2. As long as the plant exhaust
system is switched on, the air
exhaust alarm status in the
alarm window must be green
(OK). If this is not the case, the
pressure capsule must be read-
justed.
3. Carefully pull the tube from the
capsule and check to see
whether or not the exhaust
alarm is displayed in red. If no
alarm is displayed, the pressure
capsule must be adjusted.
4. Reconnect the tube.
5. Remount the protective cover
after inspection and adjustment
have been completed.
Page 118 Vision XP+ VAC
3 Setup Instructions
3.18 Exhaust Air Monitoring
Operating Instructions
Version 1.5
Adjustment

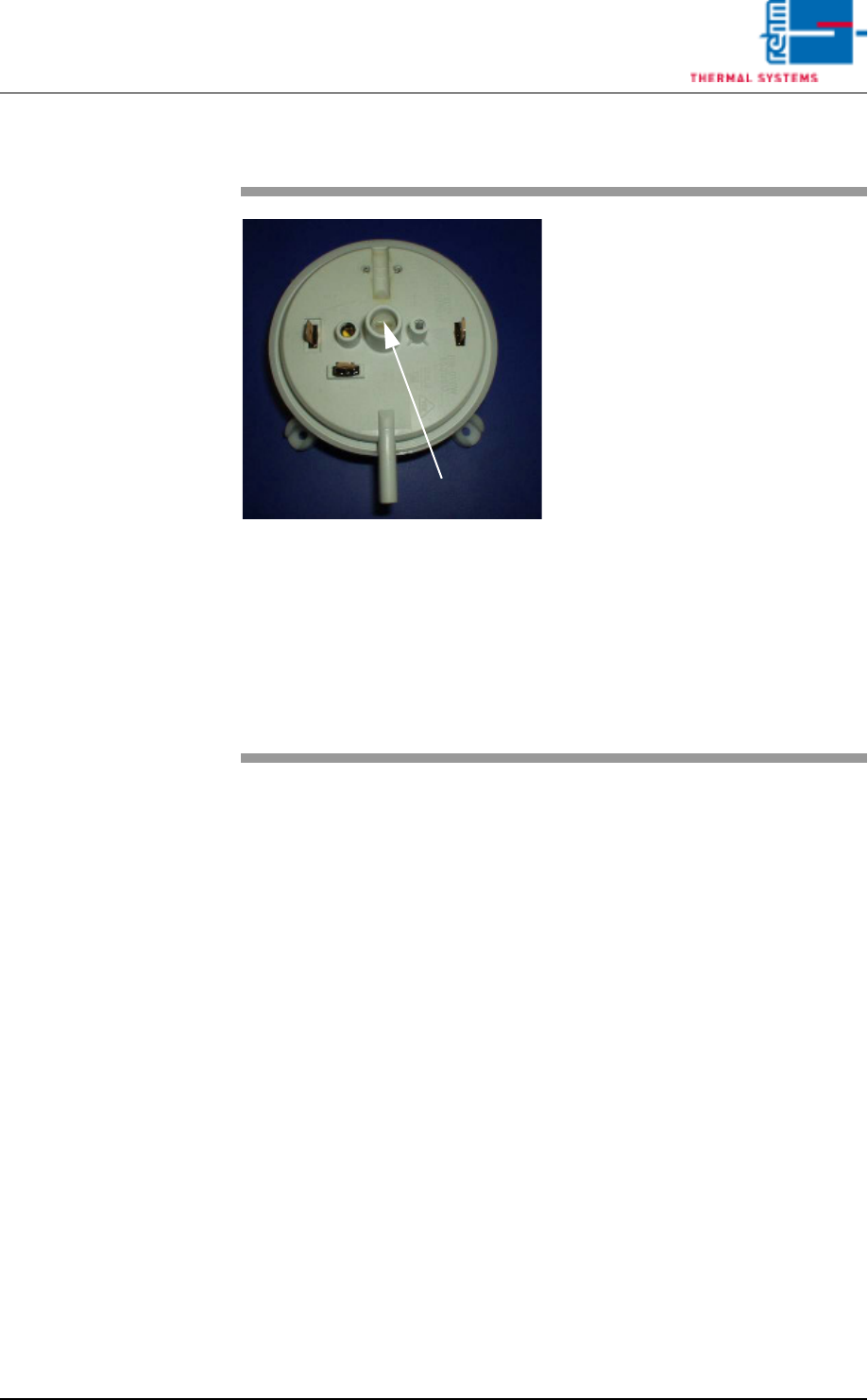

Fig. 3-29 Pressure Switch Adjusting Screw
1. Unscrew the cover from the
pressure switch.
2. Turn the adjusting screw anti-
clockwise to the left. The alarm
message is activated.
3. Turn the adjusting screw one
revolution in the counterclock-
wise direction. Check to see
whether or not the alarm mes-
sage is changed to green. If not,
repeat the procedure until the
alarm message is cleared.
4. Adjustment has now been
completed. The adjusting screw
should be turned only a half turn
in clockwise, in order to in-
crease the display’s tolerance
range.
5. Remount the protective cover
after inspection and adjustment
have been completed.
Adjusting Screw
