Vision XP+ VAC Page 15
2 Maintenance
2.5 Process chamber
Operating Instructions
Version 1.5
2.5 Process chamber
2.5.1 Cleaning the Interior
Fig. 2-3 Cleaning the Interior
Consumable materials:
• Oven cleaner
• Rags
Procedure:
1. Raise the process chamber as
far as it will go.
2. Clean the process chamber
floor and side panels with oven
cleaner and a rag.
3. Clean the heater nozzles and
the nozzle sheets in the peak
zone.
4. Remove stubborn incrustations
with the putty knife.
Page 16 Vision XP+ VAC
2 Maintenance
2.5 Process chamber
Operating Instructions
Version 1.5
2.5.2 Cleaning of oven stations
Fig. 2-4 cleaning of oven station
Fig. 2-5 cleaning of oven station
Fig. 2-6 Oven station CAD
Expendable materials:
• Oven cleaning agent
• Cleaning cloths
• Paint brush
• Chain oil Addinol
Procedure:
1. Remove the cover of the oven
station.
2. Clean spindles from the PCB and
CBS width adjustment at the inlet
and the outlet as well as the oven
stations with cleaning cloths and
oven cleaning agent.
3. Oil the spindles with the paint
brush after the cleaning.
4. Check the spindle nut regularly
for „clearance“.
5. This oven station picture (CAD)
shows the screws to regularly
check and retighten as neces-
sary.
Spindle nut
Vision XP+ VAC Page 17
2 Maintenance
2.5 Process chamber
Operating Instructions
Version 1.5

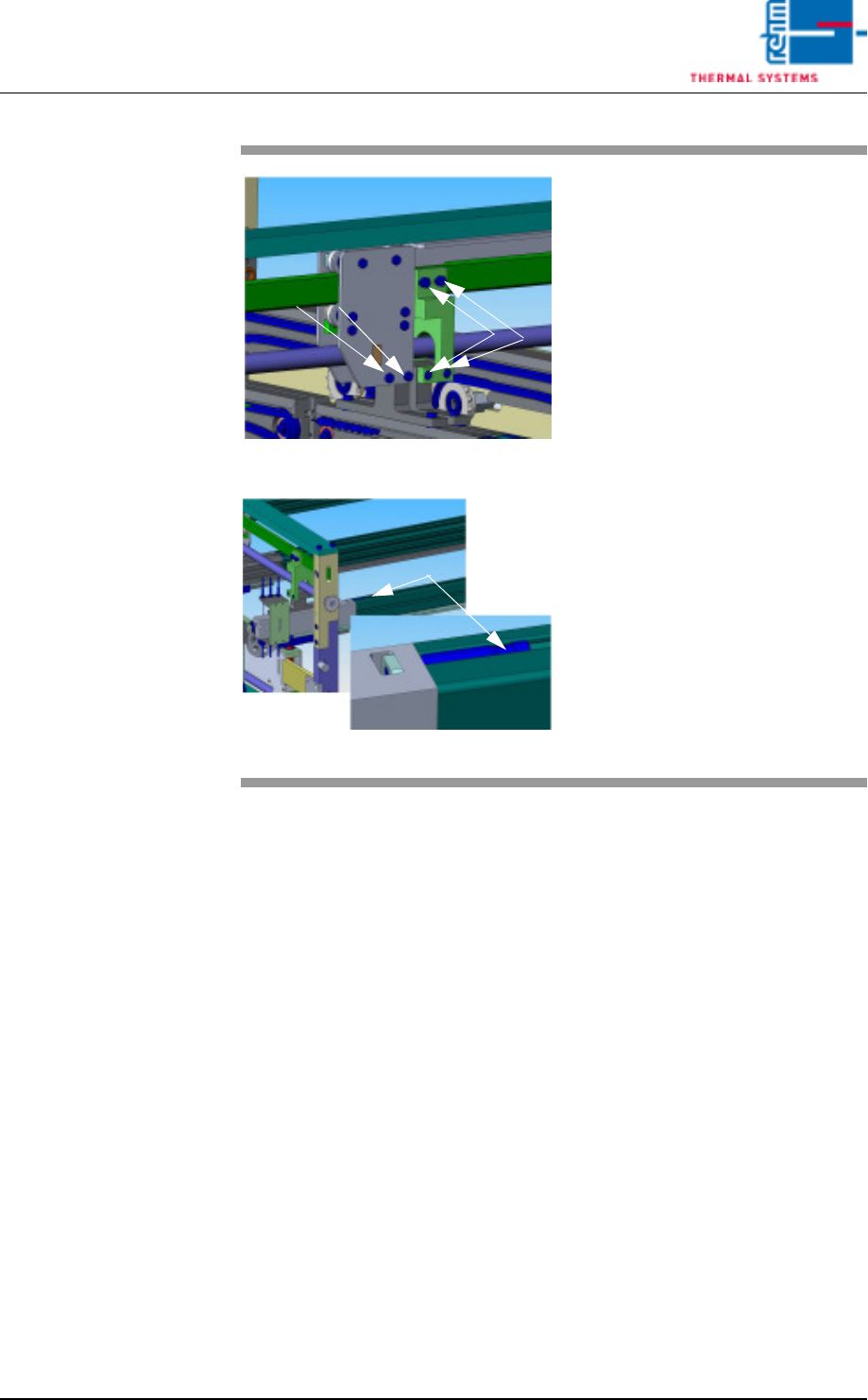

Fig. 2-7 Oven station CAD 1
Fig. 2-8 Oven station CAD2
6. The screws shown must also be
checked and retightened as nec-
essary.
7. Checking and, if necessary,
retightening may also be required
here.
