Vision XP+ VAC Page 33
2 Maintenance
2.8 Vacuum Unit
Operating Instructions
Version 1.5
2.8.2 Check that the vacuum chamber is sealed

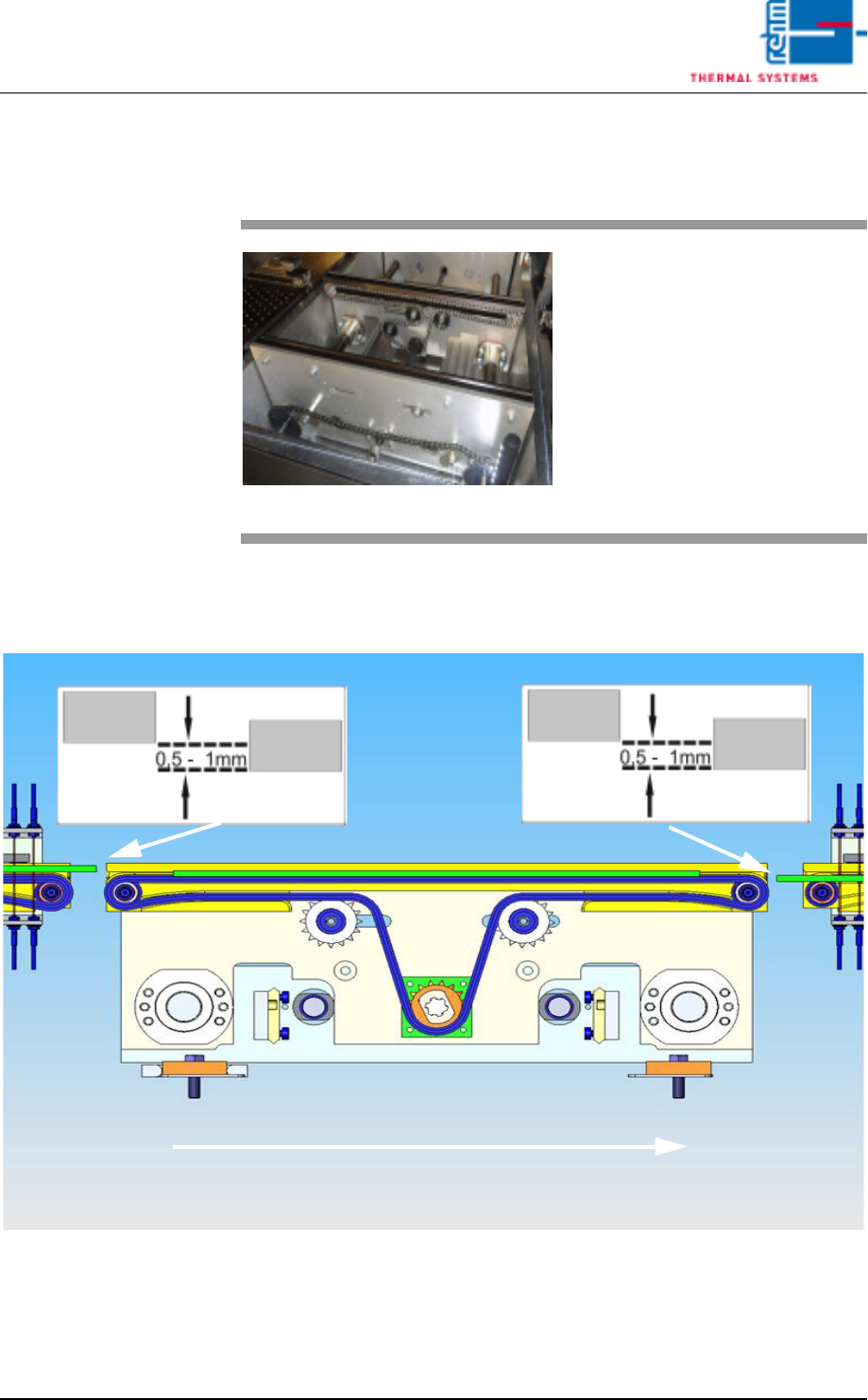

2.8.3 Vacuum chamber transfer height
Fig. 2-48 Vacuum chamber transfer height
Detailed data for adjusting the transfer height into or out of the vacuum
chamber.
Fig. 2-47 vacuum chamber
To check that the vacuum unit is
sealed, a vacuum cycle should be
run. If the cycle finishes in the spec-
ified time and with the preset pres-
sure (approx. 10 mbar), the vacuum
unit is sealed.
However, if the preset time is ex-
ceeded or the pressure not reached,
the vacuum unit has a leak, which
must be addressed.
pass-through direc-
tion
Page 34 Vision XP+ VAC
2 Maintenance
2.8 Vacuum Unit
Operating Instructions
Version 1.5
2.8.4 Dual track vacuum chamber settings
Fig. 2-49 Dual track vacuum chamber settings
Detailed adjustment data for dual track vacuum chambers
Vision XP+ VAC Page 35
2 Maintenance
2.8 Vacuum Unit
Operating Instructions
Version 1.5
2.8.5 Single track vacuum chamber settings
Fig. 2-50 Single track vacuum chamber settings
Detailed adjustment data for single track vacuum chambers
