Page 34 Vision XP+ VAC
2 Maintenance
2.8 Vacuum Unit
Operating Instructions
Version 1.5
2.8.4 Dual track vacuum chamber settings

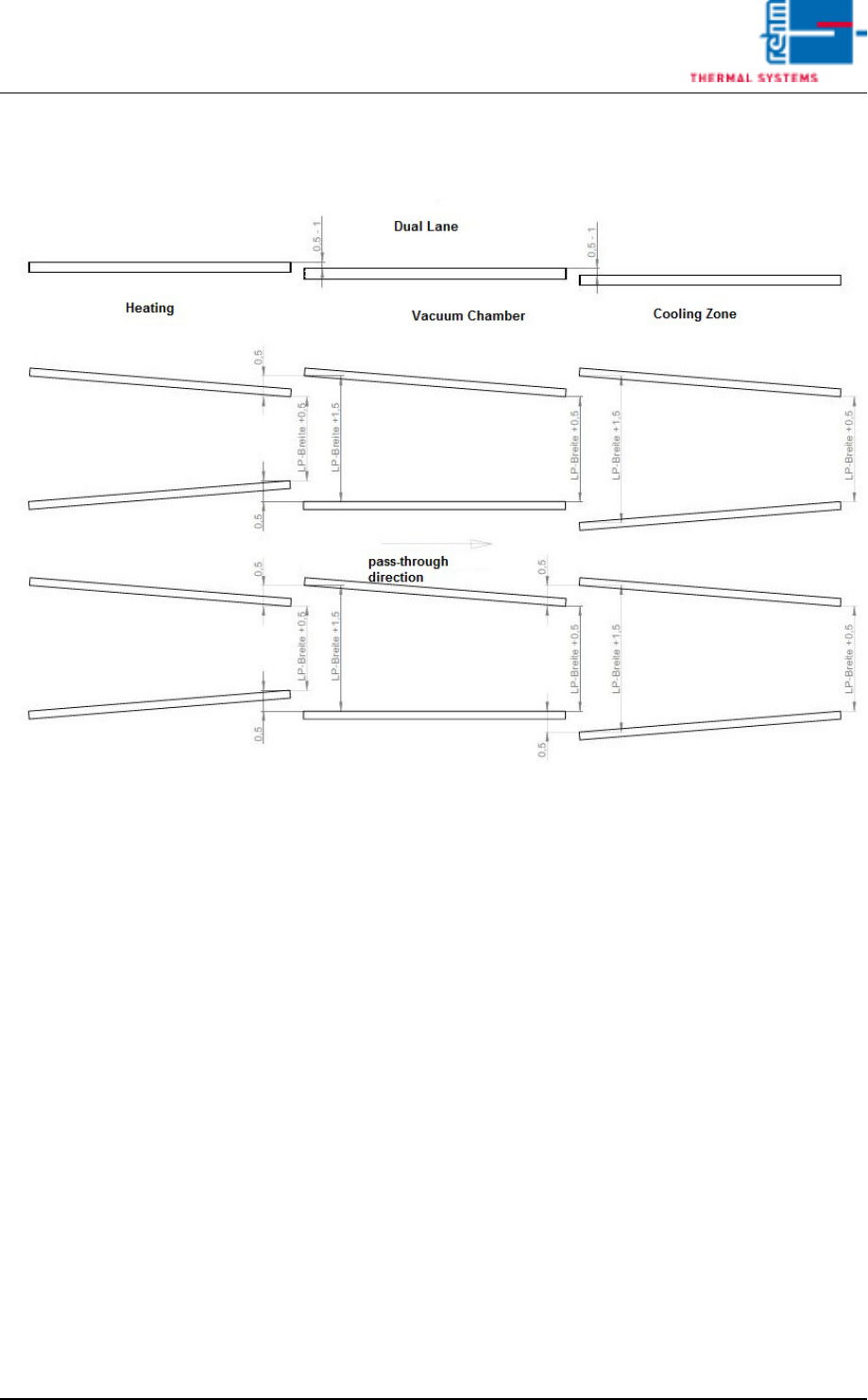

Fig. 2-49 Dual track vacuum chamber settings
Detailed adjustment data for dual track vacuum chambers
Vision XP+ VAC Page 35
2 Maintenance
2.8 Vacuum Unit
Operating Instructions
Version 1.5
2.8.5 Single track vacuum chamber settings

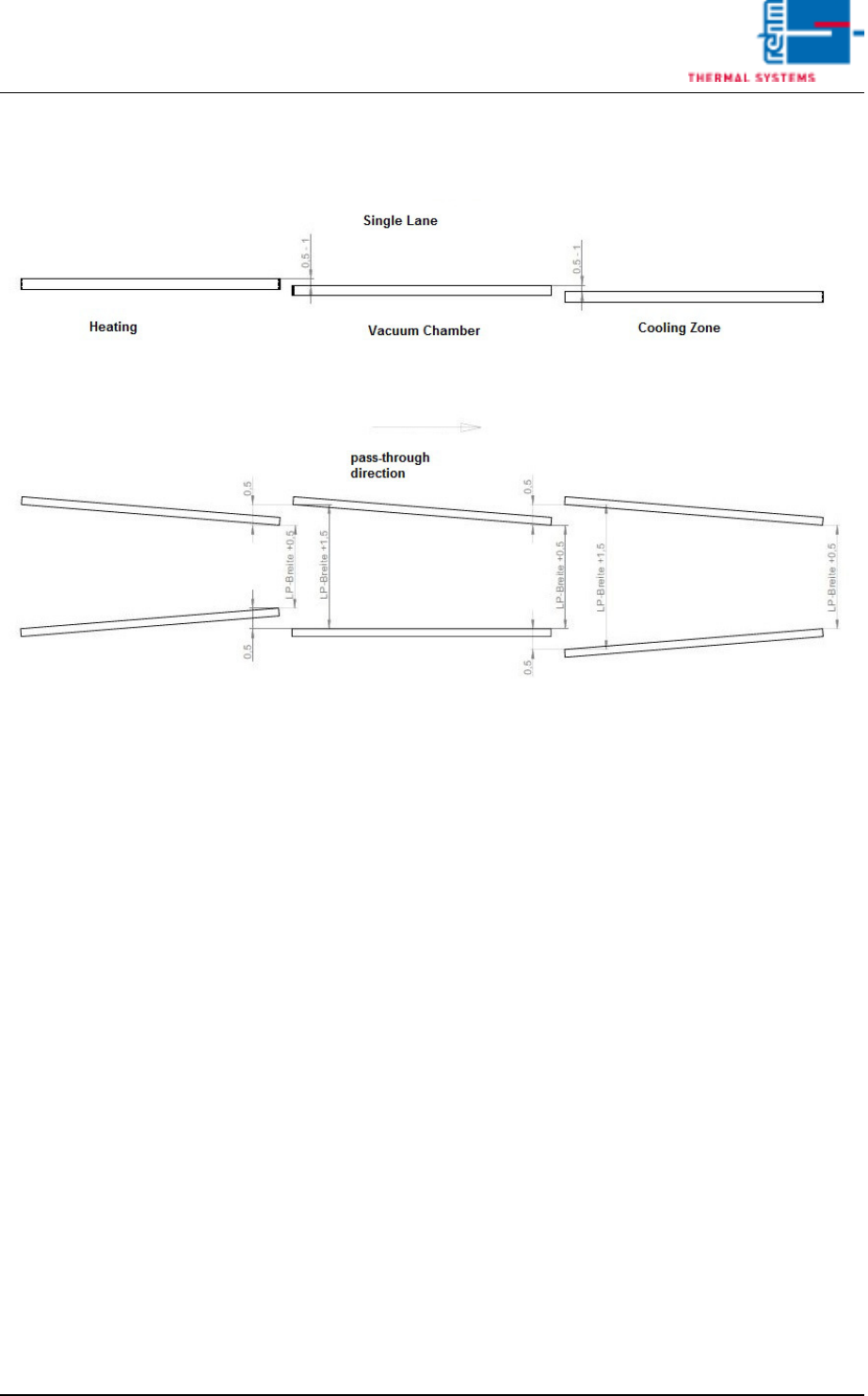

Fig. 2-50 Single track vacuum chamber settings
Detailed adjustment data for single track vacuum chambers
Page 36 Vision XP+ VAC
2 Maintenance
2.8 Vacuum Unit
Operating Instructions
Version 1.5
2.8.6 Back of plant below the vacuum chamber

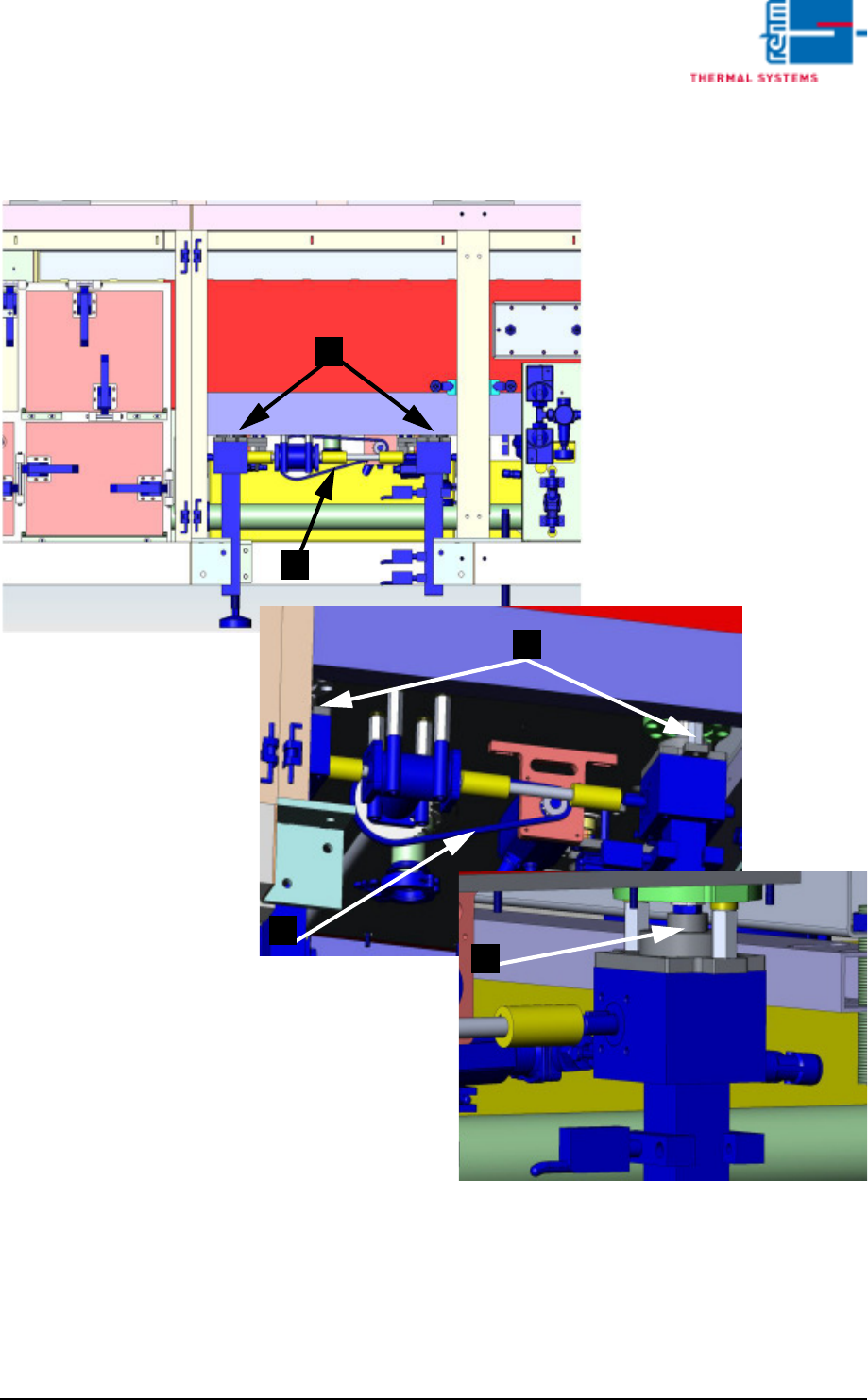

Fig. 2-51 Back of plant below the vacuum chamber
1. Oil the spindles, then open and close vacuum chamber several times.
2. Chain tension (1 cm)
