Page 56 Vision XP+ V AC 2 Maintenance 2.14 Residual Oxygen Meter Operating Instructions V ersion 1.5 Detail drawing of the activated car bon filter on the adapte r plate. 1. Cover activated carbon filte r 2. Tube activat…
Vision XP+ VAC Page 55
2 Maintenance
2.14 Residual Oxygen Meter
Operating Instructions
Version 1.5
2.14.2 Exchange of activated carbon

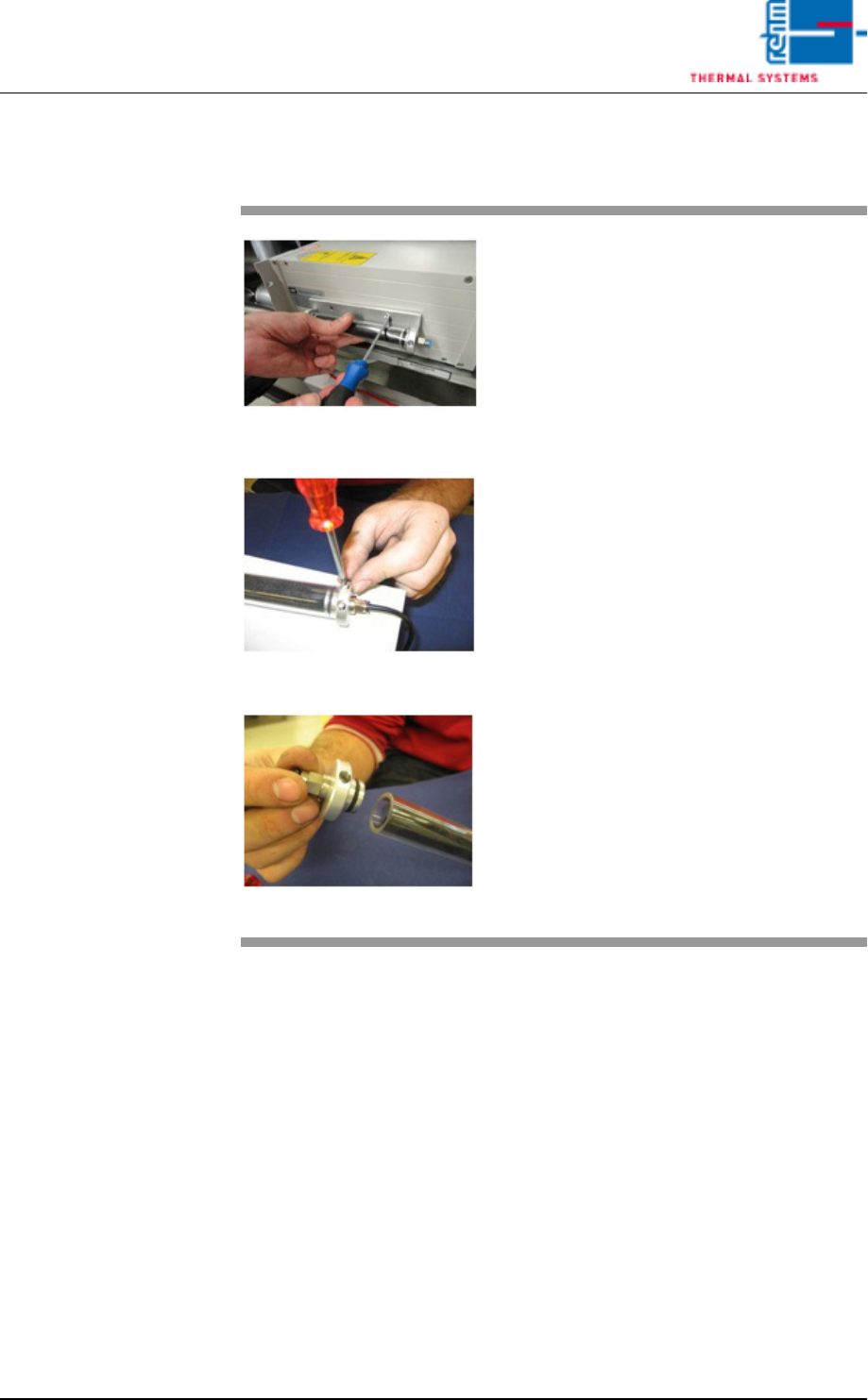

Fig. 2-93 Exchange activated carbon
Fig. 2-94 Exchange activated carbon
Fig. 2-95 Exchange activated carbon
Material:
• Activated carbon
• 2 pcs. woven filter medium
• gloves, goggles as well as protec-
tion mask
Tools:
• Hexagon socket wrench 2,5 mm
• Tweezers
Procedure:
Remove the piping system and
screw off the activated carbon filter
with mounting plate from the analyz-
ing unit.
Remove 4 fixing screws and put
them aside.
Take off the cover from activated
carbon filter.
Page 56 Vision XP+ VAC
2 Maintenance
2.14 Residual Oxygen Meter
Operating Instructions
Version 1.5

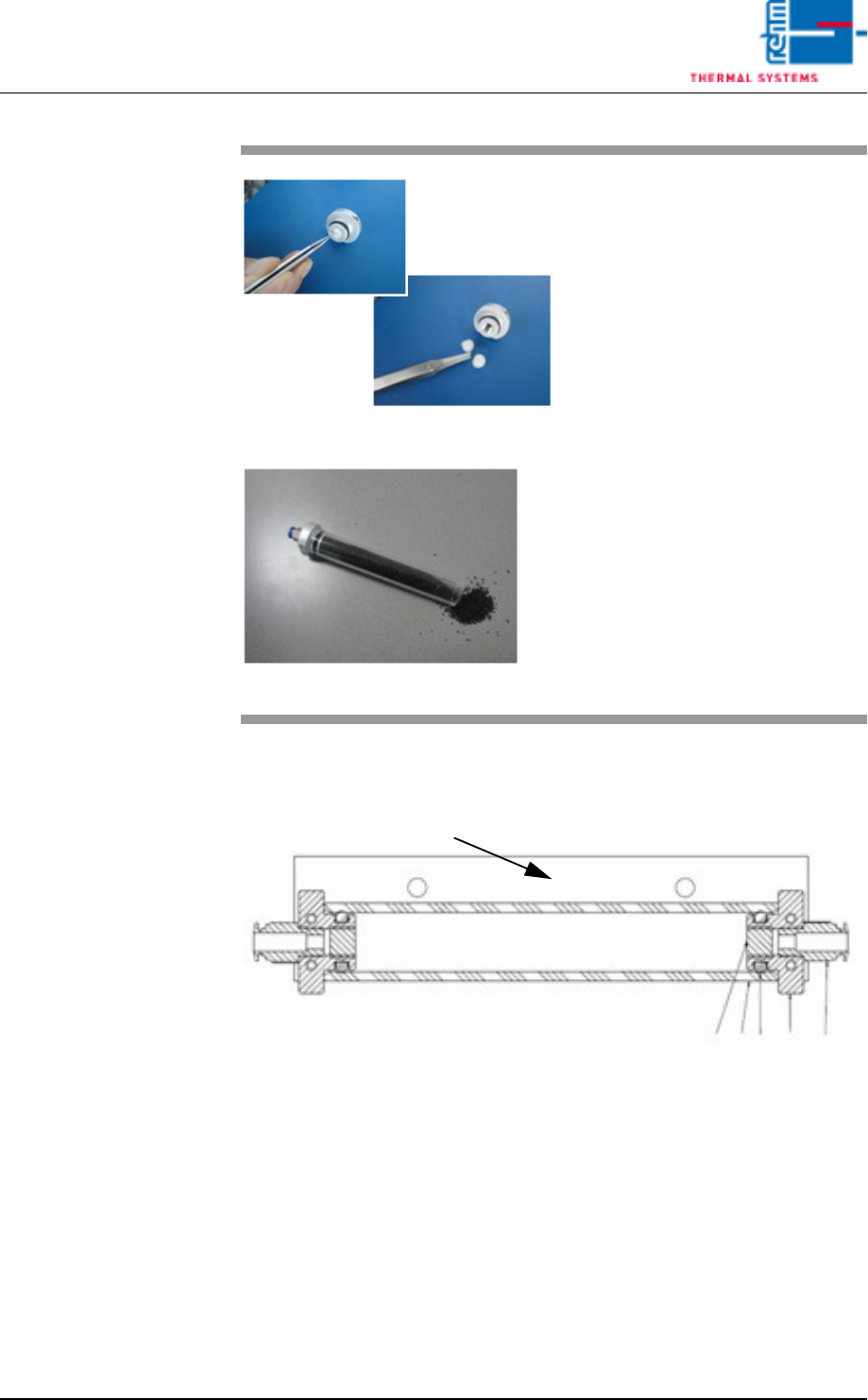

Detail drawing of the activated carbon filter on the adapter plate.
1. Cover activated carbon filter
2. Tube activated carbon filter
3. Woven filter medium
4. Plug-in connection QS – 1/8-6
5. O-Ring 12 x 4 mm
6. Adapter activated carbon filter
Fig. 2-96 Exchange activated carbon
Fig. 2-97 Exchange activated carbon
Now, exchange each one non-wo-
ven insertions on both sides of the
activated carbon filter with the twee-
zers.
Exchange activated carbon and
densify it.
Now, mount everything in reversed
order.
6
3
2
5
1
4
Vision XP+ VAC Page 57
2 Maintenance
2.15 Conveyor System
Operating Instructions
Version 1.5
2.15 Conveyor System
2.15.1 Chain Lubricator – Checking and Refilling the Tank

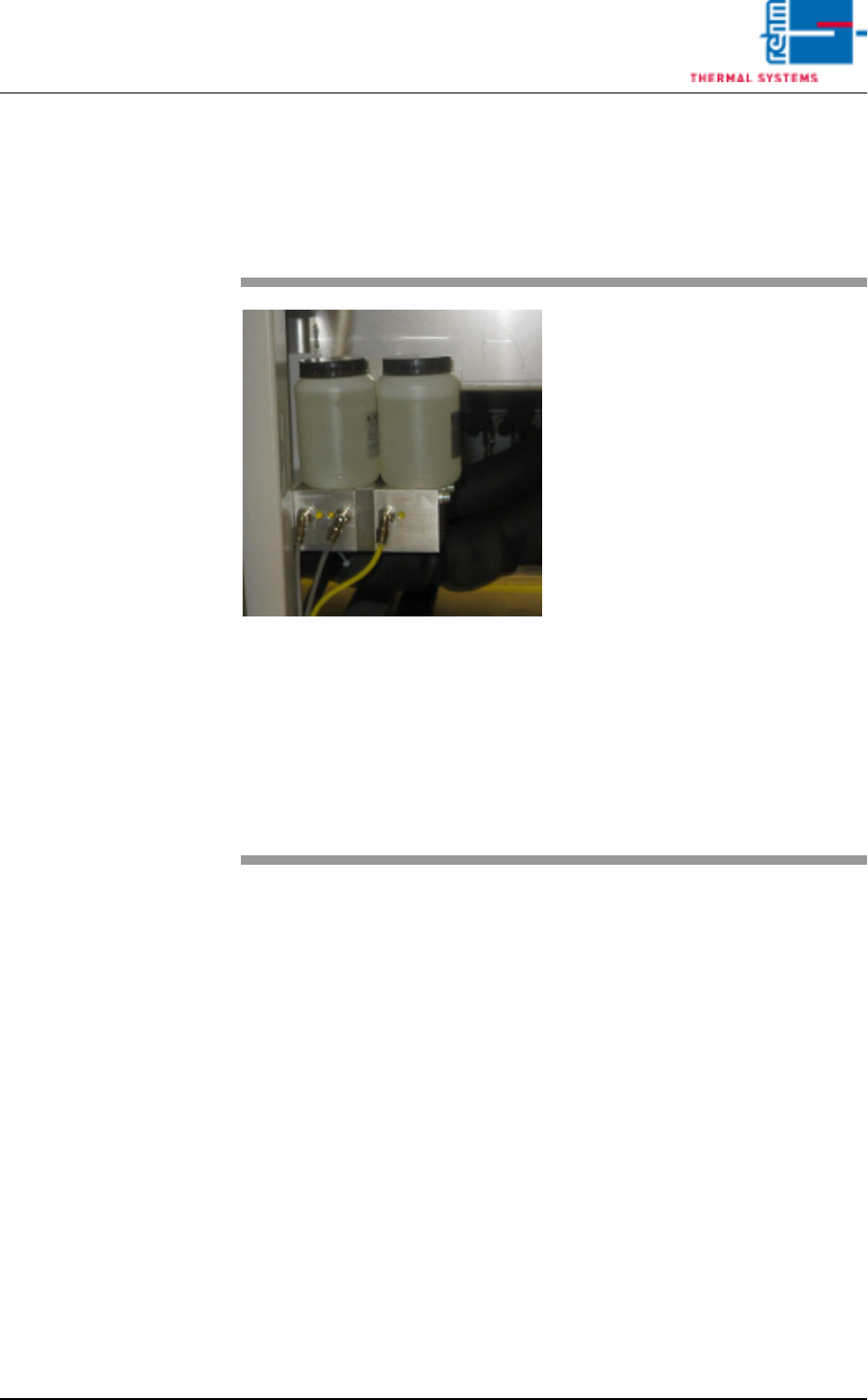

Fig. 2-98 Chain lubricating pumps with two
and one outlet
The chain lubricator is located on
the operator side behind the second
door on the right.
There are two chain lubricating
pumps in the VXP system, each
with one or two outlets.
Consumable materials, tools:
• Chain fluid
Procedure:
1. Fill to a level of about 1 cm be-
low the brim.
2. Inspect to make sure that the
hose connectors are securely
attached to the lubricator units.
Caution!
The chain lubricator should not be
allowed to run completely empty,
because if the pump runs dry dam-
age may result.
