Vision XP+ VAC Page 73
3 Setup Instructions
3.2 Temperature Channels
Operating Instructions
Version 1.5
The Quick Exhaust behaves with the setting 0 as before (from Software
V3.14).
Over the values 10 a. 20 the behavior can be configured (corresponding
to the settings 1 and 2 with Software V3.13 and earlier).
D) Offset
Deviation at the temperature display can be compensated for with the
offset function.
E) Hysteresis
Tolerance evaluation performance can be adapted with the hysteresis
function.
F) Position
The calculated number of pulses for the individual heat zones is entered
here.
Page 74 Vision XP+ VAC
3 Setup Instructions
3.2 Temperature Channels
Operating Instructions
Version 1.5
3.2.3 Flux Management Parameter

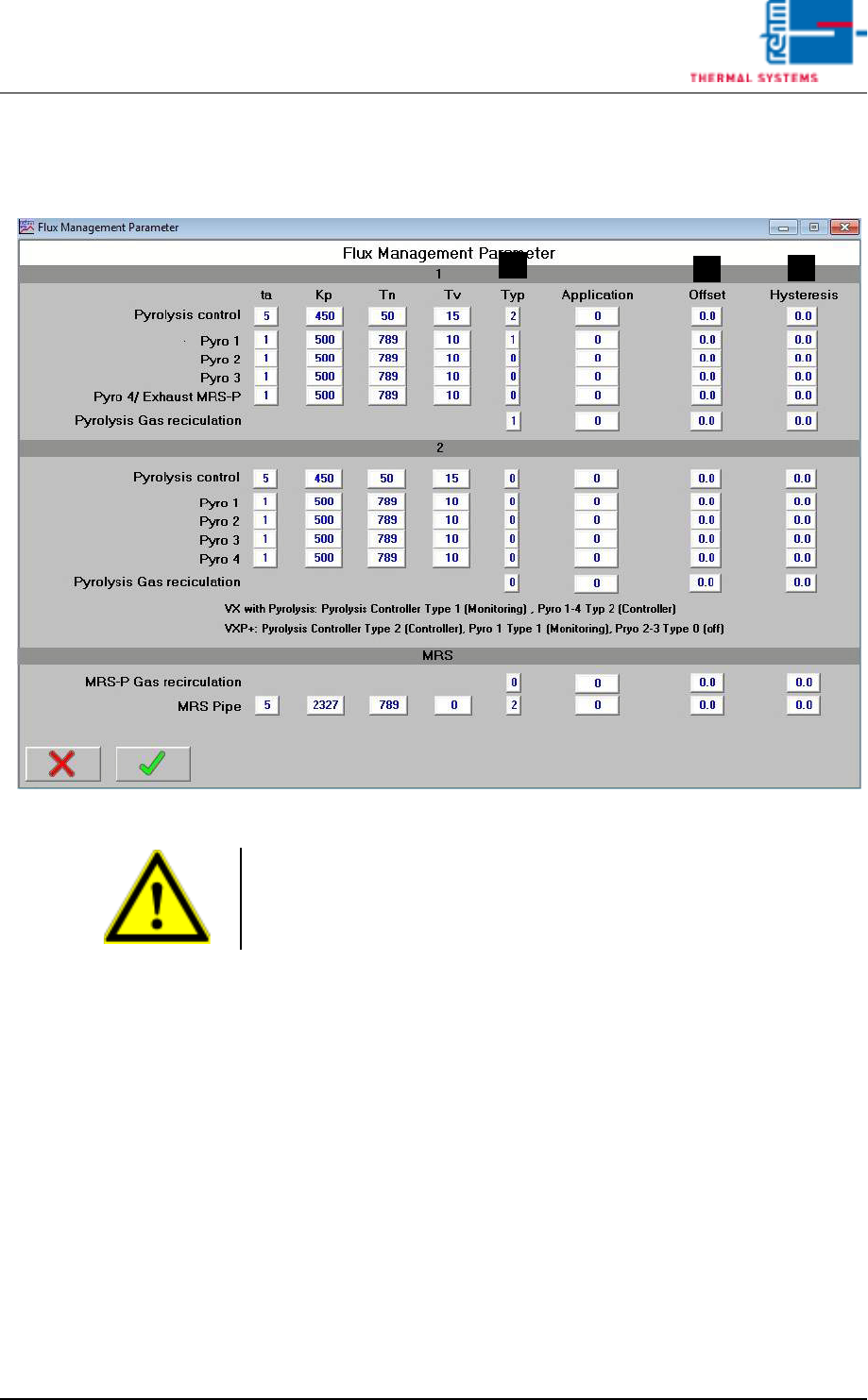

Fig. 3-5 Flux Management Parameters
A) Typ
VX with pyrolysis: Pyrolysis control Type 1 (monitor)
Pyrolysis 1 - 4 Type 2 (controller)
VXP+: Pyrolysis control Type 2 (controller)
Pyrolysis 1 Type 1 (monitor)
Pyrolysis 2 – 3 Type 0 (off)
B) Offset
Deviation at the temperature display can be compensated for with the
offset function.
C) Hysteresis
Tolerance evaluation performance can be adapted with the hysteresis
function.
B
A
C
Caution!
Values are system-specific and may only be changed by service personnel
from Rehm Thermal Systems GmbH!
This value may only be changed when heat is turned off.
Vision XP+ VAC Page 75
3 Setup Instructions
3.3 Conveyor
Operating Instructions
Version 1.5
3.3 Conveyor
3.3.1 Conveyor Drives

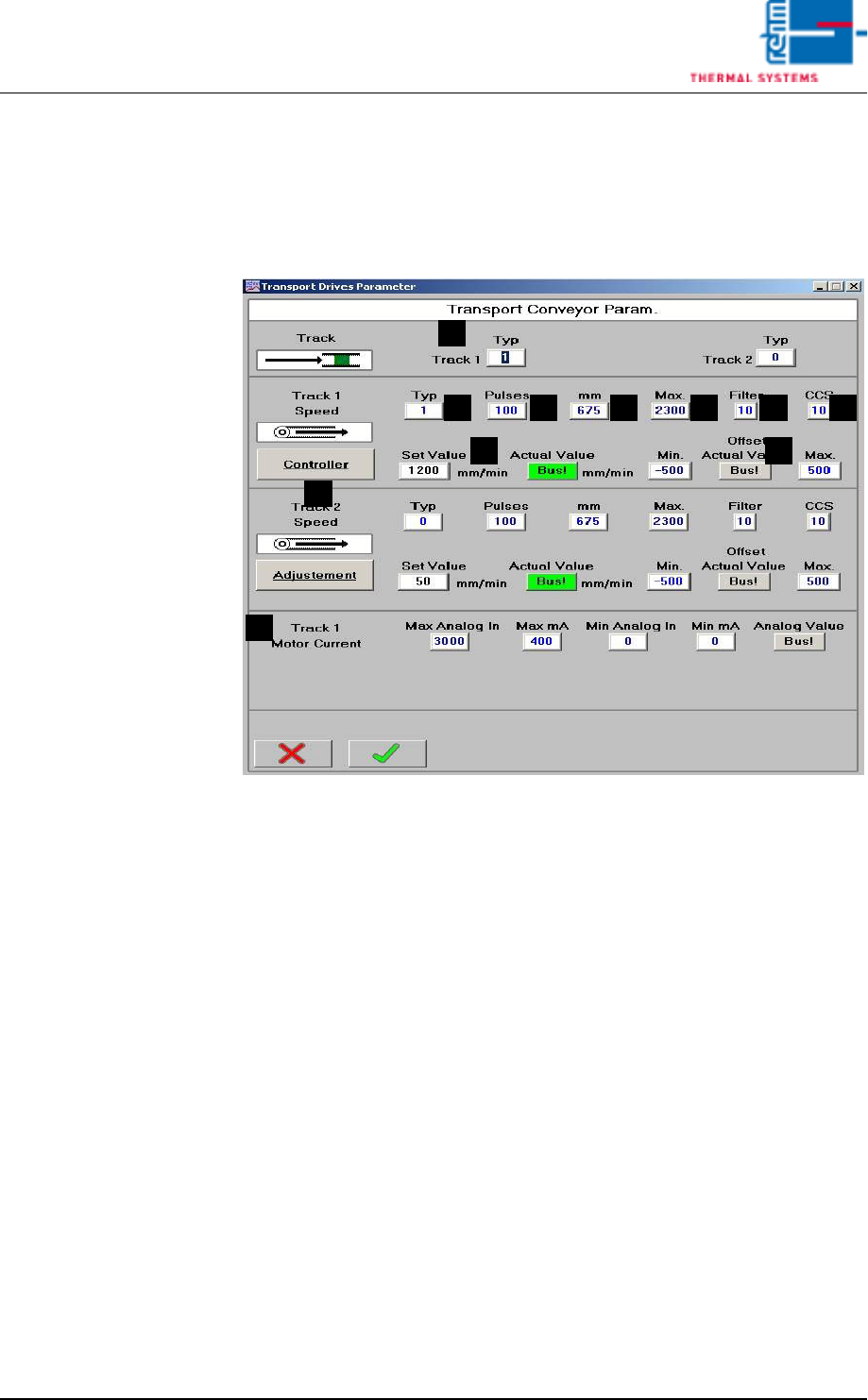

Fig. 3-6 Conveyor Drive Parameters
A) Lane Type
0 = no lane
1 = lane
B) Speed Type
0 = lane does not have its own drive motor
1 = lane has its own drive motor
C) Pulses
Number of belt pulses which corresponds to the entered travel path (D).
The default setting is 100 mm.
D) Travel distance in mm, which corresponds to the entered number of belt
pulses (C). The default setting is 675.
With this value the difference between the actual speed and the indicated
actual value can be adjusted. Please note! A change is only permitted,
if anything has changed at the transformation ratio.
E) Max
Maximum possible speed based on electromechanical limitations. The
actual maximum possible speed is limited by the software. The default
setting is 2300.
With this value a difference between actual speed and entered set value
can be adjusted. Please note! A change is only permitted, if anything has
changed at the transformation ratio.
A
FEDCB
I
H
G
J
K
