EdisonStandardOwnersManual-RevA-20170818B - 第107页
Edison Printer User Manual (Part Number 1023838) P RINTER O PERATIONS Rev. A 107 Copyright © 2017 ITW EAE All rights reserved. No part of the contents of this manual ma y be reproduced, copied or transmitted in any form …
PRINTER OPERATIONS Edison Printer User Manual (Part Number 1023838)
106 Rev. A
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.
Figure 90. Elevate Privileges Dialogue Screens.
Edison Printer User Manual (Part Number 1023838) PRINTER OPERATIONS
Rev. A 107
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

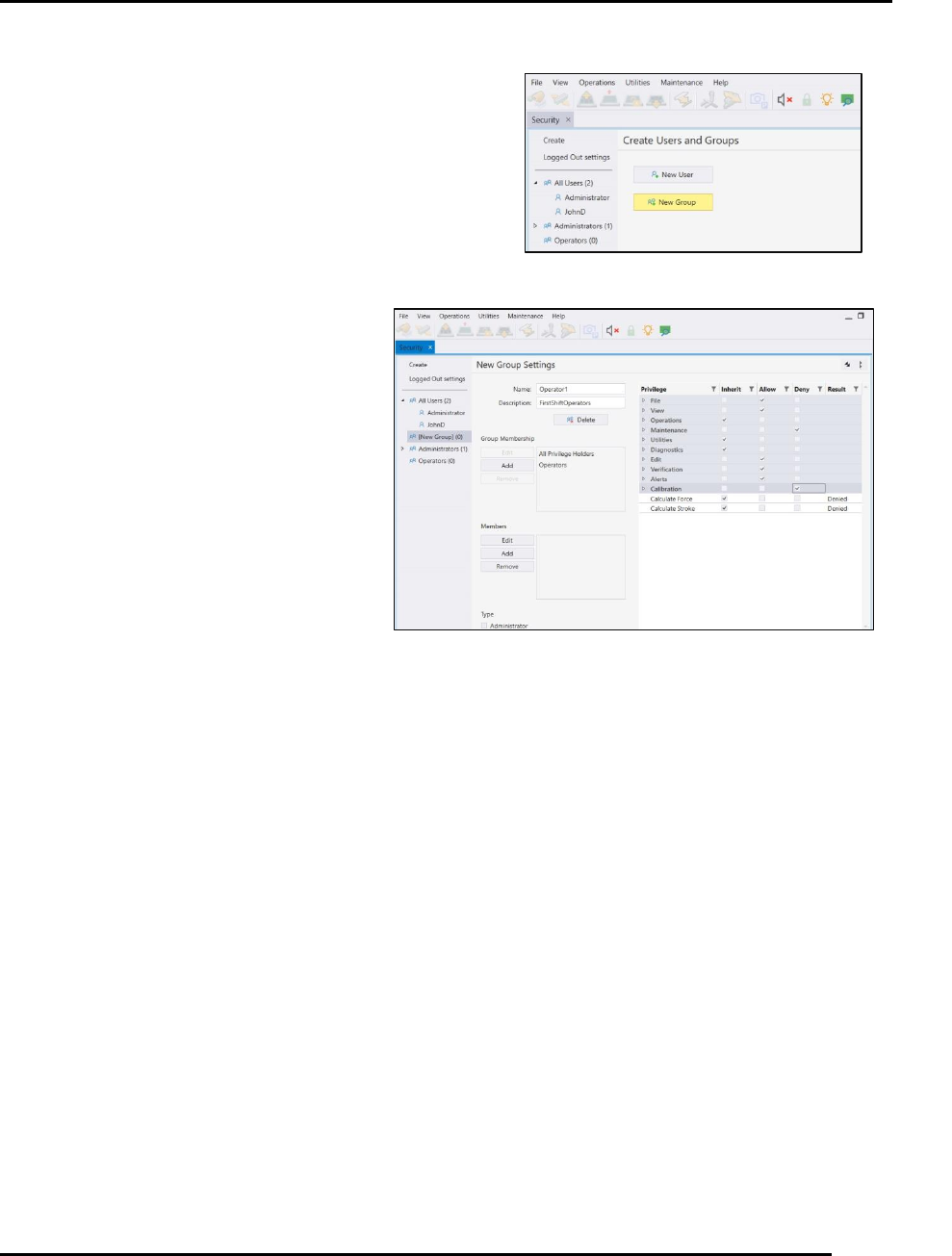

5.4.3. Add a New Group
1. From the main menu, navigate to View > Security
Settings
2. Navigate to Create | Create Users and Groups.
3. Click New Group (Figure 93).
4. Enter Group information (Figure 94).
a. Name
b. Description, for instance, the Group
title.
c. Enter Group Memberships
i. Groups can have member in
other groups.
ii. These subgroups retain the
inherent privileges of the group
unless those privileges are
specifically denied.
d. Press Add to assign a group
membership. Note that a user can
be assigned to more than one
group.
Figure 91. New Group Screen.
Figure 92. Identify New Group.
PRINTER OPERATIONS Edison Printer User Manual (Part Number 1023838)
108 Rev. A
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.
5.4.4. Add a New User
Passwords are case-sensitive.
1. From the main menu, navigate to View > Security
Settings
2. Navigate to Create | Create Users and Groups.
3. Click New User (Figure 93).
4. Enter user information (Figure 94).
a. Name
b. Description, for instance, the user’s
title
c. Password
d. Reenter password
5. Enter Group Memberships
Without a group assignment, the user
will be able to log on but do nothing
else. Group membership provides the
user with full access to printer functions
at the highest level of group
membership
a. Press Add to assign a group
membership. Note that a user can be
assigned to more than one group.
Figure 93. New User Screen.
Figure 94. Identify New User.
