5.5. Preparing for Production
Preparing for production typically starts with loading the required process program, which
automatically starts the Changeover routine.
5.5.1. Load a Process Program
After completing printer initialization, the Intueri
software prompts the user to select a process
program from a list of previously created process
programs (Figure 95).
1. Click (or double-click) on the desired program.
2. Press Load.
Load another program by following the Load a Process Program
procedure (Section 5.5.1). There is no need to, nor provision for,
unloading a program.
5.5.2. Changeover Wizard Example
The Changeover Wizard begins automatically after loading a process program. The Changeover
Wizard prepares the printer for production using a series of prompts for installing the necessary
materials and components the loaded process program requires.
The number of prompts and tasks during changeover will vary depending on the process program.
This changeover example routine is one of the more extensive routines and occurs after printer
initialization.
5.5.2.1. Setup
The changeover task involves entering specific instructions for the operator to follow during
printer setup (Figure 96). Enter information on the Setup Screen only during creation or editing of
the process program. These instructions appear on screen (for example, the instructions in Figure
97). Specific instructions may include:
Specific operator instructions, for instance, “Use highest quality wiper paper.”
Additional useful information that is above and beyond the information entered into the
process program input fields.
Specific comments pertaining to the process program, comments that will help the operator.

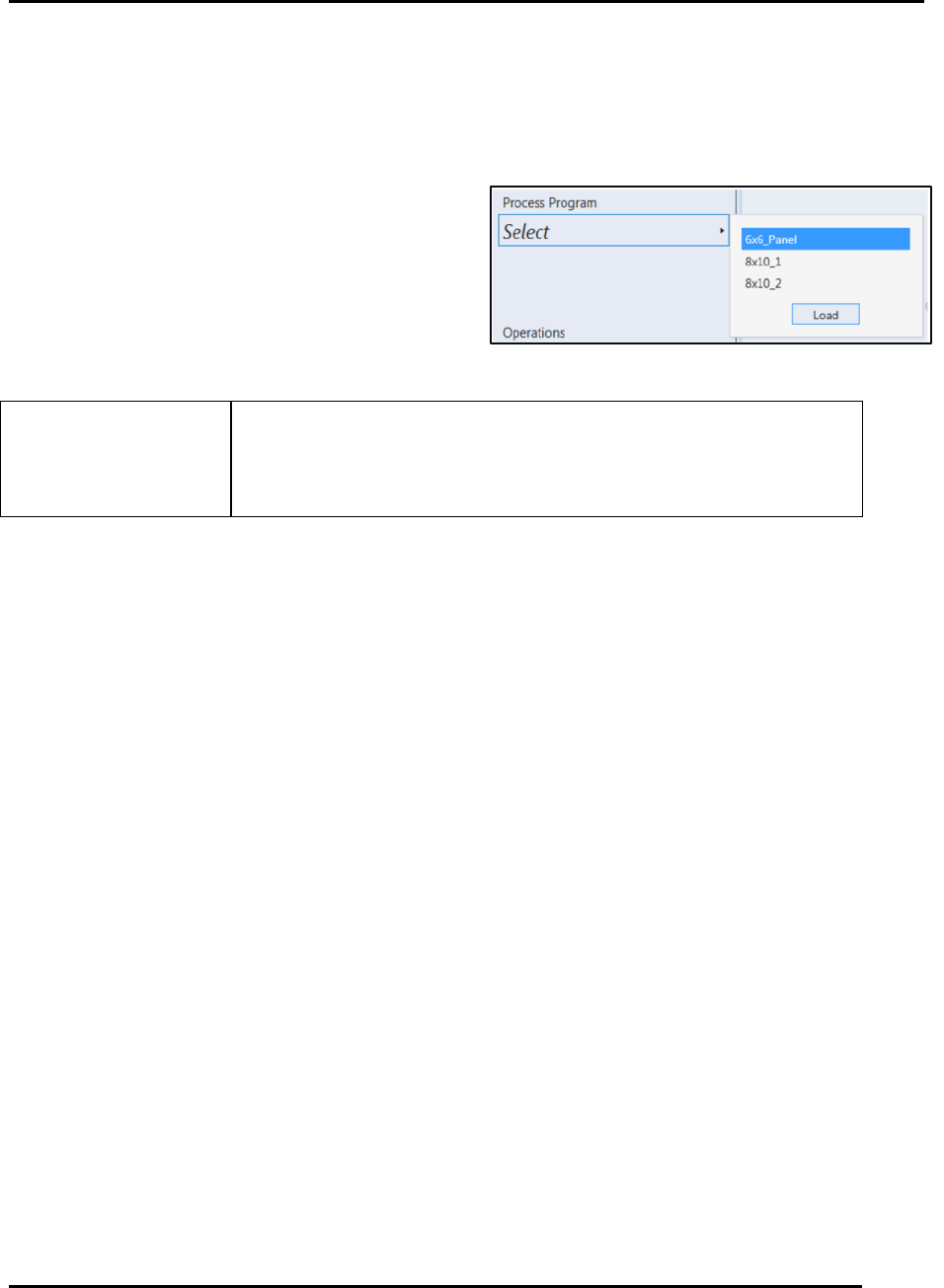

Figure 95. Select a Process Program to Load.
PRINTER OPERATIONS Edison Printer User Manual (Part Number 1023838)
110 Rev. A
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

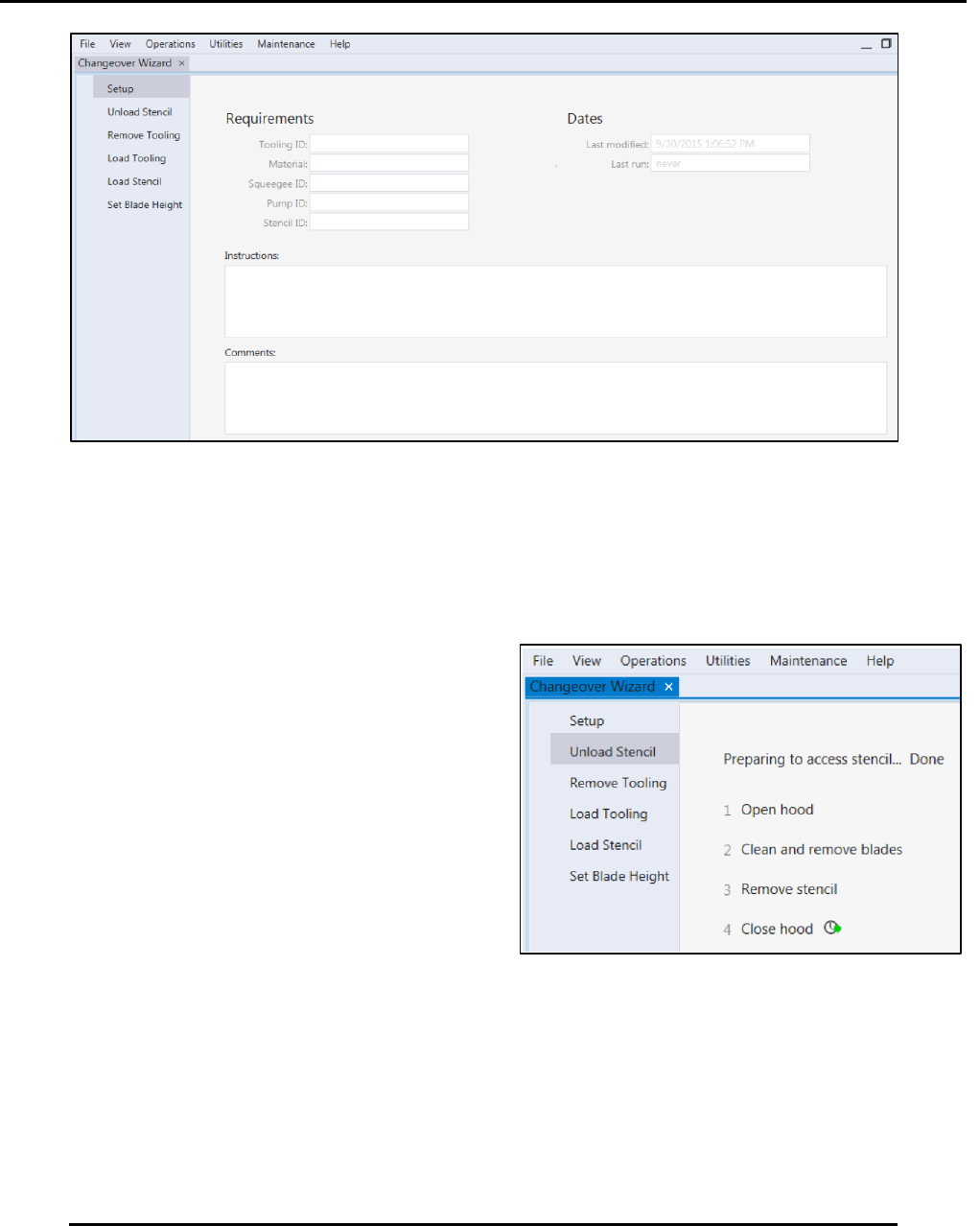

Figure 96. Setup Screen.
5.5.2.2. Unload Stencil
This changeover task positions the printer components and displays the steps required for
successfully unloading the currently loaded stencil (including cleaning and removing squeegee
blades). Edison screens prompt the user with the
appropriate tasks (Figure 97).
Figure 97. Unload Stencil screen and steps.
Edison Printer User Manual (Part Number 1023838) PRINTER OPERATIONS
Rev. A 111
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.
5.5.2.2.1. Remove Blades
1. Open the quick-release the front blade to the holder (Figure 98).
a. Slide the blade out of the holder.
b. Clean the blade over the stencil.
2. Repeat steps for the rear blade.
4. Remove the stencil by sliding it out and clean. Required to access the worknest area for tooling
removal / change.
Warning!
Print media contains lead and is hazardous to your health and the
environment.
Review the material safety data sheet before use.
Always wear protective gloves and safety glasses when
handling printing media.
Dispose of all waste material according to manufacturer’s
instructions.
Failure to comply could result in personal injury and/or damage to
the environment.
Warning!
Blade edges are sharp and can cut. Handle blades with care. Failure
to comply may result in injury.

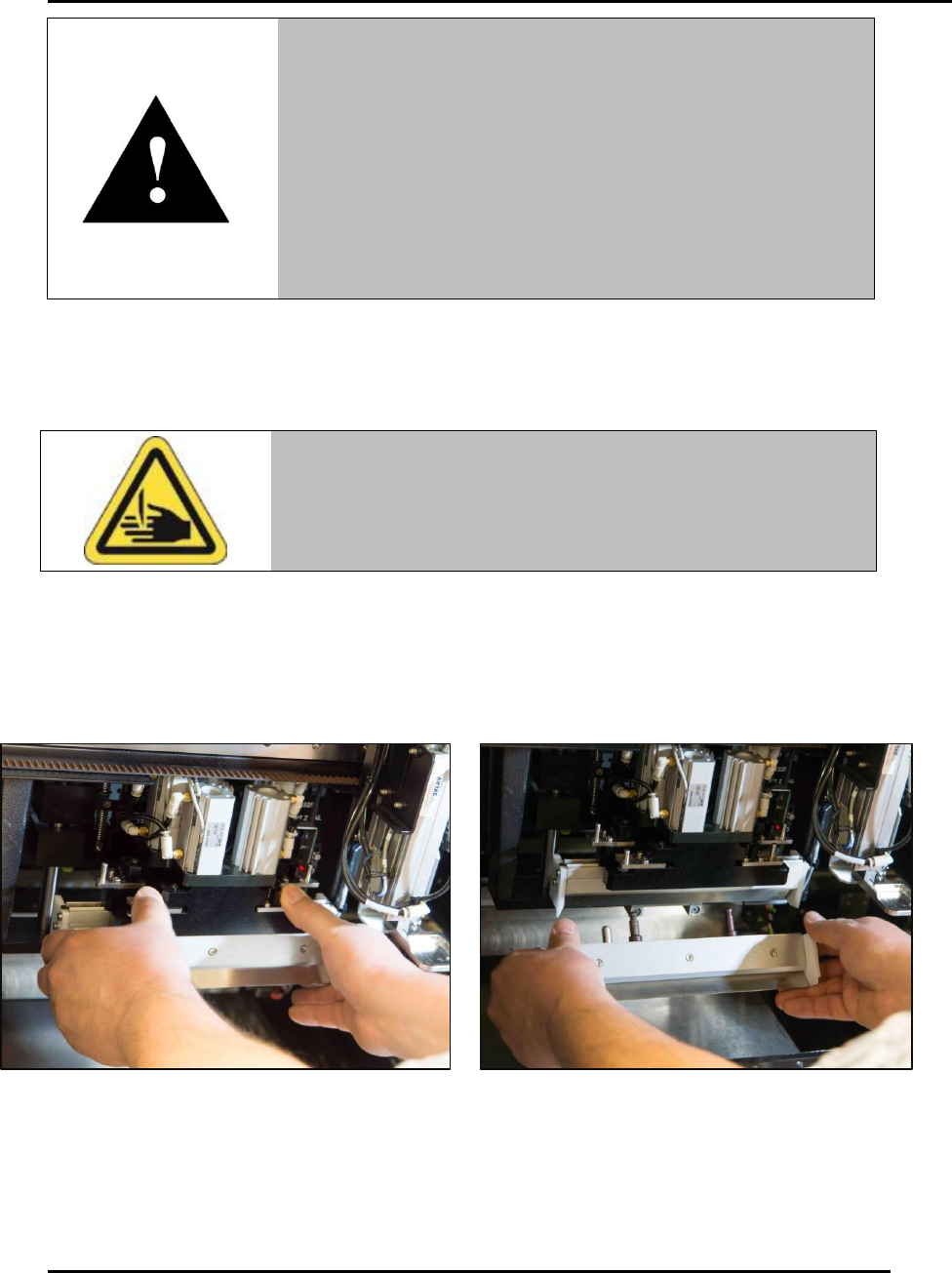

Figure 98. Open quick-release and remove front blades. Note that hands should be gloved.
