6.2.9. Inspect the Knurled Shaft–Monthly

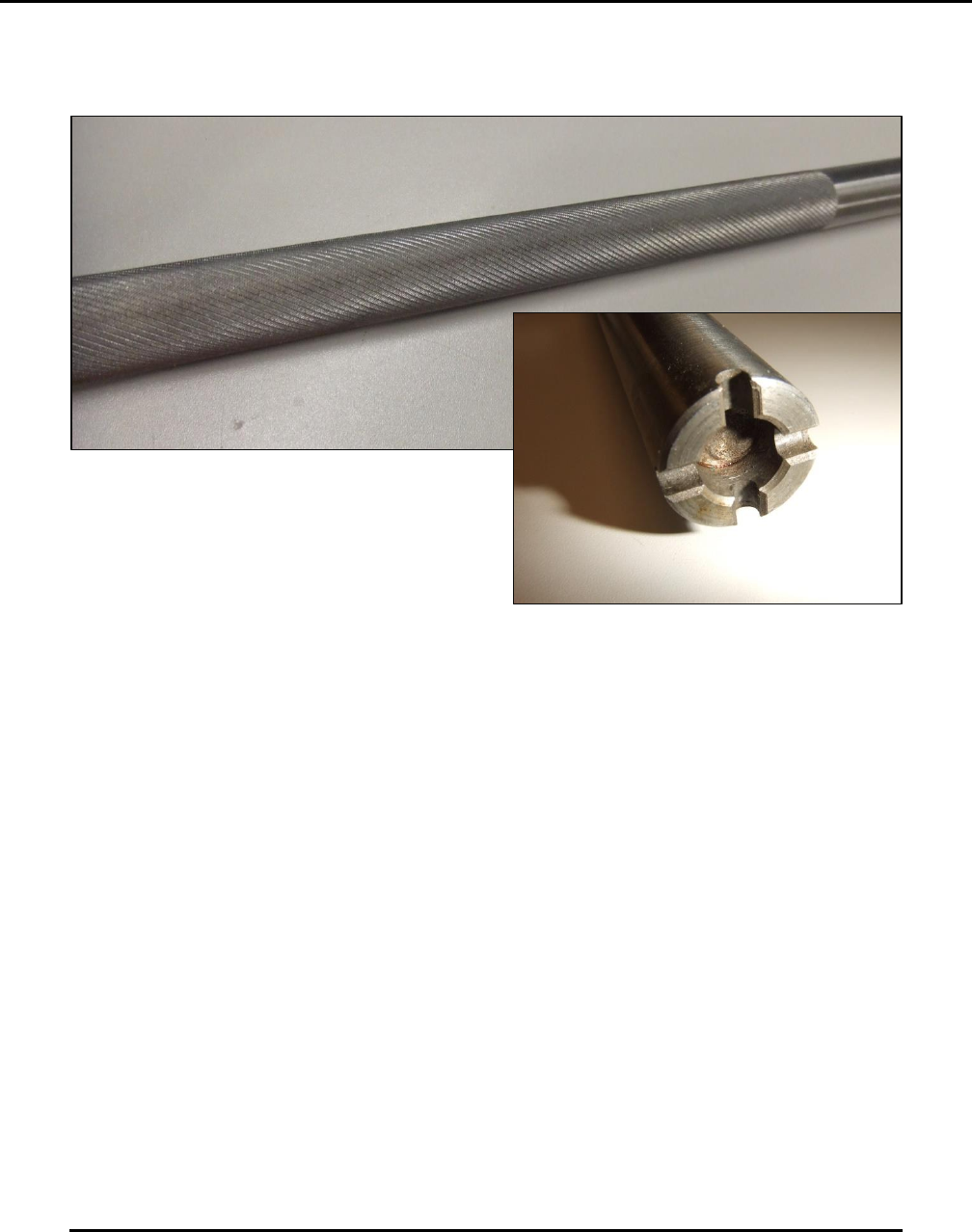

Figure 143. Inspect the knurled shaft and the drive end.
Introduction
Inspect the knurled shaft for cleanliness and for the condition of the knurl and drive end.
Estimated Completion Time
Less than 5 minutes
Procedure
Remove the shaft from the wiper assembly.
Inspect the diamond knurl pattern (Figure 143).
o If contaminated with solder paste, clean the surface.
o It may be necessary to soak the shaft or use an ultrasonic cleaning method to properly
condition the surface.
o The condition of this diamond knurl patter surface is important for the wiper paper
tensioning system to work effectively.
Check the condition of the drive end to ensure no excess wear.
Edison Printer User Manual (Part Number 1023838) MAINTENANCE
Rev. A 145
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.
6.2.10. Inspect Vacuum Hose–Monthly

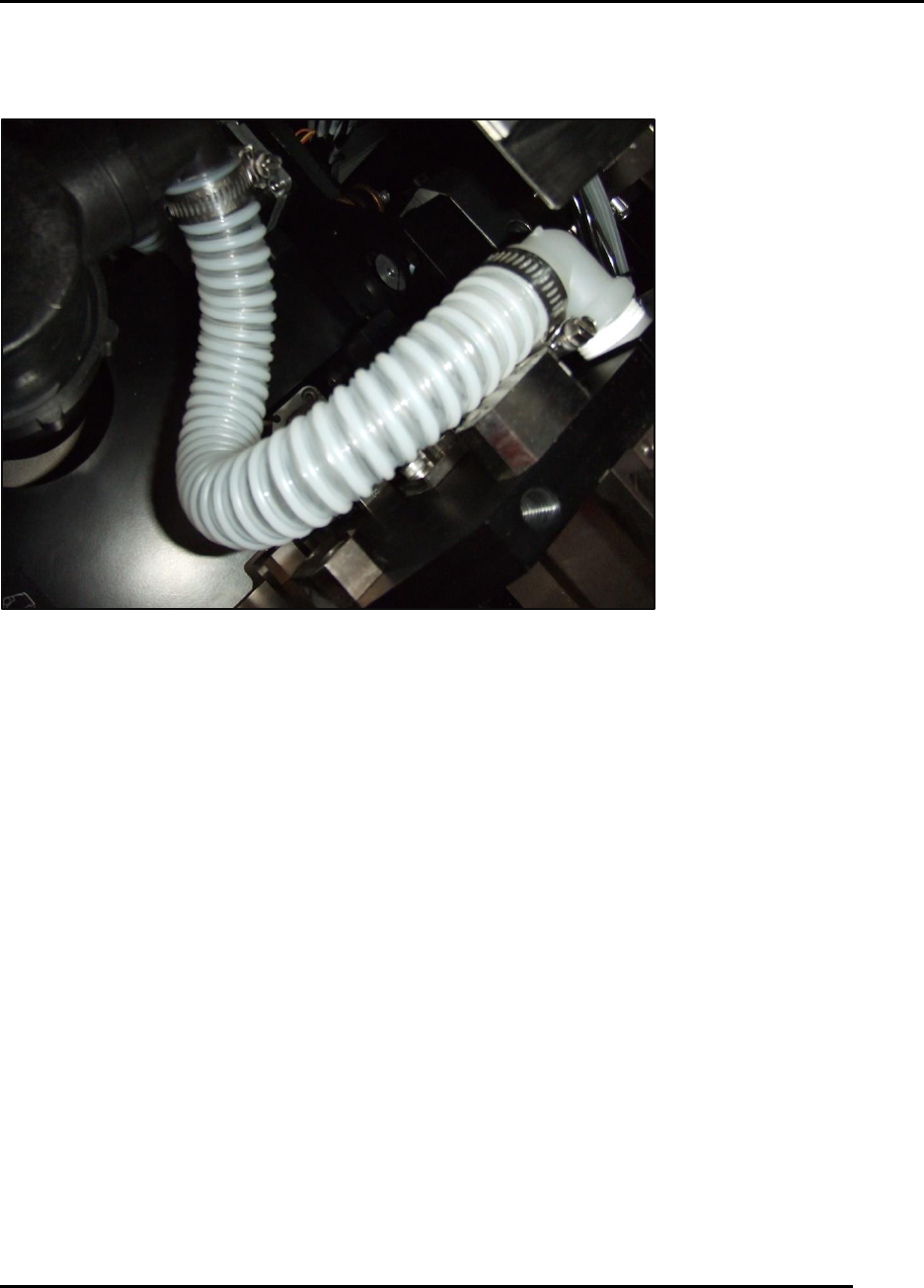

Figure 144. Inspect Vacuum Hose.
Introduction
Inspect the condition of the vacuum hose of the venturi vacuum
Estimated Completion Time
Less than 5 minutes
Procedure
The vacuum hose is subject to wear and attack by solvents.
Using the I O screen actuate the wiper up and down and check for any restriction of hose
movement.
o The hose should be pliable and move smoothly with wiper motion.
Inspect for cracks or deterioration—there should be no evidence of either.
Check that hose clamps are properly secured onto the fittings.
Inspect for solvent on the base frame assembly.
o Solvent indicates a leak from either the clamp area or a compromised hose.
MAINTENANCE Edison Printer User Manual (Part Number 1023838)
146 Rev. A
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.
6.2.11. Inspect Trackball Condition–Monthly

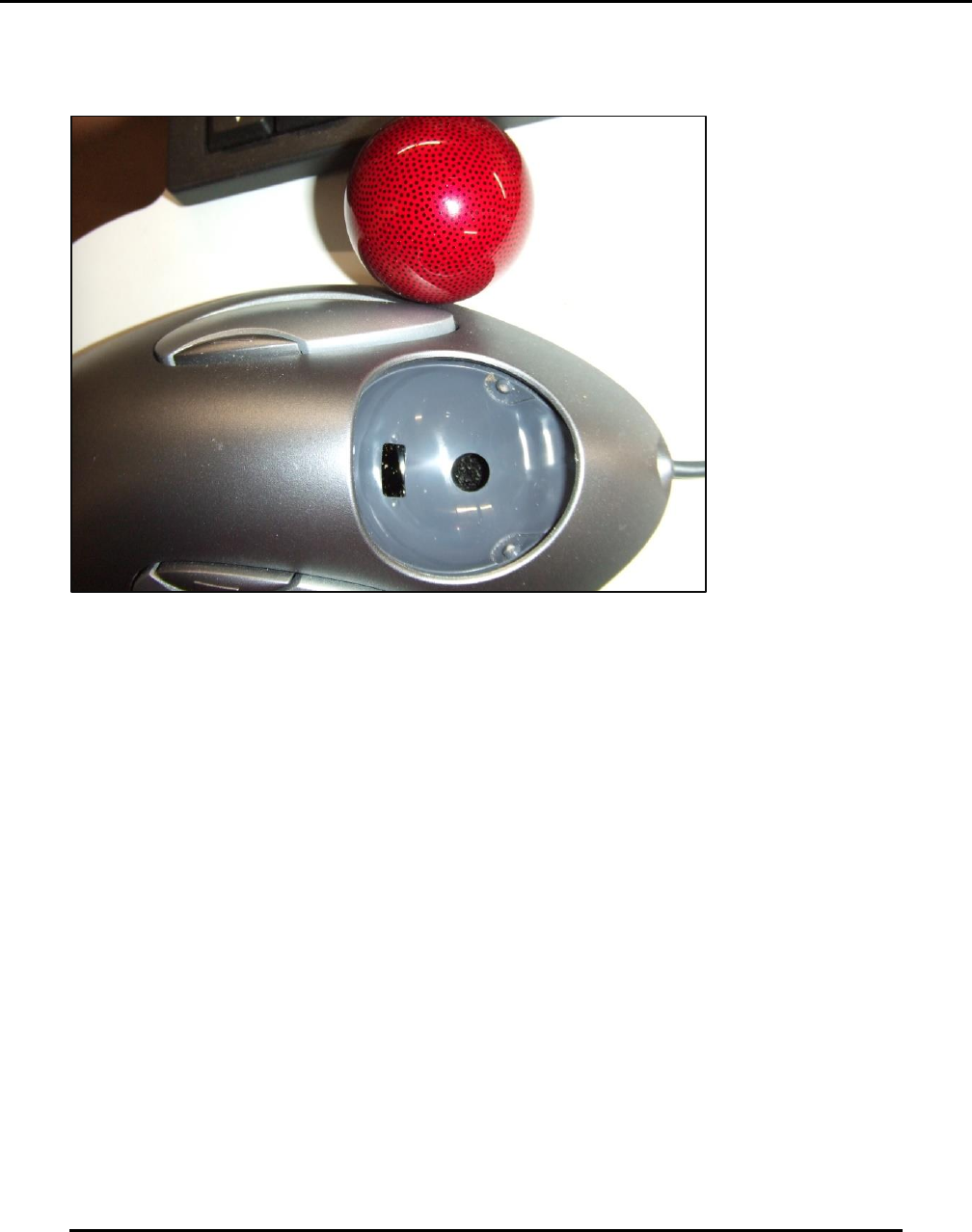

Figure 145. Inspect Trackball.
Introduction
Inspect the condition of the trackball and clean the pocket and marble.
Estimated Completion Time
Less than 5 minutes
Procedure
The trackball will become less responsive and harder to roll when contaminated with debris or
solder paste.
Clean the trackball in place and using Q-tips and a soft cloth.
o Pop the marble out by pressing gently through the hole in the bottom of the pocket.
o Ensure the small window that scans the marble is free of dust and all contamination.
o The white points support the marble. Clean the white points of all dust and all
contamination.
Clean the marble using isopropyl alcohol
