6.2.17. Inspect and Drain Incoming Air Filter Bowls–Monthly

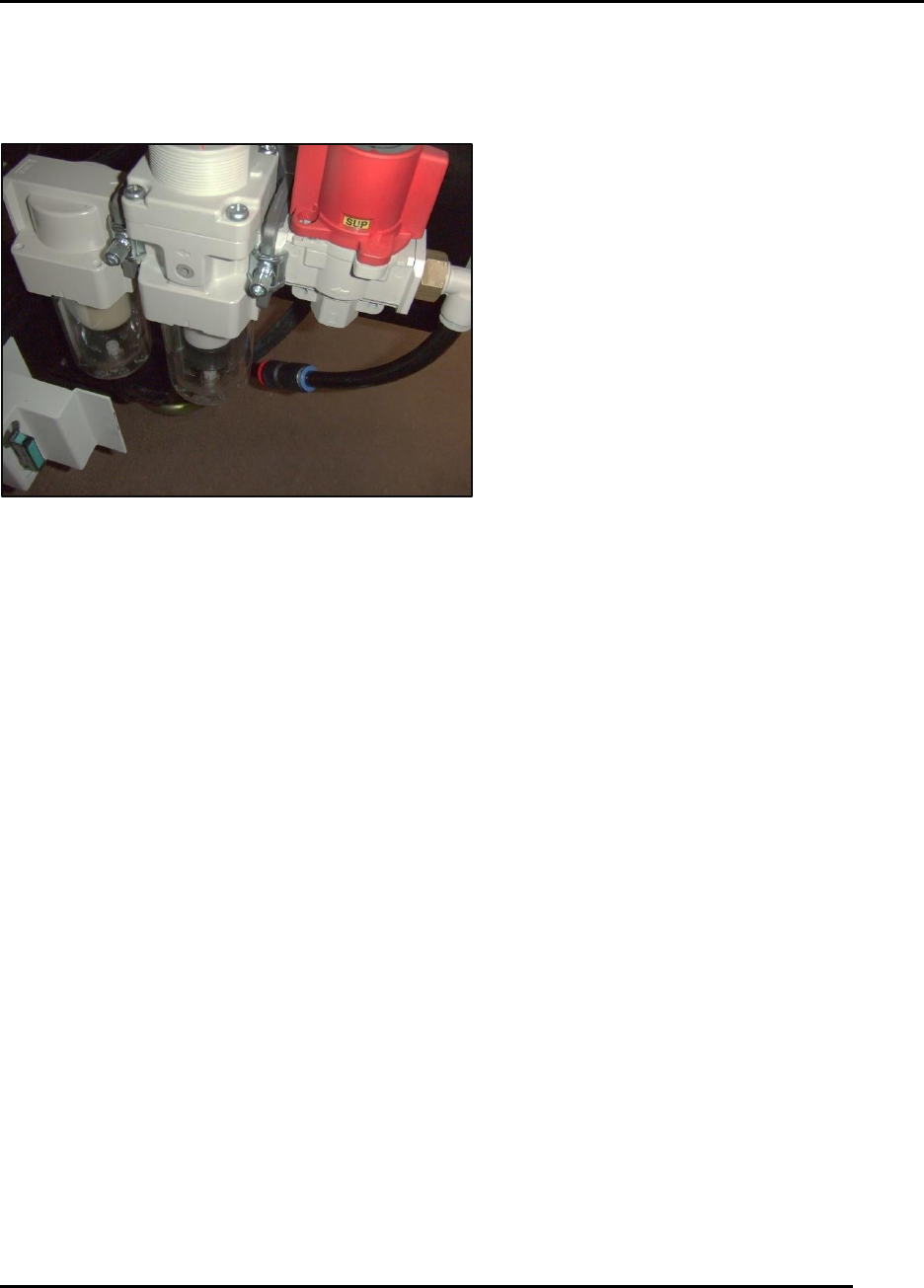

Figure 151. Inspect Air Filter Bowls.

Introduction

Inspect and drain incoming air filter bowls (Figure 151).

Estimated Completion Time

Less than 10 minutes

Procedure

Access the filter bowls by opening the front center door then the right access hinged panel. Filter

bowls are mounted on the bottom right of the Pneumatics panel.

If you observe fluid:

 Power-down the printer through the normal sequence.

 Lock out and Tag out the main disconnect.

 Turn the red handle in front of the filter bowl assemblies 90 degrees clockwise.

o Residual air in the system will dump out.

 Drain the filter and mist separator bowls using the small buttons at the bottom of each bowl.

 After draining remove the bowls

o Clean the bowls.

o Check condition of bowls.

 Restore the bowls to their appropriate positions,

 Return the red handle to the normal position.

 Remove the Lock out Tagout device.

 After air has been restored to the system, check for leaks.

NOTE: Do not attempt at any time to service the filter bowls with air pressure applied to them.

MAINTENANCE Edison Printer User Manual (Part Number 1023838)

154 Rev. A

means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and

retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

6.2.18. Inspect Tooling Pins–Daily

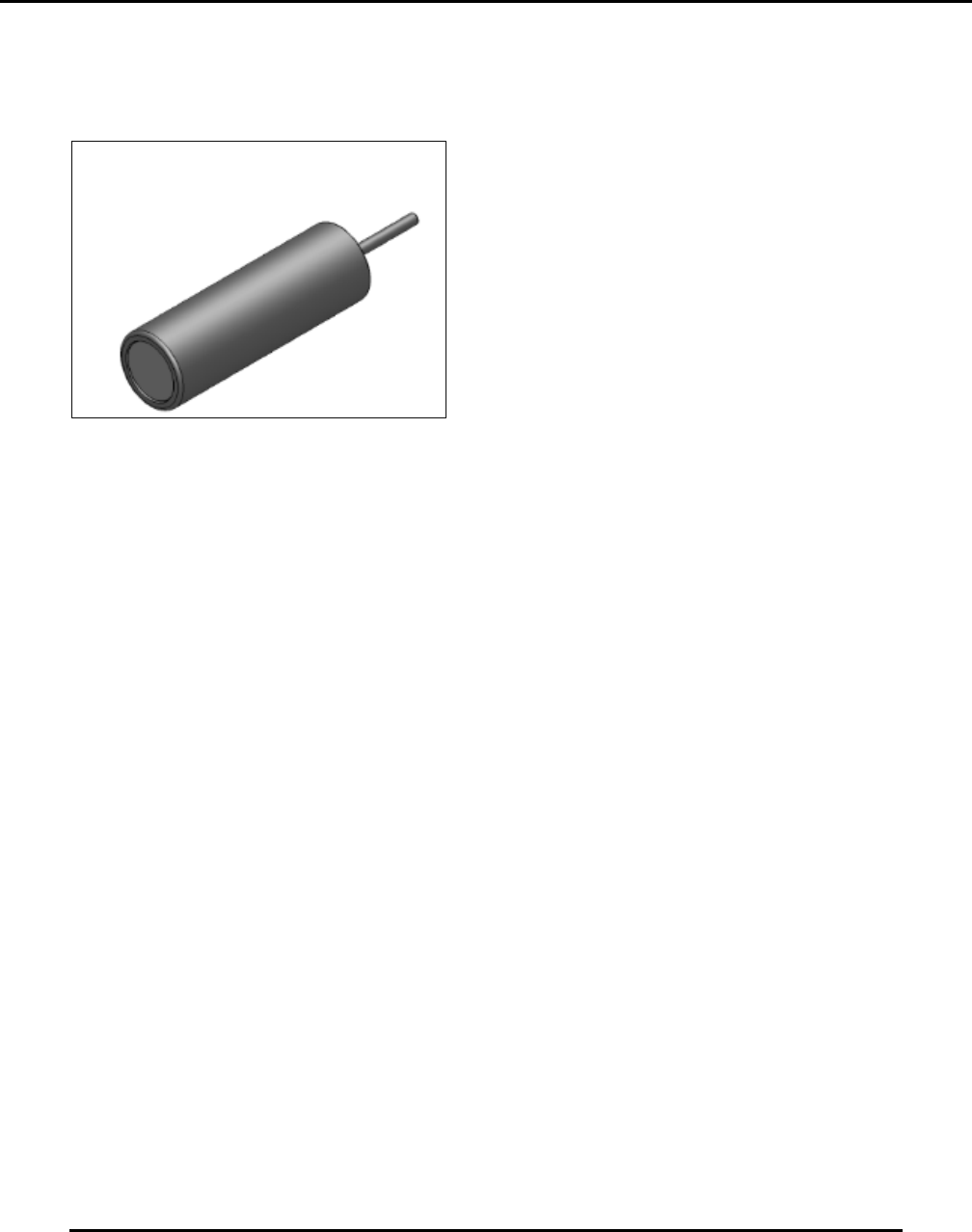

Figure 152. Inspect Tooling Pins.

Introduction

Inspect the tooling pins (89mm height) provided with the printer monthly for contamination and

condition and clean accordingly. Solder paste contamination of the edge around the magnet will

adversely affect print quality (height of the tooling pin may be out of specification).

Estimated Completion Time

Less than 10 minutes.

Procedure

 Inspect each tooling pin base (Figure 152):

o Check condition of the magnet. Magnets must not be cracked or chipped.

o Check for (and remove) foreign matter attached to the magnet.

 Clean tooling pins ultrasonically or by immersion and then brushing.

Edison Printer User Manual (Part Number 1023838) MAINTENANCE

Rev. A 155

means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and

retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

6.2.19. Inspect Tooling Bridge Kits–Daily

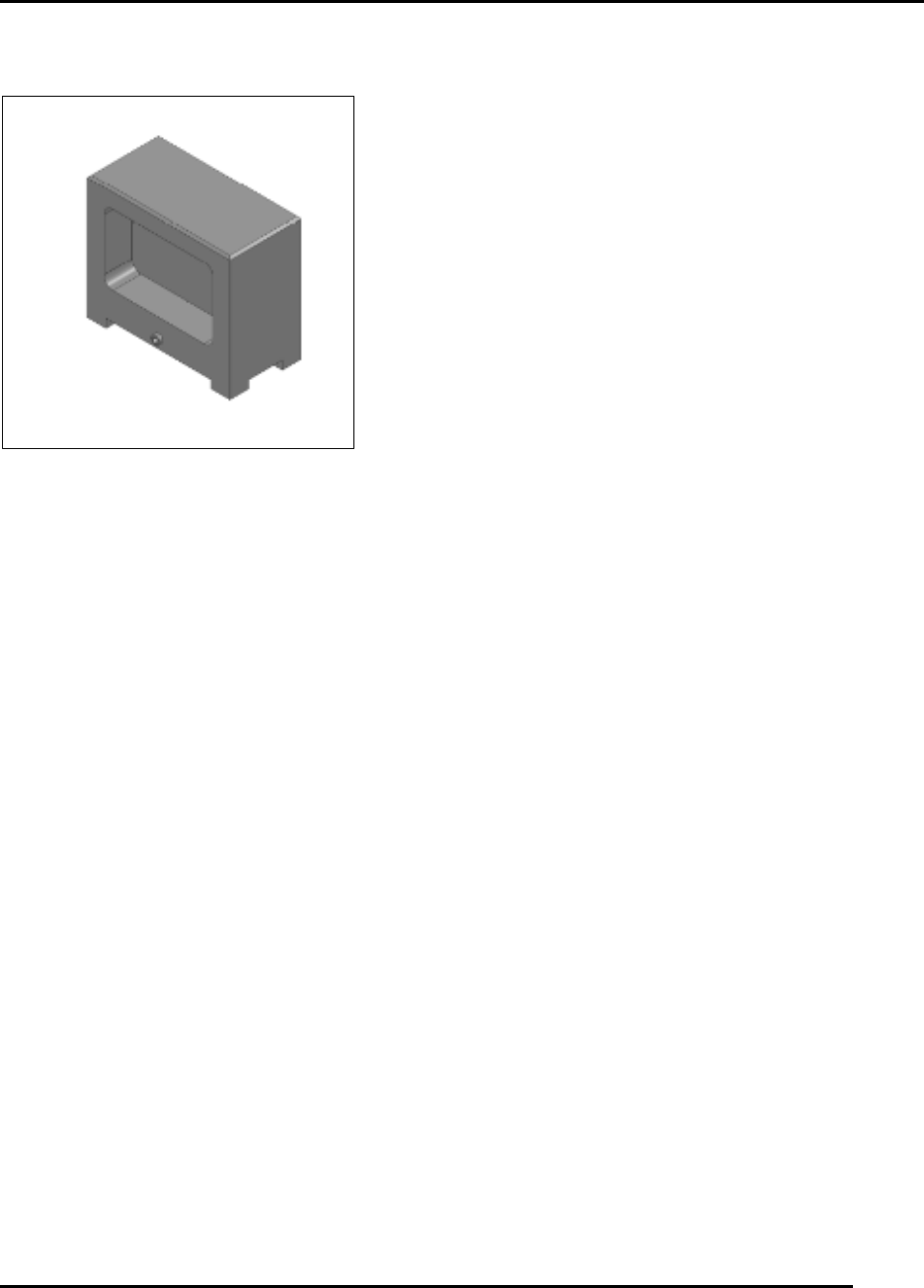

Figure 153. Inspect Tooling Bridge Kits.

Introduction

Inspect the tooling bridge kits (89 mm height) monthly for contamination and condition and clean

accordingly. Solder paste contamination of the top surface of the bridge or on the feet the magnet

will adversely affect print quality (height of the tooling pin may be out of specification).

Estimated Completion Time

Less than 10minutes.

Procedure

 Inspect each tooling pin bridge (Figure 153):

o Check condition of the magnet assembly.

 Nicks and dings to the surfaces of the assembly will affect print quality.

 File out nicks and dings.

o Check for (and remove) foreign matter attached to the magnet.

o Check that magnets must be secure in the bridge.

 Clean tooling bridges ultrasonically or by immersion and then brushing.
