M AINTENANCE Edison Printer User Manual (Part Number 1023838) 168 Rev. A Copyright © 2017 ITW EAE All rights reserved. No part of the contents of thi s manual may be reproduced, copied or transmitted in any form or by an…

Edison Printer User Manual (Part Number 1023838) MAINTENANCE

Rev. A 167

means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and

retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

6.2.31. Inspect Vision X Motor Drive Belt–Monthly

Figure 165. Inspect Vision X Motor Drive Belt.

Introduction

Inspect condition of the Vision X motor drive belt monthly (Figure 165).

Estimated Completion Time

Less than 5 minutes.

Procedure

Note: If the printer was installed as Back-To-Back, pull the printer from the production line to

gain access to the rear of the printer.

 Jog the vision Y as far to the rear as possible.

 Examine the small vision X timing belt and toothed pulleys for wear or contamination from

paste.

o If contaminated, clean the belt and pulleys using a stiff brush or vacuum.

o If worn or frayed, replace the belt.

MAINTENANCE Edison Printer User Manual (Part Number 1023838)

168 Rev. A

means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and

retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

6.2.32. Inspect Hood To Hoop Roll Ground Strap–180 Days

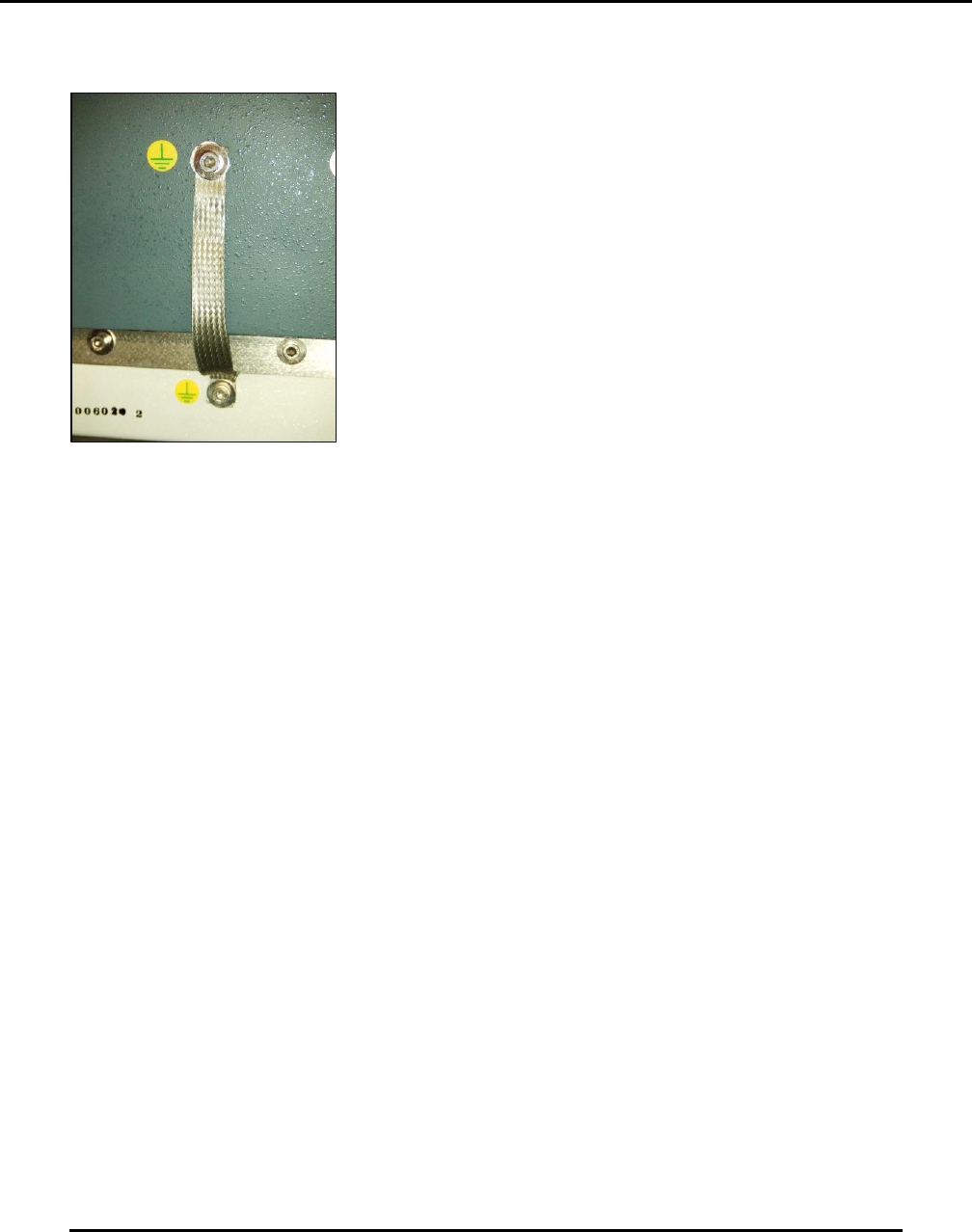

Figure 166. Inspect hood to hoop roll ground strap.

Introduction

Inspect the hood to hoop roll ground strap (Figure 166).

Estimated Completion Time

Less than 5 minutes.

Procedure

 Open the hood.

 Examine the small braided strap from the hood to the hoop roll frame.

 This electrostatic discharge (ESD) strap should not show any fraying or deterioration and/or

metal strand breakage.

o Replace strap if any strands are frayed.

6.2.33. Clean Work Table–Daily

Introduction

Clean the work table.

Estimated Completion Time

Less than 5 minutes

Procedure

Navigate to View (pull-down) > Diagnostics, then click the Motion Control tab to display the

Motion Control dialog.

Edison Printer User Manual (Part Number 1023838) MAINTENANCE

Rev. A 169

means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and

retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

 Select the WORKNEST Z axis.

o Click Home (bottom of the screen).

 Clean the board support (lifters) using a clean lint-free cloth and cotton swabs (both

dampened with approved cleaning solvent).

o Pay special attention to the underside of the lifters when cleaning.

 Make sure to remove all paste build-up.

 Ensure all tooling and foreign objects are removed from the underside of the rails or damage

can occur.

 If you have the Edge Lok option, inspect the assembly for loose, damaged, or missing parts.

o Check for paste build-up and other debris.

o Clean as required using a clean lint-free cloth and cotton swabs (both dampened with

approved cleaning solvent).

 Clean the work table surface using a clean lint-free cloth dampened with approved cleaning

solvent.

o Make sure to wipe the table area under the front and rear track assemblies as well.

6.2.34. Clean Stencil Shelves—Daily

Introduction

Clean the stencil shelves.

Estimated Completion Time

Less than 5 minutes.

Procedure

 Remove the stencil from the shelf (if present).

Caution: Safety Glasses

Wear protective safety glasses when handling solvent or

printing media. These chemicals can cause eye injury. Review

Safety Data Sheet before use.

Caution: Safety Gloves

Wear protective gloves when handling solvent or printing media.

Solvent can cause skin irritation. Review Safety Data Sheet

before use.
