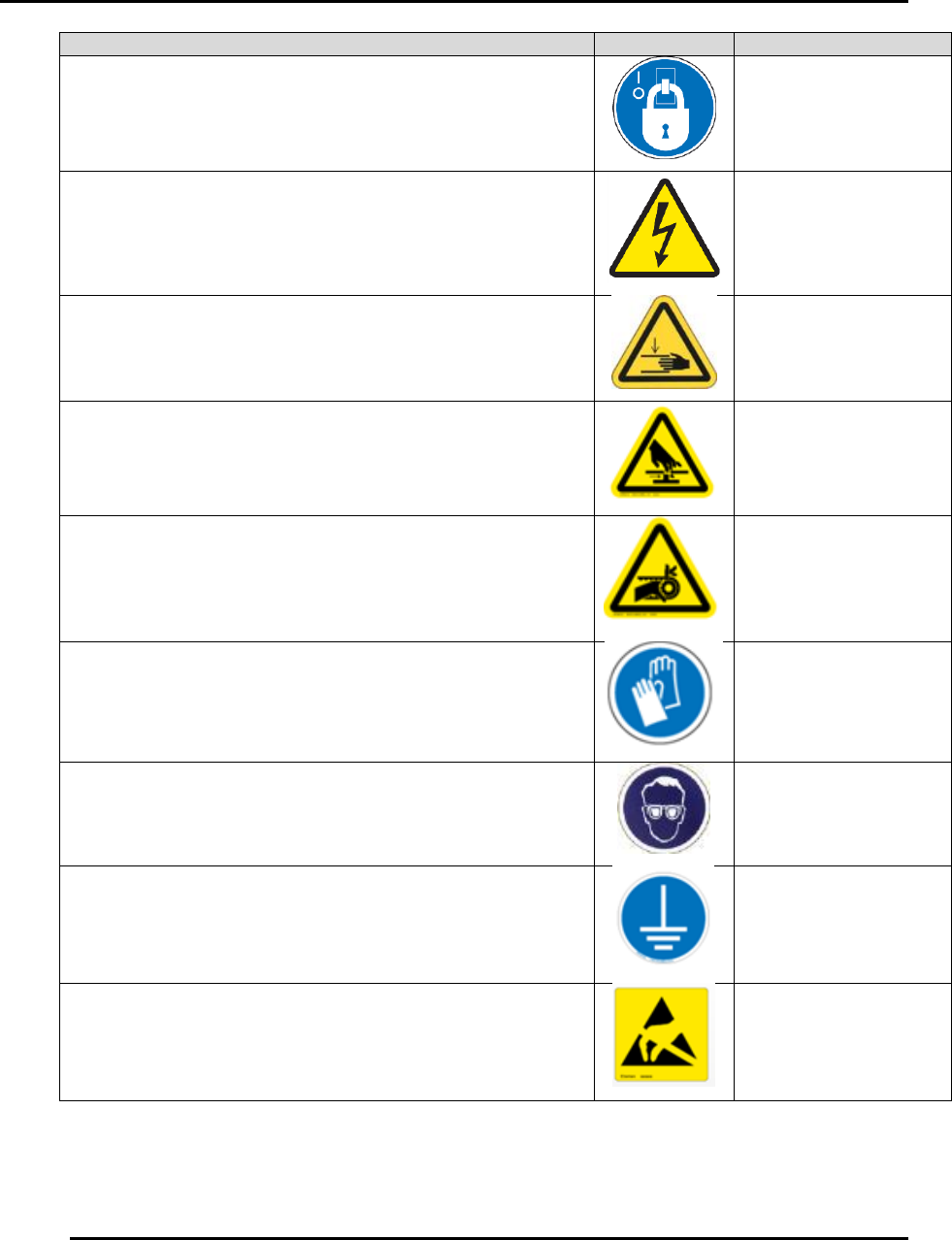

Description
Label
Part Number
Lock out
P12400
High voltage (risk of electric shock)
P12976
Risk of hand crush (from force from above)
P12997
Risk of hand cut (from moving parts)
P13000
Risk of hand entanglement (from notched belt drive)
P13001
Wear protective gloves
P13008
Wear eye protection
P13011
Protective earth, electrical
P13012
Electrostatic sensitive device
P13014
Edison Printer User Manual (Part Number 1023838) SAFETY
Rev. A 27
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.
2.2.3.3. Label Placement Overview
Safety labels placed throughout the printer warn of specific risks. Do not remove safety labels.
Table 5 lists the specific sections for label placement.
Table 5. Label Placement Sections.
Label Placement
Section
Inside Front
2.2.3.3.1
Wiper
2.2.3.3.2
Outside Front
2.2.3.3.3
Left and Right Panels
2.2.3.3.4
Back Panel
2.2.3.3.5
Inside Door Panel
2.2.3.3.6
Solvent System
2.2.3.3.7
Pneumatics Panel
2.2.3.3.8

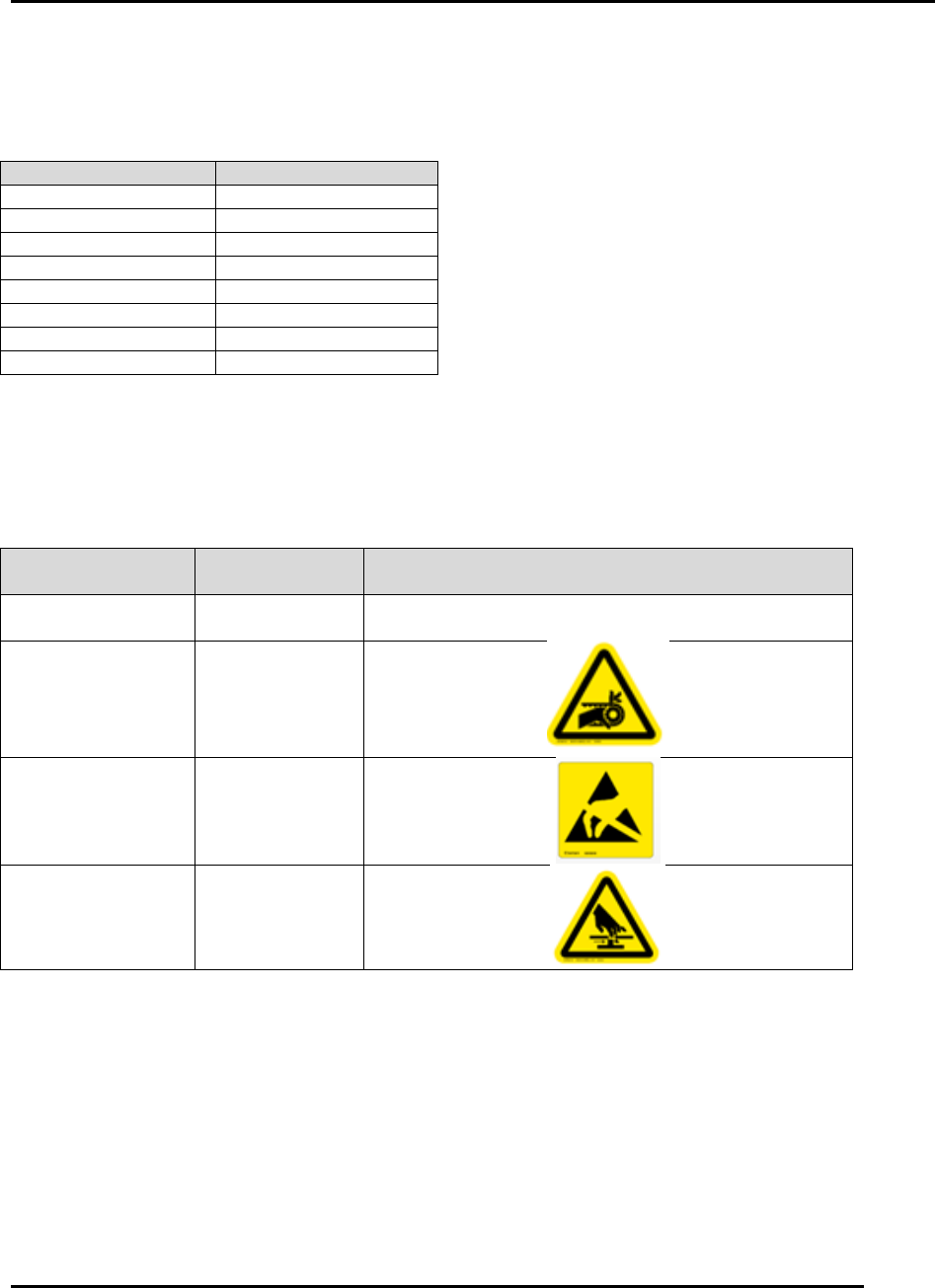

2.2.3.3.1. Inside Front Panel Labels
Table 6 provides placement and label reorder part number information. Figure 4 provides label locations.
Table 6. Inside Front Labels and Placement.
Figure Designator
(Label)
Part Number
Label Text
A
1008769
CAUTION. Falling hood can cause injury. Replace
hood gas struts yearly or if struts exhibit wear.
B
P13001
C
P13014
D
P13000
SAFETY Edison Printer User Manual (Part Number 1023838)
28 Rev. A
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

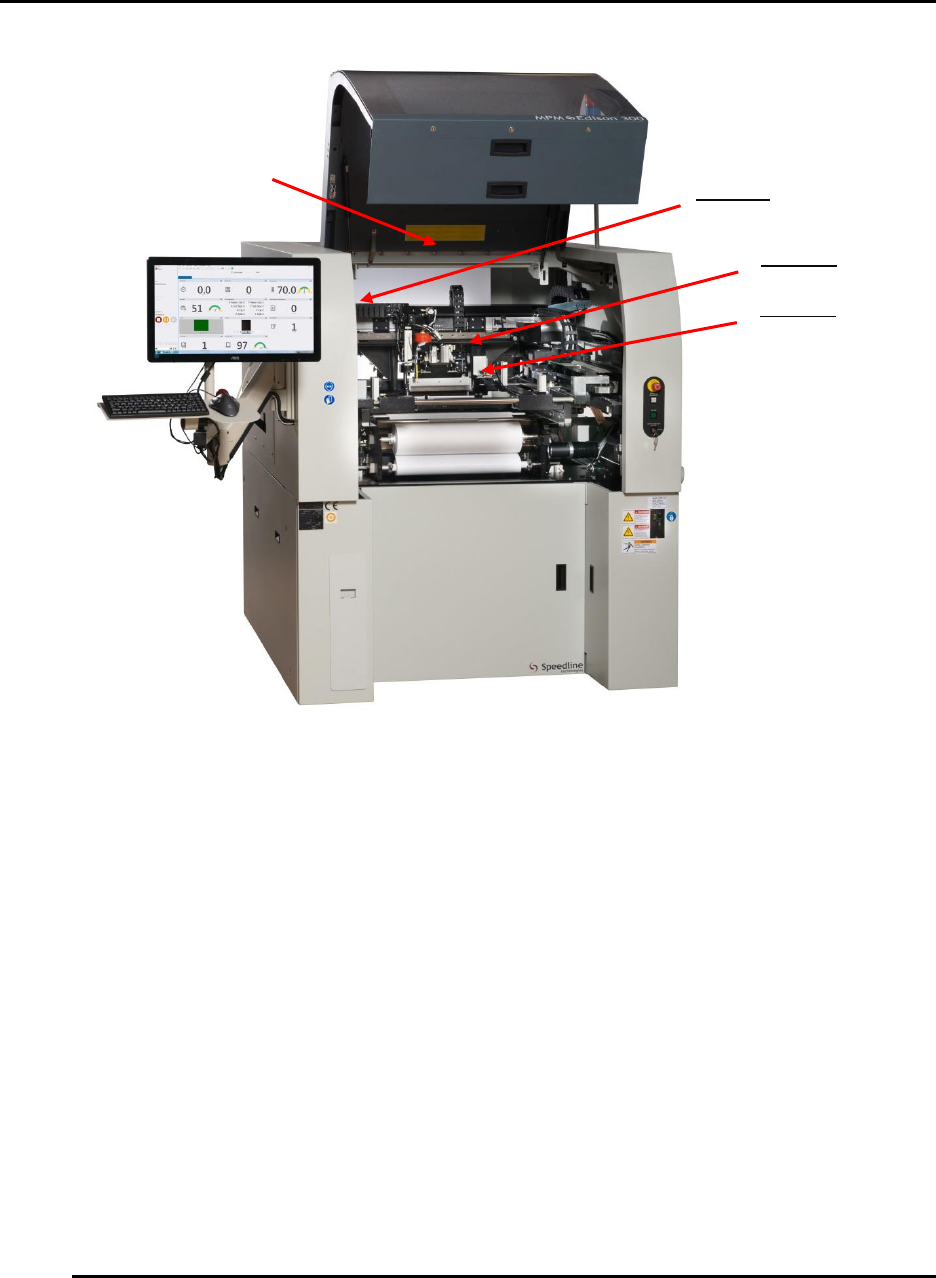

Figure 4. Inside Front Label Placement.
Label A
Label B
Label C
Label D
