Edison Printer User Manual (Part Number 1023838) PROCESS PROGRAM CREATION

Rev. A 71

means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and

retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

 Panel Size X

 Panel Size Y

 Thickness of the panel to be printed

In the Stencil section, manually enter:

 Stencil X dimensions

 Stencil Y dimensions

 Inner Dimension of the stencil

 Stencil image offsets

4.2.2. Worknest Program Data

Worknest program data establishes the force and movement specifics for controlling the

worknest. Enter specifics required to operate the worknest (Figure 45)

In the Basic section, choose between:

 Snugger Force (Range varies from 0 to 22 Lbs. or 0 to 10 Kg.)

 Z Speed mode. Choose between

o Off

o Snug

o Release

o Snug and Release

o Full Print cycle

 Z speed (Range varies from 0.00492 to 10 inch / sec or 0.125 to 254.0 mm / sec)

Figure 45. Process Program Page--Worknest Section.

4.2.3. Tooling Program Data

Tooling program data sets up the tooling pin layout diagram to use as reference when manually

placing pins for board support on the worknest. Enter specifics required to operate the tooling

(Figure 48)

In the Types of Tooling section choose between:

 No tooling

PROCESS PROGRAM CREATION Edison Printer User Manual

72 Rev. A

means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and

retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

 Dedicated work holder

 Tooling Block/pins

 Grid Automatic

 Grid Manual

In the Vacuum Mode section, choose between:

 Off

 Snug

 Full

 On except print

In the Flipper Mode section, choose between:

 Off

 Snug

 Full

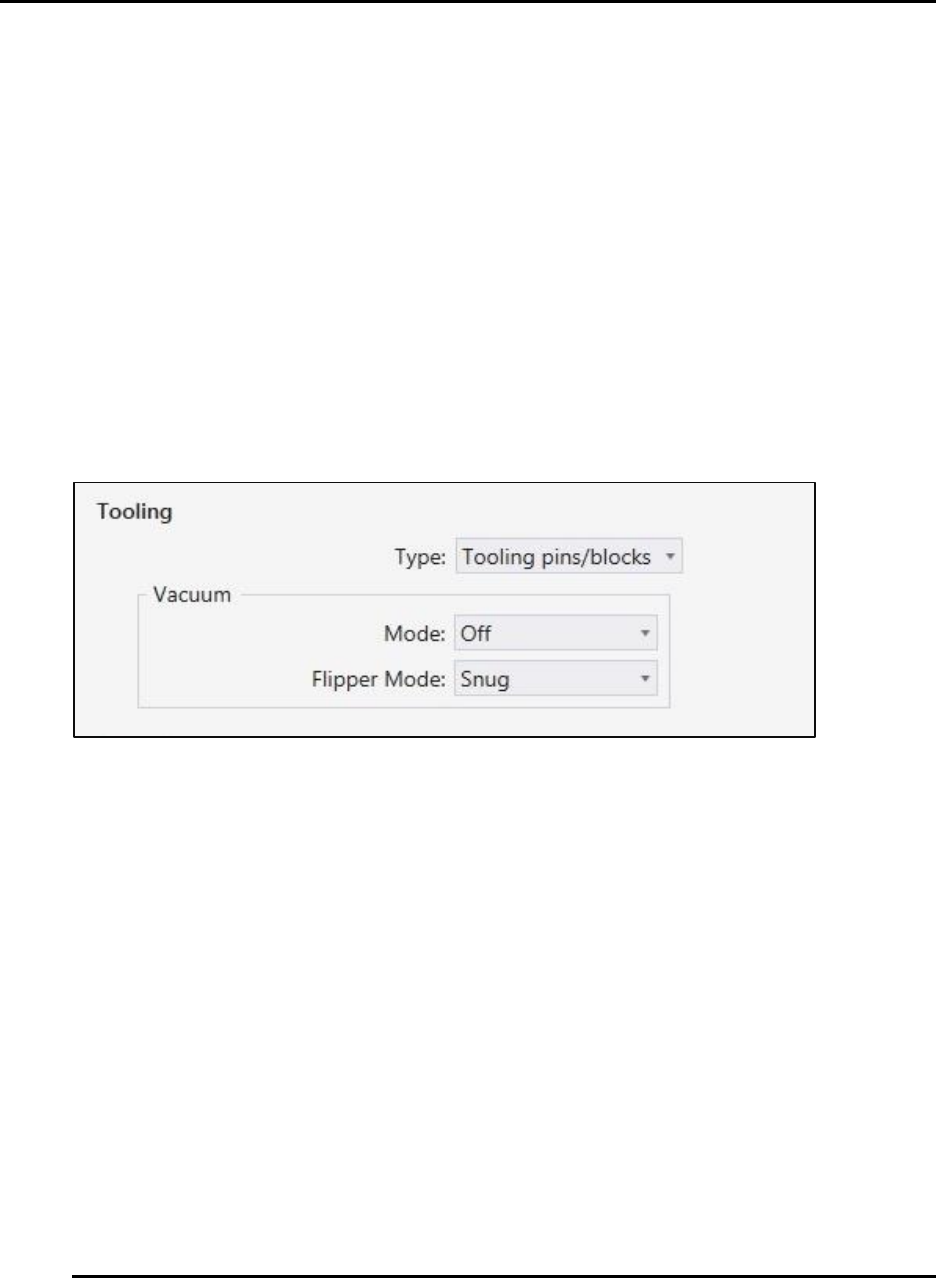

Figure 46. Process Program Page--Tooling Section.

4.2.4. Separation Program Data

Separation program data determines the distance between the board and the stencil when the

board is at print height. The separation function also determines how the board separates from the

stencil after the print stroke.

 Print Gap: Range available from -0.05 inch to 0.2 inch or -1.27 to 6.35mm.

 Separation Profile: Enter the specifics required for separation (Figure 47).

Edison Printer User Manual (Part Number 1023838) PROCESS PROGRAM CREATION

Rev. A 73

means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and

retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

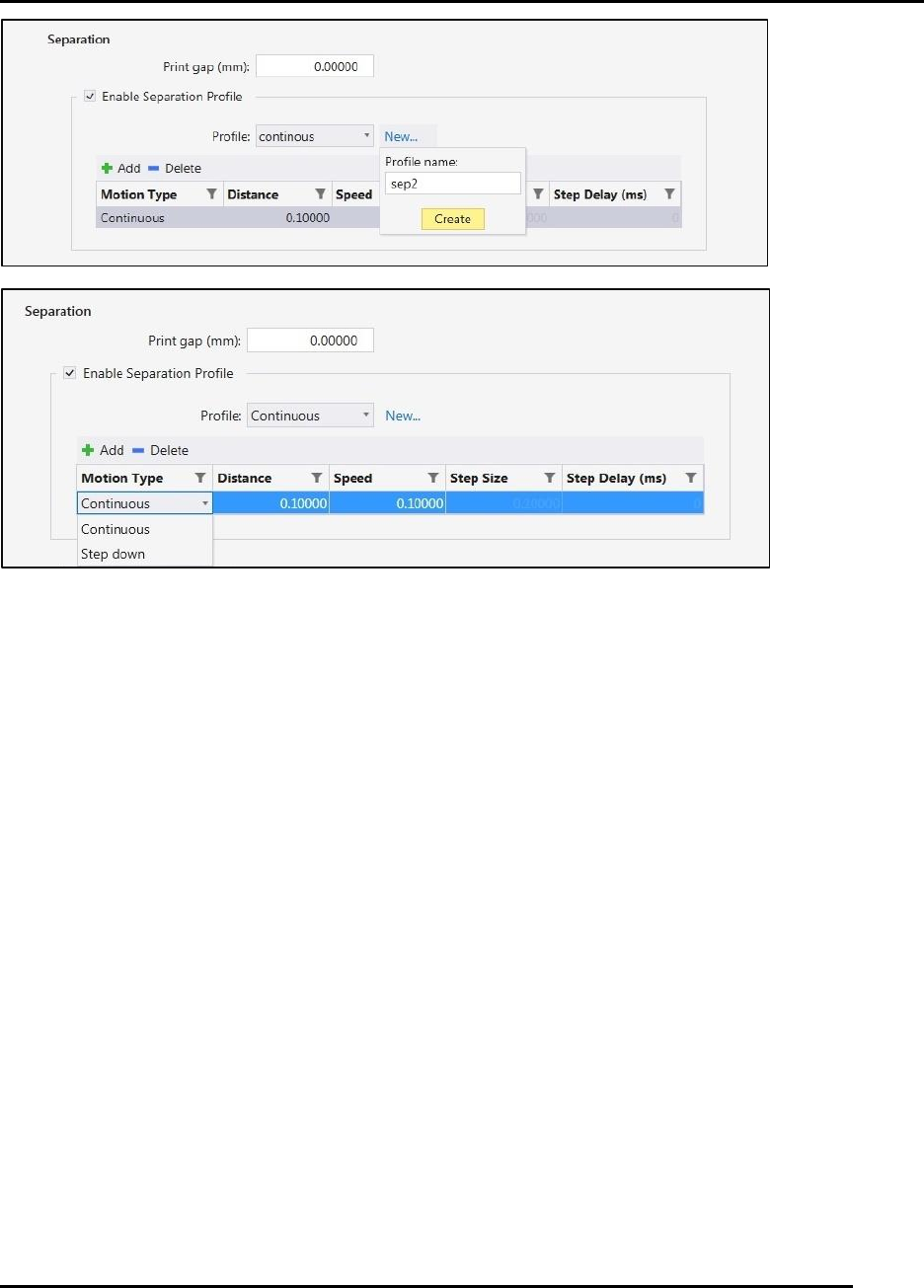

Figure 47. Separation Program Data.
