4. Load the panel into the Edison Printer. The conveyor will move the panel into the worknest
and display the next screen.
5. Click on Teach New to begin teaching the new fiducial to the Intueri software (Figure 57).

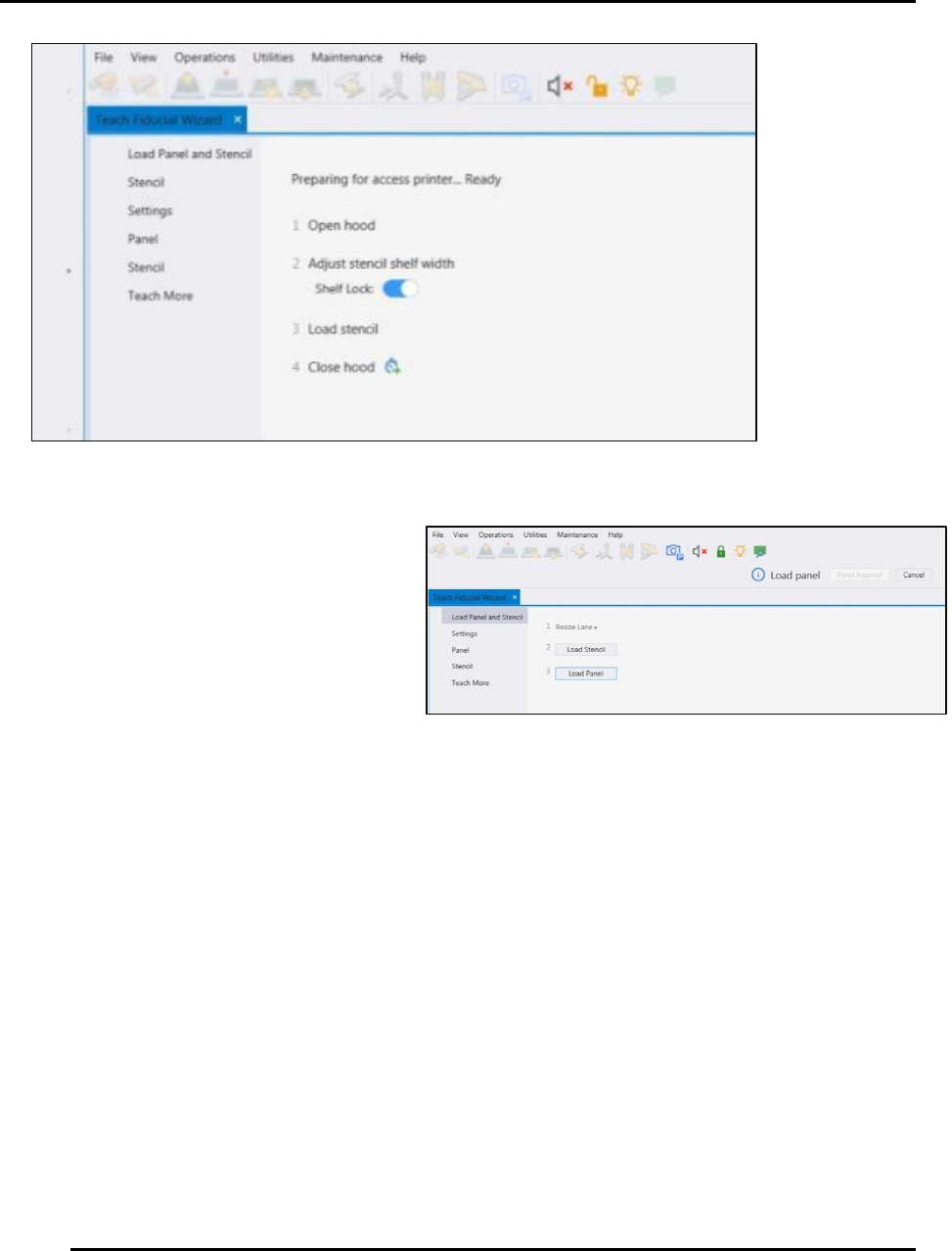

Figure 55. Teach Fiducial Wizard: Load Stencil.
Figure 56. Teach Fiducial Wizard: Load Panel.
Edison Printer User Manual (Part Number 1023838) PROCESS PROGRAM CREATION
Rev. A 81
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

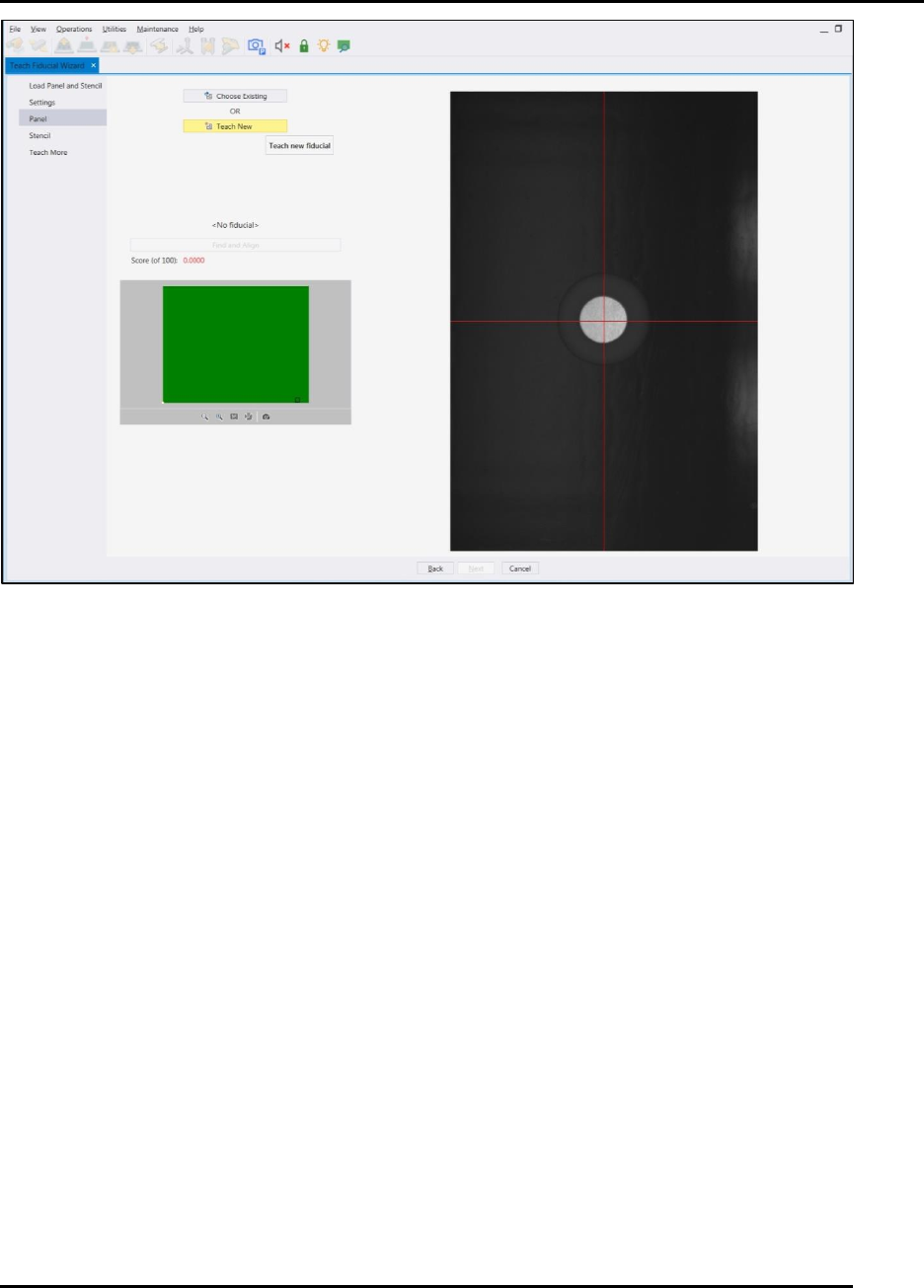

Figure 57. Teach Fiducial Wizard: Teach New Panel.
6. Enter the fiducial name if desired, otherwise allow the software to automatically name the
fiducial (Figure 58).
a. Using the mouse, position the crosshairs on the panel (Figure 58).
b. The green screen shows the position of the crosshairs on the panel.
PROCESS PROGRAM CREATION Edison Printer User Manual
82 Rev. A
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

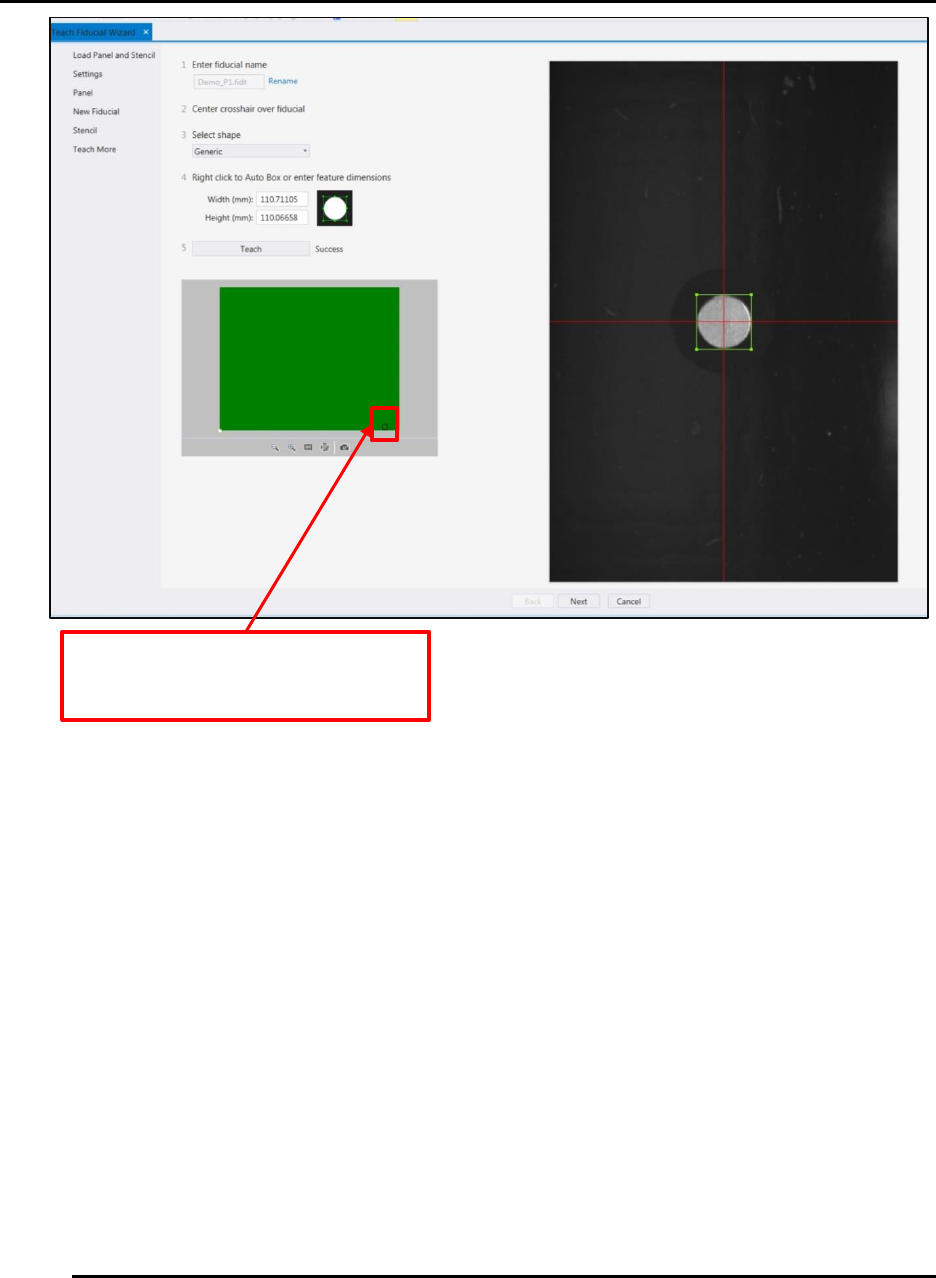

This shows the position of the fiducial
on a board crosshairs on panel.
Figure 58. Position crosshairs on panel fiducial.
