PROCESS PROGRAM CREATION Edison Printer User Manual
82 Rev. A
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.
This shows the position of the fiducial
on a board crosshairs on panel.
Figure 58. Position crosshairs on panel fiducial.
Edison Printer User Manual (Part Number 1023838) PROCESS PROGRAM CREATION
Rev. A 83
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.
4.2.7.5. Panel
8. Click Teach to start the process for the software to recognize the fiducial and panel (Figure
58).
9. After teaching the software, use the next screen to Test, to ensure alignment is adequate
(Figure 59).
a. Press Test
b. If the score is less than 80%, adjust the brightness, exposure, and contrast (Figure
60).
c. Press Test again.

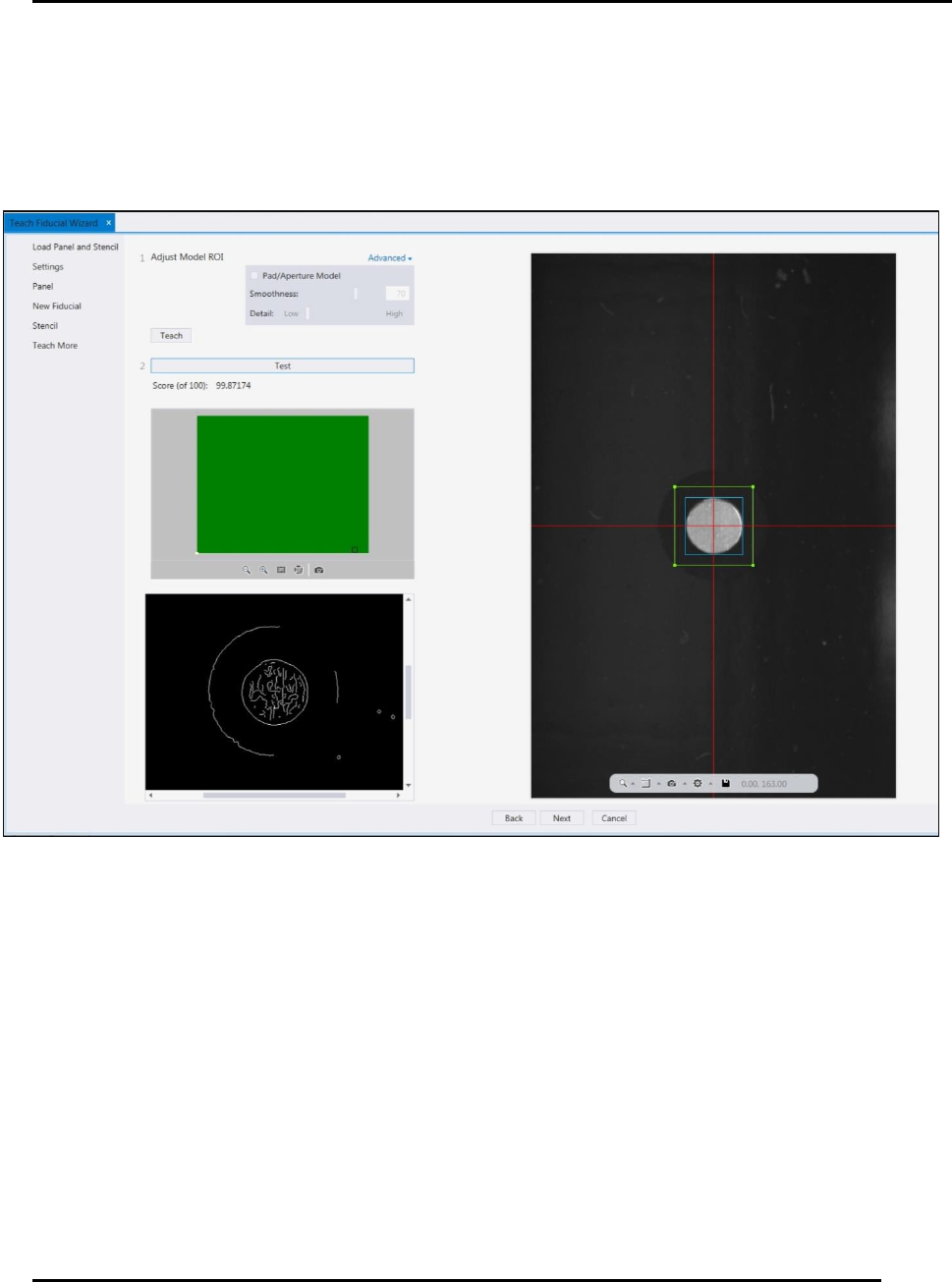

Figure 59. Teach Fiducial Wizard: Test Panel.
PROCESS PROGRAM CREATION Edison Printer User Manual
84 Rev. A
Copyright © 2017 ITW EAE
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of ITW EAE, unless for purchaser's personal use.

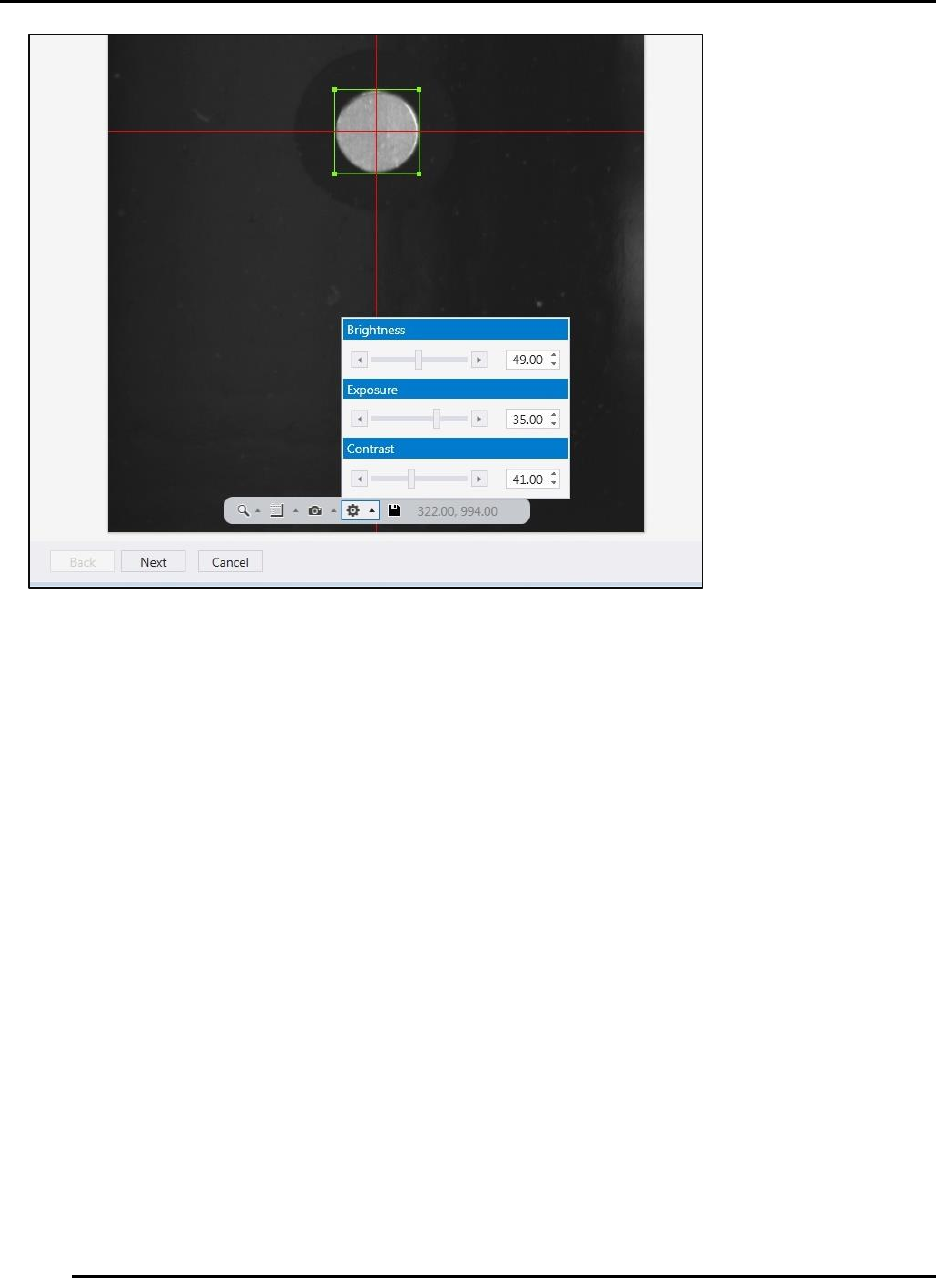

Figure 60. Teach Fiducial Wizard: Adjust Brightness, Exposure, and Contrast
