FUNCTION NAME Z-Direction Traveling Parallel Alignment Function/Perform ance CHECK/ADJUSTMENT MET HODS (REMEDIAL ACTION PROCEDUR E) ASSURED QUALITY Reliability QUALITY CHARACTERISTI CS (SPECIFICATION VALUES) CATEGORY Saf…

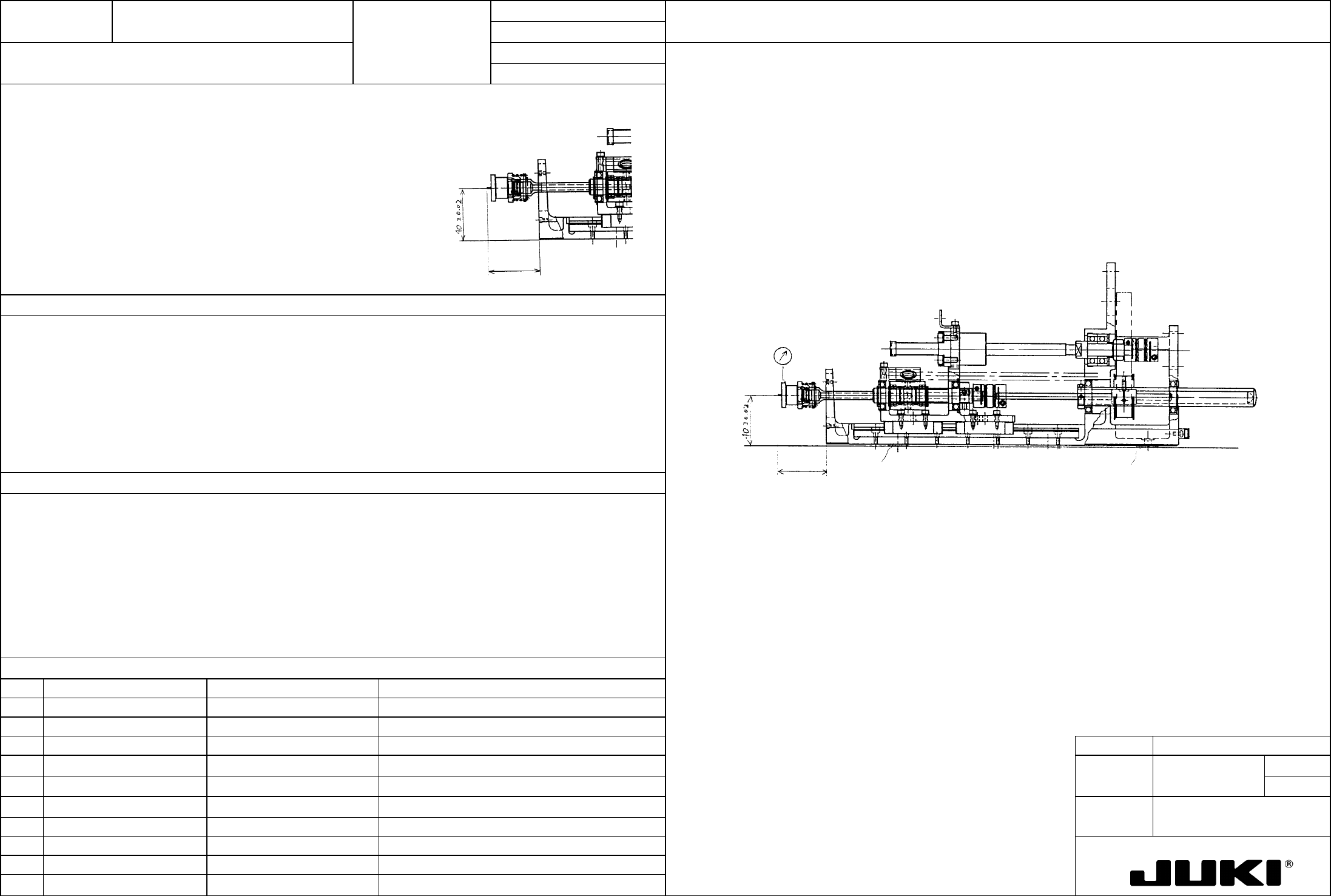

FUNCTION NAME Z-Slider Shaft Height Function/Performance CHECK/ADJUSTMENT METHODS (REMEDIAL ACTION PROCEDURE)
ASSURED QUALITY Reliability
QUALITY CHARACTERISTICS (SPECIFICATION VALUES) CATEGORY Safety
Product Image
ROLE IN FUNCTION (MEANING OF SPECIFICATION VALUES)
POSSIBLE MALFUNCTIONS (CAUSED BY INCORRECT SPECIFICATION VALUES)
COMPONENTS
NO. Part No. Part Name Associated Quality Characteristics
1 E30027250A0 Head unit HD assembly
2 E31027250A0 Head unit LA assembly
3 E32027250A0 Head unit IC assembly MODEL KE-750/760
4 E3019721000 Head center shim A t0.1
UNIT Head
REF. NO.
5 E3020721000 Head center shim B t0.05
NAME
13
6 E3021721000 Head center shim C t0.03
FUNCTION Z-Slider Shaft Height
7
NAME
8
9
10
QA Table
Head unit on bench:
Height of Z-slider shaft: 40 ±0.02 mm (eccentric center as measured at the Z pickup position)
Pickup
height
Mount the jig nozzle (φ20) on the Z-slider shaft, apply a dial indicator to the periphery of the jig nozzle, and
turn the Z-slider shaft. Check that eccentricity is 0.02 mm or less and, at the same time, select head center
shim A, B, or C and place it between the head bracket and head plate jig so that the eccentric center
becomes 40 ±0.02 mm. At this time, measure Z position at the pickup point [see the assembly drawing of
head assembly (750, 760, 7520, 7620)]. At the same time, measure also the traveling parallel alignment in
Z-direction.
Head center shim
Head cente
r
shim
Head plate jig
Pickup
height
Greatly affects pickup reliability at simultaneous pickup.
– Component pickup failure
– Degraded placement accuracy

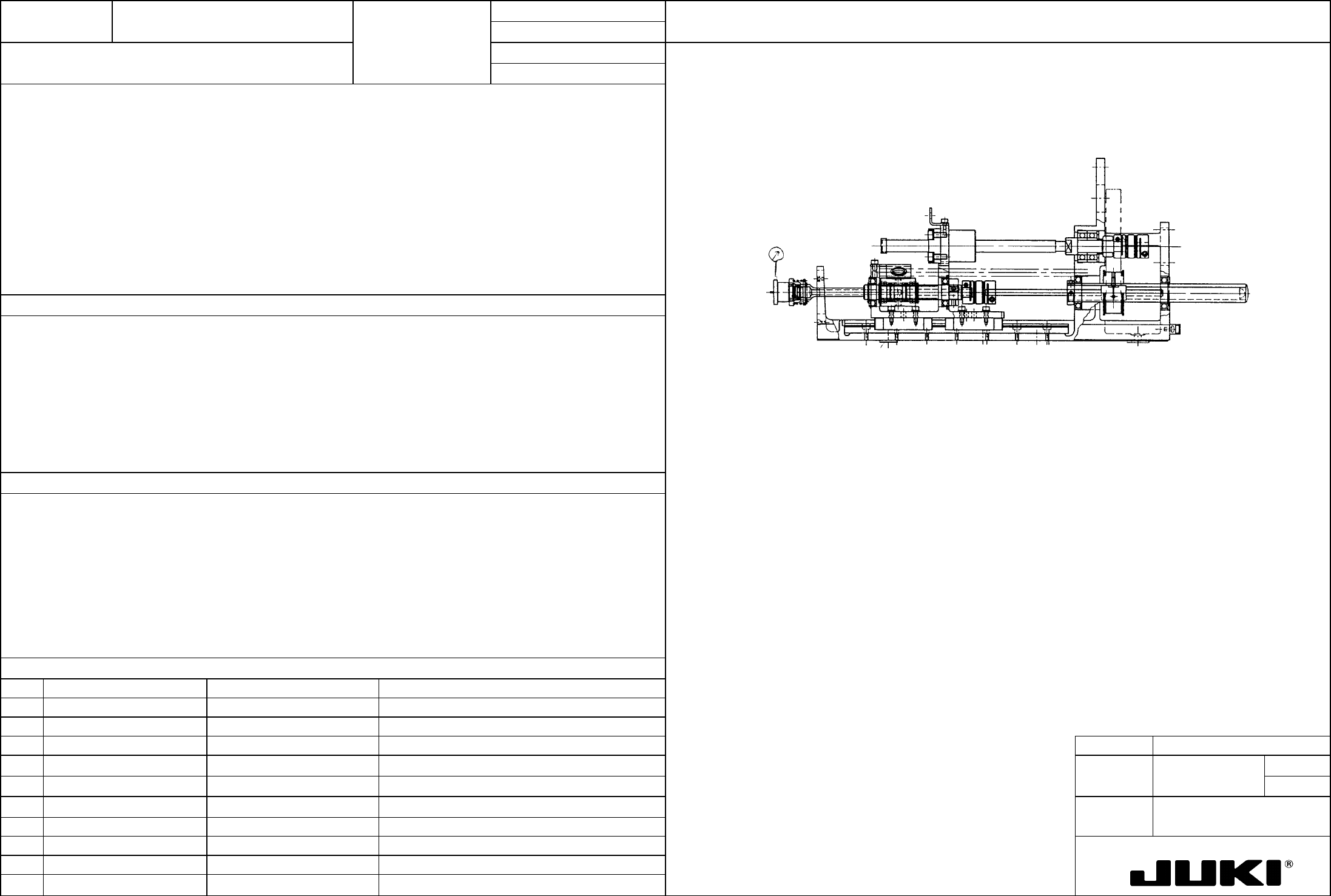

FUNCTION NAME Z-Direction Traveling Parallel Alignment Function/Performance CHECK/ADJUSTMENT METHODS (REMEDIAL ACTION PROCEDURE)
ASSURED QUALITY Reliability
QUALITY CHARACTERISTICS (SPECIFICATION VALUES) CATEGORY Safety
Product Image
ROLE IN FUNCTION (MEANING OF SPECIFICATION VALUES)
POSSIBLE MALFUNCTIONS (CAUSED BY INCORRECT SPECIFICATION VALUES)
COMPONENTS
NO. Part No. Part Name Associated Quality Characteristics
1 E30027250A0 Head unit HD assembly
2 E31027250A0 Head unit LA assembly
3 E32027250A0 Head unit IC assembly MODEL KE-750/760
4 E3019721000 Head center shim A t0.1
UNIT Head
REF. NO.
5 E3020721000 Head center shim B t0.05
NAME
14
6 E3021721000 Head center shim C t0.03
FUNCTION Z-Direction Traveling Parallel
7
NAME Alignment
8
9
10
QA Table
Mount the jig nozzle and measure the eccentric center height at the upper end and lower end of the Z-axis stroke.
Traveling parallel alignment in Z-direction: 0.05 mm or less
Head center shimHead center shim
Jig nozzle
Greatly affects pickup reliability at simultaneous pickup.
Select head center shim A, B, or C as necessary and place it so that the traveling parallel alignment becomes
0.05 mm or less.
– Component pickup failure
– Degraded placement accuracy

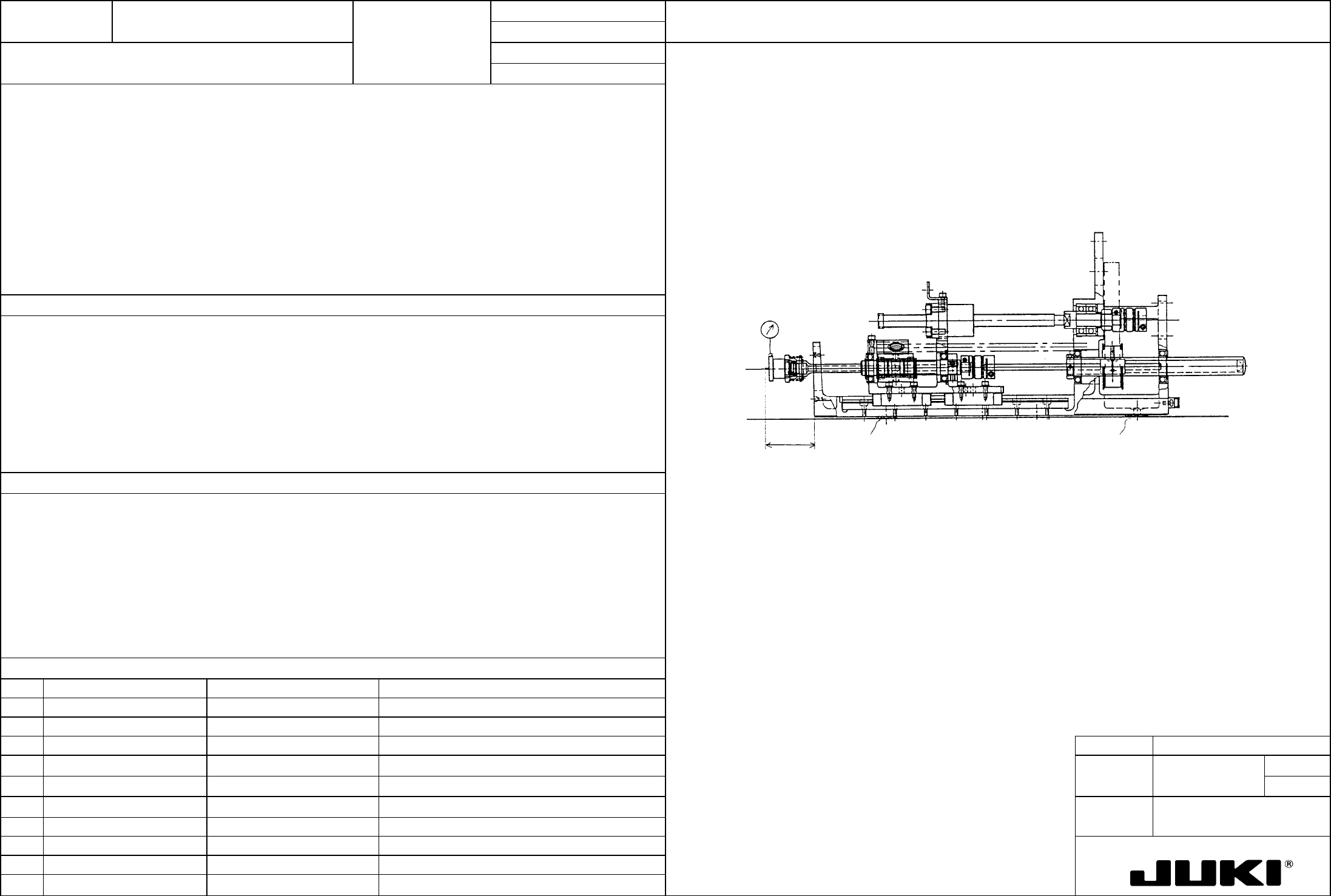

FUNCTION NAME Head Center Distance (Y-Direction) Function/Performance CHECK/ADJUSTMENT METHODS (REMEDIAL ACTION PROCEDURE)
ASSURED QUALITY Reliability
QUALITY CHARACTERISTICS (SPECIFICATION VALUES) CATEGORY Safety
Product Image
ROLE IN FUNCTION (MEANING OF SPECIFICATION VALUES)
POSSIBLE MALFUNCTIONS (CAUSED BY INCORRECT SPECIFICATION VALUES)
COMPONENTS
NO. Part No. Part Name Associated Quality Characteristics
1 E30027250A0 Head unit HD assembly
2 E31027250A0 Head unit LA assembly
3 E32027250A0 Head unit IC assembly MODEL KE-750/760
4 E3019721000 Head center shim A t0.1
UNIT Head
REF. NO.
5 E3020721000 Head center shim B t0.05
NAME
15
6 E3021721000 Head center shim C t0.03
FUNCTION Head Center Distance
7 E33037250A0 Head plate assembly (750)
NAME (Y-Direction)
8 E33047250A0 Head plate assembly (760)
9 E33237250A0 Head plate assembly (7520)
10 E33247250A0 Head plate assembly (7620)
QA Table
Error in each head in Y-direction with reference to R head: ±0.02 mm (eccentric center as measured at the Z
pickup position)
Mount heads on the head plate and fit the jig nozzle (φ20) to the head that serves as the reference (normally R
head; the head mounted if heads are replaced). With the center of runout in the Y-direction at 0, move the head
in the X-direction. Remove the jig nozzle and, instead, mount it to the head to be measured. Select head
center shim A, B, or C and place it between the head plate and head bracket so that the error in runout center in
Y-direction becomes ±0.02 mm. Measure, at this time, the Z position at the pickup point [see the assembly
drawing of head assembly (750, 760, 7520, 7620)].
Head plate
Head center shimHead center shim
Pickup
height
Greatly affects pickup reliability at simultaneous pickup.
– Component pickup failure
– Degraded placement accuracy
