Extension input side
Page 4 / 6 18.11.2021
Extension input side
Page 5 / 6 18.11.2021
Extension input side
Page 6 / 6 18.11.2021
Pos. Item no. Description Part marking

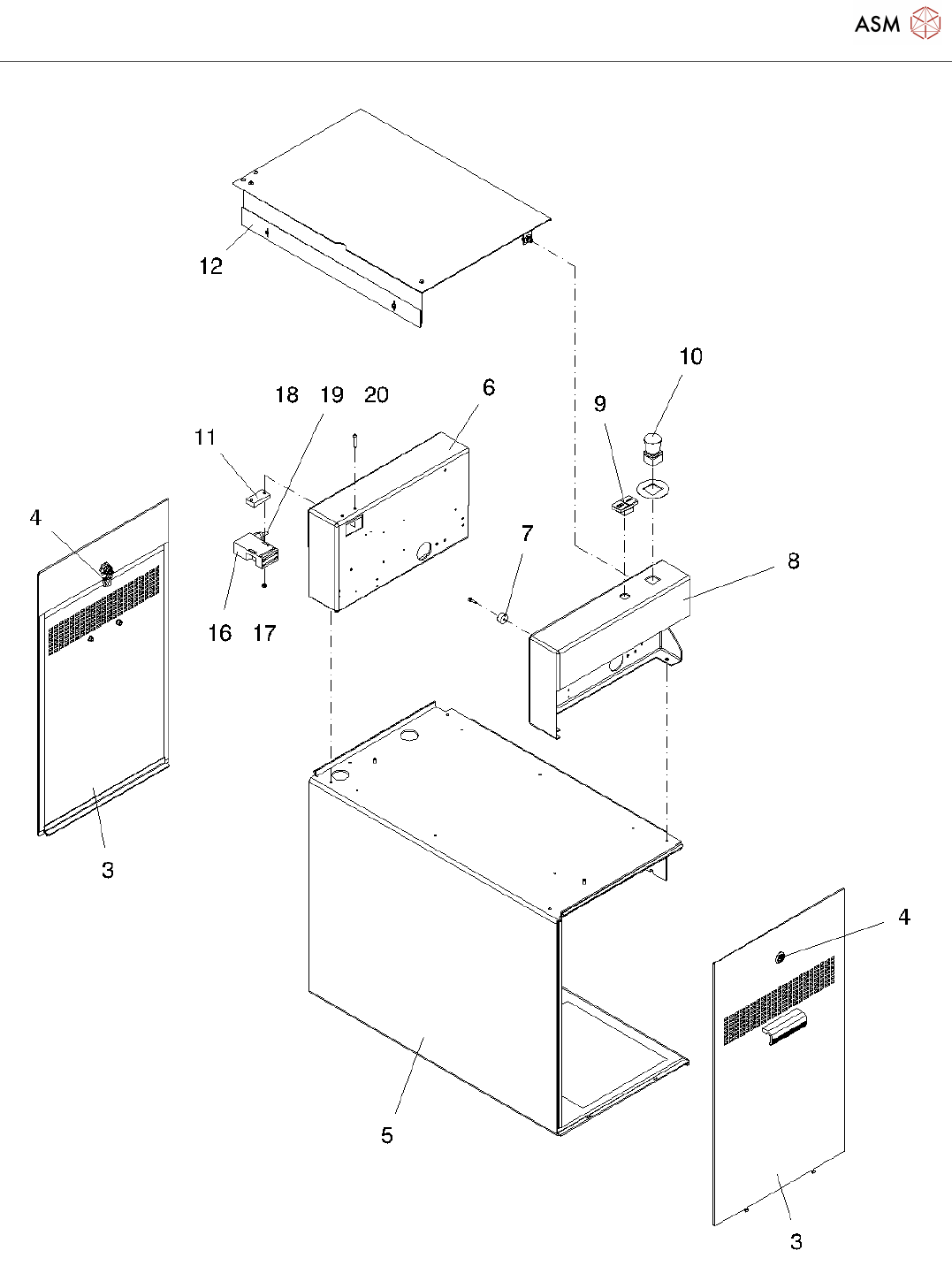

1 03039714-01 EXTENSION INPUT SIDE/HS-D
2 03036231-01 BASE-EXTENSION HS-D
3 03038119-01 DOOR,CPL./HS-D SPARE PART
4 03039518-01 QUARTER TURN W. DOUBLE BIT
5 03038120-03 BASIC PART, MOUNTING/HS-D
6 03038031-03 MOUNTING SIDE 2/ HS-D
7 00304188-01 MOUNTING FOOT 22*4,3*14 STANDARD PARTS
8 03036749-05 MOUNTING SIDE 1/ HS-D
9 00349458-01 ON-OFF PUSHBUTTON 3SB3
WT(I)/BL(0)
SPARE PART
10 00334073-01 MUSHROOM PUSHBUTTON 3SB3
RED 40MM
SPARE PART
11 03040224-02 DISTANCE BLOCK /HS-D
12 03039044-02 COMPONENT PARTS FOR OUTLET
COVER/HS-D

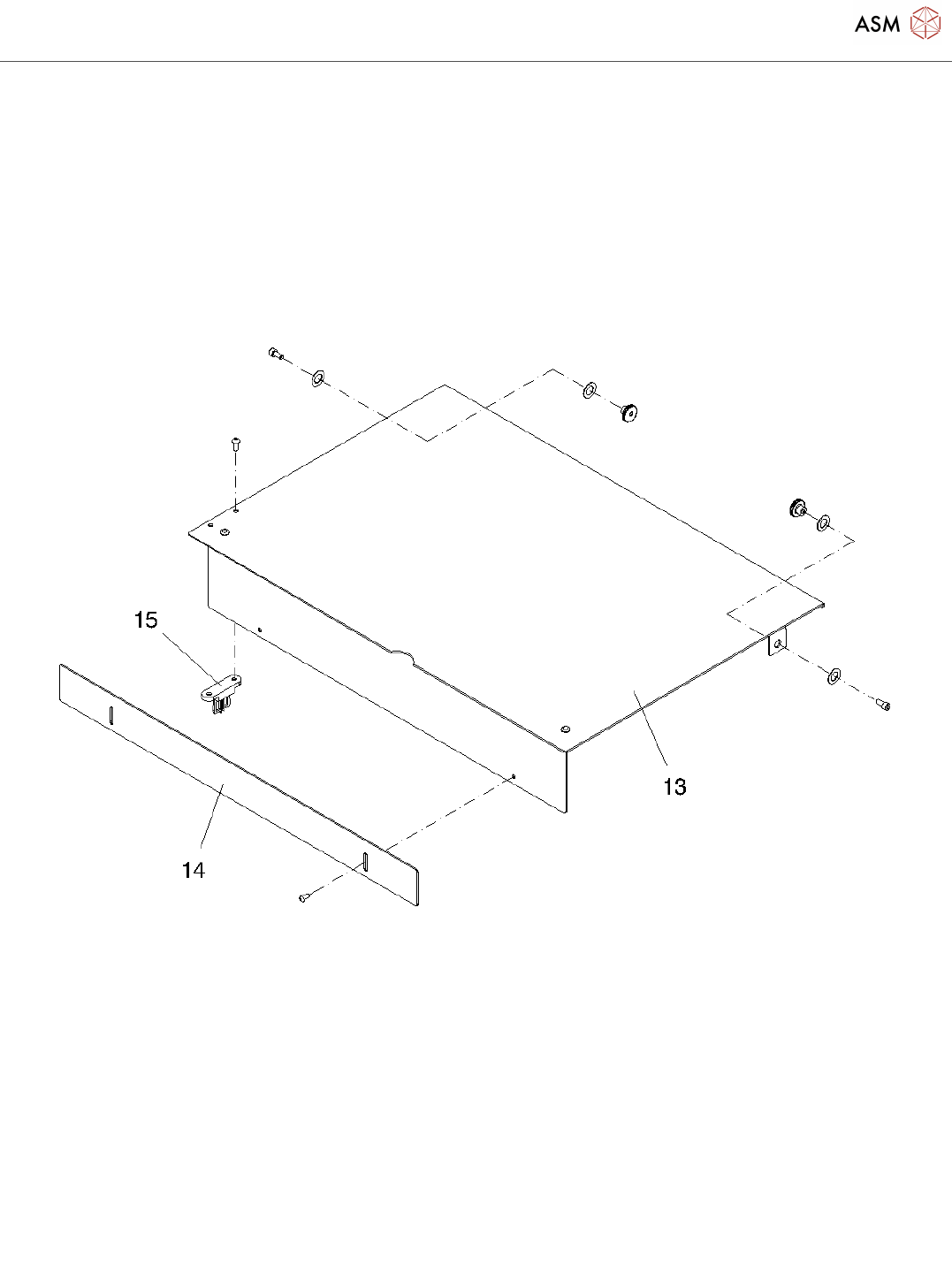

13 03038383-01 ENTRY/EXIT-FLAP, WELD PART
14 03036273-01 SAFETY COVER-RAIL/HS-D
15 00304577-01 FLEXIBLE ACTUATOR AZ 15/16 SPARE PART
16 03032515-02 CONTROL ELEMENT COVER
17 00304351-01 SAFETY SWITCH AZ15/16 1S+1OE
18 00335306-02 CABLE HS50: START
/STOP/EMERGENCY-STOP
SPARE PART
19 00328232-01 SWITCH ELEMENT 3SB3400-0B 1NO
SCREW TER.
SPARE PART
20 00337636-01 SWITCH ELEMENT 3SB3 / 1S+1OE SPARE PART
21 03039621-01 PC-HOLDER
22 00330683-01 SAFETY COVER-PLATE/FRAME HS50
