Version 1 to L200 Page 7 / 15 24.11.2021 Pos. Item no. Description Part marking 03064617-01 GR DUAL CONVEYOR /P001 1 03055129S02 CONVEYOR MODULE SX12 DC * 03055131-01 BASEMODULE B2 DC 03055146-02 BASE SUPPORT MACHINED 03…
Version 1 to L200

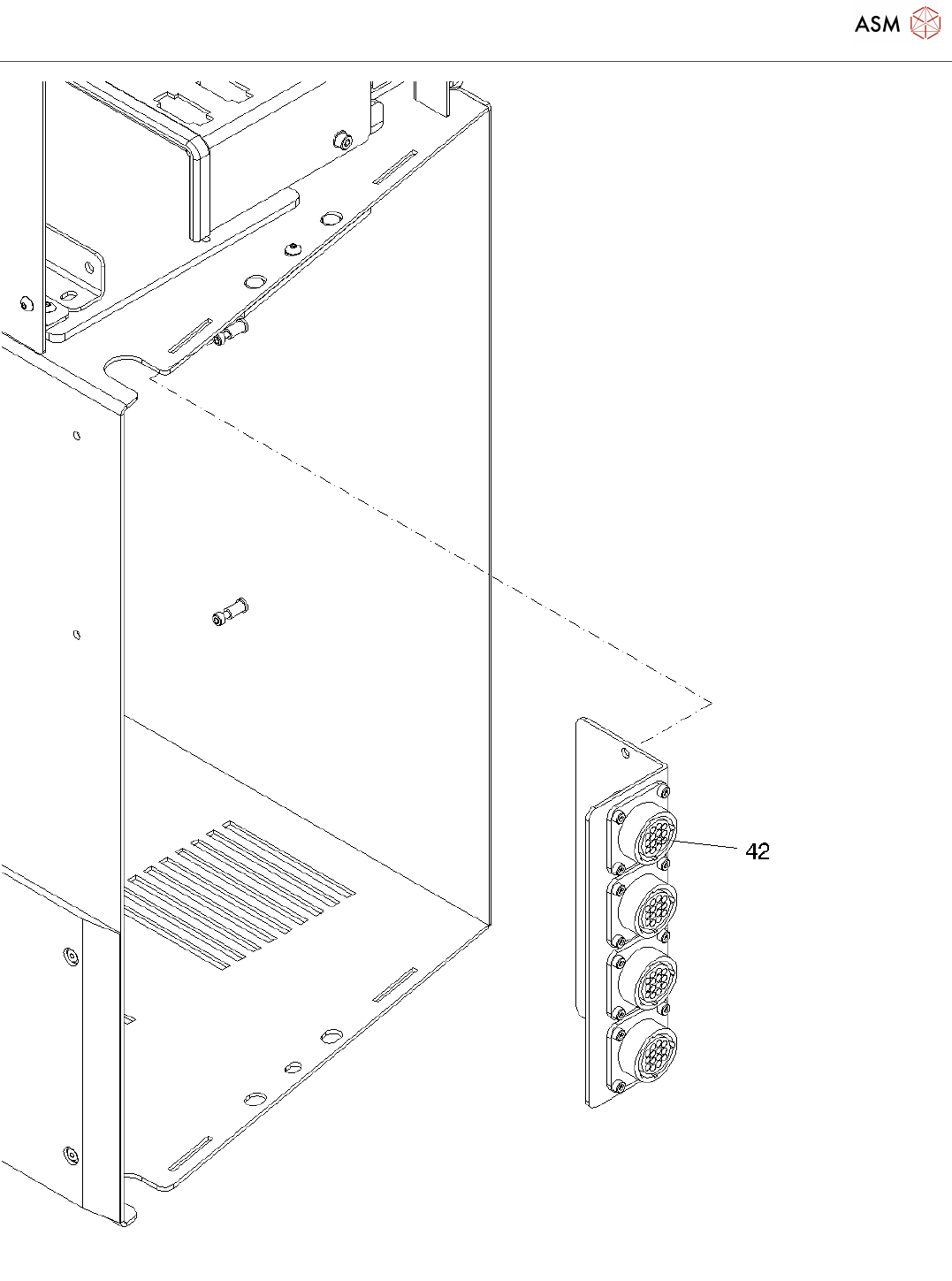

Page 6 / 15 24.11.2021
Version 1 to L200
Page 7 / 15 24.11.2021
Pos. Item no. Description Part marking
03064617-01 GR DUAL CONVEYOR /P001
1 03055129S02 CONVEYOR MODULE SX12 DC *
03055131-01 BASEMODULE B2 DC
03055146-02 BASE SUPPORT MACHINED
03055151-01 GUIDE RAIL TKVD 15 / 640-20/20
2 03082765-01 GUIDING WAGON_SHORT_1 COMPL.
3 03082767-01 GUIDING WAGON_SHORT_2 COMPL.
4 03082155-01 CARRIAGE LONG COMPLETE ONE
5 03082614-01 CARRIAGE LONG COMPLETE TWO
6 03055148S01 BG LIFTING TABLE DC SPARE PART
03056633-02 BEARING BLOCK 1 LT
03056634-02 BEARING BLOCK 2 LT
03056635-01 BEARING BLOCK 3 LT
03056768-02 BEARING BLOCK MOTOR
03052407-01 LEVER SHAFT DC 1 WELDMENT
03052426-01 LEVER SHAFT DC 2 WELDMENT
03056645-02 PUSH ROD LT SPARE PART
03051476-01 MOTOR CRANK 1
03058144-01 MOTOR CRANK 2
03051397-01 PLATE GUIDE LT
03051394-01 ADJUSTING BOLT M10
03051336-01 BEARING BLOCK 1
03052389-01 BEARING BLOCK 2
03063165-01 SHOULDER SCREW D5-HD8-L10-M4
7 03064983S01 BLDC MOTOR WITH PLG AND BRAKE SPARE PART
00098615-01 DEEP-GROOVE BALL BEARING
5*16*5 625-2Z
Spare Part
03036349-01 DEEP GROOVE BEARING 12X32X10 SPARE PART
00354982-02 DEEP GR.BALL BEARING 15X32X9
6002-2RS1
03051463-01 NEEDLE ROLLER BEARINGS HK0810
03058242-01 CABLE:MOTOR SENSOR,LIFTING
TABLE TRACK 1
03058243-01 CABLE: MOTOR, LIFTING TABLE
TRACK 1
03058276-01 CABLE: MOT. BRAKE, LIFTING TABLE
Version 1 to L200
Page 8 / 15 24.11.2021
Pos. Item no. Description Part marking
TRK 1
03058280-01 CABLE: MOT. SENSOR,LIFTING
TABLE TRK 2
03058281-01 CABLE: MOTOR, LIFTING TABLE
TRACK 2
03058282-01 CABLE: MOT. BRAKE, LIFTING TABLE
TRK 2
8 03048184S01 DRIVE UNIT WA SPARE PART
9 03086072-04 ADJUSTING UNIT 1 WA DC - SPLIT *
03067547-01 MOUNT ADJUSTING UNIT 1 WA
10 03069730-01 CYLINDER UNIT 1
11 00356862-01 SHORT-STROKE CYL. ADVU-16-20-P-
A-SA
SPARE PART
00332681-01 SCREW-IN ANGLE
03067552-01 ADAPTER PLATE 1
03058254-02 CYLINDER SWITCH, ADJUSTMENT
UNIT 1
12 00343651-01 PROXIMITY SWITCH SME-8-K-LED-24 SPARE PART
03058255-02 BERO, ADJUSTMENT UNIT 1
13 00304908S01 PROXIMITY SWITCH 4MM WITH LED SPARE PART
00370331-01 PRESSURE PIECE ELASTIC_PART
03069030-01 FIXING BRACKET 1 CABLE DRAG
CHAIN WA
03041703-01 SHEET METALL (TAPE)
00302193-01 TUBE COUPLER L-PK-3
00334027-01 PLASTIC TUBE PUN 4*0.75 BL
03070125-01 BRAIDED SLEEVING SE50PFR-0 LW
12.7MM
14 03089866-01 SOLENOID VALVE 5/2-MICRO VALVE
518
SPARE PART
00370229-01 L-TYPE QUICK RELEASE FASTENER
QSML-M3-4
00336762-01 SILENCER U-M3 STANDARD PARTS
03082551-01 BALL SCREW 12X4-630MM DX4
03056284-01 BEARING BLOCK WA
03081310-01 SYNCHRONIZING DISK WA T5 Z18
03039208-01 CLAMPING ELEMENT 8X11
03064645-01 PRESSURE FLANGE WA
