68 For more pr oduct information, please visit www .3M.com/static 3M ™ Puncture Resistant Bags Puncture resistant shielding bags offer more strength for packaging items with sharp edges, like PCBs and shipping tubes. The…

Static Shielding Bags

Standard Size (Inside Dimensions)

SCC 1500 Open-Top SCC 1500 ZipTop

W x L (in.) Part No. W x L (in.) Part No. W x L (in.) Part No. W x L (in.) Part No.

3 x 5 15035 8 x 10 150810 12 x 16 1501216 3 x 5 150Z35

4 x 6 15046 8 x 12 150812 12 x 18 1501218 4 x 6 150Z46

5 x 8 15058 9 x 12 150912 14 x 18 1501418 5 x 8 150Z58

6 x 8 15068 10 x 12 1501012 15 x 18 1501518 6 x 8 150Z68

6 x 10 150610 10 x 14 1501014 16 x 24 1501624 6 x 10 150Z610

6 x 30 150630 10 x 24 1501024 18 x 18 1501818 8 x 10 150Z810

7 x 15 150715 11 x 15 1501115 18 x 24 1501824 10 x 12 150Z1012

12 x 18 150Z1218

• All standard sizes in-stock/same day shipment.

• Width is measured from inside seam to inside seam.

• Length is measured from the top edge to the bottom fold.

• Opening is in the “width” dimension.

• Custom bag sizes, custom printing, and custom hot stamping are available.

• Most sizes are packed 100 per case.

• Small sizes are packed 500 or 1,000 per case.

See 3M

™

ZipTop Reclosable Static Shielding Bags on page 72.

Packaging

RoHS

Compliant

2002/95/EC

For more product information, please visit www.3M.com/static

™

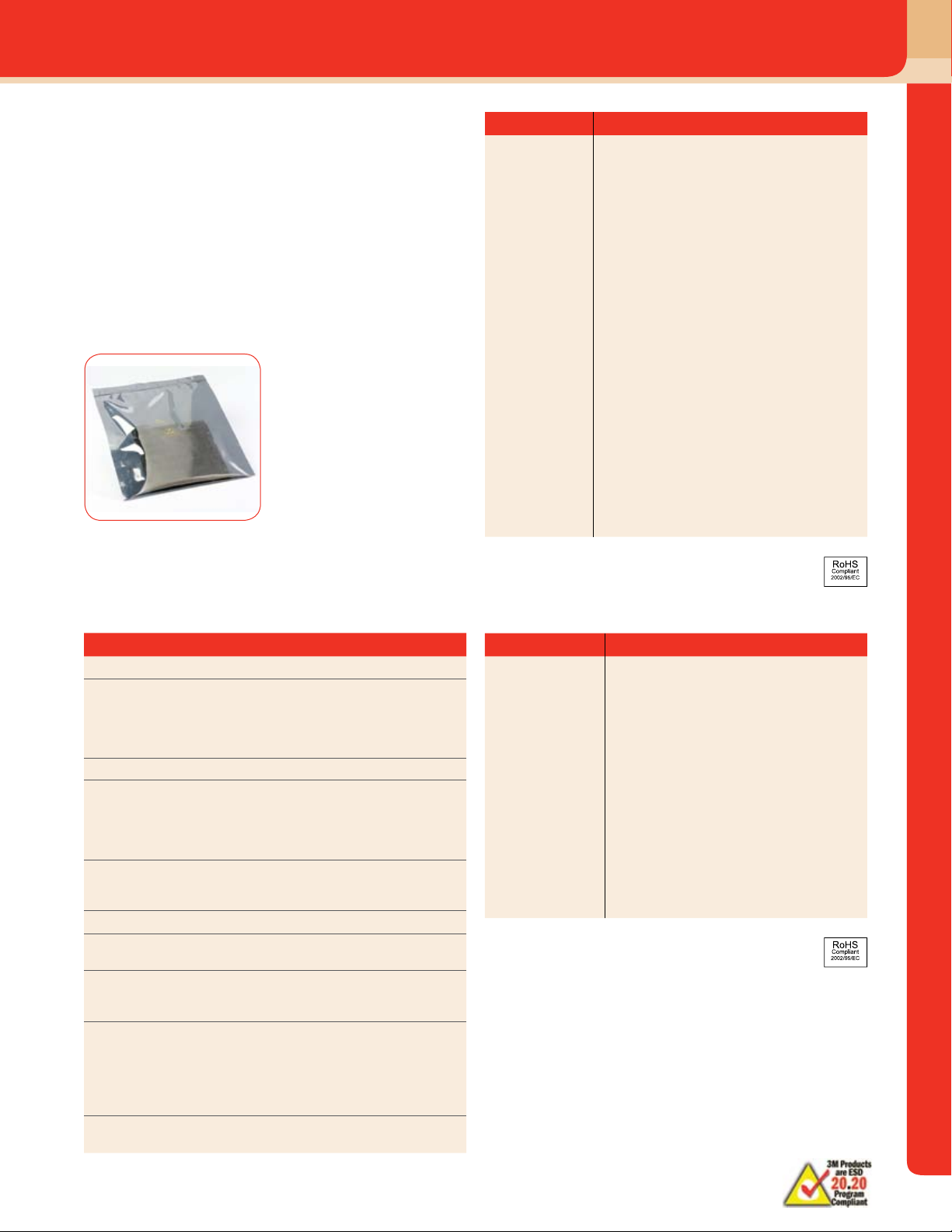

Puncture Resistant Bags

Puncture resistant shielding bags offer more strength for packaging

items with sharp edges, like PCBs and shipping tubes. These puncture

resistant bags use double the amount of polyester plastic as compared

to standard shielding bags. Please call for bag sizes.

™

SCC 1300 Puncture Resistant

Metal-In Static Shielding Bag

Features

• Extra thick polyester plastic to resist punctures and tears.

• Faraday effect shielding of the metallized layer protects electronic

devices from ESD and electrostatic fields.

• Bags are printed with ESD Warning symbol and lot coded for

QC traceability.

• Tested to meet or exceed the electrical and physical requirements

of MIL-PRF-81705D Type III, ESD S541, EIA 625, MIL-HDBK-263,

MIL-STD-1686, ANSI/ESD S20.20.

• Bags are RoHS Compliant* and lead-free**.

SCC 1300 Properties

Physical Properties

Puncture Resistance >16 lbs. FTMS 101 MTH 2065

Seam Strength Pass MIL-PRF-81705

Light Transmission 40% Tobias

Thickness 3.5 mils ±10%

Electrical Properties

ASTM D257 ANSI ESDSTM11.11

Surface Resistivity/Resistance

Interior <10

ohm/square or <10

ohm

Exterior <10

ohm/square or <10

ohm

Metal 100 ohm

Static Shielding <30 volts MIL-PRF-81705, EIA 541

Static Shielding <10 nJ EOS/ESD S11.31

Static Decay <0.05 seconds MIL-PRF-81705,

FTMS 101 MTH 4046

™

SCC 1300 Puncture Resistant Metal-In Static Shielding Bag

Packaging

RoHS

Compliant

2002/95/EC

™

Puncture Resistant Metal-Out

Static Shielding Bags 2100R

Features

• Extra thick polyester plastic to resist punctures and tears.

• Metal layer is positioned near the outer surface for fast charge

decay and low charge retention.

• Bags are printed with ESD Warning symbol and lot coded

for QC traceability.

• Tested to meet or exceed the electrical and physical requirements

of MIL-PRF-81705D Type III, ESD S541, EIA 625, MIL-HDBK-263,

MIL-STD-1686, ANSI/ESD S20.20., and charge retention standards.

• Bags are RoHS Compliant* and lead-free**.

™

Static Shielding Bag 2100R

2100R/2110R Properties

Property Typical Value Test Method

Thickness 3.2 mil (81 microns) ASTM D2103

Strength

Tensile

Puncture

Seam

>20 lbs. (>6250 PSI,

4.3 x 107 N/m

)

9000 PSI (6.2 x 107 N/m

)

24 lbs. (10.9 kg)

Pass

ASTM D882

FTMS 101

MIL PRF 81705

Optical Density .35–.45 ASTM D1003

Surface Resistance/

Resistivity

Interior

Exterior

Metallized Layer

<10

ohm

<10

ohm

<10

ohm/sq

ANSI/ESD S11.11

Monroe #267

Electrostatic

Shielding

<30V

<25 nJ

EIA-541 (V-Zap)

ANSI/ESD S11.31

Decay Time

<2 sec. EIA-541

Contact Corrosivity

Pass FTMS 101C

Method 3005

Outgassing

TML

CVCM

<1.0%

<0.1%

ASTM E595

Heat Seal

Properties

Temperature

Time

Pressure

180°F – 250°F

(82°C – 121°C)

0.5 – 5.0 sec.

20 – 60 PSI

Shelf Life

(from date of manufacture)

1 Year

Product No. Description

2100R

Metal-Out Static Shielding Bags. 100 bags per pack.

Standard Sizes, in. (cm)

3 x 5 (7.6 x 12.5)

4 x 4 (10.2 x 10.2)

4 x 6 (10.2 x 15.2)

4 x 26 (10.2 x 66.0)

4 x 30 (10.2 x 76.2)

5 x 8 (12.7 x 20.3)

6 x 8 (15.2 x 20.3)

6 x 10 (15.2 x 25.4)

7 x 15 (17.8 x 38.1)

8 x 8 (20.3 x 20.3)

8 x 10 (20.3 x 25.4)

8 x 12 (20.3 x 30.5)

10 x 14 (25.4 x 35.6)

10 x 24 (25.4 x 61)

11 x 15 (27.9 x 38.1)

12 x 16 (30.5 x 40.6)

14 x 18 (35.6 x 45.7)

15 x 18 (38.1 x 45.7)

16 x 24 (40.6 x 61)

18 x 18 (45.7 x 45.7)

18 x 24 (45.7 x 61)

Custom Sizes, in. (cm)

2 x 3 to 35 x 36 (5.1 x 7.6 to 88.9 x 91.4)

Product No. Description

2110R

2100R with Zipper Closure. 100 bags per pack.

Standard Sizes, in. (cm)

3 x 5 (7.6 x 12.5)

4 x 4 (10.2 x 10.2)

4 x 6 (10.2 x 15.2)

5 x 8 (12.7 x 20.3)

6 x 8 (15.2 x 20.3)

6 x 10 (15.2 x 25.4)

8 x 10 (20.3 x 25.4)

8 x 12 (20.3 x 30.5)

10 x 12 (25.4 x 30.5)

10 x 14 (25.4 x 35.6)

11 x 15 (27.9 x 38.1)

Custom Size, in. (cm)

3 x 5 to 20 x 30 (7.6 x 12.7 to 50.8 x 76.2)

Puncture Resistant Bags

Packaging

RoHS

Compliant

2002/95/EC

RoHS

Compliant

2002/95/EC
