96
For more product information, please visit www.3M.com/static
EMI/ESD Diagnostics Kit
Comes with:
• Miniature active radiated antenna CTS001
• Miniature active radiated omni-directional antenna CTC112
• Miniature active conducted antenna CTC116 for measuring emissions
on wires and cables
• Portable 2-channel interface module with rechargeable batteries
• AC/DC Universal Power Supply/Charger
• Two 2 ft. (0.6 m) RF cables from interface to an oscilloscope
• Two 6 ft. (1.8 m) RF cables from antenna to interface module
• User’s Guide
3M
™
EMI/ESD Diagnostics Kit
EMI can cause serious problems for sensitive equipment and processes,
such as equipment malfunction, latch-ups and software-related errors.
Even very weak ESD events can create disaster for manufacturers of
sensitive components such as disk drives, semiconductors, or flat panel
displays. Identification of these EMI sources is possible with a series of
instruments from 3M.

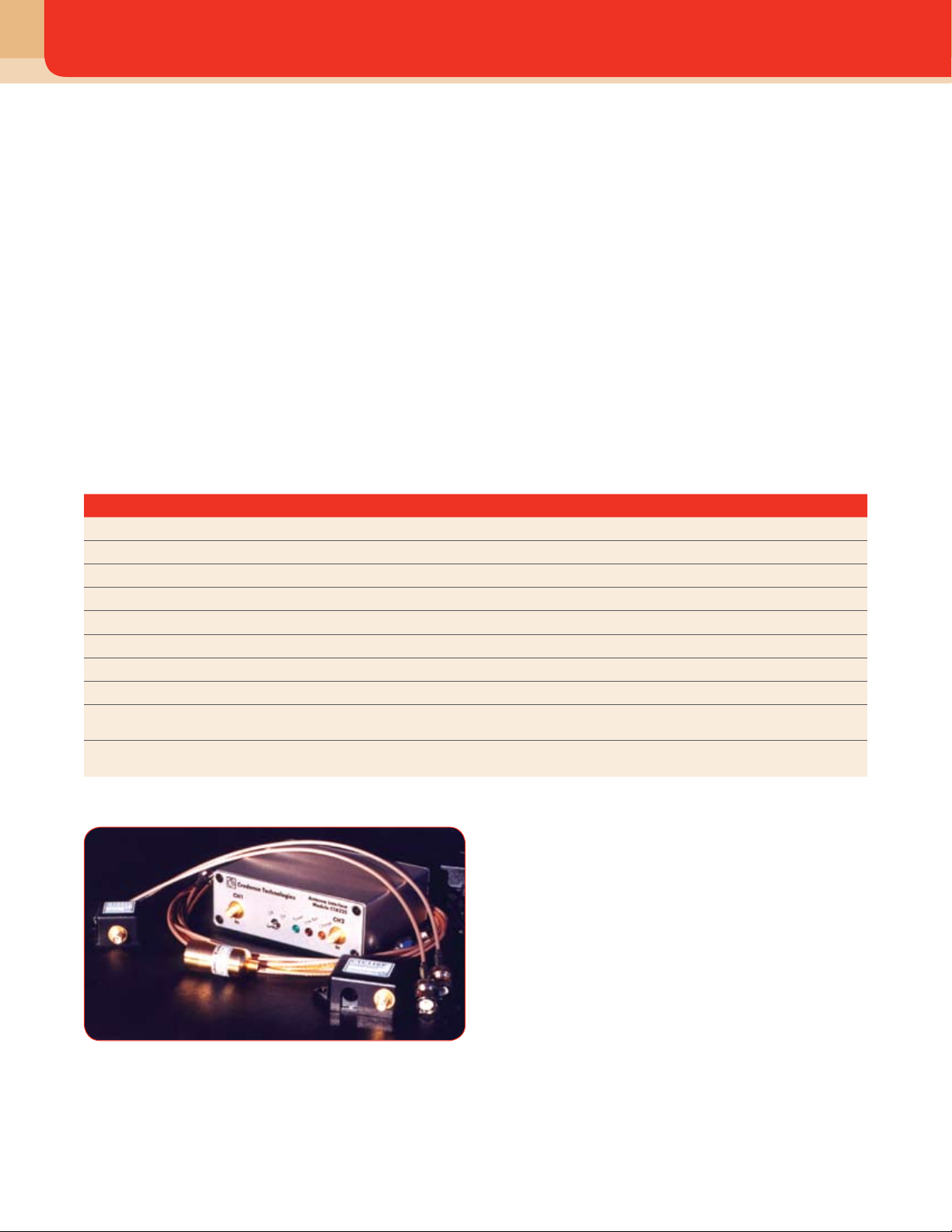

The 3M EMI/ESD Diagnostics Kit will help you perform waveform and
spectral analysis of electro magnetic interference and of emission
from electrostatic discharges. The kit includes a set of miniature active
broadband antennae for radiated and conducted emission, an interface
module and a set of RF cables. Simply connect the output of an active
antenna to your high-speed oscilloscope and observe or measure ESD
events as they occur. For complete EMI analysis, use the antenna with
your spectrum analyzer to capture the spectral content of emission.
Active miniature antenna work in a broad frequency range, offer high
sensitivity and are able to measure radiated and conducted emission in
various environments.
Features
• Flat frequency response over a very broad range provides precise signals.
• Miniature antenna allows for use in tight spaces.
• Built-in preamp virtually eliminates the need for additional amplification.
• Antenna included in the EMI/ESD Diagnostics Kit provides measurements
of both radiated (via air) and conducted (via cables) emission.
3M
™
Interface Module
The interface module contains everything you need to connect your
miniature active antennae to an oscilloscope or to a spectrum analyzer.
3M Interface Module CTA225 works with all our active antennae,
providing them with power via the same RF coax cable used for signal
by utilizing a special phantom supply circuit.
CTA225 has two channels and allows any two antennae to be used
simultaneously. CTA225 contains a rechargeable battery that will provide
hours of operation without the need for an external power supply and with
full isolation from noisy power lines. A universal supply charger is included.
Field Electric Antenna CTS001 Electric Antenna CTC112 Magnetic Antenna CTC116
Emission
Radiated Radiated Conducted
Sensitivity (typ.)
-18 dBm (28 mV)/(1 V/m) -16 dBm (35 mV)/(1 V/m) -22 dBm (15 mV)/(1 mA)
Frequency Range
1 MHz..2.7GHz 1 MHz..3GHz 150 kHz..200 MHz
Output Impedance
50 ohm 50 ohm 50 ohm
Type
Active Active Active
Sensor Element
Internal Internal Split-core magnetic
Connector
SMA SMA SMA
Power
5 V, phantom 5 V, phantom 5 V, phantom
Dimension
0.75 in. x 1.7 in.
(19 mm x 43 mm)
1.06 H x 1.77 W x 0.78 in. L
(27 x 45 x 20 mm)
1.3 H x 2.38 W x 0.8 in. L
(33 x 61 x 20.5 mm)
Applications
Hand-held measurements Hand-held, stationary and
semi-stationary measurements
Hand-held, stationary and
semi-stationary measurements
3M
™
Interface Module CTA225
Test Equipment
97
EMI/ESD Diagnostics Kit and Ionizer Tester/Field Meter and Charger
3M
™
Air Ionizer Tester/Field Meter
and Charger
Static Sensor

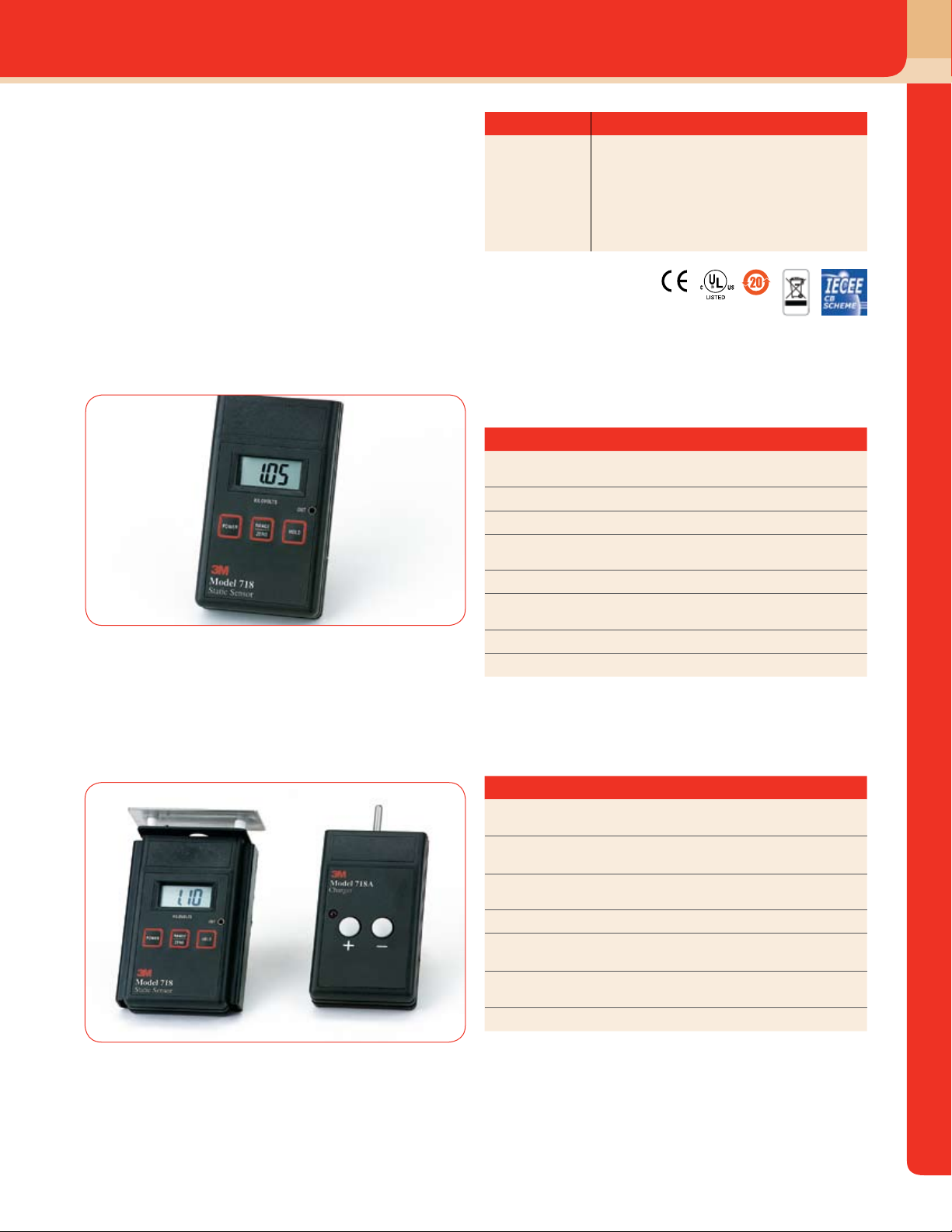

The 3M Static Sensor 718 is an easy-to-use, hand-held instrument
designed to measure static voltages on objects and surfaces, arising
from electrostatic charge buildups. This instrument can play a valuable
role in an organization’s ESD-control program by helping the user locate
and quantify ESD trouble-spots.
Features
• Small-size, lightweight, conductive plastic housing.
• Membrane switches for Power, Range/Zero, and Hold functions.
• Digital, LCD (liquid-crystal) display is easy to read and updates quickly.
• Ranging systems assist user in making quick and easy measurements.
• Measurements accurate to 5%.
• Output jack available for continuous measurements.
3M
™
Static Sensor 718
3M
™
Air Ionizer Test Kit 718A
New Photo here
3M
™
Air Ionizer Test Kit
The 3M Air Ionizer Test Kit 718A, when used in conjunction with the
Static Sensor 718, can be used for periodic verification of air ionizer
performance. The unit consists of a charge plate and a charger.
Static Sensor 718
Physical Characteristics
Item Typical Properties
Dimensions
0.85 H x 2.4 W x 4.15 in. L
(2.2 x 6.1 x 10.5 cm)
Weight
4.5 oz. (128 g) with battery
Power Requirements
One 9-volt alkaline battery (not included)
Measurement Ranges
0 – 2 kV Low Range
0 – 20 kV High Range
Voltage Display
3 1/2 digit liquid crystal display
Distance Indicator
LED targets. Aligned targets indicate
1 in. (2.54 cm) measurement distance.
Measurement Accuracy
Within 5% of actual voltage
Certifications
UL, C-UL, CE, CB-scheme, NOM
Air Ionizer Test Kit 718A
Physical Characteristics
Item Typical Properties
Charge Plate Assembly
Per ESD Association
Standard Practice - 3.3
Charge Plate
Assembly Weight
2.5 oz (70 g)
Charger Dimensions
0.85 H x 2.4 W x 5.0 in. L
(2.2 x 6.1 x 12.7 cm)
Charger Weight
6 oz. (170 g) with battery
Charger Power
Requirements
One 9 V alkaline battery
Charger Output
1100 V minimum for positive or
negative voltage
Certifications
UL, C-UL, CE, CB-scheme, NOM
Product No. Description
718
Static Sensor, including meter, Operator’s Manual,
and Certificate of Performance verification. Available
in certified.
718A
Air Ionizer Test Kit, including charge plate assembly,
charger, Operator’s Manual and Certificate of
Performance verification.
Test Equipment
NOM
98
For more product information, please visit www.3M.com/static
3M
™
Charge Analyzer/Charge
Plate Monitor

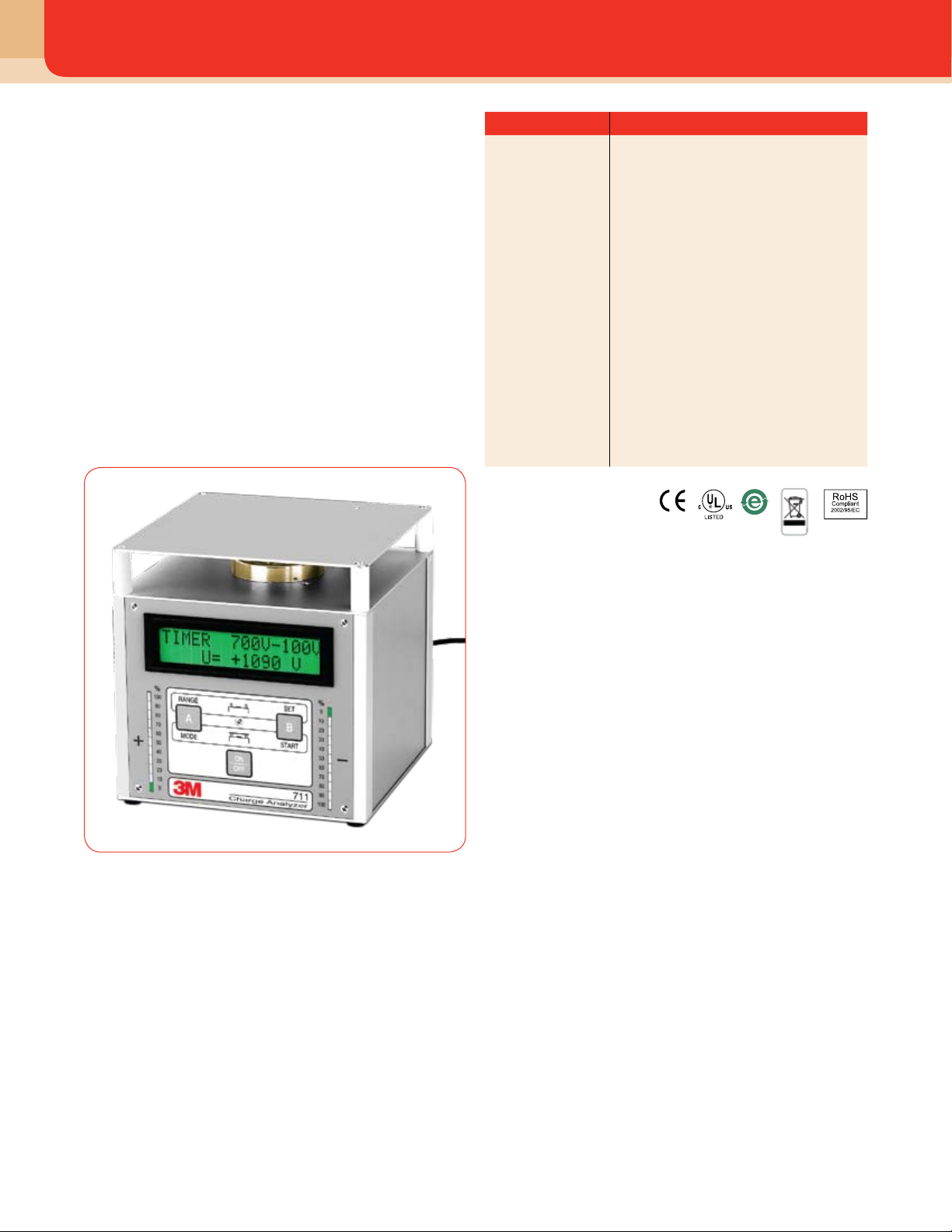

The 3M Charge Analyzer 711 was designed to test the performance
of products used for the purpose of static control and elimination.
The Charge Analyzer 711 can be used as a laboratory analytical tool,
evaluating the performance of ionizing equipment, static-protective
packaging, work surfaces, and personnel grounding systems. It is very
effective for use as a demonstration tool in employee static awareness
training sessions.
The lightweight and compact construction of the unit offers versatility in
the workplace. The modular internal construction simplifies modifications
and repair by exchange of the functional printed circuit boards. All
parameter settings are controlled via a built-in EEPROM. Periodic
calibrations can be performed without the need to open the chassis.
When the analyzer is switched off, all last set parameters are stored
in the EEPROM. These parameters are defaulted to when the unit is
switched on again. The analyzer 711 is powered by built-in rechargeable
NiMH-batteries or an AC wall plug-in adapter. All interfacing connections
are made at the rear of the unit.
3M
™
Charge Analyzer 711
Product No. Description
711
The Charge Analyzer 711 is shipped in a durable
black case with foam interior, containing the
following accessories: (Certified only)
• Cup Electrode
• Plate Electrode
• Cylinder Electrode
• AC/DC Adapter, DC 12 V / 500 mA
• Sensor Cover
• Teon
™
Measuring Lead, 1 m
• Grounding Cord with Alligator Clip
• RS 232 Interface Cable
• 2 in. (50 mm) High Conductive Container
with Insulating Handle
• Insulated Bulldog Clip
• Metal Spacers (3) with Thread, 3 in. length (76 mm)
• Software Disk for Data Acquisition
• Operating Instructions
• Transport Case
• Certicate of Conformity
• Sensor, 711 RS for Measuring Electrostatic
Fields, with 6.5 ft. (2 m) Cord
Test Equipment
