101 3M ™ T est Kit 701 3M ™ T est Kits for Static Control Surfaces The 3M Test Kit 701 contains a lightweight, user-friendly megohmmeter plus all of the components needed to make testing mats and other surfaces simple an…
100
For more product information, please visit www.3M.com/static
Product No. Description
CTM051
Ground Integrity Meter
3M
™
Ground Pro Ground Integrity Meter
3M Ground Pro Ground Integrity Meter is an essential tool for anyone
concerned with obtaining proper grounding of equipment during
installation, maintenance, and throughout regular use. This dedicated
meter has multiple features to verify critical grounding parameters in any
facility. It measures ground impedance in accordance with ANSI 6.1 and
ANSI/ESDA S20.20 standards. Because data integrity is essential, this
monitor provides accurate measurements of ground impedance even
when ground noise is present — an area in which many instruments fail.
It also measures AC and DC voltage on the ground while separately
measuring high-frequency voltage (EMI), to aid in performing diagnostics
of equipment malfunctions and lockups.
Features
• ANSI/ESDA S20.20 and ANSI 6.1 compliant.
• Accurate readings in noisy environments.
• Built-in alarm alerts personnel of potentially dangerous voltage.
• Measures high-frequency noise (EMI) on grounds in a broad frequency range.
Areas Not Touched by Multimeters
A typical multimeter measures resistance by applying DC voltage to
the circuit and measuring voltage drop. Any current in the ground
connection, which is a common occurrence in a working tool, can easily
be factored in the calculations and cause a multimeter to produce an
unrealistic result such as negative or extremely high resistance. Ground
Pro uses proprietary DSP technology to measure ground impedance
while completely ignoring noise and currents on the ground, providing
reliable readings in difficult environments.
3M
™
Ground Pro Ground Integrity Meter
Test Equipment
101
3M
™
Test Kit 701
3M
™
Test Kits for Static Control Surfaces
The 3M Test Kit 701 contains a lightweight, user-friendly megohmmeter
plus all of the components needed to make testing mats and other
surfaces simple and accurate. All of the items are packaged in a
foam-lined carrying case.
The kit meets the intent of ANSI/ESD Standard 4.1, “Worksurfaces –
Resistive Characterization,” ANSI/ESD Standard 7.1, “Floor Materials
– Resistive Characterization of Materials,” and MIL-PRF-87893,
“Workstation, Electrostatic Discharge (ESD) Control,” for auditing
purposes. The meter has separate scales and test settings for measuring
surface-to-ground and surface-to-surface resistance at two prescribed
test voltages (10 V and 100 V), and system continuity. The easy-to-read
scales are both color-coded and numbered.
Floor Mats/Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 36
Dissipative Rubber Mats/Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 36
Static Conductive Floor Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 112
Test Kit Properties
Product Item Typical Properties
Kit
Weight: 14 lb. (6.35 kg)
Case Dimensions: 5.125 H x 10 W x 13.5 in. L
(13.02 x 25.4 x 34.29 cm)
Case Material: Blow-molded, high density
polyethylene with foam inserts
Case Color: Gray
Meter
Weight: 12 oz. (0.34 kg)
Dimensions: 1.8 H x 3.3 W x 4.6 in. L
(4.57 x 8.38 x 11.68 cm)
Resistance Ranges:
Continuity Test Mode
10 V Surface Test Mode
100 V Surface Test Mode
0 – 10M ohm (internal R=500 K ohm)
10
5
– 10
11
ohm (internal R=2 M ohm)
10
5
– 10
11
ohm (internal R=2 M ohm)
Weights
2 Test Weights: 5 lb. (2.27 kg) each
Dimensions: Diameter – 2.5 in. (6.35 cm)
Height – 5.06 in. (12.85 cm);
includes handle and pad
Pad Material: Conductive silicone rubber
Pad Dimensions: Diameter – 2.5 in. (6.35 cm)
Thickness – 0.25 in. (0.64 cm)
Leads
Length: 10 ft. (3.05 m)
Wire Size: 18 gauge
Insulation: Silicone rubber
Diameter: 0.125 in. (0.32 cm)
Power
Supply
Batteries (2): 22.5 volt (Eveready
™
#505 or
equivalent) and 1.5 volt (AA).
Product No. Description
701
Test Kit for Static Control Surfaces
(Certified and non-certified)
Kit contains:
• 1 Megohmmeter 12 oz. (340 g)
1.8 H x 3.3 W x 4.6 in. L (4.57 x 8.38 x 11.68 cm)
• 2 Test Weights, 5 lbs. (2.27 kg) each
• 2 Test Leads, 10 ft. (3 m) each
• 1 Insulated Bulldog Clip
• 1 Alligator Clip
• 1 Continuity Test Plate
• 2 Batteries (22.5 V and 1.5 V)
• 1 Operator’s Manual
• 1 Molded Carrying Case
701-L
Test Leads
701-M
Megohmmeter only
701-W
5 lb. (2.27 kg) Test Weight
Ground Integrity Meter, ESD Monitoring System and Test Kit
Test Equipment
RoHS
Compliant
2002/95/EC
102
For more product information, please visit www.3M.com/static
3M
™

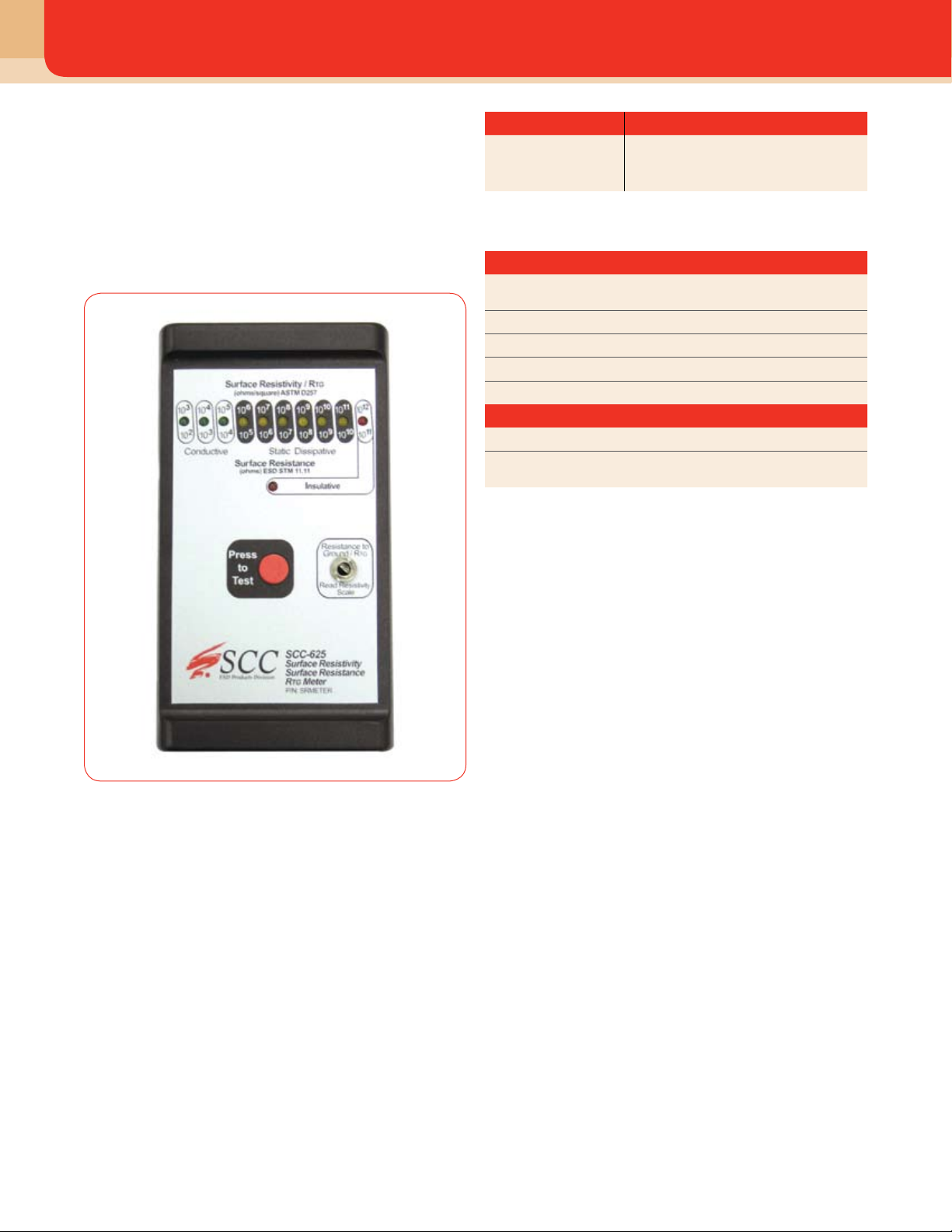

Surface Resistance Meter
The SCC-625 is a wide-range, multi-scale, auto-ranging meter. It
measures resistivity per ASTM D257, resistance per EOS/ESD S11.11,
and Resistance to Ground (RTG). Appropriate for auditing static control
items. Measures conductive, dissipative and insulative items. The meter
is battery powered and simple to use. High-speed electronics provide
repeatable measurements.
Useful for audit testing required by ANSI/ESD S-20.20, EIA 625,
MIL-STD-1686.
3M
™
SCC-625 Surface Resistance/Resistivity RTG Meter
Product No. Description
SRMETER
Surface Resistance/Resistivity RTG Meter
Properties
Electrical
Measurement
10
3
to 10
12
ohm/square ASTM D257
10
2
to 10
11
ohm EOS/ESD 11.11
Resolution
one order of magnitude
Accuracy
± 1/2 decade
Power
9 volt battery
Electrodes
Parallel Bar
Mechanical
Weight
6.2 oz
Size
4.5 H x 2.7 W x 1.0 in. L
(115 H x 69 W x 26 mm L)
Test Equipment
