102 For more pr oduct information, please visit www .3M.com/static 3M ™ Surface Resistance Meter The SCC -625 is a wid e-ran ge, mul ti-s cale, aut o-ra nging met er. It mea sures res isti vity pe r ASTM D25 7, resi stan…
101
3M
™
Test Kit 701
3M
™
Test Kits for Static Control Surfaces
The 3M Test Kit 701 contains a lightweight, user-friendly megohmmeter
plus all of the components needed to make testing mats and other
surfaces simple and accurate. All of the items are packaged in a
foam-lined carrying case.
The kit meets the intent of ANSI/ESD Standard 4.1, “Worksurfaces –
Resistive Characterization,” ANSI/ESD Standard 7.1, “Floor Materials
– Resistive Characterization of Materials,” and MIL-PRF-87893,
“Workstation, Electrostatic Discharge (ESD) Control,” for auditing
purposes. The meter has separate scales and test settings for measuring
surface-to-ground and surface-to-surface resistance at two prescribed
test voltages (10 V and 100 V), and system continuity. The easy-to-read
scales are both color-coded and numbered.
Floor Mats/Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 36
Dissipative Rubber Mats/Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 36
Static Conductive Floor Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 112
Test Kit Properties
Product Item Typical Properties
Kit
Weight: 14 lb. (6.35 kg)
Case Dimensions: 5.125 H x 10 W x 13.5 in. L
(13.02 x 25.4 x 34.29 cm)
Case Material: Blow-molded, high density
polyethylene with foam inserts
Case Color: Gray
Meter
Weight: 12 oz. (0.34 kg)
Dimensions: 1.8 H x 3.3 W x 4.6 in. L
(4.57 x 8.38 x 11.68 cm)
Resistance Ranges:
Continuity Test Mode
10 V Surface Test Mode
100 V Surface Test Mode
0 – 10M ohm (internal R=500 K ohm)
10
5
– 10
11
ohm (internal R=2 M ohm)
10
5
– 10
11
ohm (internal R=2 M ohm)
Weights
2 Test Weights: 5 lb. (2.27 kg) each
Dimensions: Diameter – 2.5 in. (6.35 cm)
Height – 5.06 in. (12.85 cm);
includes handle and pad
Pad Material: Conductive silicone rubber
Pad Dimensions: Diameter – 2.5 in. (6.35 cm)
Thickness – 0.25 in. (0.64 cm)
Leads
Length: 10 ft. (3.05 m)
Wire Size: 18 gauge
Insulation: Silicone rubber
Diameter: 0.125 in. (0.32 cm)
Power
Supply
Batteries (2): 22.5 volt (Eveready
™
#505 or
equivalent) and 1.5 volt (AA).
Product No. Description
701
Test Kit for Static Control Surfaces
(Certified and non-certified)
Kit contains:
• 1 Megohmmeter 12 oz. (340 g)
1.8 H x 3.3 W x 4.6 in. L (4.57 x 8.38 x 11.68 cm)
• 2 Test Weights, 5 lbs. (2.27 kg) each
• 2 Test Leads, 10 ft. (3 m) each
• 1 Insulated Bulldog Clip
• 1 Alligator Clip
• 1 Continuity Test Plate
• 2 Batteries (22.5 V and 1.5 V)
• 1 Operator’s Manual
• 1 Molded Carrying Case
701-L
Test Leads
701-M
Megohmmeter only
701-W
5 lb. (2.27 kg) Test Weight
Ground Integrity Meter, ESD Monitoring System and Test Kit
Test Equipment
RoHS
Compliant
2002/95/EC
102
For more product information, please visit www.3M.com/static
3M
™
Surface Resistance Meter
The SCC-625 is a wide-range, multi-scale, auto-ranging meter. It
measures resistivity per ASTM D257, resistance per EOS/ESD S11.11,
and Resistance to Ground (RTG). Appropriate for auditing static control
items. Measures conductive, dissipative and insulative items. The meter
is battery powered and simple to use. High-speed electronics provide
repeatable measurements.
Useful for audit testing required by ANSI/ESD S-20.20, EIA 625,
MIL-STD-1686.
3M
™
SCC-625 Surface Resistance/Resistivity RTG Meter
Product No. Description
SRMETER
Surface Resistance/Resistivity RTG Meter
Properties
Electrical
Measurement
10
3
to 10
12
ohm/square ASTM D257
10
2
to 10
11
ohm EOS/ESD 11.11
Resolution
one order of magnitude
Accuracy
± 1/2 decade
Power
9 volt battery
Electrodes
Parallel Bar
Mechanical
Weight
6.2 oz
Size
4.5 H x 2.7 W x 1.0 in. L
(115 H x 69 W x 26 mm L)
Test Equipment
103
3M
™
Wrist Strap and Footwear Tester

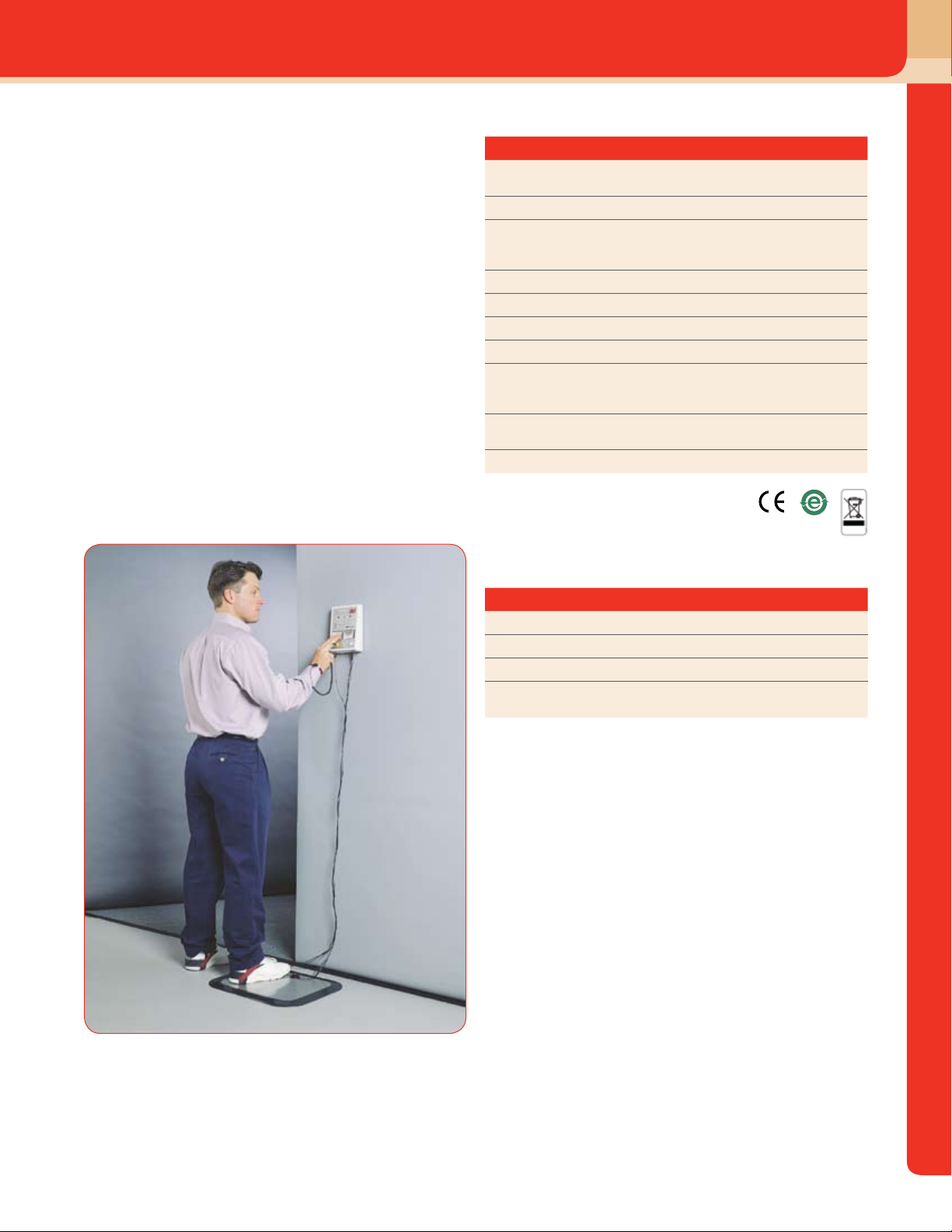

The 3M Wrist Strap and Footwear Tester 740 is an AC-powered unit
designed to be wall-mounted in a production facility for daily testing of
employees’ static control wrist straps. Use of the optional 3M
™
Shoe
Electrode 741 attachment allows the tester to be used as a footwear
tester as well. The optional Shoe Electrode 741 is a test plate that
connects to the Wrist Strap and Footwear Tester 740. By standing
on the shoe electrode, personnel can use the wrist strap and footwear
tester to check the operation of static control footwear, heel straps
and the like. This electrode, constructed of rugged stainless steel in
a molded plastic base, must be ordered separately.
Simple to operate, the unit has several useful features and options. Red
and green LEDs give a clear “go” or “no go” indication. The user can
select any of four different resistance levels, making the tester a versatile
instrument to meet varying industry, corporate and global standards. The
unit tests the wrist band and cord while they are being worn, and can also
test each component independently to isolate an indicated fault. There
is also a digital output that can be used to interface with a computer,
automatic door lock, alarm or other control device.
The wrist strap and footwear tester comes with the base unit, output
connector, 3M Dual Lock
™
Wall-Mounting System and template, cover
for the wrist strap plug-in jack and the AC/DC transformer.
Note: The Shoe Electrode 741 is not included with the Wrist
Strap and Footwear Tester 740 and must be ordered separately.
3M
™
Wrist Strap and Footwear Tester 740
Wrist Strap Tester 740 Properties
Item Typical Properties
Dimensions
5.43 H x 7.48 W x 2.09 in. D
(13.8 x 19.0 x 5.3 cm)
Weight
15.75 oz. (450 gm)
Power Supply
27 Vdc transformer, 150 mA
(AC/DC adapter supplied)
6 ft. (1.8 m) wire
Test Voltage
20 Vdc, ± 1 volt (open circuit)
Resistance Ranges
Lower limit: 750K ohm
Upper Limit Wrist Strap
2, 5, 10 and 35M ohm
Upper Limit Footwear
10, 35, 50 and 100M ohm
Accuracy
+ 20%, -0% for 750K ohm lower limit
± 10% for 2M, 5M, 10M, 35M and 50M
ohm ± 20% for 100M ohm
Output
Open collector at pins 1, 2, 4 and 5
DC return at pin 6. + 5 volts at pin 3
Wall Mounting
3M
™
Dual Lock
™
System
Shoe Electrode 741 Properties
Item Typical Properties
Dimensions
20 H x 16 in. W (50.8 x 40.6 cm)
Weight
5 lbs. (2.3 kg)
Construction
1 mm stainless steel plate and molded plastic base
Other
3M adhesive strip prevents unit from sliding while in
use. Shoe electrode interconnect cord 6 ft. (1.8 m).
Surface Resistance Meter and Personnel Testers
Test Equipment
