8
Workstation Products
For more product information, please visit www.3M.com/static
3M
™
Dual Conductor Metal Wrist Straps
for Monitors (Premium Performance)
The 3M Dual Conductor Metal Wrist Straps 2380 Series are for use
exclusively with 3M
Workstation Monitors. These long-lasting metal
expansion bands are for use in clean rooms and applications requiring
extended band life.
Three sizes are available: small for wrists from 4.5 in. to 6 in. (114 mm
to 152 mm) in circumference; medium for wrists from 5.5 in. to 7.25 in.
(140 mm to 184 mm); and large for wrists larger than 6.5 in. (165 mm).
3M
™
Metal Wrist Strap 2381
Product No. Description
2381
Dual Conductor Metal Wrist Strap
Includes band and 5 ft. (1.5 m) cord (Small)
2381VM
Dual Conductor Metal Wrist Strap
Includes band and 5 ft. (1.5 m) cord (Small) (790 only)
2382
Dual Conductor Metal Wrist Strap
Includes band and 5 ft. (1.5 m) cord (Medium)
2382VM
Dual Conductor Metal Wrist Strap
Includes band and 5 ft. (1.5 m) cord (Medium) (790 only)
2383
Dual Conductor Metal Wrist Strap
Includes band and 5 ft. (1.5 m) cord (Large)
2383VM
Dual Conductor Metal Wrist Strap
Includes band and 5 ft. (1.5 m) cord (Large) (790 only)
2384
Dual Conductor Metal Wrist Band (Small)
2384VM
Dual Conductor Metal Wrist Band (Small) (790 only)
2385
Dual Conductor Metal Wrist Band (Medium)
2385VM
Dual Conductor Metal Wrist Band (Medium) (790 only)
2386
Dual Conductor Metal Wrist Band (Large)
2386VM
Dual Conductor Metal Wrist Band (Large) (790 only)
3M
™
Dual Conductor Ground Cords
3M
™
Dual Conductor Ground Cords
(Premium Performance)
The 3M Dual Conductor Wrist Strap Ground Cord is for use exclusively
with dual conductor wrist straps. Used in conjunction with 3M’s ESD
workstation monitors, the 3M Dual Conductor Cord 2300 Series features
an improved grip that is wider in diameter and easier to grasp when
inserting and removing the cord from the remote unit. The terminations
at both ends of the cord have been redesigned for a secure fit when
plugged into the dual remote.
Product No. Description
2360
Dual Conductor Coiled Cord, 5 ft. (1.5 m) practical length.
2370
Dual Conductor Coiled Cord, 10 ft. (3.0 m) practical length.
2371
Dual Conductor Coiled Cord, 20 ft. (6.0 m) practical length.
2360R
Dual Conductor Coiled Cord, 5 ft. (1.5 m) practical
length, with right angle mono plug connection.
(To be used only with 3M monitors)
2370R
Dual Conductor Coiled Cord, 10 ft. (3.0 m) practical
length, with right angle mono plug connection.
(To be used only with 3M monitors)
2371R
Dual Conductor Coiled Cord, 20 ft. (6.0 m) practical
length, with right angle mono plug connection.
(To be used only with 3M monitors)
2391
Dual Conductor Coiled Cord, 5 ft. (1.5 m) practical
length, with right angle mono plug connection.
(To be used only with monitors other than 3M)
2392
Dual Conductor Coiled Cord, 10 ft. (3.0 m) practical
length, with right angle mono plug connection.
(To be used only with monitors other than 3M)
2393
Dual Conductor Coiled Cord, 20 ft. (6.0 m) practical
length, with right angle mono plug connection.
(To be used only with monitors other than 3M)
9
Workstation Products
3M
™
Dual Conductor Wrist Strap
Features
• Compatible with most dual conductor, resistance style monitors.
• Dual conductor design allows functionality if one wire fails.
• Single snap to band for improved reliability.
• Right angle (90-degree) mono plug prevents damage to cord.
3M
™
Dual Conductor Wrist Strap
(Standard Performance)
3M’s Dual Conductor Wrist Straps are designed to work with dual
conductor, resistance style, constant monitors. The wrist band is fully
adjustable and made from soft fabric that stays flat on the wrist for
good contact. Dual conductor coiled cords offer a right angle (90-degree)
mono plug, 40 lb. tensile, multi-conductor wire, and are available in
6 ft. or 12 ft. (1.8 m or 3.6 m) lengths. These wrist straps are generally
compatible with dual conductor monitors that accept a mono plug.
Product No. Description
DWAFWS61M
Band, 6 ft. (1.8 m) cord
DWAFWS121M
Band, 12 ft. (3.6 m) cord
DWAFWS
Adjustable fabric band
DWCC61M
6 ft. (1.8 m) cord
DWCC121M
12 ft. (3.6 m) cord
WS Aware Dual Workstation Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 16
Dual Conductor Wrist Straps and Cords
3M
™
Dual Conductor Thermoplastic
Wrist Straps for Monitors 4720
(Economy Performance)
Made to be used in conjunction with all 3M
™
Workstation Monitors.
The 4720 offers several unique features to provide high-tech businesses
with cutting-edge equipment at a low cost.
The dual conductor wrist band is connected to the 3M Workstation or
Wrist Strap Monitor via a 3M
™
Dual Wire Ground Cord 2300 Series. The
cords (2360, 2370, and 2371) are sold separately to allow customers
the option of purchasing a cord in 5 ft., 10 ft. and 20 ft. (1.5 m, 3.0 m,
6.0 m) lengths respectively.
3M’s exclusive “comfort bumps” design on the conductive interior insert
provides not only increased contact with the skin, but also air flow
between the band and skin, resulting in more comfort for the wearer.
Made of thermoplastic material, the 3M Dual Wire Wrist Bands 4720
are lightweight and low profile, making reliable contact to the skin,
improving employee acceptance while providing an effective grounding
device. The pliable thermoplastic material of the 4720 conforms to the
arm, increasing the amount of contact area.
The “zipper” style latching mechanism easily adjusts to most any
size wrist, effecting a “one size fits all,” allowing for a secure and
comfortable fit. After adjusting for proper fit, any excess band material
is cut off. The wrist band is highly visible, making it easy for supervisors
to see that the wrist straps are properly used.
3M
™
Wrist Band 4720 with
3M
™
Dual Conductor Wrist Strap Ground Cord 2360
Product No. Description
4720
Dual Conductor Wrist Band, Blue
(ground cord not included)
10
Workstation Products
For more product information, please visit www.3M.com/static

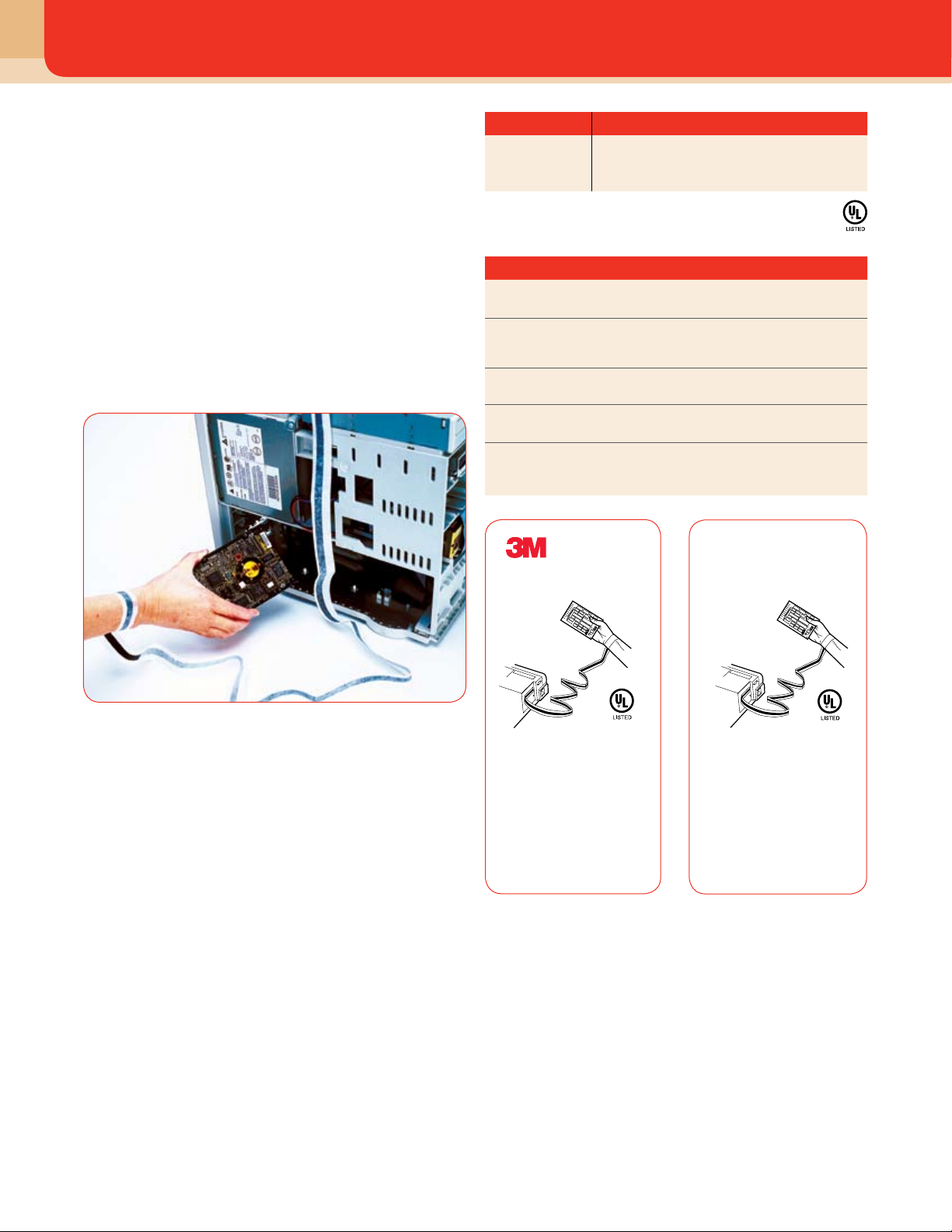

3M
™
Disposable Wrist Straps
(Economy Performance)
The 3M Disposable Wrist Strap 2209 is ideally suited for shipment along
with components and devices, such as memory upgrades, sound cards,
etc., to provide protection at the receiving end. It may also be used for
short-term use in the plant for visitors and others who don’t need the
durability of a reusable strap.
At the end that wraps around the wrist, a hypoallergenic adhesive
provides 360-degree contact with the skin to minimize skin-to-band
resistance. At the other end, the conductive adhesive on the copper
foil tape adheres to any convenient electrical ground. A current-limiting
resistance is fabricated into the plastic ribbon below the wrist band.
Each 3M Disposable Wrist Strap 2209 is individually packaged in a clear
poly envelope. Custom printing is available by special order (minimum
quantities apply).
3M
™
Disposable Wrist Strap 2209
2209 Properties
Item Typical Properties
Ground/Bonding
End
Copper foil with conductive adhesive on both
attached to conductive ribbon.
Conductive
Ribbon
Flexible conductive film, with fabricated current
limiting resistance near wrist band end. Conductive
ribbon enclosed in non-woven adhesive tape.
Wrist Band End
Conductive ribbon with exposed hypoallergenic
adhesive along each side of conductive ribbon.
Practical Working
Length
4 ft. (1.2 m)
Electrical
Resistance
End to End
1.0 to 5.0 megohm
Standard envelope
Disposable Wrist Strap
2209
A • B • C
Electronics
1•800•000•0000
INSTRUCTIONS
1. Unwrap 12 in. (30 cm) of the
band and wrap adhesive side
around your wrist.
2. Unroll rest of band and remove
liner from copper tape.
3. Attach the copper tape to
electrical ground or the metal
frame of equipment you are
servicing.
INSTRUCTIONS
1. Unwrap 12 in. (30 cm) of the
band and wrap adhesive side
around your wrist.
2. Unroll rest of band and remove
liner from copper tape.
3. Attach the copper tape to
electrical ground or the metal
frame of equipment you are
servicing.
Manufactured for
ABC Electronics
by 3M.
Custom envelope example
Product No. Description
2209
Disposable Wrist Strap.
(Custom envelope imprinting is available.) UL Listed.
