13 W orkstation Products W orkstation Monitors Notes

Workstation Products

For more product information, please visit www.3M.com/static

™

Workstation Monitor Selection Guide

Application WS Aware

CTC061

WS Aware

CTC062

Iron Man

CTC330

Iron Man

Plus

CTC331

Ground

Man Plus

CTC334

724 725 790 WSMONITOR1 WSMONITOR2 WSMONITOR3

Critical Environment

Hard Disk Drive

Manufacturing

x x x - - - - -

Sub-50 V Sensitive

Components

x x x x x - - -

Back End Semiconductors

>50 V CDM

x x x x x x x x

Electronics Assembly

x x x x x x x x x x

Wrist Strap Type

Dual Conductor

x x - x x x x x

Single Wire

- x x x

Number of

Operators

2 2 1 1 1 2 1 2 1 1 2

Operator Control Voltage

25 mV

x x - - - - - -

400 mV

- - - x x - - -

Up to 9 V

- - - - - x x x x x x

Body Voltage Alarm

Yes

x x x x x - - -

Operator Presence Detector Option

Big Brother

Infrared Sensor

x x - - - - - -

Metal Grounds

2 4 - - 3 - - -

EMI on Metal

Grounds

x x - - - - - -

Dissipative

Grounds

(mat/bench

monitor)

2 - - 1 - 1 - - 1 1

Board ESD/EOS

Alarm

- - x x - - - -

Output Signal

Analog

x x - - - - - -

Logic

x x - - x - - -

Digital

x x - - - - - -

Photos are not to scale.

Workstation Products

Workstation Monitors

Notes

Workstation Products

For more product information, please visit www.3M.com/static

™

EM Aware ESD Monitors

3M EM Aware ESD monitors detect and measure ESD events

(electrostatic discharges), as well as static voltage and ionization

parameters (depending on the model). EM Aware is a comprehensive

diagnostics and troubleshooting tool for your ESD environment, a

continuous monitor for critical ESD process and an instrument to qualify

your tools for handling ESD-sensitive devices. EM Aware ESD Monitors

are essential in establishing and maintaining a safe ESD environment.

EM Aware Starter Kits include a number of selected EM Aware Monitors

with antennae, data acquisition system, Windows-based software,

worldwide power adapter, and all cables and interconnects.

Features

• One antenna for monitoring all parameters.

• Data is correlated to standard discharge models: CDM, HBM and MM.

• Real time measurements with adjustable range settings.

• Highly sensitive measurements of ionization balance and decay.

• Outputs for every parameter to all major facility monitoring systems (FMS).

• Optional extended temperature antennae.

ESD Events

Item Typical Properties

Sensitivity

1 – 1000 V

Characterization

HBM, MM and CDM

Threshold

Adjustable locally and remotely

Discharge Polarity

Both

Event Count

Available

Event Magnitude

Output to FMS, DAQ; LED bar

ESD Event Indication

LED, buzzer

ESD Event Hold

LED w/reset

Static Voltage

Types of Measurements

Induced voltage

1 in. from the surface

Measurement Range

±100 V – ±5,000 V adjustable

Indication

Output to FMS, DAQ; LED bar

Alarm

Buzzer, adjustable threshold

Ionization Balance

Item Typical Properties

Type of Ionizer

DC, AC blowers

Measurement Range

±12.5 V Full Scale

Indication

Output to FMS, DAQ; LED bar

Alarm

Buzzer, adjustable threshold

Ionization Decay

Type of Ionizer

DC, AC blowers

Measurement Range

0–10 seconds correlated to standard CPM

Indication

Output to FMS, DAQ

Alarm

Buzzer, adjustable threshold

Interface

Output to FMS, DAQ

4–20 mA each channel;

other interfaces available

Connector

RJ45

Power

12–24 Vdc, <200 mA

Mechanical

Dimensions (approx.)

Without Antenna

1.30 H x 2.25 W x 3.2 in. L

(33 x 57 x 81 mm)

™

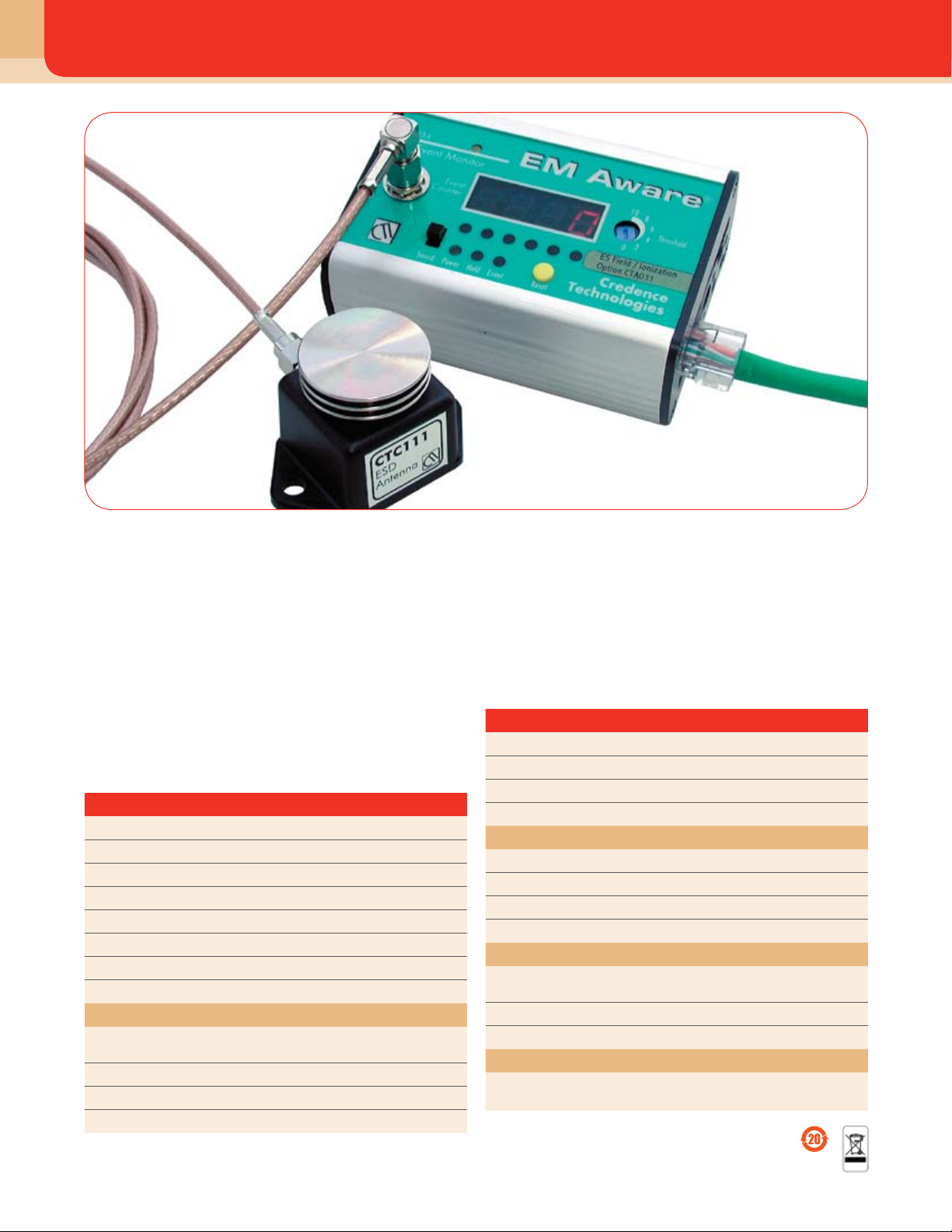

EM Aware Monitor
