15 W orkstation Products 3M ™ EM Aware Starter Kits The EM Aware Starter Kits include everything you need for comprehensive electrostatic discharge (ESD) events, EMI, electrostatic field, and ionization monitoring in you…

Workstation Products

For more product information, please visit www.3M.com/static

™

EM Aware ESD Monitors

3M EM Aware ESD monitors detect and measure ESD events

(electrostatic discharges), as well as static voltage and ionization

parameters (depending on the model). EM Aware is a comprehensive

diagnostics and troubleshooting tool for your ESD environment, a

continuous monitor for critical ESD process and an instrument to qualify

your tools for handling ESD-sensitive devices. EM Aware ESD Monitors

are essential in establishing and maintaining a safe ESD environment.

EM Aware Starter Kits include a number of selected EM Aware Monitors

with antennae, data acquisition system, Windows-based software,

worldwide power adapter, and all cables and interconnects.

Features

• One antenna for monitoring all parameters.

• Data is correlated to standard discharge models: CDM, HBM and MM.

• Real time measurements with adjustable range settings.

• Highly sensitive measurements of ionization balance and decay.

• Outputs for every parameter to all major facility monitoring systems (FMS).

• Optional extended temperature antennae.

ESD Events

Item Typical Properties

Sensitivity

1 – 1000 V

Characterization

HBM, MM and CDM

Threshold

Adjustable locally and remotely

Discharge Polarity

Both

Event Count

Available

Event Magnitude

Output to FMS, DAQ; LED bar

ESD Event Indication

LED, buzzer

ESD Event Hold

LED w/reset

Static Voltage

Types of Measurements

Induced voltage

1 in. from the surface

Measurement Range

±100 V – ±5,000 V adjustable

Indication

Output to FMS, DAQ; LED bar

Alarm

Buzzer, adjustable threshold

Ionization Balance

Item Typical Properties

Type of Ionizer

DC, AC blowers

Measurement Range

±12.5 V Full Scale

Indication

Output to FMS, DAQ; LED bar

Alarm

Buzzer, adjustable threshold

Ionization Decay

Type of Ionizer

DC, AC blowers

Measurement Range

0–10 seconds correlated to standard CPM

Indication

Output to FMS, DAQ

Alarm

Buzzer, adjustable threshold

Interface

Output to FMS, DAQ

4–20 mA each channel;

other interfaces available

Connector

RJ45

Power

12–24 Vdc, <200 mA

Mechanical

Dimensions (approx.)

Without Antenna

1.30 H x 2.25 W x 3.2 in. L

(33 x 57 x 81 mm)

™

EM Aware Monitor

Workstation Products

™

EM Aware Starter Kits

The EM Aware Starter Kits include everything you need for

comprehensive electrostatic discharge (ESD) events, EMI, electrostatic

field, and ionization monitoring in your environment. Quickly connect

several EM Aware monitors to a computer and immediately start

collecting ESD/EMI data. Each kit contains a number of selected EM

Aware monitors, remote antenna, a USB data acquisition system,

Windows-based software, a worldwide power adapter and all necessary

cables and interconnects.

Optional Antennae

• CTC115 Remote (High Temp) omni-directional ESD events/static

voltage antenna

• CTC118 Remote (High Temp) omni-directional ESD events/static

voltage/ ionization antenna

• CTC117 Current/EOS clamp antenna

Product No. Description

CTK3A5-C

CTK3AM5-C

This full-featured kit provides the broadest range

of monitoring capabilities including electrostatic

discharge (ESD) events, static voltage, ionization

balance and ionization decay.

Recommended for those applications, inside or

outside the cleanroom, where ionizations, balance

and decay are included critical parameters.

CTK2A6-C

CTK2AM6-C

The best value and most popular for troubleshooting

and diagnostics. This kit offers EM Aware’s patented

ESD event monitoring, as well as static voltage

monitoring and ionization balance.

Recommended for tool and workstation monitoring/

diagnostics, in and out of cleanroom. Applications

where the monitoring of electrostatic discharge

(ESD) events and static-ﬁeld voltage are key.

CTK1A4-C

CTK1AM4-C

This kit lets you identify, measure and manage

the most critical parameters that typically

signify harmful ESD events in manufacturing

environments, inside and outside the cleanroom.

Recommended for tool and workstation monitoring

where electrostatic discharge (ESD) events are

a major concern.

™

EM Aware Starter Kits

Product No. Description

CTK075

Octopus ESD Monitoring System

™

Octopus ESD Monitoring System

3M Octopus ESD Monitoring System is designed for complete integration

into such tools as IC handlers, pick-and-place machines, wafer and

reticle handlers and others. Full communication with the tool enables

automatic separation of exposed components and reporting of ESD

statistics. It offers unparalleled patented technology to detect and

measure strength of electrostatic discharges (ESD events). Integrated

into the tool, Octopus can in real time identify the exposure of each

individual component to ESD and facilitate automatic separation of

exposed components so that they are not shipped to the customer.

Features

• Comprehensive — reports ESD exposure to the component

at every step.

• Versatile — registers ESD occurrences in real time.

• Certainty of Measurements — uses a patented algorithm to

reject most extraneous ESD events.

Extended temperature range sensors are available for certain

configurations. Please contact 3M for details and specific

recommendations.

™

Octopus ESD Monitoring System

Workstation Monitors

Workstation Products

For more product information, please visit www.3M.com/static

™

WS Aware Dual Workstation Monitors

The 3M WS Aware Workstation Monitor provides continuous monitoring

of all grounding parameters on a workbench or in a tool in full compliance

with ANSI 6.1 and ANSI/ESDA - S20.20 requirements, as well as high-

frequency noise (EMI) on ground. For operators, WS Aware Monitors

utilize dual wrist straps for a continuous resistivity check of human body

connection and patented advanced DSP technology for reliable monitoring

utilizing ultra-low control voltage. Each operator’s body voltage is also

continuously monitored. Patented optional Big Brother terminals allow

the monitor to alarm when an operator approaches static-sensitive

components, but does not plug in his or her wrist strap properly.

WS Aware CTC061 provides continuous monitoring for two metal

grounds (such as tools) and for two “soft” grounds (such as dissipative

mats, surfaces and parts made of dissipative plastics), or four metal

grounds (CTC062). It provides monitoring of EMI on metal grounds with

programmable alarm thresholds. As electromagnetic interference (EMI)

is rapidly becoming a significant factor in equipment failures, this

patented feature helps to provide proper operation of your equipment.

Features

• Highly integrated credit card-size unit offers combination of features.

• Proper operator grounding — Big Brother operator presence detector

alerts if an operator is within reach of sensitive components but is not

plugged in.

• Ultra-low voltage — only 25 millivolts of signal to any part of wrist

strap at any time.

• ANSI 6.1 and ESDA S20.20 compliant ground monitoring.

• EMI monitoring on grounds.

• Safety — built-in safety 1 megohm resistors for each half of the wrist strap.

• Output to facility monitoring system.

Wrist Strap Monitor

Item Typical Properties

Wrist Strap Type

Dual, 3.5 mm plug

Connection to Ground

1 megohm for each side

Wrist Straps Monitored

Imposed Voltage on Body

0.025 V (25 mV) max.

Remote Terminals

2, one for each operator

Remote Terminal Cables

Mini-DIN 6-pin

Visitor Jack on Remote

Available

Body Resistance Alarm Level

10 megohm default

Body Voltage Alarm Level

±2.5 V default (adjustable)

Local Indication

LED, buzzer

Indicated Parameters

Availability

Continuity

Body Voltage

Output Parameters

for Each Operator

Availability

Continuity

Body Voltage

Ground Monitor

Parameters Monitored Typical Properties

CTC061

Metal Ground (Tools)

Dissipative Surfaces

2 connections

CTC062

Metal Ground (Tools)

4 connections

Monitored Ground Connector

No-screw terminal

Connection Activation

Metal Ground Alarm

Dip-switch (no jumpers)

1 – 20 ohm (10 ohm default)

Dissipative Ground Alarm

10 – 1,000 megohm

(1,000 megohm default)

Imposed Voltage

Metal Ground

Dissipative Surfaces

< 0.075 V open circuit

< 0.4 V open circuit

EMI on Metal Ground

Sensitivity

0 dBm (226 mV) default

Local Indication

Good/alarm/off, LED, buzzer

Indicated Parameters

Resistance to ground

EMI on metal ground

Output Parameters

Availability (pass/fail)

Output Parameters

for Each Connection

Resistance to ground

EMI (metal ground) (MODBUS)

Connectivity

Item Typical Properties

Interface

Current Loop

4 – 20 mA

Logic Level

0/20 mA

MODBUS

MODBUS std. compliant

Data Connector

RJ45 jack

General

Item Typical Properties

Power (local or network) Voltage

12..24 Vdc

Current Consumption

<150 mA

Dimension (approx.)

1.30 H x 2.25 W x 3.2 in. L

(33 x 57 x 81 mm)

Weight (approx.)

4.25 oz (120 g)

™

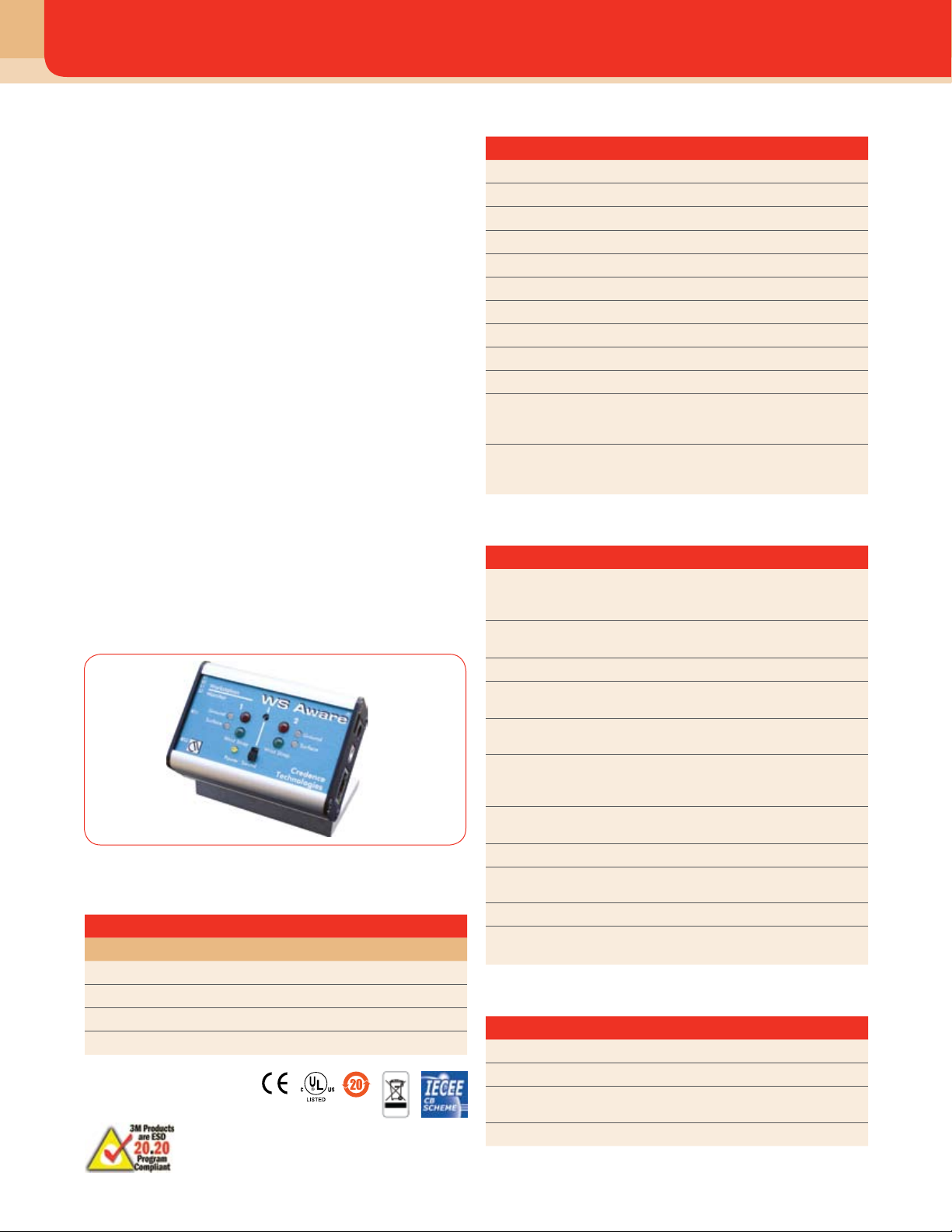

WS Aware Dual Workstation Monitor CTC061 (Stand not included.)

Order Universal Power Adapter CTA212 for WS Aware.
