25
Workstation Products
Ground Monitors Selection Guide and Ground Monitors
3M
™
Ground Man and Ground Man Plus
Ground Monitors for Tools
3M Ground Man Monitors allow users to continuously monitor up to
three connection points on tools. The monitors indicate whether each
individual ground connection being monitored is within specification
or has failed. Ideal applications include SMT pick-and-place tools, IC
handlers, wire bonders, die attach and other tools.
Ground impedance alarm levels can be set by the user to satisfy a broad
range of requirements and compliance with standards such as ANSI
6.1 and ANSI/ESDA S20.20. Adding additional reliability, the host tool is
provided a logic level signal to shut the tool down in case of ground failure.
Miniature and unobtrusive, the Ground Man Monitors are easy to install
and easy to connect.
Use 3M Ground Man Plus Monitor CTC334 to monitor all important
ground connections in the tool and an operator. This monitor adds wrist
strap monitoring to allow only properly grounded operators to work with
the sensitive devices.
Features
• ANSI/ESDA S20.20 compliant.
• Adjustable threshold alarm from 1–20 ohm.
• Logic signal out to the host tool.
• Complete tool coverage.
Product No. Description
CTC333
Ground Man Monitor
CTC334
Ground Man Plus Monitor
3M
™
Ground Man Monitor 3M
™
Ground Man Plus Monitor
Workstation Monitor Checker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 18
26
Workstation Products
For more product information, please visit www.3M.com/static
3M
™
Heel Grounder Product Selection Guide
Heel Grounder Type Closure Style Features Model Number
Premium
Cup Style
Beige non-marking sole, burgundy hook and elastic loop Non-marking 2056
Blue non-marking sole, black elastic loop Non-marking NS-HGC1M
Front Sole Grounder
Front sole grounder, D-ring, black hook and loop High contact area FSG1M-S, M, L
Sole Grounder —
Full Coverage
Full coverage sole grounder, D-ring, black hook and loop Highest contact area SG1M-S, L, XL
Toe Grounder
Adjustable buckle Fits high heels 2053
Standard
Cup Style
Black sole, burgundy hook and loop Moderate heel contact area 2051
D-ring, blue hook and loop Moderate heel contact area, high visibility BLUE-HGC1MD
Black hook and elastic loop Moderate heel contact area HGC1M
Black hook and elastic loop, quick clasp Easy adjustment HGC1M-C
Blue hook and elastic loop High visibility, tennis sole HGC1M-N72-BLU
Orange hook and loop High visibility, tennis sole HGC1M-ORG
Standard Style
Red, D-ring, black hook and loop Red elastic back HGS1MD-RED
Black elastic back Moderate cost HGS1M
Economy
Cup Style
Black sole, yellow-green hook and loop High visibility, low cost 2044
Green hook and loop High visibility, low cost HGC1M-ECG
Black hook and loop Low cost HGC1M-EC
Toe Grounder
Adjustable buckle, no D-ring at the toe Fits high heels, low cost TG1M
Disposable
Adheres to shoe sole One time use 2045
Adheres to shoe sole One time use 5402
For the Best Heel Grounders, Choose 3M
3M Heel Grounders are designed and manufactured for comfort, durability, and cost-effectiveness. We make all of these grounders in the USA.
Our grounders are tested for electrical performance, and many are UL Listed. A lot code on most grounders provides quality traceability.
3M Heel Grounders comply with ESD SP9.2
Foot Grounder Classification
Type Resistance Range
A 1 megohm (+20%)
B 35 to 100 megohm
C < 800 kilohm
Grounder Styles
Cup Style Grounder
Two soles for double life span.
Sole Grounder
The most floor contact area.
Ribbon
Closures
Sole
Standard Grounder
One sole and an elastic back strap.
Toe Grounder
For high heel shoes.
Ribbon
Closure
Sole
Elastic
Ribbon
Closure
Sole
Sole
Ribbon
Sole
Elastic
Buckle
Note: A two megohm option is available.

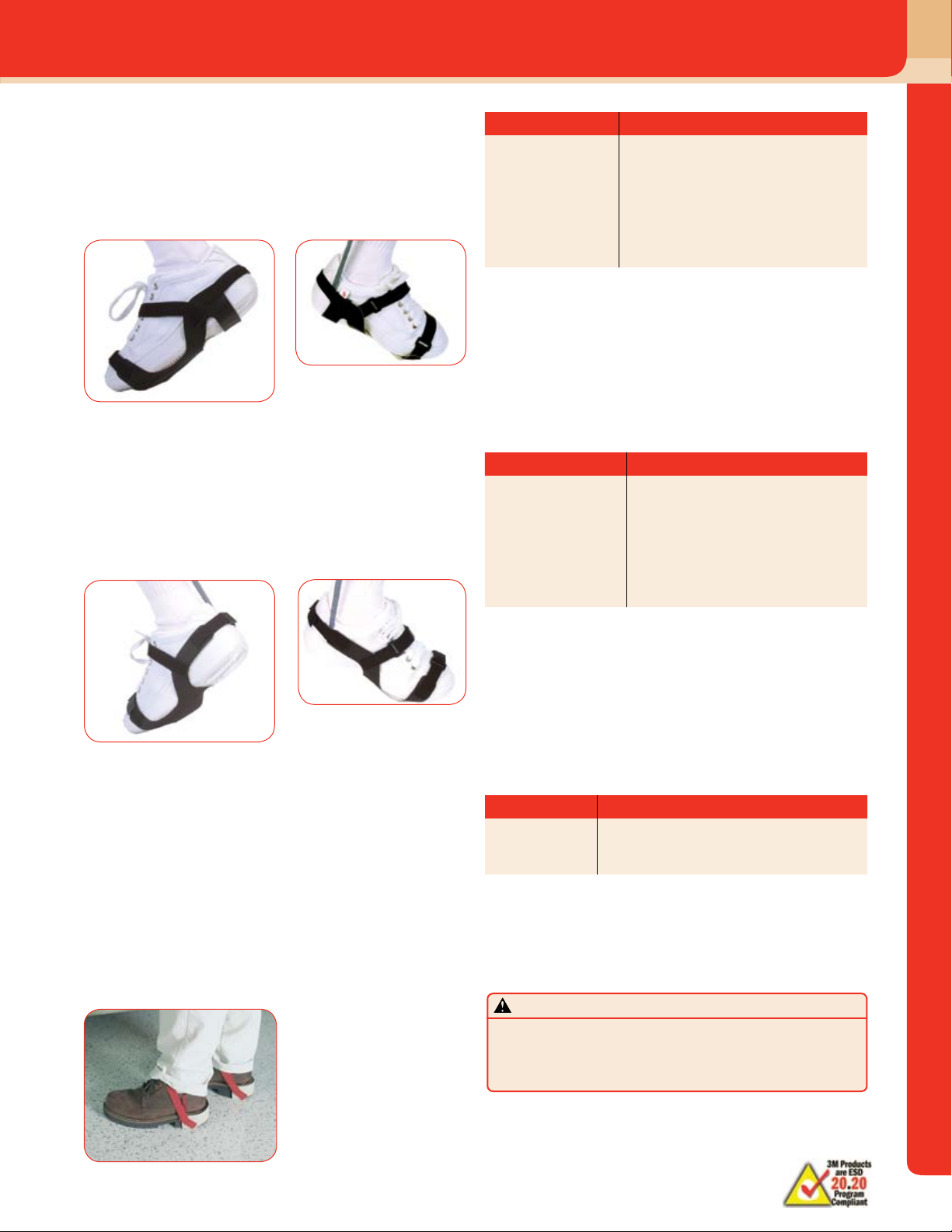

27
Workstation Products
Product No. Description
SG1M-S
Full Coverage Sole Grounder Assembly, Small
SG1M-L
Full Coverage Sole Grounder Assembly, Large
SG1M-XL
Full Coverage Sole Grounder Assembly, Extra large
Product No. Description
FSG1M-S
Front Sole Grounder Assembly, Small
FSG1M-M
Front Sole Grounder Assembly, Medium
FSG1M-L
Front Sole Grounder Assembly, Large
3M
™
Full Coverage Sole Grounder
(Premium Performance)
This grounder is designed to provide maximum floor contact by covering
both the ball of the foot and the heel. Three-point straps allow this
grounder to stay in place without uncomfortable over-tightening. This
quality grounder is tested for electrical performance and is lot numbered
for QC traceability. ESD SP9.2 Type A.
3M
™
Front Sole Grounder
(Premium Performance)
This grounder puts the floor contact right where people stand and walk:
on the ball of the foot. Three-point straps allow this grounder to stay in
place without uncomfortable over-tightening. This quality grounder is
tested for electrical performance and is lot numbered for QC traceability.
ESD SP9.2 Type A.
3M
™
Full Coverage Sole Grounder
3M
™
Front Sole Grounder
3M
™
Full Coverage Sole Grounder
3M
™
Front Sole Grounder
Product No. Description
2056
Non-Marking Shoe Grounder Assembly with a
1 megohm resistor
3M
™
Heel Grounder Assembly
(Premium Performance)
The 3M Non-Marking Shoe Grounder Assembly 2056 is designed to
reliably ground mobile personnel when they are in contact with conductive
and dissipative flooring. The non-marking conductive, carbon-free,
non-slip outer layer provides a dependable static ground while the inner
layer provides a non-marking surface for the shoe. After being trimmed
to a desired length, an extra-long contact ribbon is inserted between the
shoe and sock. The function of the heel grounding assembly depends
upon the foot perspiration in the shoe to sustain electrical contact between
the conductive ribbon and the body. The Shoe Grounder Assembly 2056
is designed with a 1 megohm resistor. ESD SP9.2 Type A.
3M
™
Non-Marking Shoe Grounder Assembly 2056
Warning:
The 3M Heel Grounding Assemblies are not to be used in areas where the
individual may come in contact with exposed electrical circuitry exceeding
250 Volts AC.
To be effective, shoe grounders must be worn on both feet.
Features
• Highest contact area.
• D-ring closure.
• Lot coded.
• Black hook and loop.
Features
• D-ring closure.
• Black hook and loop.
• Lot coded.
• 3-point straps.
Features
• Non-marking beige sole.
• 1 megohm resistor.
• Carbon-free non-slip outer layer.
Heel Grounders
