41
Workstation Products
Table Mats and Floor Mats
3M
™
Conductive Rubber Floor Mats —
Homogeneous (Economy Performance)
Homogenous conductive rubber construction provides resistance to wear,
hot solder, oil grease, and solvents. This mat’s conductive resistance value
provides rapid discharge from personnel wearing heel grounders. The low
profile reduces trip hazard and is preferred for use with rolling carts or
chairs. Mat can be reversed for double usage. ESD Standard 20.20, EIA 625,
MIL-HDBK-263, and MIL-STD-1686. Rtg: 10
5
ohm; Rtt: 10
5
ohm; Thickness:
0.060 in. (1.5 mm)
Mat Kits
Size Black P/N
48 in. x 72 in. (1.2 m x 1.8 m) COND4872FM-F
Rolls
2 ft. x 50 ft. (0.6 m x 15.0 m) COND24600FM
3 ft. x 50 ft. (0.9 m x 15.0 m) COND36600FM
4 ft. x 50 ft. (1.2 m x 15.0 m) COND48600FM
Call for custom sizes.
Includes mat, two snaps, installed, and a 15 ft. (4.5 cm) ground cord
3M
™
Conductive Rubber Floor Mats
3M
™
Conductive Floor Mats for Hard
Floors (Premium Performance)
The main purpose of a conductive floor mat or roll is to remove static charge
from personnel as they approach work areas. Floor mats provide significant
passive protection in well-traveled assembly areas. Continuous runners
extend static protection throughout and between entire areas.
3M
™
Floor Mat 1864
This semi-flexible conductive floor mat contains a rubber filler for
resilience. It also has a textured surface for better traction. It includes
two 3M
™
Snap Fasteners 3034 (installed) and one 15 ft. (4.6 m)
3M
™
Ground Cord 3040 with a 1 megohm resistor.
3M
™
Floor Rolls 1864R
The 3M
™
Floor Roll 1864R is a 50 ft. long roll of the mat material 1864.
It includes two 15 ft. (4.6 m) 3M Ground Cords 3040 with 1 megohm
resistor, five 3M Snap Fasteners 3034 and one 3M
™
Snap Fastener
Installation Tool.
Conductive Floor Mats 1864 are black. Non-standard sizes are available on a custom order basis.
3M
™
Floor Mat 1864
* Tested per ESD Association Standard S4.1 at 72
O
F, 50% RH using 3M Test Kit 701 for Static
Control Surfaces (Megohmmeter).
**Tested per ASTM D 257
Properties
Property Typical Value
Material
EVA Copolymer/Rubber
Thickness
0.125 in. (3.2 mm)
Hardness
80-85 Shore A
*Resistance
(Surface to Ground)
9 x 10
2
ohm
(Surface to Surface)
6 x 10
2
ohm
**Resistivity
10
2
ohm-cm
Product No. Description Size, ft. (m)
1864
Floor Mat
0.125 in.
(3.2 mm) thick
4 x 6
4 x 8
(1.2 x 1.8)
(1.2 x 2.4)
1864R
Floor Roll
0.125 in.
(3.2 mm) thick
2 x 50 (0.6 x 15.0)
42
Workstation Products
For more product information, please visit www.3M.com/static
3M
™
Anti-Fatigue Mat 9910
3M
™
Anti-Fatigue Mat 9920
3M
™
Anti-Fatigue Mats
(Premium Performance)
3M Static Control Anti-Fatigue Mats allow workers to stand comfortably for
long periods while minimizing the fatigue associated with standing work.
Manufactured from durable rubber, 3M Anti-Fatigue Mats consist of a
matrix of hollow cylinders that function like a spring when compressed.
These mats are designed to provide a durable cushion that offers secure,
stable footing and a unique energizing responsiveness.
Their structure provides a stable surface supported by rubber cells that
soften in response to surface activity. These cells provide an effective
cushioning solution because the 3M Static Control Anti-Fatigue Mats get
softer as compressed, not harder like products made of foam.
* Tested per ESD STMS7.1 at 72°F, 12% RH on 3 ft. x 5 ft. (0.9 m x 1.5 m) mat
Properties
Property Typical Value
Size Standard: 3 ft. W x 5 ft. L (0.9 m and 1.5 m)
and octagonal 22 in. (55.9 cm) diameter.
Rolls: 3 ft. (0.9 m) width x custom length.
Thickness 0.625 in. (1.55 cm) with beveled edge
Durometer 42 Shore A
Weight 2 lbs. per square ft.
Composition SBR rubber polymers
Flammability NFPA Rating (Scale 1–4) Fire: 1
Cleaning Sweep, vacuum or damp mop
Color Black
Edges Solid molded rubber
*Resistance
Surface to Surface
Surface to Ground
<1 x 10
6
ohm
<2 x 10
6
ohm (When connected through
3M
™
Ground Cord 3040)
Coefficient of Friction Greater than 1.0 C.O.F.
Temperature Use Range -40°F to 180°F (-40°C to 82°C)
Chemical Resistance Water — Excellent
Acids — Fair-Good
Alkali — Fair
Alcohols — Good
Oils & Gasoline — Poor
Aliphatic Hydrocarbons — Poor
Aromatic Hydrocarbons — Poor
Product No. Description
9900
Static Control Anti-Fatigue Mat 3 ft. W x
5 ft. L (0.9 m x 1.5 m). Includes one
installed ground snap and one 15 ft.
(4.6 m) ground cord.
9910
Static Control Anti-Fatigue Roll. 3 ft. (0.9 m)
x custom length. Includes appropriate
number of ground cords.
9920
Static Control Anti-Fatigue Mat. 22 in.
(55.9 cm) octagonal shape. Includes one
installed ground snap and one 15 ft.
(55.9 cm) ground cord.
CTK9900-331
Static Control Anti-Fatigue Mat 3 ft. W x
5 ft. L (0.9 m x 1.5 m). Mat and operator
monitoring system. Includes: two installed
ground snaps, two 15 ft. ground cords,
CTC331-WW Iron Man Plus Monitor.
3M
™
Vinyl Anti-Fatigue Mat
(Economy Performance)
This 3/8 inch thick foamed vinyl mat provides relief and comfort for
personnel that must stand or walk for long periods. Embossing improves
traction. Meets the requirements of MIL-HDBK-263 and MIL-STD-1686.
Rtg: 10
9
-10
10
ohm; Rtt: 10
9
-10
10
ohm
Mat Kits
Size Gray P/N Brown P/N
24 in. x 36 in. (60.1 cm x 91.4 cm) AFM2436GR-F AFM2436BR-F
36 in. x 60 in. (91.4 cm x 152.4 cm) AFM3660GR-F AFM3660BR-F
Rolls
3 ft. x 60 ft. (0.9 m x 18.3 m) AFM36720GR AFM36720BR
Call for custom sizes.
Includes mat, two snaps, installed, and a 15 foot ground cord
43
Workstation Products

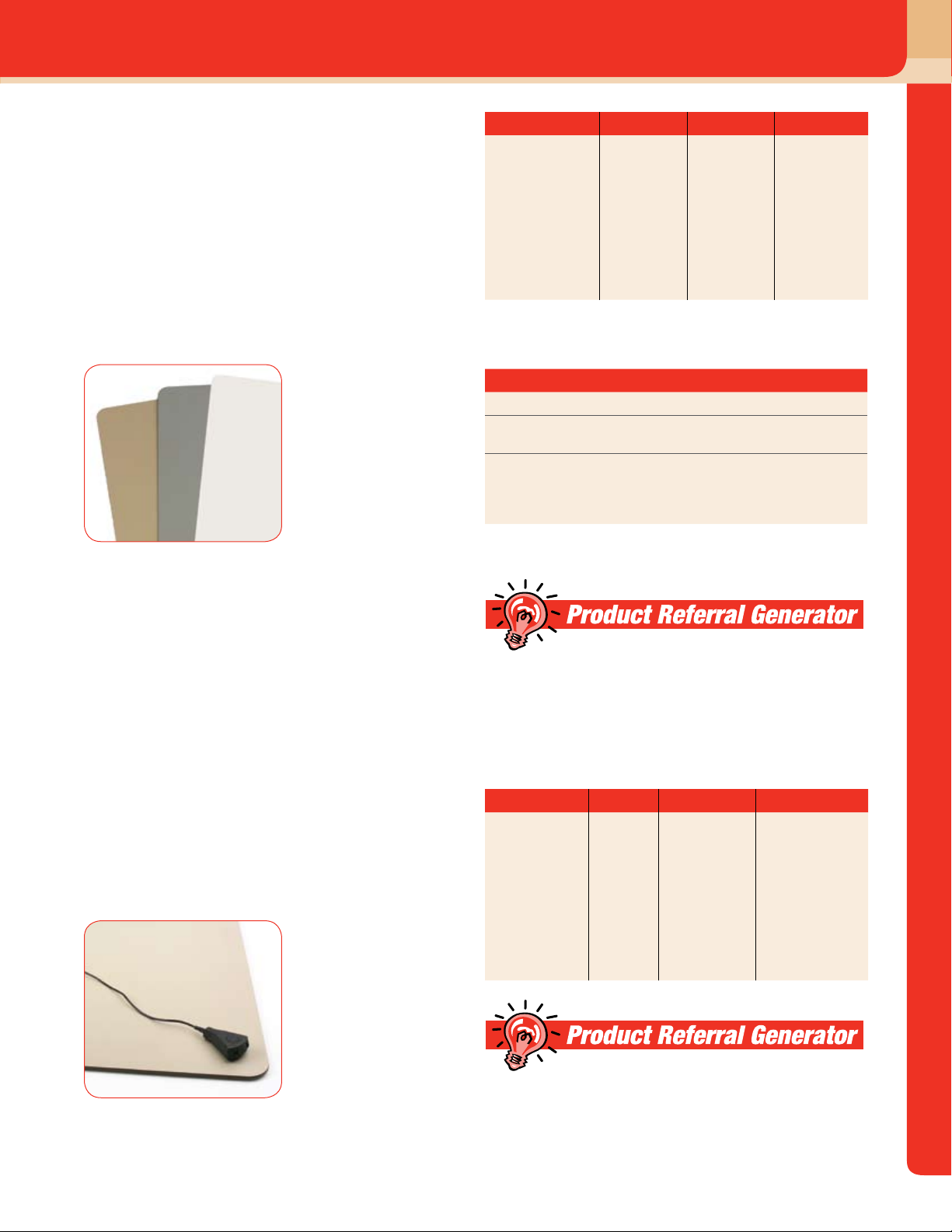

Dissipative Sheets and Worksurfaces
3M
™
Dissipative Hard Laminate Sheets
Dissipative Hard Laminate Sheets are used where a hard, durable,
electrically safe surface is needed, providing a low coefficient of
friction to permit heavy objects to slide easily. Controlled conductivity
(surface-to-ground) virtually eliminates shock hazard when working
on a powered component.
This material is post-formable with normal high pressure laminate
process techniques used by furniture makers. Using this technique,
a tight 0.5 in. (12.7 mm) radius is possible, which allows installation
without seams in corners and over rounded edges when forming parallel
to sanding lines. The laminate provides a comfortable rounded front on
which personnel can rest their arms. It is resistant to common solvents
and to hot solder droppings.
3M
™
Dissipative Rigid Worksurfaces
Static Dissipative Rigid Worksurface 8300 Series have the high abrasion
resistance of a laminate, yet are as easy to install as table mats. The
nonglare surface also resists staining, scorching and common solvents.
All edges and corners are rounded, and the laminate comes ready to
use with two factory-installed snap fasteners, and one 3M
™
Grounding
System 3048 for wrist strap/table mat.
Note: For consistent static charge dissipation from rigid,
conductive flat-bottomed totes and trays, use of a pad or mat
of 3M Dissipative Vinyl Material 8200 in conjunction with this
static-protective hard laminate is suggested, especially in areas
where relative humidity often drops below 30%.
3M
™
Dissipative Hard Laminate Sheets
3M
™
Rigid Worksurface 8300 Surface
Non-standard sizes and colors are also available, subject to minimum order quantity.
* Tested per ESD Association Standard 4.1 at 72oF, 50% RH using 3M Test Kit 701 for Static
Control Surfaces (Megohmmeter)
Product No. Color Size, ft. (m)
8360
Beige
4 x 8
3 x 12
5 x 12
(1.2 x 2.4)
(0.9 x 3.7)
(1.5 x 3.7)
8365
Gray
4 x 8
3 x 12
5 x 12
(1.2 x 2.4)
(0.9 x 3.7)
(1.5 x 3.7)
8375
White 5 x 12 (1.5 x 3.7)
Product No. Color Size, in. (cm)
8343
Beige 0.125 x 24 x 36 (0.32 x 61.0 x 91.0)
8344
Gray 0.125 x 24 x 36 (0.32 x 61.0 x 91.0)
8353
Beige 0.125 x 24 x 36 (0.32 x 61.0 x 91.0)
8354
Gray 0.125 x 24 x 36 (0.32 x 61.0 x 91.0)
Properties
Property Typical Value
Thickness
0.037 in. (0.94 mm)
Hardness
Abrasion resistance:
> 1500 cycles Tabor Wheel 32
*Resistance
(Surface to Ground)
7 x 10
6
ohm
(Surface to Surface)
6 x 10
7
ohm
