49 W orkstation Products Ionizers 3M ™ Mini Air Ionizer The 3M Mini Air Ionizer 960 is a small and versatile blower available for equipment or local area ionization. Its small size makes it ideal for use in those situati…

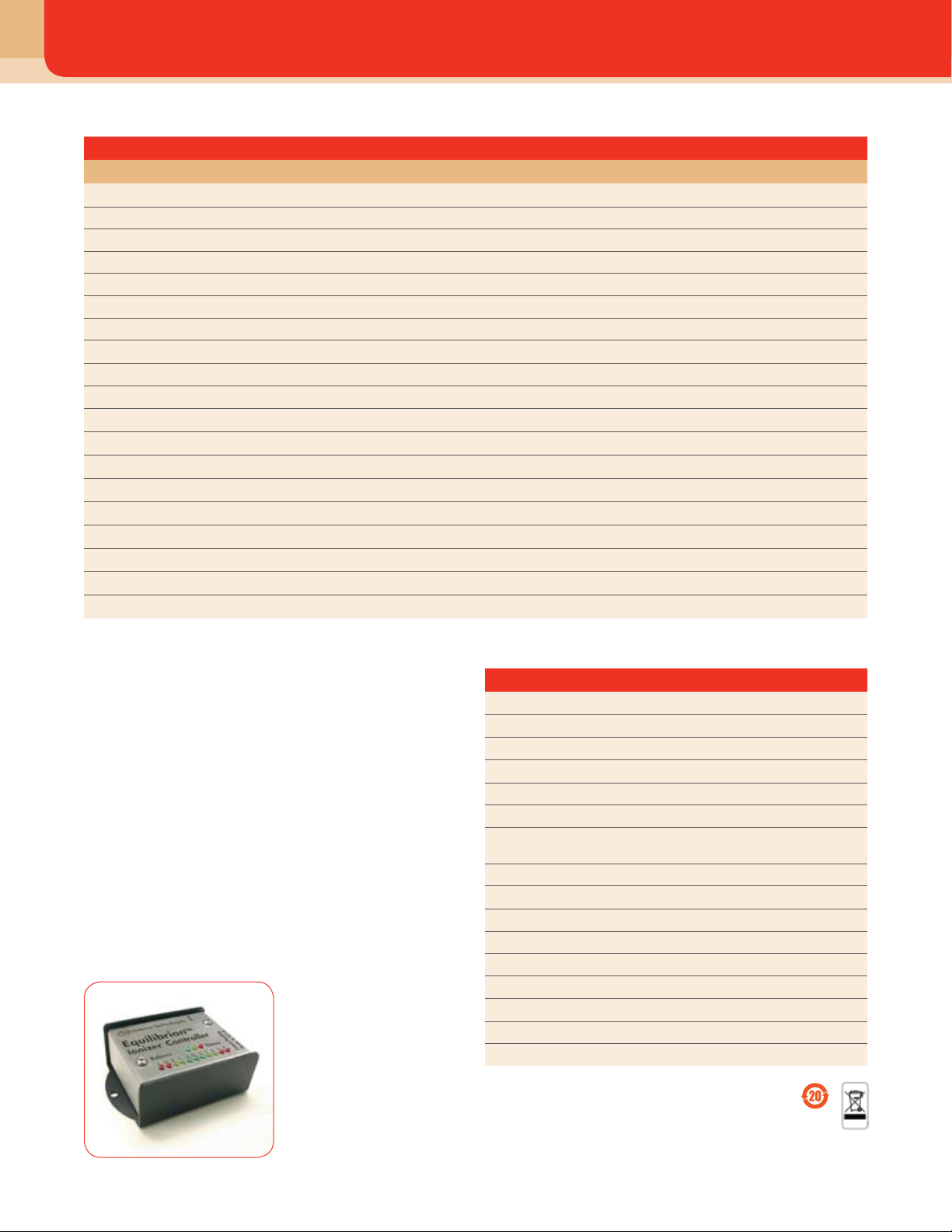

Workstation Products

For more product information, please visit www.3M.com/static

™

Benchtop Air Ionizers

The use of ionized air in electronics work environments will remove the

build-up of potentially damaging static charges. Air ionizers are primarily

used to control static charge on nonconductive materials. The 3M

™

Benchtop Air Ionizer 963 Series blanket the benchtop with ionized air to

help prevent static from damaging sensitive electronics.

Features

• Two versions available: The Benchtop Air Ionizer 963 operates using

AC 120 V power, and the 3M

™

Benchtop Air Ionizer 963E from DC 24 V

power supplied by an included universal power transformer (power line

cord not included).

• Fast neutralization of static charges on nonconductive objects. < 2

seconds at 1 ft. (30 cm) distance using ANSI/ESD S3.1 test procedure.

• Maintains equal balance of positive-negative ions.

• Two-speed fans.

• Static dissipative housing prevents static charge buildup on the

surface of the housing, a common problem with ionizers. “ESD-safe”

design allows the ionizer to be part of your overall static-safeguarded

electronic workstation.

• UL, C-UL, NOM certification. CE-marked.

™

Benchtop Air Ionizer 963

* When tested according to ANSI/ESD S3.1-1991 at high fan speed.

Floor Mats/Runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 36

Dissipative Rubber Mats/Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 37

Physical Characteristics

Property Typical Value

963 963E

Power Ratings AC 120 V 60 Hz 0.20 A 20 W DC 24 V 0.5A 10W

Power Inlet IEC 320 socket Mini DIN socket

Power Transformer - Input: AC 100 V–240 V, 0.4A, 50/60 Hz

Into IEC320 Socket. Output: DC24 V, 0.5A

3.0 ft. (0.9 m) cord with Mini DIN plug

Power Outlet Cord 6 ft. (1.8 m) cord with IEC 320 and NEMA 5–15 plugs Not included

Dimensions (w/Mounting Base) 9 H x 7.0 W x 4 in. D

(23 x 18 x 10 cm)

9 H x 7.0 W x 4 in. D

(23 x 18 x 10 cm)

Weight 2.5 lb. (1.1 kg) 2.5 lb. (1.1 kg)

Air Flow

Low Speed: Feet per Minute

High Speed: Feet per Minute

350 fpm (1.0 m/s)

190 fpm (0.5 m/s)

290 fpm (1.5 m/s)

Operating Environment

Temperature

Humidity

Other Conditions

59°F–95°F (15°C–35°C)

15%–55% RH, non-condensing. Product should be

used in relatively clean indoor environments.

59°F–95°F (15°C–35°C)

15%–55% RH, non-condensing. Product should be

used in relatively clean indoor environments.

Static Discharge Time* @ 1 ft. (30 cm) < 2 second < 2 second

Offset Voltage ±15 V ±15 V

Certiﬁcations and Approvals UL, C-UL, NOM UL, C-UL, NOM, CE

Warranty 1 year 1 year

Product No. Description

963

Benchtop Air Ionizer, including ionizer,

Operator’s Manual, and power cord; 120 VAC

Product No. Description

963E

Benchtop Air Ionizer, including ionizer, Operator’s

Manual, and power transformer; 100 VAC–240 VAC

RoHS

Compliant

2002/95/EC

RoHS

Compliant

2002/95/EC

NOM

Workstation Products

Ionizers

™

Mini Air Ionizer

The 3M Mini Air Ionizer 960 is a small and versatile blower available for

equipment or local area ionization. Its small size makes it ideal for use

in those situations where space is at a minimum. Possible applications

include in or around electronic product equipment, inside OEM

equipment, or on ESD workstations.

The Mini Air Ionizer 960 is designed to generate a well-balanced flow of

ionized air particles, which helps neutralize stray electrostatic buildup

on a surface. Charges are dissipated in seconds and the possibility of a

damaging electrostatic discharge (ESD) event is minimized. The ionizer

also maintains a reasonably balanced flow (± 20 V) of ionized air.

The unit runs off of low-voltage 24 VAC power, which can be supplied

by the 3M

™

Wall Transformer 960X (sold separately). Included with the

ionizer are a mounting bracket and a 3 ft. (0.9 m) telephone cable (with

modular plugs) to connect the ionizer to the Wall Transformer 960X.

Features

• Steady-state DC ion emission for efficient ion delivery.

• Intrinsically balanced — no adjustment necessary.

• Small/compact design utilizes very little work bench space.

• UL/C-UL/CE for global acceptance.

Note: One transformer will supply four Mini Air Ionizers 960.

*Testing was performed with a charged plate monitor in accordance with

ionization standard ANSI/ESD 3.1 - 1991.

Mini Air Ionizer 960

Item Typical Properties

Input Voltage AC 24 V

Power 5.5 watts

Power Input Connection RJ-11 socket

Size 4.5 H x 3.3 W x 2 in. D

(including bracket)

(11.5 x 8.4 x 5.1 cm)

Weight 0.75 lb.

Air Flow Velocity (@1 ft. in front of grille): 300 ft./min.

Air Flow Volume 22 scfm

Operating Environment

Temperature 59°F–95°F (15°C–35°C)

Humidity 15%–55% RH, non-condensing

Other Conditions Product should be used in relatively

clean indoor environments

Certiﬁcations UL, C-UL, CE

*Offset Balance @ 1 ft. ± 20 V

*On Center Discharge Times @ 1 ft.<4 seconds

@ 2 ft.<10 seconds

@ 3 ft.<18 seconds

@ 4 ft.<28 seconds

Wall Transformer 960X/980X

(sold separately)

Item Typical Properties

Input AC 120 V, 50/60 Hz, 270 mA

Output AC 24 V, 1.0 A through RJ-11

socket connector

Dimensions 3.2 H x 2.6 W x 1.9 in.D

(8.1 x 6.6 x 4.8 cm)

Weight 16 oz.

Certiﬁcations UL, CSA

™

Mini Air Ionizer 960

Product No. Description

960

Mini Air Ionizer

Product No. Description

960X/980X

Wall Transformer

RoHS

Compliant

2002/95/EC

RoHS

Compliant

2002/95/EC

Workstation Products

For more product information, please visit www.3M.com/static

™

Equilibrion Ionization Controllers

and Monitors

3M offers the Equilibrion family of ionization controllers and monitors.

Equilibrion CTC037 is a breakthrough patented ionizer controller that is

designed to be completely immune to influence of nearby static charges

in ionizer balance. Equilibrion brings the balance of controllable ionizers

to zero and keeps it at zero, even as ionizer tips wear out or build

up dirt — dramatically increasing the time between required ionizer

maintenance and thus lowering the cost of ionizer ownership. Other

Equilibrion models provide monitoring of ionizer bars and ionizer blowers

that cannot be controlled.

Equilibrion provides monitoring of ionization decay — the most

fundamental property of an ionized environment. Charge decay at places

where sensitive components are handled can exceed acceptable levels

due to dirty ionizer points, air flow blockage, or a poorly positioned

ionizer. With Equilibrion, automatic continuous decay monitoring

provides an alarm when decay becomes unacceptable, improving ESD

safety in your environment.

™

Equilibrion Ionizer Controller

CTC037-7FT Properties

Item Typical Properties

Indication

Balance LED bar

Decay 3-LED bar

Construction

Enclosure Non-tribocharging static-dissipative

Antenna Integrated

Dimension (max.) 1 H x 2.75 W x 1.85 in. L

(25 x 70 x 47 mm)

Weight 2.5 oz (70 g)

Interface

Type of Ionizer DC, with control input

Control Input

RJ11 RJ11 4-conductor cable

BNC Adapter Avaliable — See Ordering Information

Power

RJ11 Interface Ionizer provides power

Power Jack 12 – 24 Vdc <100 mA

™

Equilibrion Ionizer Monitors

Equilibrion

CTC037 CTC038 CTC039

Type of Ionizer

DC Blower x x x

AC Blower x x

Pulsed Bar x

Steady-State Bar x x

AC Bar x

Alpha x

Monitor Type

Controller x

Monitor Only x x

Output

To Ionizer x

Digital x x

Relay x x

Parameters

Balance x x x

Decay x x x

± Peaks x x

External Display Unit

x Optional Optional

Features

• Brings to zero, keeps at zero

from the widest of imbalances.

• Immune to static voltage.

• Reports balance and decay.

• Miniature size.
