53 W orkstation Products Field Service Kits 3M ™ Portable Field Service Kit (Standard Performance) The 3M Portable Field Service Kit 8501 is designed to provide effective sta tic pro tecti on in a comp act pac kage fo r …
52
Workstation Products
For more product information, please visit www.3M.com/static
3M
™
Portable Field Service Kit
(Premium Performance)
The 3M Portable Field Service Kit 8505 is a small, lightweight kit that
offers the same level of static control as the full-sized 3M
™
Field Service
Kit 8501, yet is small enough to fit in a shirt pocket.
Custom logo imprinting on the worksurface is available.
3M
™
Portable Field Service Kit 8505
Tested per ESD Association Standard 4.1 at 72OF, 50% RH using 3M
™
Test Kit 701 for Static
Control Surfaces (Megohmmeter).
8505 Properties
Typical Property Value
Resistance: 1 x 10
6
ohm to 1 x 10
9
ohm
(Surface-to-ground)
Product No. Description
8505
Lightweight Portable Field Service Kit
Kit contains:
• Static Dissipative Worksurface with Pocket
0.015 H x 15 W x 20 in. L
(0.38 mm x 38 cm x 51 cm)
• 3M
™
Adjustable Wrist Band 2204
• Lightweight Heavy-Duty Coiled Ground Cords:
3M
™
Wrist Strap Ground Cord 2240, 5 ft. (1.5 m)
3M
™
Extension Ground Cord 2243, 5 ft. (1.5 m)
3M
™
Worksurface Ground Cord 3063, 5 ft. (1.5 m)
• 3M
™
Alligator Clip 3038
3M
™
Field Service Kit Product Selection Guide
Features Model
Premium
Portable, 22 in. x 24 in. (55.9 cm x 61 cm), static dissipative, red worksurface, includes Wrist Strap Monitor 725 and dual conductor wrist strap 8507
Portable, 15 in. x 20 in. (38.1 cm x 50.8 cm), static dissipative, red, lightweight worksurface, includes adjustable fabric wrist strap and grounding accessories 8505
Standard
Portable, 22 in. x 24 in. (55.9 cm x 61 cm), static dissipative, red worksurface, includes adjustable fabric wrist strap and grounding accessories 8501
8.75 in. x 24 in. (22.2 cm x 61 cm) static dissipative, red worksurface, includes adjustable fabric wrist strap and grounding accessories, installed in
remote, unattended telephone switching enclosures
8502
Economy
Portable, 24 in. x 24 in. (61 cm x 61 cm), static dissipative, red worksurface, includes adjustable fabric wrist strap and grounding accessories, low cost FSKL3RD
Field Service Kits
Sensitive microelectronic components can be damaged, even destroyed,
by one ever-present enemy — static electricity. Electronic equipment is
especially susceptible to static electricity during servicing.
Static dissipative products manufactured by 3M are designed to
provide protection at a variety of field service sites, from typical office
environments to remote telephone terminals. The standard field service
kit quickly and reliably removes any static charge on the technician and
provides a durable, static-free surface upon which to lay parts. The
lightweight version offers the same protection in a flexible, compact
package. The telephone terminal service kit is especially designed to be
installed at remote telephone switches or CEVs to provide convenient
static protection on-site.
Practicing proper static control in the field can save time, money and
aggravation for both your customers and your company. Enable your
technicians to do the job right the first time with a static dissipative
portable field service kit from 3M.
53
Workstation Products
Field Service Kits
3M
™
Portable Field Service Kit
(Standard Performance)
The 3M Portable Field Service Kit 8501 is designed to provide effective
static protection in a compact package for the electronics field technician.
The entire kit folds to a size that fits easily into most tool cases. Two
pockets sewn into the worksurface provide storage for the cords.
3M
™
Portable Field Service Kit 8501
Custom logo imprinting on the worksurface is available.
Tested per ESD Association Standard 4.1 at 72OF, 50% RH using 3M
™
Test Kit 701 for Static
Control Surfaces (Megohmmeter).
8501 Properties
Typical Property Value
Resistance: 1 x 10
6
ohm to 1 x 10
9
ohm
(Surface-to-ground)
Product No. Description
8501
Static Dissipative Portable Field Service Kit
Kit includes:
• Static-Dissipative Worksurface
0.021 H x 22 W x 24 in. L
(0.53 x 56 x 61 cm)
• 3M
™
Ground Cord Assembly 3051
• 3M
™
Alligator Clip 3038
• 3M
™
Adjustable Wrist Band 2204
3M
™
Portable Field Service Kit
(Premium Performance)
The 3M Portable Field Service Kit 8507 with a 3M
™
Wrist Strap
Monitor 725 bundles together two static control products to give a field
technician the same continuously monitored, static protected working
environment as that enjoyed by workers in a manufacturing facility.
3M
™
Portable Field Service Kit 8507
Product No. Description
8507
Portable Field Service Kit includes Wrist Strap Monitor
725 and Dual Conductor Wrist Strap
Kit contains:
• Static Dissipative Worksurface, foldable,
0.021 H x 22 W x 24 in. L (0.53 mm x 56 cm x 61 cm)
red with gray cotton edging. Two pockets, each
8 in. x 11 in. (20.3 cm x 28.0 cm), ground snap.
• 3M
™
Wrist Strap Monitor 725, 2.5 H x 2.6 W x 1.1 in. L
(6.4 x 6.6 x 2.8 cm), black. Battery-powered, 9 V (not
included). Ground cord, 6 ft. (1.8 m), with ground clip.
Ground snap on unit to connect to the worksurface.
• 3M
™
Dual Conductor Adjustable Fabric Wrist Band 2368
• 3M
™
Dual Conductor Coiled Cord 2370, 10 ft. (3.0 m)
54
Workstation Products
For more product information, please visit www.3M.com/static
3M
™
Telecommunications Field Service
Kit (Standard Performance)

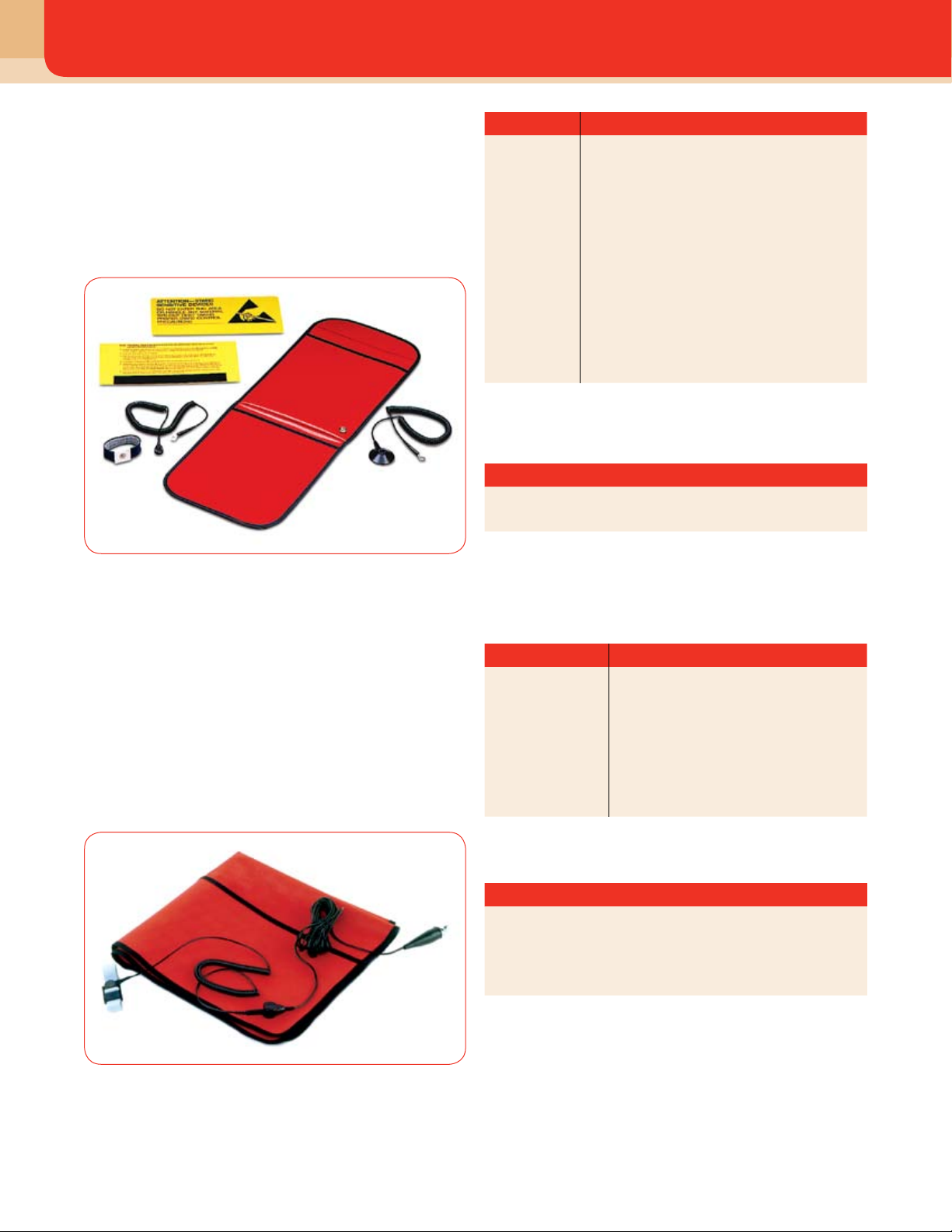

The 3M Static Dissipative Field Service Kit 8502 is a specially designed
static dissipative kit for installation in remote, unattended telephone
switching enclosures.
The worksurface has a strip of 3M Hook and Loop Fastener Tape
stitched to the back so it can be left suspended from the permanently
mounted instruction sign.
3M
™
Field Service Kit
This Field Service Kit provides a complete, portable, static safe
workstation for personnel working with electronics in the field. To stop
static electricity from damaging electronic cards, a static safe work
area is essential for field service technicians performing in-field repair
or installation of cards. The Field Service Kit is used by technicians
in telecommunications, computer, industrial controls and business
equipment service applications. The entire kit folds to fit into most tool
cases. Custom mat printing is available. Includes 24 in. x 24 in. (61 cm
x 61 cm) mat with two pockets, wrist strap, ground cord and instructions.
3M
™
Static Dissipative Field Service Kit 8502
3M
™
Field Service Kit FSKL3RD
Tested per ESD Association Standard 4.1 at 72OF, 50% RH using 3M
™
Test Kit 701 for Static
Control Surfaces (Megohmmeter).
8502 Properties
Typical Property Value
Resistance: 1 x 10
6
ohm to 1 x 10
9
ohm
(Surface-to-ground)
Properties
Product Typical Value
Mat 3-layer, vinyl, red, 10
7-8
Common Ground Cord 15 ft. (4.6 m), 1 meg resistor, bulldog clip
Coiled Cord 6 ft. (1.83 m), 1 meg resistor
Wrist Band Fabric, adjustable
Product No. Description
8502
Static Dissipative Portable Field Service Kit for remote,
unmanned telephone switching sites
Kit includes:
• Static-Dissipative Worksurface
0.021 H x 22 W x 24 in. L (0.53 mm x 56 cm x 61 cm)
(0.53 mm x 56 cm x 61 cm) with two pockets
• Two 5 ft. (1.5 m) coiled ground cords; one for mat,
one for wrist band
• 3M
™
Adjustable Wrist Band 2204
• Static Caution Sign
• Plastic Instruction Sign
Product No. Description
FSKL3RD
Field Service Kit
Kit includes:
1 - 24 in. x 24 in. (61 cm x 61 cm) Mat with
two pockets
1- Adjustable Fabric Wrist Band
1- 6 ft. Coiled Cord
1- Common Ground Cord, 15 ft. (4.6 m) with clip
instructions
