68
For more product information, please visit www.3M.com/static
3M
™
Puncture Resistant Bags
Puncture resistant shielding bags offer more strength for packaging
items with sharp edges, like PCBs and shipping tubes. These puncture
resistant bags use double the amount of polyester plastic as compared
to standard shielding bags. Please call for bag sizes.
3M
™
SCC 1300 Puncture Resistant
Metal-In Static Shielding Bag
Features
• Extra thick polyester plastic to resist punctures and tears.
• Faraday effect shielding of the metallized layer protects electronic
devices from ESD and electrostatic fields.
• Bags are printed with ESD Warning symbol and lot coded for
QC traceability.
• Tested to meet or exceed the electrical and physical requirements
of MIL-PRF-81705D Type III, ESD S541, EIA 625, MIL-HDBK-263,
MIL-STD-1686, ANSI/ESD S20.20.
• Bags are RoHS Compliant* and lead-free**.
SCC 1300 Properties
Physical Properties
Puncture Resistance >16 lbs. FTMS 101 MTH 2065
Seam Strength Pass MIL-PRF-81705
Light Transmission 40% Tobias
Thickness 3.5 mils ±10%
Electrical Properties
ASTM D257 ANSI ESDSTM11.11
Surface Resistivity/Resistance
Interior <10
12
ohm/square or <10
11
ohm
Exterior <10
12
ohm/square or <10
11
ohm
Metal 100 ohm
Static Shielding <30 volts MIL-PRF-81705, EIA 541
Static Shielding <10 nJ EOS/ESD S11.31
Static Decay <0.05 seconds MIL-PRF-81705,
FTMS 101 MTH 4046
3M
™
SCC 1300 Puncture Resistant Metal-In Static Shielding Bag
Packaging
RoHS
Compliant
2002/95/EC
69
3M
™
Puncture Resistant Metal-Out
Static Shielding Bags 2100R
Features
• Extra thick polyester plastic to resist punctures and tears.
• Metal layer is positioned near the outer surface for fast charge
decay and low charge retention.
• Bags are printed with ESD Warning symbol and lot coded
for QC traceability.
• Tested to meet or exceed the electrical and physical requirements
of MIL-PRF-81705D Type III, ESD S541, EIA 625, MIL-HDBK-263,
MIL-STD-1686, ANSI/ESD S20.20., and charge retention standards.
• Bags are RoHS Compliant* and lead-free**.
3M
™
Static Shielding Bag 2100R
2100R/2110R Properties
Property Typical Value Test Method
Thickness 3.2 mil (81 microns) ASTM D2103
Strength
Tensile
Puncture
Seam
>20 lbs. (>6250 PSI,
4.3 x 107 N/m
2
)
9000 PSI (6.2 x 107 N/m
2
)
24 lbs. (10.9 kg)
Pass
ASTM D882
FTMS 101
MIL PRF 81705
Optical Density .35–.45 ASTM D1003
Surface Resistance/
Resistivity
Interior
Exterior
Metallized Layer
<10
11
ohm
<10
9
ohm
<10
2
ohm/sq
ANSI/ESD S11.11
ANSI/ESD S11.11
Monroe #267
Electrostatic
Shielding
<30V
<25 nJ
EIA-541 (V-Zap)
ANSI/ESD S11.31
Decay Time
<2 sec. EIA-541
Contact Corrosivity
Pass FTMS 101C
Method 3005
Outgassing
TML
CVCM
<1.0%
<0.1%
ASTM E595
ASTM E595
Heat Seal
Properties
Temperature
Time
Pressure
180°F – 250°F
(82°C – 121°C)
0.5 – 5.0 sec.
20 – 60 PSI
Shelf Life
(from date of manufacture)
1 Year
Product No. Description
2100R
Metal-Out Static Shielding Bags. 100 bags per pack.
Standard Sizes, in. (cm)
3 x 5 (7.6 x 12.5)
4 x 4 (10.2 x 10.2)
4 x 6 (10.2 x 15.2)
4 x 26 (10.2 x 66.0)
4 x 30 (10.2 x 76.2)
5 x 8 (12.7 x 20.3)
6 x 8 (15.2 x 20.3)
6 x 10 (15.2 x 25.4)
7 x 15 (17.8 x 38.1)
8 x 8 (20.3 x 20.3)
8 x 10 (20.3 x 25.4)
8 x 12 (20.3 x 30.5)
10 x 14 (25.4 x 35.6)
10 x 24 (25.4 x 61)
11 x 15 (27.9 x 38.1)
12 x 16 (30.5 x 40.6)
14 x 18 (35.6 x 45.7)
15 x 18 (38.1 x 45.7)
16 x 24 (40.6 x 61)
18 x 18 (45.7 x 45.7)
18 x 24 (45.7 x 61)
Custom Sizes, in. (cm)
2 x 3 to 35 x 36 (5.1 x 7.6 to 88.9 x 91.4)
Product No. Description
2110R
2100R with Zipper Closure. 100 bags per pack.
Standard Sizes, in. (cm)
3 x 5 (7.6 x 12.5)
4 x 4 (10.2 x 10.2)
4 x 6 (10.2 x 15.2)
5 x 8 (12.7 x 20.3)
6 x 8 (15.2 x 20.3)
6 x 10 (15.2 x 25.4)
8 x 10 (20.3 x 25.4)
8 x 12 (20.3 x 30.5)
10 x 12 (25.4 x 30.5)
10 x 14 (25.4 x 35.6)
11 x 15 (27.9 x 38.1)
Custom Size, in. (cm)
3 x 5 to 20 x 30 (7.6 x 12.7 to 50.8 x 76.2)
Puncture Resistant Bags
Packaging
RoHS
Compliant
2002/95/EC
RoHS
Compliant
2002/95/EC
70
For more product information, please visit www.3M.com/static
3M
™

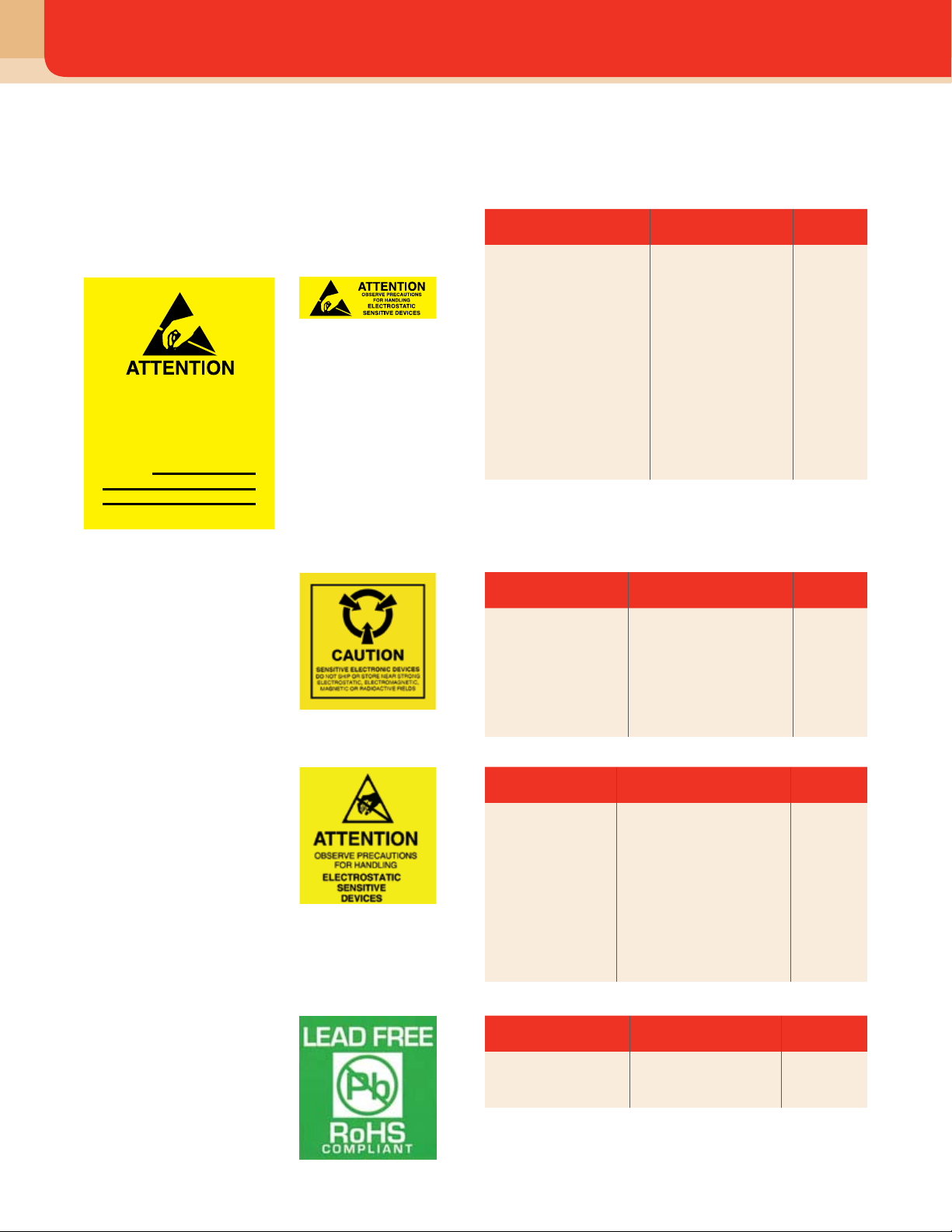

Destructible Labels
Labels alert personnel handling bags, boxes or other carriers that the contents are static-sensitive. 3M labels are easy to use and provide the ESD
symbol and warning message needed to complete your protective package. These destructible type labels are “tamper evident,” letting you easily
monitor whether or not a bag has been opened.
3M
™
Attention Labels
Destructible, black printing on yellow background. This 3M JEDEC-14
label displays the reaching hand symbol and provides writing space.
3M
™
Caution Labels
Destructible, black printing on
yellow background. This label
shows the military force-arrows
symbol and a warning message.
3M
™
Military Labels
Destructible, black printing on
yellow background. Displays
warning symbol and message in
accordance with MIL-STD-129.
3M
™
RoHS Label
This destructible label shows Pb
free and RoHS compliance. White
printing in green background.
Contents
Static Sensitive
Handling
Precaustions Required
Contents
JEDEC-14/Symbol
Product No. Description Labels
per Roll
CLABEL2X2
Destructible Yellow w/ Black
Type. Displays military force-
arrows and warning. Size: 2 in.
x 2 in. (5.08 cm x 5.08 cm)
500
CLABEL4X4
Destructible Yellow w/ Black
Type. Displays military force-
arrows and warning. Size: 4 in.
x 4 in. (10.2 cm x 10.2 cm)
100
Product No. Description Labels
per Roll
7102
Destructible Yellow w/
Black Type. Room to write.
JEDEC-14 Symbol
Size: 1.875 in. x 2.5 in.
(4.6 cm x 6.4 cm)
500
ALABEL
Destructible Yellow w/
Black Type. Room to write.
JEDEC-14 Symbol
Size: 1.875 in. x 2.5 in.
(4.6 cm x 6.4 cm)
500
ALABEL5/8X2
Destructible Yellow w/
Black Type.
JEDEC-14 Symbol
Size: 1.6 in. x 2.0 in.
(4.1 cm X 5.08 cm)
1000
Product No. Description Labels
per Roll
7202
Destructible Yellow w/ Black Type.
MIL-STD-129 Symbol Size: 2 in.
x 2 in. (5.08 cm x 5.08 cm)
500
129LABEL
Destructible Yellow w/ Black
Type. MIL-STD-129 Symbol
Size: 2 in. x 2 in.
(5.08 cm x 5.08 cm)
500
7204
Destructible Yellow w/ Black
Type. MIL-STD-129 Symbol
Size: 4 in. x 4 in. (10.2 cm x
10.2 cm)
500
Product No. Description Labels
per Roll
RoHSLABEL
Destructible Green/White
Type. Size: 2 in. x 2 in.
(5.08 cm x 5.08 cm)
500
3M
™
Attention Labels
3M
™
Attention Labels
3M
™
Caution Labels
3M
™
Military Label 129LABEL
3M
™
RoHS Label
Packaging
