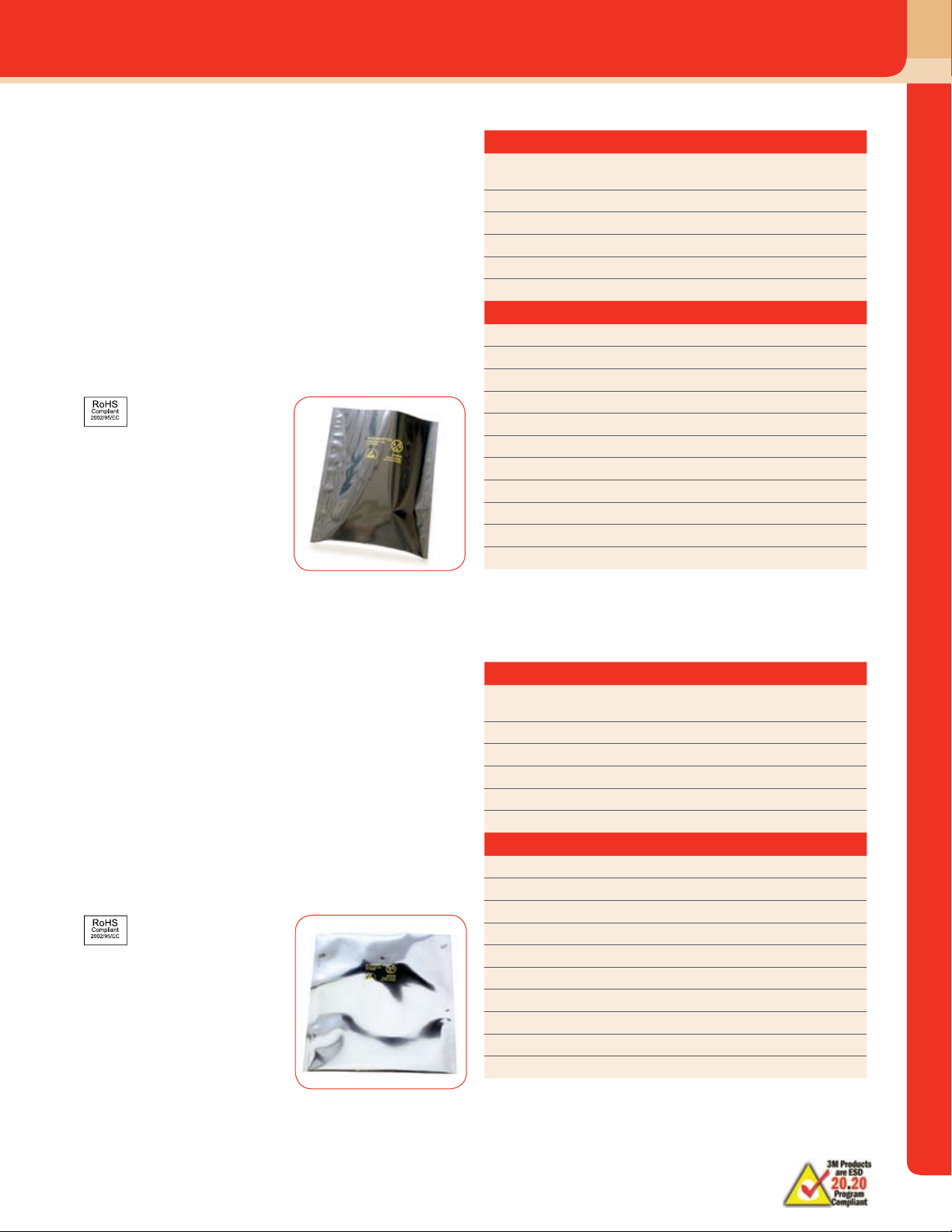

Dri-Shield 3200 Metal-Out
Moisture Barrier Bag
This bag is engineered to provide low charge retention and rapid static
decay. Low MVTR provides maximum moisture protection for surface
mount devices. Please inquire for sizes. Bags are RoHS Compliant*
and lead-free**.
Features
• Metal layer is positioned near the outer surface for fast charge decay
and low charge retention.
• Meets the requirements of IPC/JEDEC J-STD-033.
• Strong, lightweight, heat sealable, suitable for vacuum packaging.
• Meets electrical and physical requirements of EIA 583, ESD S541,
EIA625, and MIL-PRF-81705, and ANSI/ESD S20.20.
• Static safe: dissipative inner and outer surfaces.
• Amine free, passes outgassing and corrosion tests.
• Used for packaging SMDs in trays, shipping tubes, and tape and reel.
• Printed with ESD and moisture symbols; lot coded for traceability.
• Testable to industry standards.
Dri-Shield 3200 Properties
Physical Properties
MVTR <0.0003 g/100
sq.in./24 hrs
ASTM F1249
Puncture Resistance >20 lbs MIL-STD-3010
Tear Strength (Elmendorf) 110 grams ASTM D1922
Thickness 4.0 mils SCC 008
Tensile Strength 8500 PSI,
598kg/cm
2
ASTM D882
Seal Strength >15 lbs ASTM D882
Electrical Properties
Surface Resistivity/Resistance
ASTM D257 ANSI/ESD STM11.11
Interior <10
12
ohm/square or <10
11
ohm
Exterior <10
5
ohm/square or <10
9
ohm
Metal <100 ohm
Static Shielding <20 volts MIL-PRF-81705, EIA 541
Static Shielding <10 nJ ANSI/ESD S11.31
EMI Attenuation 45 dB MIL-PRF-81705
Static Decay <0.01 seconds MIL-STD-3010
Charge Retention <100 volts CPM
Silicone or Amine Content Not detected FTIR
3M
™
Dri-Shield 3700 Moisture Barrier Bag
This puncture resistant bag offers more strength for packaging items
with sharp edges. Low MVTR provides maximum moisture protection for
surface mount devices. Please inquire for sizes. Bags are RoHS
Compliant* and lead-free**.
Features
• Meets the requirements of IPC/JEDEC J-STD-033.
• Puncture resistant.
• Strong, lightweight, heat sealable, suitable for vacuum packaging.
• Meets electrical and physical requirements of EIA 583, ESD S541,
EIA625, and MIL-PRF-81705, and ANSI/ESD S20.20.
• Static safe: dissipative inner and outer surfaces.
• Amine free, passes outgassing and corrosion tests.
• Used for packaging SMDs in trays, shipping tubes, and tape and reel.
• Printed with ESD and moisture symbols; lot coded for traceability.
• Testable to industry standards.
Dri-Shield 3700 Properties
Physical Properties
MVTR <0.0003 g/100
sq.in./24 hrs
ASTM F1249
Puncture Resistance >25 lbs MIL-STD-3010
Tear Strength (Elmendorf) 185 grams ASTM D1922
Thickness 4.0 mils SCC 008
Tensile Strength 13000 PSI,
914kg/cm
2
ASTM D882
Seal Strength >15 lbs ASTM D882
Electrical Properties
Surface Resistivity/Resistance
ASTM D257 ANSI/ESD STM11.11
Interior <10
12
ohm/square or <10
11
ohm
Exterior <10
12
ohm/square or <10
11
ohm
Metal <100 ohm
Static Shielding <20 volts MIL-PRF-81705, EIA 541
Static Shielding <10 nJ ANSI/ESD S11.31
EMI Attenuation 45 dB MIL-PRF-81705
Static Decay <0.01 seconds MIL-STD-3010
Silicone or Amine Content Not detected FTIR
3M
™
Dri-Shield 3200 Metal-Out Moisture
Barrier Bag
3M
™
Dri-Shield 3700 Moisture Barrier Bag
(label optional)
Moisture Barrier Bags
Packaging
RoHS
Compliant
2002/95/EC
RoHS
Compliant
2002/95/EC
78
For more product information, please visit www.3M.com/static
3M
™
Dri-Shield 2000 Moisture Barrier Bag
Multiple layers of metallized polyester provide puncture resistance and
moisture barrier for this economical dry bag. Please inquire for sizes.
Bags are RoHS Compliant* and lead-free**.
Features
• Strong, lightweight, heat sealable, suitable for vacuum packaging.
• Meets electrical and physical requirements of EIA 583, ESD S541,
EIA625, MIL-PRF-81705, and ANSI/ESD S20.20.
• Static safe: dissipative inner and outer surfaces.
• Amine free, passes outgassing and corrosion tests.
• Used for packaging SMDs in trays, shipping tubes, and tape and reel.
• Printed with ESD and moisture symbols; lot coded for traceability.
• Testable to industry standards.
3M
™
Moisture Barrier Bag 3370
The 3M
™
Moisture Barrier Bag 3370 has been designed to meet the
demanding moisture protection needs of the electronics market. Bags are
RoHS Compliant* and lead-free**.
Features
• Clean barrier film contains no amines, N-Octanoic Acid.
• Outgassing levels are extremely low.
• Strong, lightweight, heat sealable, suitable for vacuum packaging.
• Meets electrical and physical requirements of EIA 583, ESD S541,
EIA625, MIL-PRF-81705, and ANSI/ESD S20.20.
• Static safe: dissipative inner and outer surfaces.
• Used for packaging SMDs in trays, shipping tubes, and tape and reel.
• Printed with ESD and moisture symbols; lot coded for traceability.
• Testable to industry standards.
Dri-Shield 2000 Properties
Physical Properties
MVTR <0.02 g/100
sq.in./24 hrs
ASTM F1249
Puncture Resistance >20 lbs MIL-STD-3010
Tear Strength (Elmendorf) 48 grams ASTM D1922
Thickness 3.6 mils ±10%
Tensile Strength 8700 PSI, 612kg/cm
2
ASTM D882
Seal Strength >12 lbs ASTM D882
Electrical Properties
Surface Resistivity/Resistance
ASTM D257 ANSI/ESD STM11.11
Interior <10
12
ohm/square or <10
11
ohm
Exterior <10
12
ohm/square or <10
11
ohm
Metal <100 ohm
Static Shielding <20 volts MIL-PRF-81705, EIA 541
Static Shielding <10 nJ ANSI/ESD S11.31
EMI Attenuation 45 dB MIL-PRF-81705
Static Decay <0.03 seconds MIL-STD-3010
Silicone or Amine Content Not detected FTIR
Moisture Barrier Bag 3370 Properties
Property Typical Value Test Method
Thickness 3.6 mil.
(92 microns)±10%
Measure
Moisture Vapor
Transmission Rate
< 0.015 grams/100
inches
2
/24 hours
(645.2 cm
2
)
(film and seams)
ASTM F 1249
Tensile Strength > 8200 PSI
(5.7 x 107 N/m
2
)
ASTM D 882
Puncture Resistance > 20 lbs. (9.07 kg) FTMS 101C
Method 2065
Seam Strength Pass (3.5 lb./1.6 kg
hanging weight)
Mil PRF 81705(D)
Surface Resistance
(Interior and Exterior)
<1 x 10
11
ohm @12% R.H. ANSI/ESD S11.11
Metal Layer < 100 ohm Monroe 267
Buried Layer
Static Discharge Shielding < 7 nJ ANSI/ESD S11.31
Outgassing <10µg/g Total outgassing,
< 1µg/g Hydrocarbons
Static Headspace
Ionic Contamination <20 ng/cm
2
: Na, F, PO
4
,
SO
4
, Cl, NH
4
<100 ng/
cm
2
: NO
3
Extraction/IC
Non Volatile Residue <1 µg/cm
2
ASTM E1235
(reference)
Polycarbonate Compatibility Pass - 185°F (85°C),
3400 PSI
EIA 564
Amines, Amides, Silicone None Added FTIR/NMR
Product No. Description
3370
Moisture Vapor Barrier Bag. 100 bags per pack. Metal Out.
Standard Sizes, in. (cm)
4 x 6 (10.2 x 15.2)
5 x 8 (12.5 x 20.3)
6 x 10 (15.2 x 25.4)
8 x 10 (20.3 x 25.4)
10 x 12 (24.4 x 30.5)
12 x 16 (30.5 x 40.6)
16 x 18 (40.6 x 45.7)
18 x 24 (45.7 x 61)
Custom Sizes Limits, in. (cm)
3 x 3 to 35 x 36 (7.6 x 7.6 to 88.9 x 91.4)
3M
™
Dri-Shield 2000 Moisture Barrier Bag
3M
™
Moisture Barrier Bag 3370
Packaging
RoHS
Compliant
2002/95/EC
RoHS
Compliant
2002/95/EC
79
3M
™
Dri-Shield 2500 Metal-Out Moisture
Barrier Bag
3M
™
Dri-Shield 2700 Moisture Barrier Bag
Moisture Barrier Bags—Aluminized
3M
™
Dri-Shield 2500 Metal-Out
Moisture Barrier Bag
This bag is engineered to provide low charge retention and rapid static
decay. Provides moisture protection for sensitive assemblies. Please
inquire for sizes. Bags are RoHS Compliant* and lead-free**.
Features
• Metal layer is positioned near the outer surface for fast charge decay
and low charge retention.
• Strong, lightweight, heat sealable, suitable for vacuum packaging.
• Meets electrical and physical requirements of EIA 583, ESD S541,
EIA625, MIL-PRF-81705, and ANSI/ESD S20.20.
• Static safe: dissipative inner and outer surfaces.
• Used for packaging SMDs in trays, shipping tubes, and tape and reel.
• Printed with ESD and moisture symbols; lot coded for traceability.
• Testable to industry standards.
3M
™
Dri-Shield 2700 Moisture Barrier Bag
This puncture resistant bag offers more strength for packaging items with
sharp edges. Provides moisture protection for sensitive assemblies. Please
inquire for sizes. Bags are RoHS Compliant* and lead-free**.
Features
• Puncture resistant.
• Strong, lightweight, heat sealable, suitable for vacuum packaging.
• Meets electrical and physical requirements of EIA 583, ESD S541,
EIA625, MIL-PRF-81705, and ANSI/ESD S20.20.
• Static safe: dissipative inner and outer surfaces.
• Amine free, passes outgassing and corrosion tests.
• Used for packaging SMDs in trays, shipping tubes, and tape and reel.
• Printed with ESD and moisture symbols; lot coded for traceability.
• Testable to industry standards.
Dri-Shield 2500 Properties
Physical Properties
MVTR <0.02 g/100
sq.in./24 hrs
ASTM F 1249
Puncture Resistance >20 lbs MIL-STD-3010
Tear Strength (Elmendorf) 48 grams ASTM D 1922
Thickness 3.6 mils ±10%
Tensile Strength 8700 PSI, 612kg/cm
2
ASTM D882
Seal Strength >12 lbs ASTM D882
Electrical Properties
Surface Resistivity/Resistance
ASTM D257 ANSI/ESD STM11.11
Interior <10
12
ohm/square or <10
11
ohm
Exterior <10
5
ohm/square or <10
9
ohm
Metal <100 ohm
Static Shielding <20 volts MIL-PRF-81705, EIA 541
Static Shielding <5 nJ ANIS/ESD S11.31
EMI Attenuation 45 dB MIL-PRF-81705
Static Decay <0.03 seconds MIL-STD-3010
Charge Retention <100 volts CPM
Silicone or Amine Content Not detected FTIR
Dri-Shield 2700 Properties
Physical Properties
MVTR <0.005 g/100
sq.in./24 hrs
ASTM F 1249
Puncture Resistance 30 lbs MIL-STD-3010
Tear Strength (Elmendorf) 215 grams ASTM D 1922
Thickness 7.0 mils SCC 008
Tensile Strength 6800 PSI, 478kg/cm
2
ASTM D882
Seal Strength >15 lbs ASTM D882
Electrical Properties
Surface Resistivity/Resistance
ASTM D257 ANSI/ESD STM11.11
Interior <10
12
ohm/square or <10
11
ohm
Exterior <10
12
ohm/square or <10
11
ohm
Metal <100 ohm
Static Shielding <20 volts MIL-PRF-81705, EIA 541
Static Shielding <10 nJ ANIS/ESD S11.31
EMI Attenuation 45 dB MIL-PRF-81705
Static Decay <0.01 seconds MIL-STD-3010
Silicone or Amine Content Not detected FTIR
Packaging
RoHS
Compliant
2002/95/EC
RoHS
Compliant
2002/95/EC
