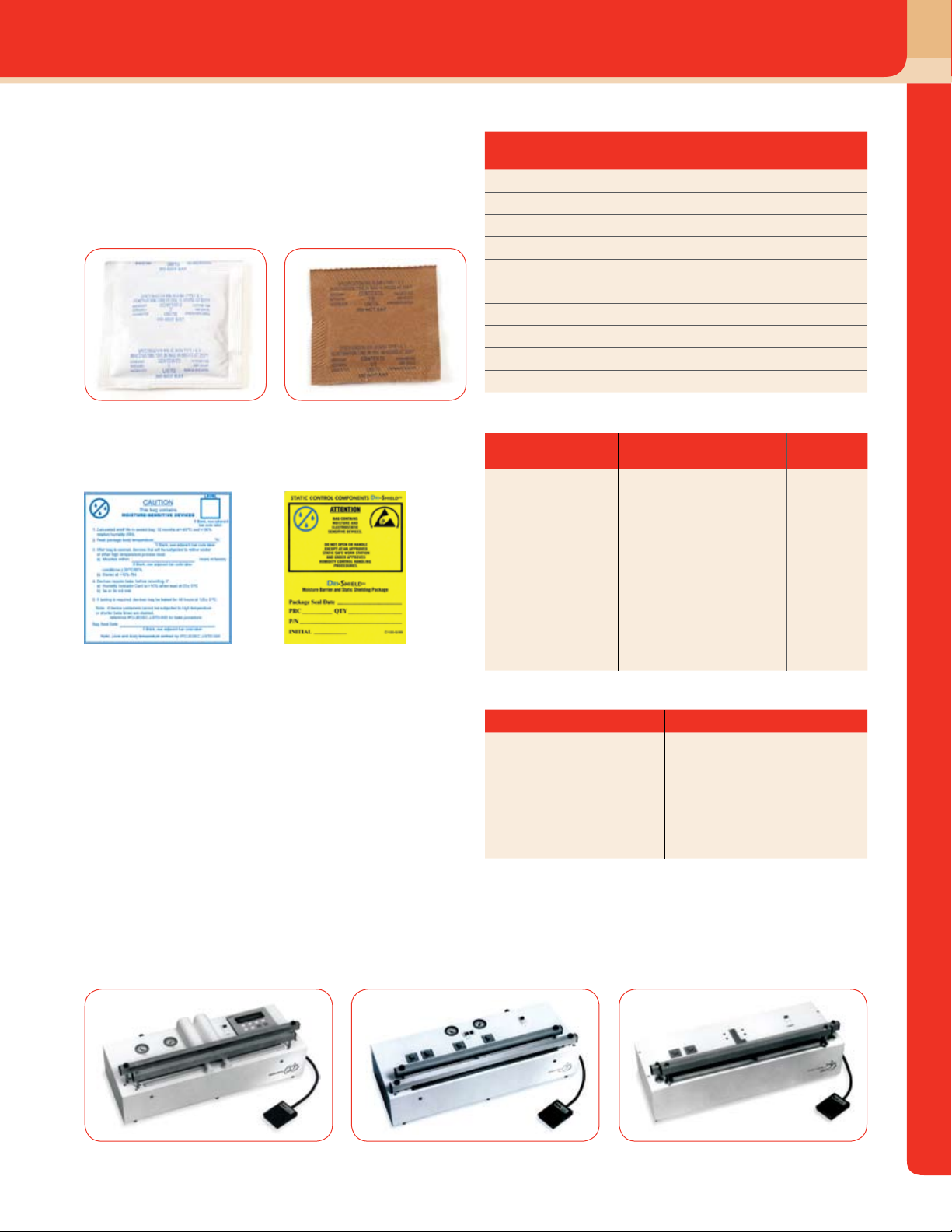

Humidity Indicator Cards and Desiccant
3M
™
Desiccant
Desiccant works by efficiently absorbing airborne moisture left inside the
bag after vacuum sealing, and captures moisture that manages to pass
through the bag material. Secure in a strong envelope of either cleanroom
compatible, sulphur-free Tyvek
™
or economical Kraft paper, these
desiccants are designed to keep your devices dry. Meets the requirements
of IPC/JEDEC J-STD-033 and MIL-D-3464, Types I & II.
3M
™
Vacuum Sealer 635
(Premium Performance)
• Electronic control center
• Retracting vacuum nozzle
• Automatic operation
Part No. 635VACUSEAL
3M
™
Vacuum Sealer 35
(Standard Performance)
• Vacuum, heat, cool timers
• Fixed vacuum nozzle
• Semi-automatic operation
Part No. 35VACUSEAL
3M
™
Vacuum Sealer 235
(Economy Performance)
• Heat and cool timers
• Retracting vacuum nozzle
• Manual operation
Part No. 235VACUSEAL
Pouch Size Part Number Part Number Pouches per
Container
1/6 Unit 1/6TYDES1200 1/6KDES1200 1200
1/3 Unit 1/3TYDES700 1/3KDES700 700
1/2 Unit 1/2TYDES550 1/2KDES550 550
1 Unit 1TYDES300 1KDES300 300
1 Unit 1TYDES1300 1KDES1300 1300
2 Unit 2TYDES150 2KDES150 150
2 Unit 2TYDES800 2KDES800 800
4 Unit 4TYDES500 4KDES500 500
8 Unit 8TYDES300 8KDES300 300
16 Unit 16TYDES150 16KDES150 150
3M
™
Vacuum Sealer 635 3M
™
Vacuum Sealer 35 3M
™
Vacuum Sealer 235
Product No. Description Labels
per Roll
113LABEL
For use with dry packaging
applications. Displays the
warning symbol and message
in accordance with IPC/JEDEC
J-STD-033 and JEDEC113. 3M
can pre-apply this label to bags.
100
DRILABEL
For use with dry packaging
applications. Displays static
awareness symbol and EIA 583
moisture symbol.
Provides writing space.
100
3M
™
Desiccant, Tyvek
™
Pouch
3M
™
Label 113
3M
™
Desiccant, Kraft Pouch
3M
™
Dri-Label
3M
™
Dry Packaging Labels
3M
™
Vacuum Sealers
3M
™
Dessicant
3M
™
Vacuum Sealers
A vacuum sealer evacuates moisture laden air from moisture barrier bags,
and then heat seals the bags closed. This is part of the dry packaging
process that protects surface mount devices from moisture. A vacuum
sealer, a moisture barrier bag, desiccant, and humidity indicator card (HIC)
make up the complete system for dry packaging.
Product No. Description
635VACUSEAL
Premium Vacuum Sealer
35VACUSEAL
Standard Vacuum Sealer
235VACUSEAL
Economy Vacuum Sealer
3M
™
Dry Packaging Labels
Packaging
82
For more product information, please visit www.3M.com/static

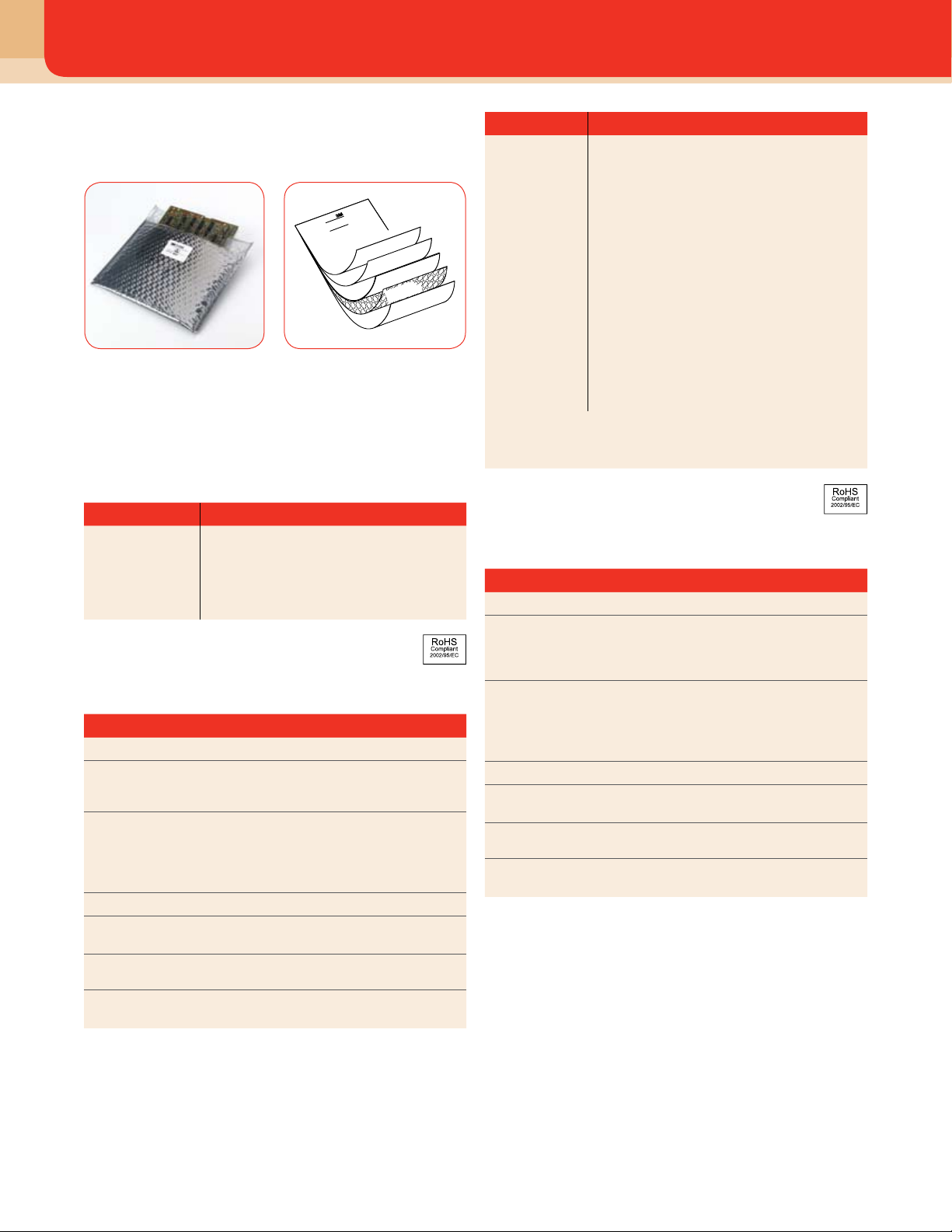

3M
™
Cushioned Shielding Bags
3M Metal-Out Cushioned Static Shielding Bags 2120R protect devices from
physical damage as well as provide proper static shielding.
3M
™
Static Shielding Bag 2120R Cross Section
Aluminum
Polyester
2120R
Static-Shielding
Bag
Dissipative
Polyethylene
Dissipative Open
Cell Cushioning
Abrasion
Resistant Coating
Static Shielding Bag 2120R Properties
Property Test Method Typical Value
Thickness
PPP-C-1842 125 mil (3.175 mm)
Strength
Tensile
Puncture
Seam
ASTM D882
FTMS 101
MIL PRF 81705
34 lbs./in.
22 lbs. (10 kg)
Pass
Surface Resistance/
Resistivity
Interior
Exterior
Metallized Layer
EIA-541, ASTM D257
ANSI/ESD S11.11
Monroe #267
<10
12
ohm/sq.
<10
11
ohm
<10
2
ohm/sq.
Shielding
EIA-541 (V-Zap) <30V
Electrostatic Decay
Interior
EIA-541
<2 sec.
Contact Corrosivity
FTMS 101C,
Method 3005
Pass
Shelf Life
(from date of manufacture)
1 Year
Cushioned Wrap 2126R Properties
Property Test Method Typical Value
Thickness
PPP-C-1842 125 mil (3.175 mm)
Strength
Tensile
Puncture
ASTM D882
FTMS 101
34 lbs./in.
22 lbs. (10 kg)
Surface Resistance/
Resistivity
Interior
Exterior
Metallized Layer
EIA-541, ASTM D257
ANSI/ESD S11.11
Monroe #267
<10
12
ohm/sq.
<10
11
ohm
<10
2
ohm/sq.
Shielding
EIA-541 (V-Zap) <30 V
Electrostatic Decay
Interior
ANSI/ESD S11.11
<2 sec.
Contact Corrosivity
FTMS 101C,
Method 3005
Pass
Shelf Life
(from date of manufacture)
1 Year
Product No. Description
2120R
Cushioned Static Shielding Bags. 100 bags per pack
Standard Sizes, in. (cm)
6 x 7 (15.2 x 17.8)
8 x 7 (20.3 x 17.8)
8 x 11 (20.3 x 27.9)
10 x 7 (25.4 x 17.8)
12 x 11 (25.4 x 27.9)
14 x 11 (35.6 x 27.9)
14 x 15 (35.6 x 38.1)
16 x 11 (40.6 x 27.9)
16 x 15 (40.6 x 38.1)
18 x 11 (45.7 x 27.9)
18 x 15 (45.7 x 38.1)
18 x 23 (45.7 x 58.4)
Custom Sizes Limits, in. (cm)
5 x 5 to 24 x 23 (12.7 x 12.7 to 61 x 58.4)
Dimensions are inside measurements (W x L). Custom printing on bags
available by special order. (Please contact 3M Customer Service for quotations.)
Product No. Description
2126R
Cushioned Static Shielding Wrap. Supplied in rolls.
Standard Sizes, in. (cm)
24 x 125 (61 x 38.1)
48 x 125 (122 x 38.1)
3M
™
Cushioned Shielding Wrap
3M Cushioned Wrap 2126R provides static shielding and physical
protection for large or irregularly shaped circuit boards. Heat sealable
inner surface.
Packaging
RoHS
Compliant
2002/95/EC
RoHS
Compliant
2002/95/EC
83
3M
™
MIL Spec Bags
3M
™
SCC 2000MQPL/Military
Moisture Barrier Bag
Bags are made from MIL-PRF-81705 Type I material that appears on the
Navy Qualified Products List (QPL) and are converted per MIL-DTL-117.
3M
™
MILpac 131 Barrier Bag
MIL-PRF-131 bags provide protection for critical items susceptible to
damage by moisture or corrosion. This material appears on the Qualified
Products List (QPL). Bag converted per MIL-DTL-117.
3M
™
SCC 2000MQPL/Military Moisture Barrier Bag
3M
™
MILpac 131 Barrier Bag
Cushioned Bags, Wraps and MIL Spec Bags
Product No. Description
2000MQPL
Military Moisture Barrier Bag
MILpac 131
MIL-PRF-131 Barrier Bag
Packaging
