83 3M ™ MIL Spec Bags 3M ™ SCC 2000MQPL/Military Moisture Barrier Bag Bag s are made from MIL -PRF- 81705 Type I mate rial tha t appea rs on the Navy Qualified Products List (QPL) and are converted per MIL-DTL-117. 3M ™ …

For more product information, please visit www.3M.com/static

™

Cushioned Shielding Bags

3M Metal-Out Cushioned Static Shielding Bags 2120R protect devices from

physical damage as well as provide proper static shielding.

™

Static Shielding Bag 2120R Cross Section

Aluminum

Polyester

2120R

Static-Shielding

Bag

Dissipative

Polyethylene

Dissipative Open

Cell Cushioning

Abrasion

Resistant Coating

Static Shielding Bag 2120R Properties

Property Test Method Typical Value

Thickness

PPP-C-1842 125 mil (3.175 mm)

Strength

Tensile

Puncture

Seam

ASTM D882

FTMS 101

MIL PRF 81705

34 lbs./in.

22 lbs. (10 kg)

Pass

Surface Resistance/

Resistivity

Interior

Exterior

Metallized Layer

EIA-541, ASTM D257

ANSI/ESD S11.11

Monroe #267

<10

ohm/sq.

<10

ohm

<10

ohm/sq.

Shielding

EIA-541 (V-Zap) <30V

Electrostatic Decay

Interior

EIA-541

<2 sec.

Contact Corrosivity

FTMS 101C,

Method 3005

Pass

Shelf Life

(from date of manufacture)

1 Year

Cushioned Wrap 2126R Properties

Property Test Method Typical Value

Thickness

PPP-C-1842 125 mil (3.175 mm)

Strength

Tensile

Puncture

ASTM D882

FTMS 101

34 lbs./in.

22 lbs. (10 kg)

Surface Resistance/

Resistivity

Interior

Exterior

Metallized Layer

EIA-541, ASTM D257

ANSI/ESD S11.11

Monroe #267

<10

ohm/sq.

<10

ohm

<10

ohm/sq.

Shielding

EIA-541 (V-Zap) <30 V

Electrostatic Decay

Interior

ANSI/ESD S11.11

<2 sec.

Contact Corrosivity

FTMS 101C,

Method 3005

Pass

Shelf Life

(from date of manufacture)

1 Year

Product No. Description

2120R

Cushioned Static Shielding Bags. 100 bags per pack

Standard Sizes, in. (cm)

6 x 7 (15.2 x 17.8)

8 x 7 (20.3 x 17.8)

8 x 11 (20.3 x 27.9)

10 x 7 (25.4 x 17.8)

12 x 11 (25.4 x 27.9)

14 x 11 (35.6 x 27.9)

14 x 15 (35.6 x 38.1)

16 x 11 (40.6 x 27.9)

16 x 15 (40.6 x 38.1)

18 x 11 (45.7 x 27.9)

18 x 15 (45.7 x 38.1)

18 x 23 (45.7 x 58.4)

Custom Sizes Limits, in. (cm)

5 x 5 to 24 x 23 (12.7 x 12.7 to 61 x 58.4)

Dimensions are inside measurements (W x L). Custom printing on bags

available by special order. (Please contact 3M Customer Service for quotations.)

Product No. Description

2126R

Cushioned Static Shielding Wrap. Supplied in rolls.

Standard Sizes, in. (cm)

24 x 125 (61 x 38.1)

48 x 125 (122 x 38.1)

™

Cushioned Shielding Wrap

3M Cushioned Wrap 2126R provides static shielding and physical

protection for large or irregularly shaped circuit boards. Heat sealable

inner surface.

Packaging

RoHS

Compliant

2002/95/EC

RoHS

Compliant

2002/95/EC

™

MIL Spec Bags

™

SCC 2000MQPL/Military

Moisture Barrier Bag

Bags are made from MIL-PRF-81705 Type I material that appears on the

Navy Qualified Products List (QPL) and are converted per MIL-DTL-117.

™

MILpac 131 Barrier Bag

MIL-PRF-131 bags provide protection for critical items susceptible to

damage by moisture or corrosion. This material appears on the Qualified

Products List (QPL). Bag converted per MIL-DTL-117.

™

SCC 2000MQPL/Military Moisture Barrier Bag

™

MILpac 131 Barrier Bag

Cushioned Bags, Wraps and MIL Spec Bags

Product No. Description

2000MQPL

Military Moisture Barrier Bag

MILpac 131

MIL-PRF-131 Barrier Bag

Packaging

For more product information, please visit www.3M.com/static

™

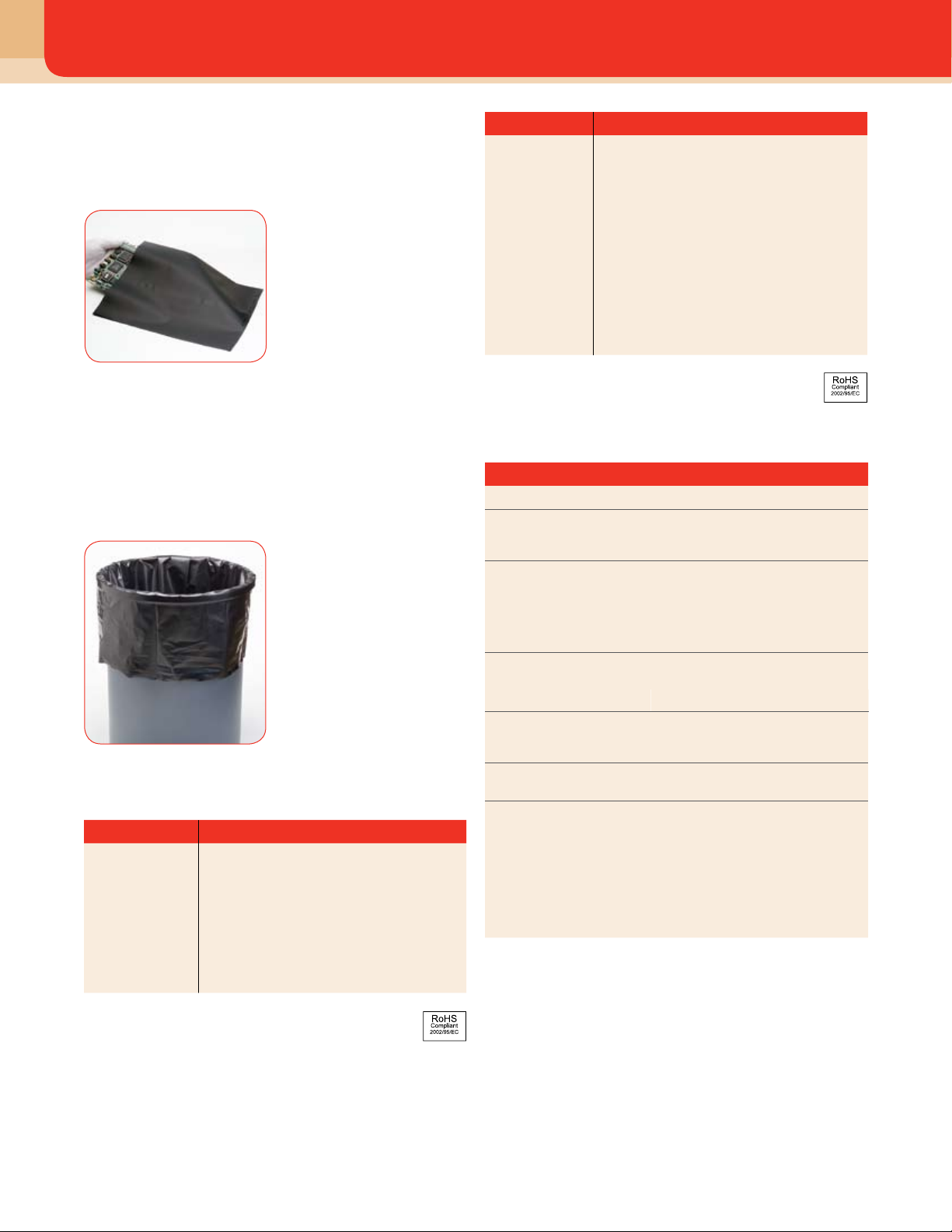

Conductive Bags

3M Conductive Bags 2004 are made of opaque, volume-conductive

carbon impregnated polyolefin. They are easily grounded and the electrical

characteristics are not affected by age or humidity. The standard bags are

readily heat-sealable and 4 mils thick. 100 bags per pack.

™

Conductive Drum Liners

3M Drum Liners 2014 do not hold static charge when grounded.

Commonly used as waste container liners, for holding chemicals that could

be ignited by a static caused spark, or dry chemicals that tend to cling to

ordinary nonconductive static-laden plastics. 100 bags per box.

™

Conductive Bags 2004

* Typical values for 4.0 mil ﬁlm.

Physical characteristics will change with other thicknesses.

Conductive Packaging Properties

Property Test Method Typical Value

Thickness

ASTM D2103 4 mil (102 microns)

Strength

Breaking Factor

Puncture

ASTM D882 10 lbs./in.

Fed Std 101 8 lbs.

Heat Seal Parameters

Temperature

Time

Pressure

180°F – 250°F

0.5 – 5.0 sec.

20 – 60 PSI

(1.4 x 105 –

4.1 x 105 N/m2)

Vicat Softening Temp.

-50°F – 150°F

(-46°C – 66°C)

Vicat Softening Temp. ASTM D1525 83°C

Electrical Properties

Volume Resistivity

Static Decay

ASTM D991 <500 ohm-cm

EIA-541 <2 sec.

Water Vapor

Transmission

ASTM F372 3 g/sq. m/day

Chemical Susceptibility

Dilute Acids and Alkalies

Concentrated Acids & Alkalies

Alcohols (Isopropanol)

Hydrocarbons (Heptane)

Ketones (Acetone)

Oil and Gasoline

Aromatic Hydrocarbons

(Toluene) Shelf Life

ASTM D543

Resistant

Slight Attack

Resistant

Moderate Attack

Slight Attack

Moderate Attack

Severe Attack

Indeﬁnite

Product No. Description

2014

Drum Liners.

Wall thickness: 4.0 mil. (102 microns) 100 per box

Standard Sizes, in. (cm)

5 gallon: 18 x 24 (45 x 60)

20 gallon: 24 x 36 (61 x 91)

30 gallon: 30 x 36 (76 x 91)

*55 gallon: 38 x 58 (96 x 147)

* Available 50 per box

Product No. Description

2004

Conductive Bags.

Wall thickness: 4.0 mil. (102 microns)

100 bags per pack

Standard Sizes, in. (cm)

5 x 8 (12.7 x 20.3)

6 x 10 (15.2 x 25.4)

8 x 12 (20.3 x 30.5)

10 x 12 (25.4 x 30.5)

12 x 16 (30.5 x 40.6)

15 x 18 (38.1 x 45.7)

Custom Size, in. (cm)

4 x 4 to 42 x 72 (10.2 x 10.2 to 106.7 x 182.9)

™

Conductive Drum Liner 2014

Packaging

RoHS

Compliant

2002/95/EC

RoHS

Compliant

2002/95/EC
