DECAN_F2_TRM(Ver6.2_CS17.02) - 第122页
Page +$1:+$ 11 8 DECAN F2 Head (1/6)
Page
+$1:+$
117
DECAN
F2
Page
+$1:+$
118
DECAN
F2

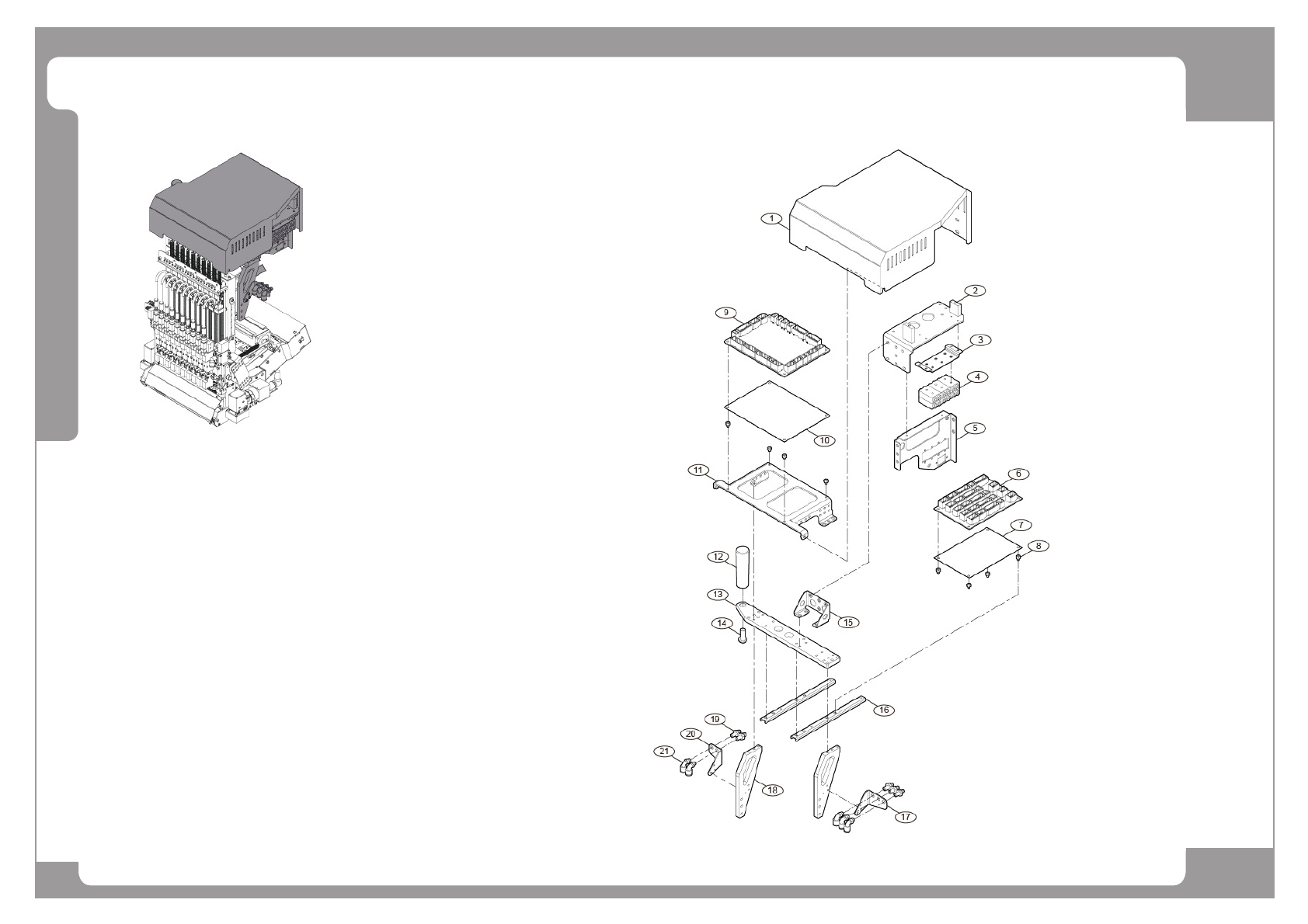

Head (1/6)
Page
+$1:+$
119
DECAN
F2
Head (1/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-001388A HEAD TOP COVER 1
2 FC09-001568A FLAT_CABLE_BKT 1
3 FC09-001847A FITTING_BKT 1
4 J1301070 STRAIGHT_CONNETOR_FITTING 6
5 FC09-003535B HEAD_BKT_PANEL 1 FC09-001573A/ FC09-003535A
6 AM03-005341B MOTOR_IF_BOARD 1 AM03-005341A
7 FC36-000187A MOTOR_IF_BOARD_SHEET 1 FC30-000991A
8 FC29-900610 HEX SUPPORT 8
9 AM03-005337A HEAD IF BOARD 1
10 FC36-000186A IF_BOARD_SHEET 1 FC30-000990A
11 FC09-001574A HEAD_BOARD_BRACKET 1
12 FC29-900148 HANDLE 1
13 FC09-001575A HARNESS_PLATE 1
14 FC18-902795 BUTTON_HEAD_CAP_SCREW 1
15 FC09-001690A HEAD_BKT_FIX 1
16 FC09-001576A MOTOR_IF_BOARD_BKT 2
17 J70541016A 3-NIPPLE_BRACKET 1
18 J71541016B HARNESS_SUPPORT 2
19 FC28-900369 GREASE NIPPLE 5
20 FC09-004665A 2-NIPPLE_BRACKET 1 J70541017A
21 HP06-900079 ELBOW_UNION_FEMALE 5
