Page
+$1:+$
126

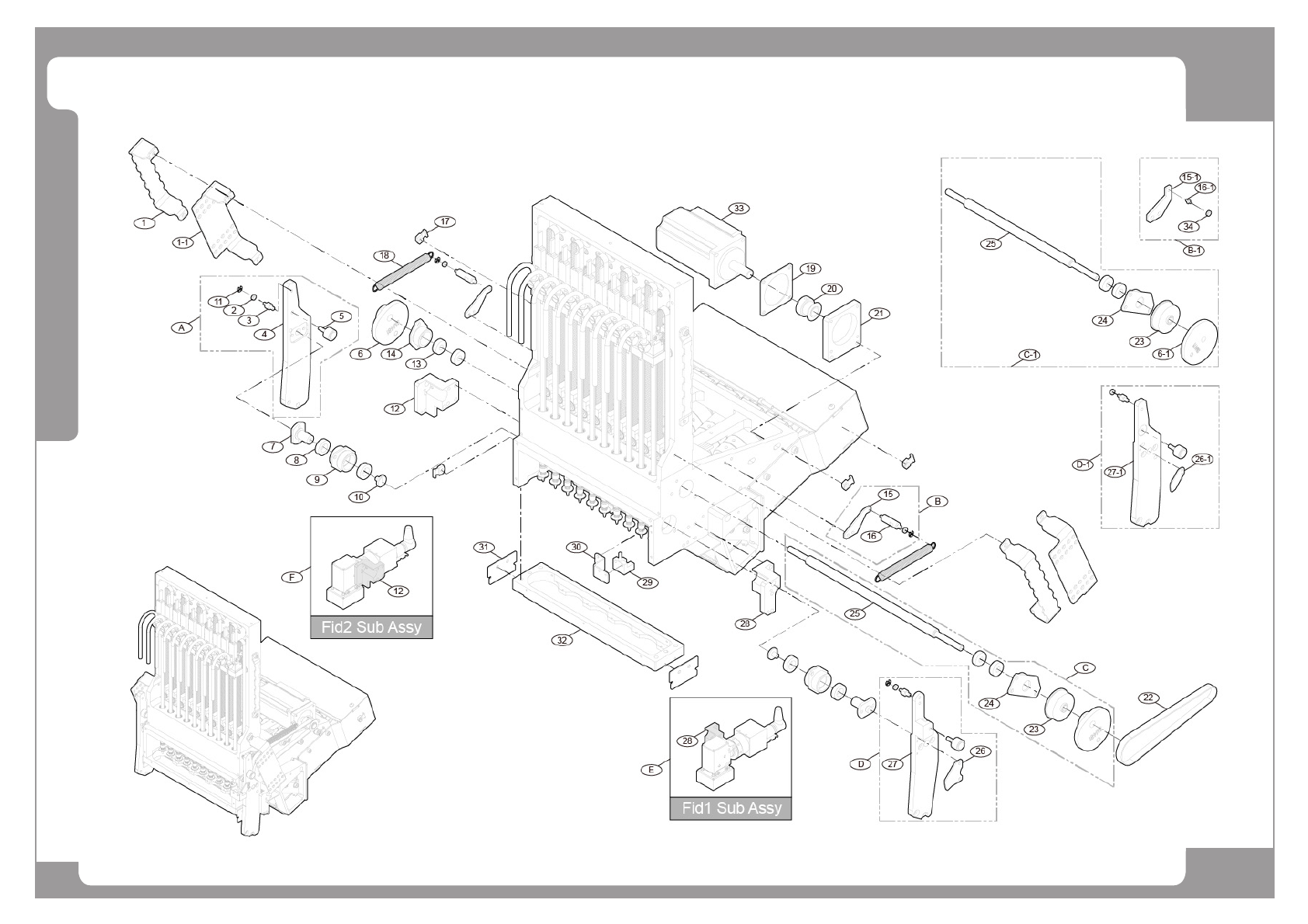

DECAN
F2
Head (4/6)
Page
+$1:+$
127
DECAN
F2
Head (4/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-002295A 481_TIE_MOUNT_1 2
1-1 FC09-003365A TIE MOUNT 2 ONLY FOR HS HEAD
A AM03-012549A ASSY,HEAD-MIRROR LINK L FS 1
AM03-010692A ASSY,HEAD-MIRROR LINK 2 1 ONLY FOR HS HEAD
2 J7455026A SPRING_BUSH 4
3 FC29-004275A SPRING_POST-MOVING 2 J70551042A
4 FC30-002025A MIRROR LINK L 1
FC30-001677A MIRROR_LINK_2 1 ONLY FOR HS HEAD
5 MC11-900055 CAM FOLLOWER 2
6 MC11-000591A SM481_CAM 2
6-1 MC11-000434A SM411PLUS_CAM 2 ONLY FOR HS HEAD
7 J7055204A ARM_JOINT 2
8 MC03-900034 BALL_BEARING 4
9 J7055205A WC 2
10 FC18-001484A MIRROR_SCREW 2 J7055153A
11 FC18-901347 E-RING[DIA1.5(SUS)] 4
12 AM03-006152A ASSY,HEAD-FID2_SUB_ASSY 1
13 MC03-900033 BALL BEARING 695ZZ 4
14 J7055163A BEARING_HOUSING 1
B AM03-007750A RIGHT_SPRING_POST_ASSY 1
15 FC09-002292A MIRROR_SPRING_BRACKET 2
16 FC09-001553B MIRROR_PIN_3 2 FC09-001553A
16-1 J7055559A MIRROR_PIN_2 2 ONLY FOR HS HEAD
B-1 AM03-005841A ASSY,HEAD-LINK1_SPRING_POST_ASSY 1 ONLY FOR HS HEAD
15-1 J7055560A MIRROR SPRING BRACKET[J7055560A] 2 ONLY FOR HS HEAD
17 FC18-903190 PROFILE MOUNT 4
18 FC38-900011 SPRING 2
19 J7255081A MIRROR MOTOR ISOLATOR 1
20 J7155523A PULLEY(S-AXIS) 1
21 FC30-000805B PLATE-MIRROR_MOTOR_BKT;A6061-T6 1 FC30-000805A
22 MC05-900048 TIMING BELT 1
Page
+$1:+$
128
DECAN
F2
Head (4/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
C AM03-007751A SM481_MIRROR_SHAFT_ASSY 1
C-1 AM03-005837A ASSY,HEAD-MIRROR_SHAFT_ASSY 1 ONLY FOR HS HEAD
23 J71551026A PULLEY-S_AXIS1 1
24 J7055557A BEARING_HOUSING 1
25 MC19-000345A MIRROR_SHAFT 1
D AM03-012548A MT511A-HD040A-MIRROR_LINK_R 1
26 FC30-001164A PLATE-481_S_SENSOR_DOG 1
27 FC30-002024A MIRROR LINK R 1
D-1 AM03-010691A ASSY,HEAD-MIRROR LINK 1 1 ONLY FOR HS HEAD
26-1 FC29-001100A S_SENSOR_DOG 1 ONLY FOR HS HEAD
27-1 FC30-001676A MIRROR_LINK_1 1 ONLY FOR HS HEAD
28 AM03-006153A ASSY,HEAD-FID1_SUB_ASSY 1
29 EP19-900119 SENSOR_PM_L24 1
30 FC09-001557A S_SENSOR_BKT 1
31 FC09-001514A BRACKET-SM411_PLUS_MIRROR_BRACKET 2
FC09-002294B BRACKET-MIRROR_BRACKET 2 FC09-002294A ONLY FOR HS HEAD
32 FC30-001147A SM481_REF_PLATE 1
FC30-001675A REF PLATE 1 ONLY FOR HS HEAD
33 AM03-015237A CABLE ASSY-SWING MOTOR 1
34 J7455026A SPRING_BUSH 2
ONLY FOR HS HEAD
