Page +$1:+$ 131 DECAN F2 Head (5/6) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC30-000975A FID_CAM2_COVER 1 A AM03-006151A ASSY ,HEAD-COAXIA L_SUB_ASSY 1 2 FC09-001560A FL Y_SIDE_PLA TE2 1 …
Page
+$1:+$
130
DECAN
F2

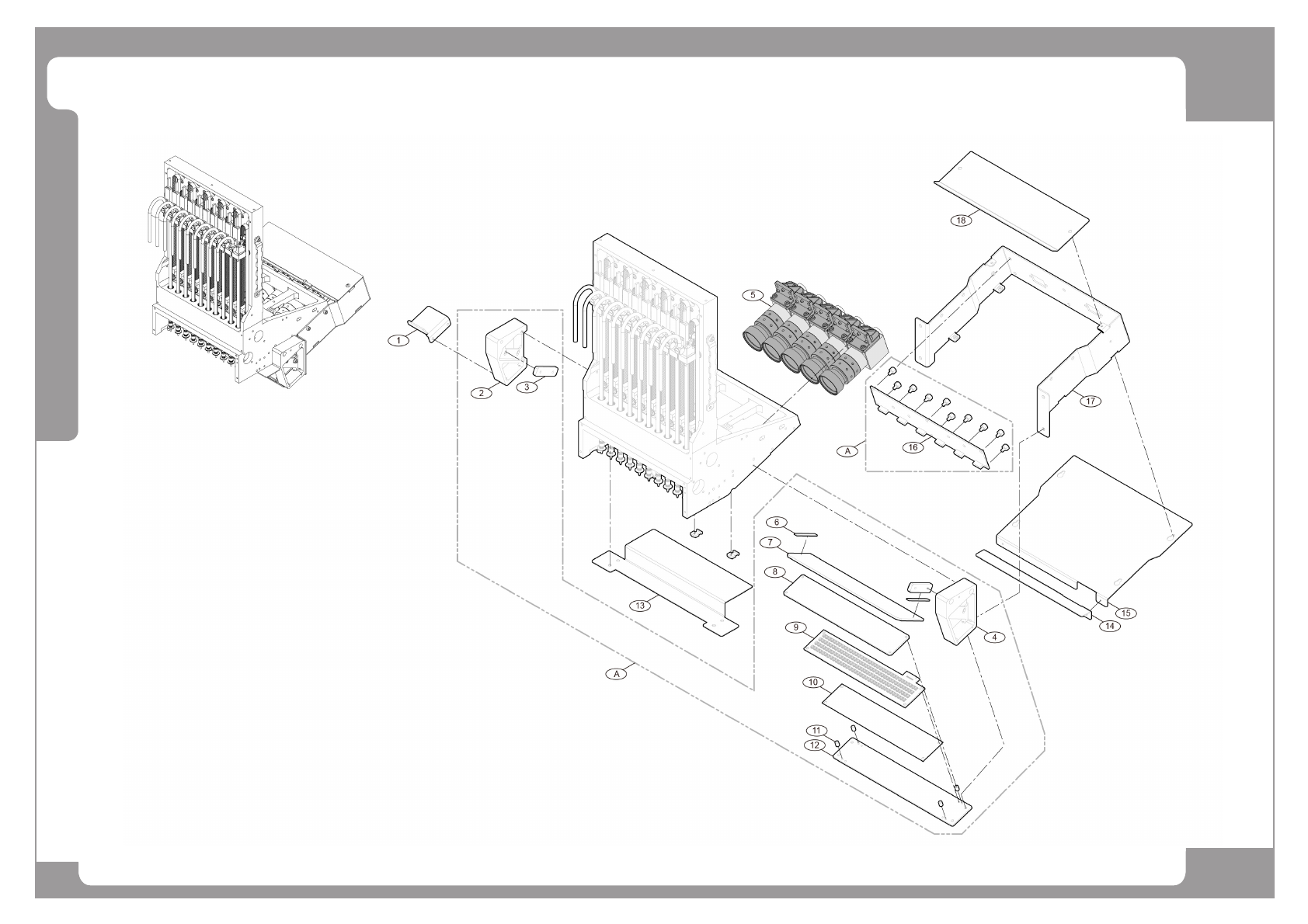

Head (5/6)
Page
+$1:+$
131
DECAN
F2
Head (5/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC30-000975A FID_CAM2_COVER 1
A AM03-006151A ASSY,HEAD-COAXIAL_SUB_ASSY 1
2 FC09-001560A FLY_SIDE_PLATE2 1
3 FC09-001561C FLY_CAM_COVER 1 FC09-001561A/ FC09-001561B
4 FC09-001559A FLY_SIDE_PLATE1 1
5 AM03-020421A ASSY,OPTICS-FLYING_CAMERA_ONE KIT_SM471 5
6 FC10-000046 RUBBER 2
7 FC09-001562A FLY_IO_TOP_COVER 1
8 RM03-000022A SM411_PLUS_COAXIAL_DIFFUSEER 1
9 AM03-005100B SM471_FLY_COAXIAL_PCB_ASSY 1
10 FC36-000038A SM471_FLY_COAXIAL_INSULATION 1
11 AM06-000358A SM400_CAMERA_IO_BD 1
12 FC09-001848A COAXIAL_PLATE 1
13 FC15-001311A LIGHT_COVER 1
FC09-001567A LIGHT_COVER 1 ONLY FOR HS HEAD
14 FC30-000971A COAXIAL_COVER 1
15 FC09-001563A FLY_IO_BOTTOM_COVER 1
A AM03-006110A FLY_IO_BOARD_ASSY 1
Page
+$1:+$
132
DECAN
F2
Head (6/6)
