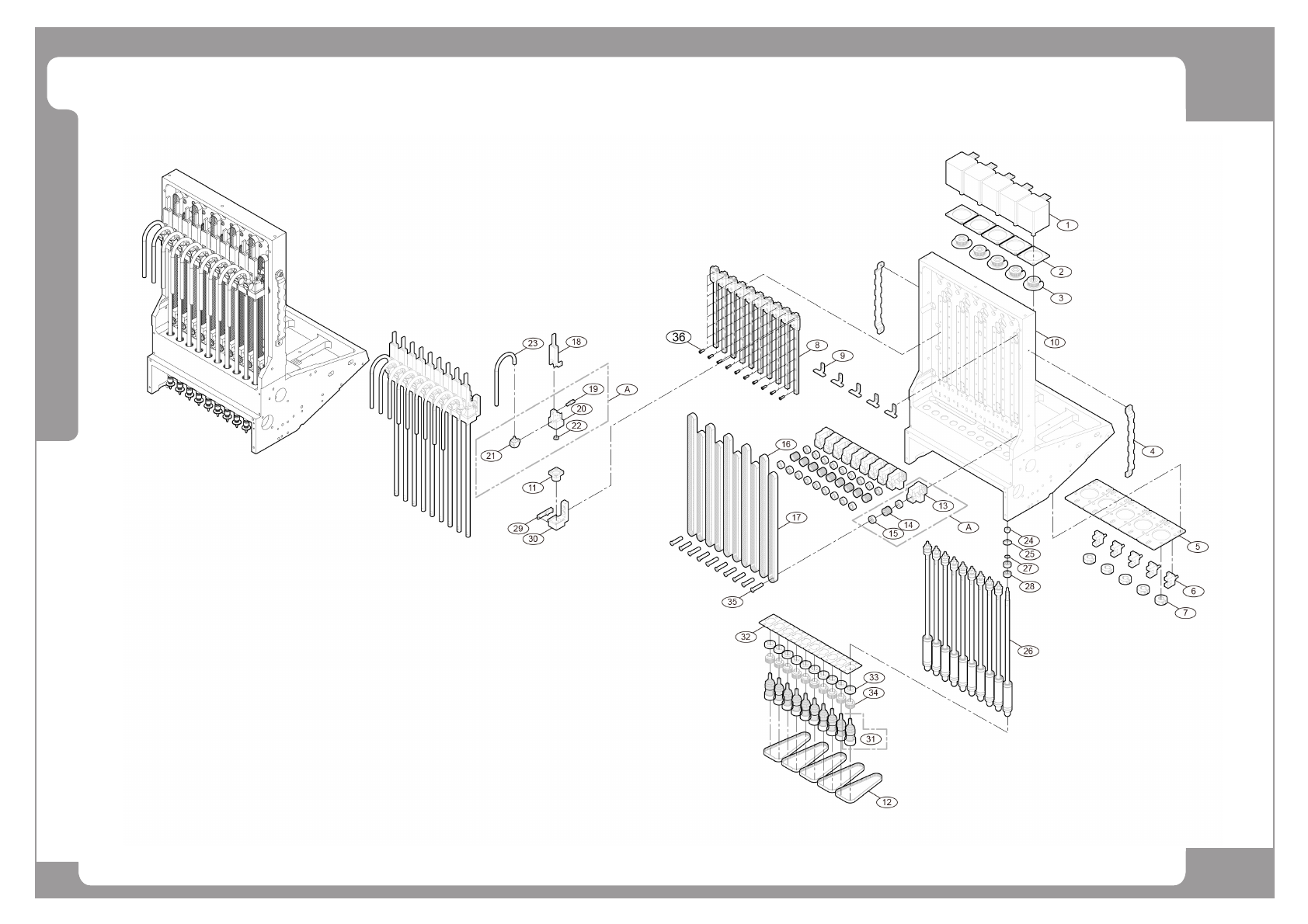

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-008031A CABLE ASSY-R_MOTOR 5
2 FC30-000797A INSULATION_PLATE 5
3 MC19-000340A T_MOTOR_PULLEY 5
4 J71551021A TIME_MOUNTER_E 2
5 FC30-000798A STEP_MOTOR_PLATE 5
6 EP19-900134 PHOTO_SENSOR 5
7 FC09-001501A T_M_PULLEY_CLAMP 5
8 MC13-000268 LM_GUIDE 10
9 FC30-001133A Z_STOP_PLATE_TOP 5
10 FC39-001352A MAIN BODY 1
11 FC09-001489A Z_TOP_HOUSING 10
12 MC05-000120 TIMING_BELT 5
A AM03-005843A ASSY,HEAD-Z_IDLE_ASSY 10
13 FC18-902001 PRECISION_S_PLUS_BOLT_M2X6 KN219-M2X6 80
14 J71551848A Z_IDLER_PULLEY 10
15 J66011095A BEARING 20
16 MC05-000117 TIMING BELT 5
17 MC05-000119 TIMING BELT 5
18 FC09-001493A Z_SENSOR_DOG 10
A AM03-005845A ASSY,HEAD-Z CAP ASSY 10
19 FC29-004278A PIN_Z 10 J7155541A
20 FC09-001881A Z_CAP 10
21 HP06-900059 BOB ELBOW FITTING 10
22 HP12-000105 Y_PACKING 10
23 HP13-000044 VACUUM_TUBE 10
24 FC09-001490A LOCK_NUT_Z 10
25 FC18-001724A WAVE WASHER 10 FC18-000960
26 MC13-000172 BALL SPLINE ASSY 10
27 FC29-000176 Z_SPACER 10
28 MC03-900127 BALL_BEARING-684ZZ 10
29 FC09-001492C Z_BELT_CLAMP 10 FC09-001492B ONLY FOR HS HEAD
Page
+$1:+$
134
DECAN
F2
Head (6/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
30 FC29-001047B Z_ROD_HOUSING 10 ONLY FOR HS HEAD
31 J90551225A_AS 431_NOZZLE_HOLDER_ASSY 10
32 FC30-000927A PLATE-BEARING_P_PLATE;SPCC 10
33 FC09-001494A S_PULLEY_CLAMP 10
34 MC19-000339A SPINDLE_PULLEY 10
35 J70551874A Z_IDLE_SHAFT 10
36
