Page +$1:+$ 196 DECAN F2 Electric Power (9/9) 1 2 1 2 1 CONTROL BOX 1L1 1L2 FROM CP1 1L2 1L1 1L1 AC220V 0.75mm 91 2 58 RY 1 1 SC +24V 24G 13 14 SM51 1_PW149-1 (PC RACK) AM03-01 1656A RELA Y -BK2 RELA Y -BK2 SM51 1_PW149-…
Page
+$1:+$
195
DECAN
F2
Electric Power (8/9)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010930A CABLE ASSY-PS5_PS6_DC24V_PWR 2
2 AM03-010946A CABLE ASSY-RY3_RY5_T7L 1
3 AM03-011656A CABLE ASSY-RELAY BRK MODULE AC_DC-DC 3
4 AM03-010938A CABLE ASSY-PS1_PS2_SACO_T6L 2
5 AM03-010945A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 2
6 AM03-011270A CABLE ASSY-GENERAL_PW_RELAY 1
7 AM03-011272A CABLE ASSY-FEEDER_PW_RELAY 1
8 AM03-011657A CABLE ASSY-RELAY BRK MODULE DC-DC 1
9 AM03-900148 RELAY_CONNECT_CABLE_ASSY SM41-PW034 1
10 AM03-011275A CABLE ASSY-RY_BRK_220V_24V_PC_PWR 2
11 AM03-011658A CABLE ASSY-F FDR BASE PWR DC 1
12 AM03-011655A CABLE ASSY-RY7_RY9 T7L DC 1
13 AM03-011659A CABLE ASSY-R FDR BASE PWR DC 1
Page
+$1:+$
196
DECAN
F2

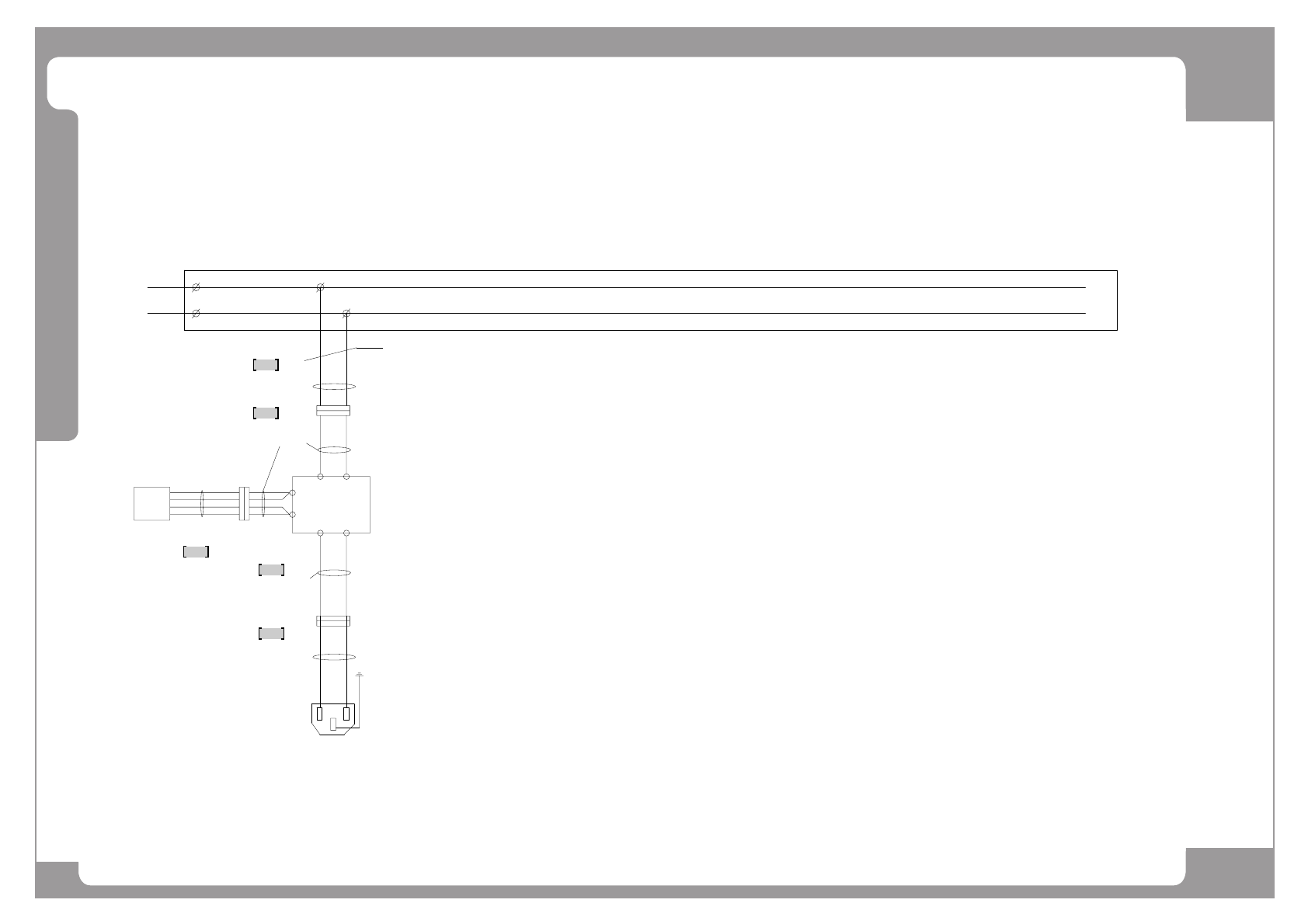

Electric Power (9/9)
1
2
1
2
1
CONTROL BOX
1L1 1L2
FROM CP1
1L2
1L1
1L1
AC220V
0.75mm
912
58
RY 11
SC
+24V
24G
13
14
SM511_PW149-1
(PC RACK)
AM03-011656A
RELAY-BK2
RELAY-BK2
SM511_PW149-DC
SM511_PW149-1
-CN24
AM03-011275A
AM03-011656A
AM03-011275A
SM511_PW149-DC
AM03-011275A
SM511_PW149-1
6A
6C
1A 1C
78
78
56
56
9
10
11
12
9
10
11
12
1
2
3
4
PE03
2
OPTION-DOCKING CART
YLP-16V
YLR-16V
YLP-16V
YLR-16V
Page
+$1:+$
197
DECAN
F2
Electric Power (9/9)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011275A CABLE ASSY-RY_BRK_220V_24V_PC_PWR 3
2 AM03-011656A CABLE ASSY-RELAY BRK MODULE AC_DC-DC 2
