Page +$1:+$ 216 DECAN F2 Rear Feeder Board Interface (1/3)
Page
+$1:+$
215
DECAN
F2
Front Feeder Board Interface (3/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J9080852D LEFT FDR SOL OUTPUT CABLE ASSY, D-CART[S 1
2 AM03-001739A CABLE ASSY-FEEDER CN7 EXT CABLE ASSY 1
3 AM03-011269A CABLE ASSY-F_R_FDR_PWR_RELAY 1
4 AM03-011273B CABLE ASSY-RELAY_BRK_MODULE_DC 1
5 J9080853B RIGHT FDR SOL OUTPUT CABLE ASSY, D-CART 1
Page
+$1:+$
216
DECAN
F2
Rear Feeder Board Interface (1/3)
Page
+$1:+$
217
DECAN
F2

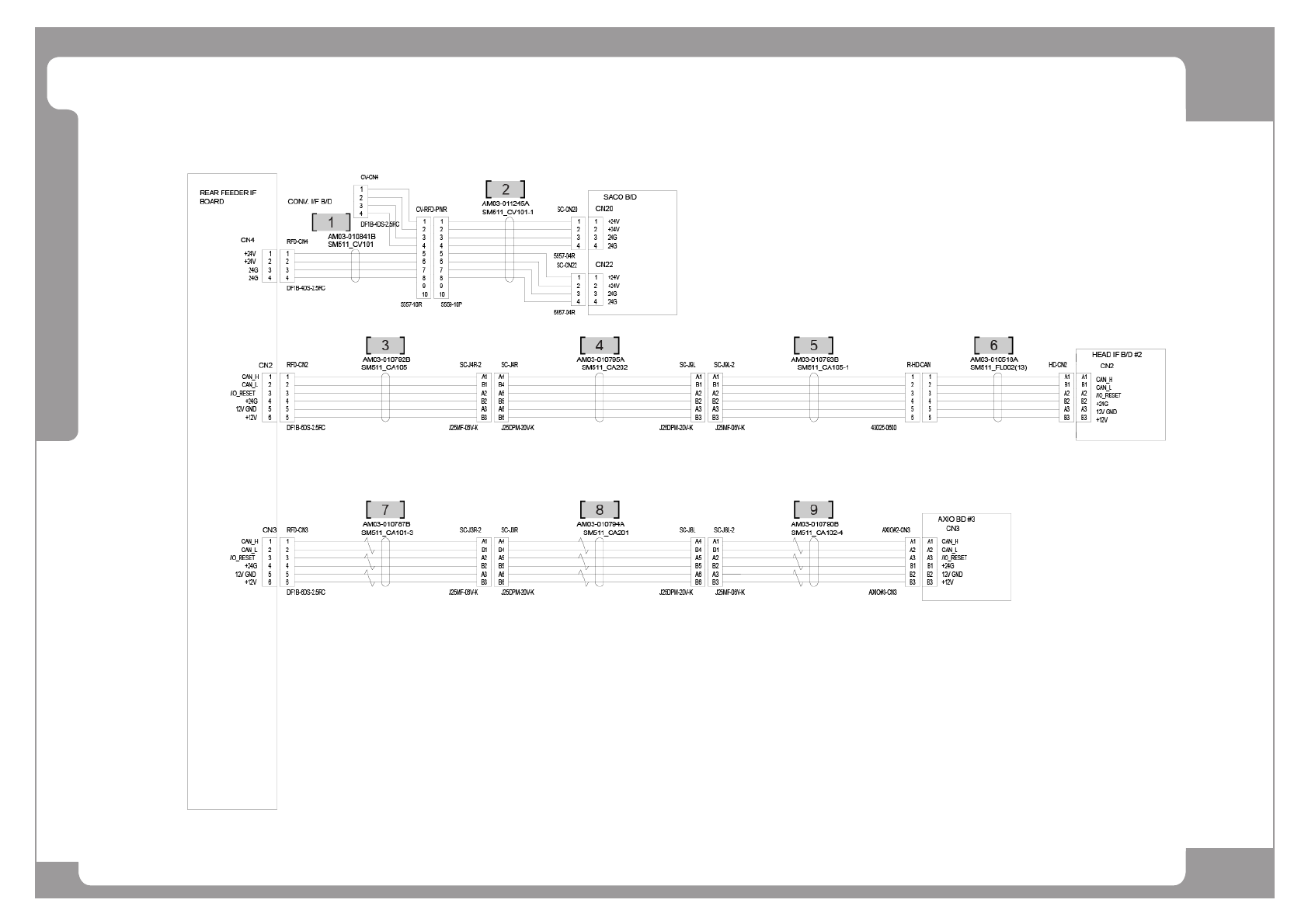

Rear Feeder Board Interface (1/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010841C CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1
2 AM03-011245A CABLE ASSY-CV_RDF_PWR_EXT 1
3 AM03-010792B CABLE ASSY-RFDR-REAR_FLAT_CAN_J4R 1
4 AM03-010795A CABLE ASSY-CAN_TW_J4R-J9L 1
5 AM03-010793C CABLE ASSY-RFDR-REAR_FLAT_CAN_J9L 1 AM03-010793B
6 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
7 AM03-010787B CABLE ASSY-AXIO_BD_3_RFD_CAN_J3R 1
8 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1
9 AM03-010790C CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L 1 AM03-010790B
