Page +$1:+$ 272 DECAN F2 Axis Sensor Board (1/6)
Page
+$1:+$
271
DECAN
F2
Head IF Board (5/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005588B CABLE ASSY-FID1_COAX 1
2 AM03-005589A CABLE ASSY-FID2_COAX 1
3 AM03-005590B CABLE ASSY-FLY_SIDE_1 1
4 AM03-005598A CABLE ASSY-FLY_COAXIAL 1
5 AM03-005584A CABLE ASSY-HEAD_VAC_SENSOR 1
Page
+$1:+$
272
DECAN
F2

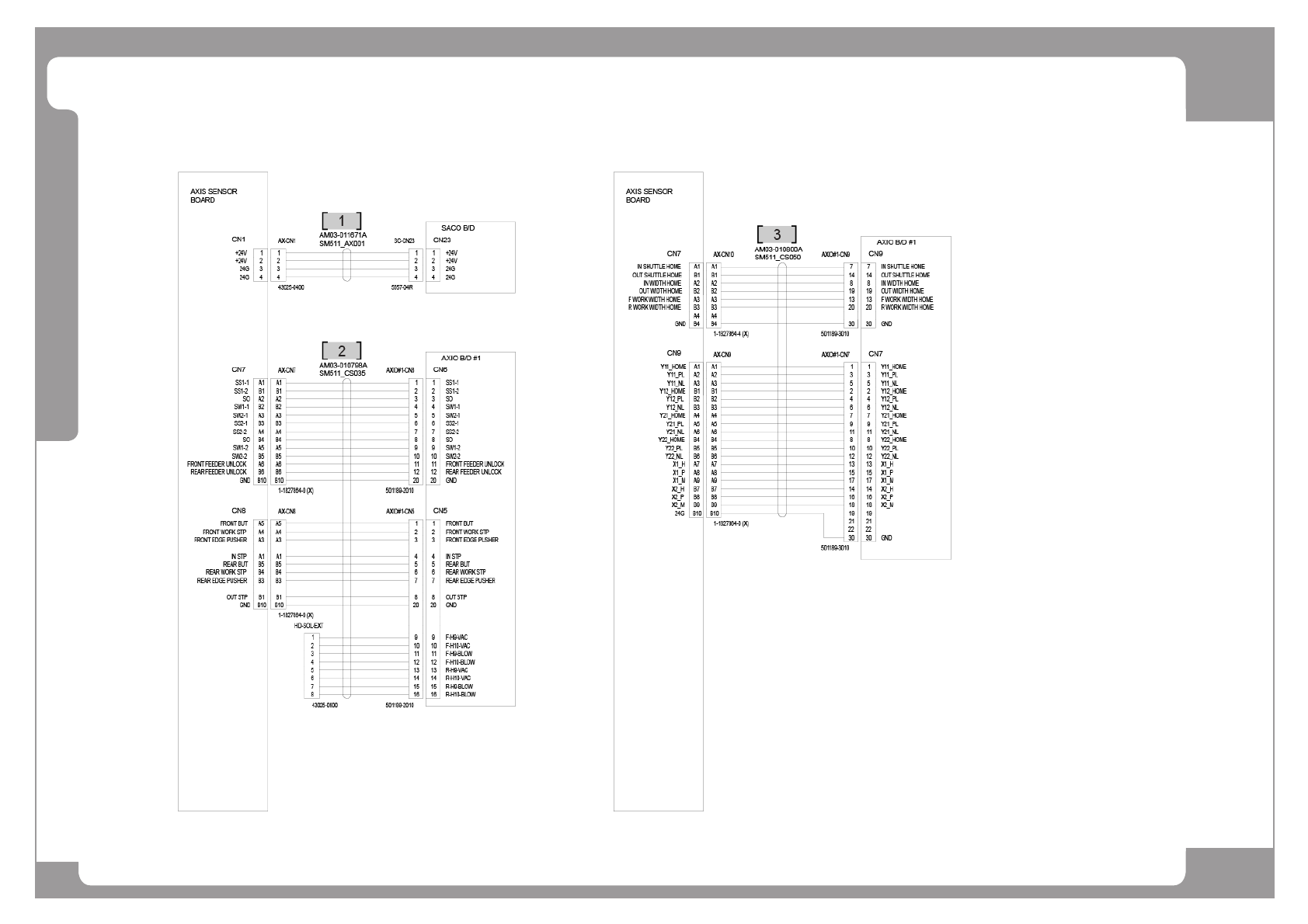

Axis Sensor Board (1/6)
Page
+$1:+$
273
DECAN
F2
Axis Sensor Board (1/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011671A CABLE ASSY-AXIS_SENSOR_BD_PW 1
2 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 1
3 AM03-010800A CABLE ASSY-AXIS_SNS_BD_CN9_10 1
