Page +$1:+$ 324 DECAN F2 Safety Contro l Board (5/8)
Page
+$1:+$
323
DECAN
F2

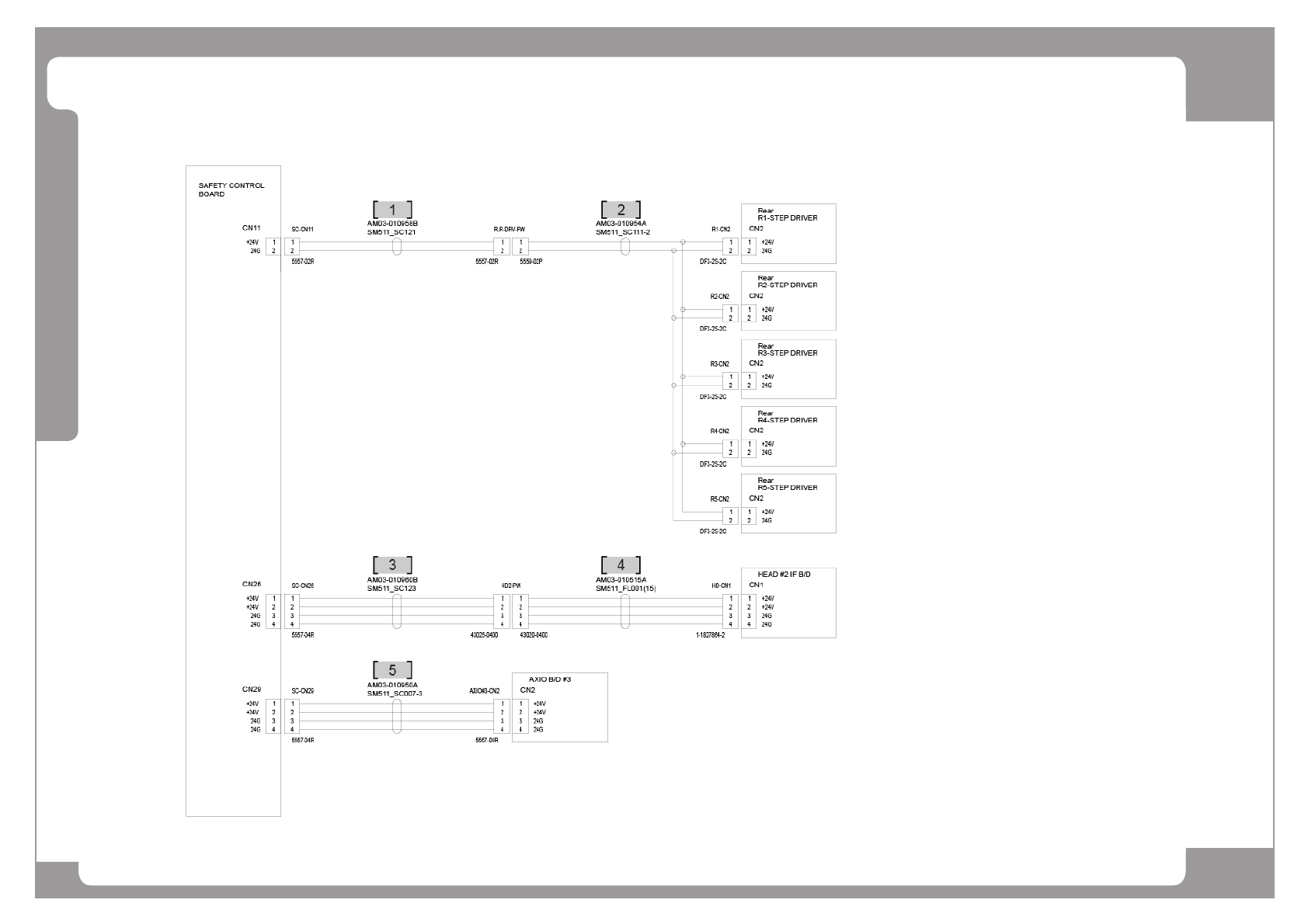

Safety Control Board (4/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010957A CABLE ASSY-FR_STEP_DRV_PWR_EXT 1
2 AM03-010954A CABLE ASSY-R_STEP_DRV_PWR 1
3 AM03-010959A CABLE ASSY-HEAD1_PWR_EXT 1
4 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
5 AM03-010949A CABLE ASSY-AXIO_BD_2_PWR 1
Page
+$1:+$
324
DECAN
F2
Safety Control Board (5/8)
Page
+$1:+$
325
DECAN
F2
Safety Control Board (5/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010958C CABLE ASSY-RR_STEP_DRV_PWR_EXT 1
2 AM03-010954A CABLE ASSY-R_STEP_DRV_PWR 1
3 AM03-010960B CABLE ASSY-HEAD2_PWR_EXT 1
4 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
5 AM03-010950A CABLE ASSY-AXIO_BD_3_PWR 1
