Page +$1:+$ 341 DECAN F2 Motor IF Board (5/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-01 1250A CABLE A SSY -Z91 0_DRV_COMMAND 1 2 AM03-013439 A CABLE ASSY -SM51 1 FLA T 2 1 AM03-010…
Page
+$1:+$
340
DECAN
F2

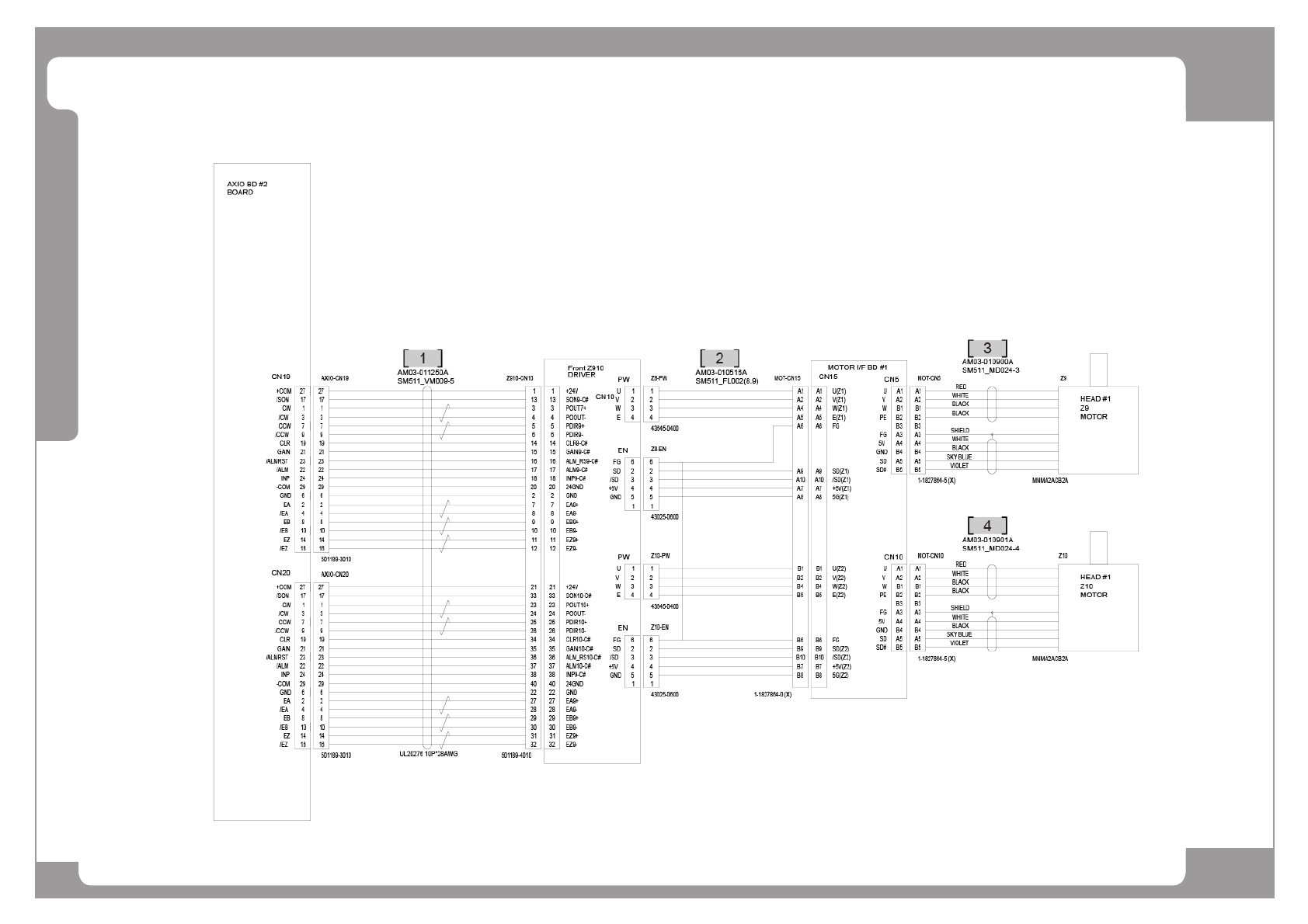

Motor IF Board (5/18)
Page
+$1:+$
341
DECAN
F2
Motor IF Board (5/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011250A CABLE ASSY-Z910_DRV_COMMAND 1
2 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
3 AM03-010900A CABLE ASSY-Z9_MOTOR 1
4 AM03-010901A CABLE ASSY-Z10_MOTOR 1
Page
+$1:+$
342
DECAN
F2
Motor IF Board (6/18)
