Page +$1:+$ 349 DECAN F2 Motor IF Board (9/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005703 A CABLE ASSY -HD_V AC-BLOW_H1-H8 1 2 AM03-013438 A CABLE ASSY -SM51 1 FLA T 1 1 AM03-010…
Page
+$1:+$
348
DECAN
F2
Motor IF Board (9/18)
Page
+$1:+$
349

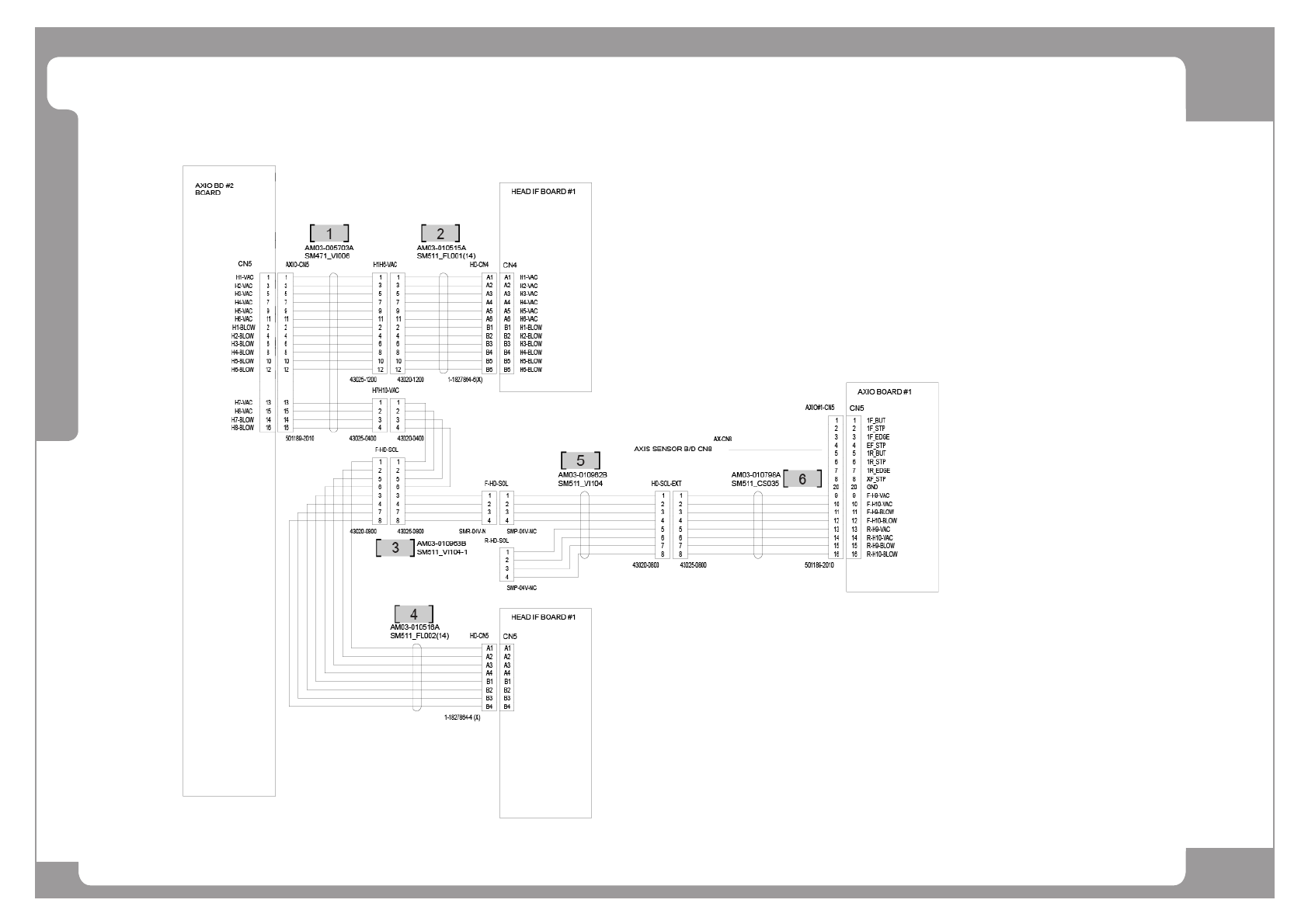

DECAN
F2
Motor IF Board (9/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1
2 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
3 AM03-010963B CABLE ASSY-HD1_VAC-BLOW_CTRL 1
4 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
5 AM03-010962B CABLE ASSY-HD_VAC-BLOW_CTRL 1
6 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 1
Page
+$1:+$
350
DECAN
F2
Motor IF Board (10/18)
